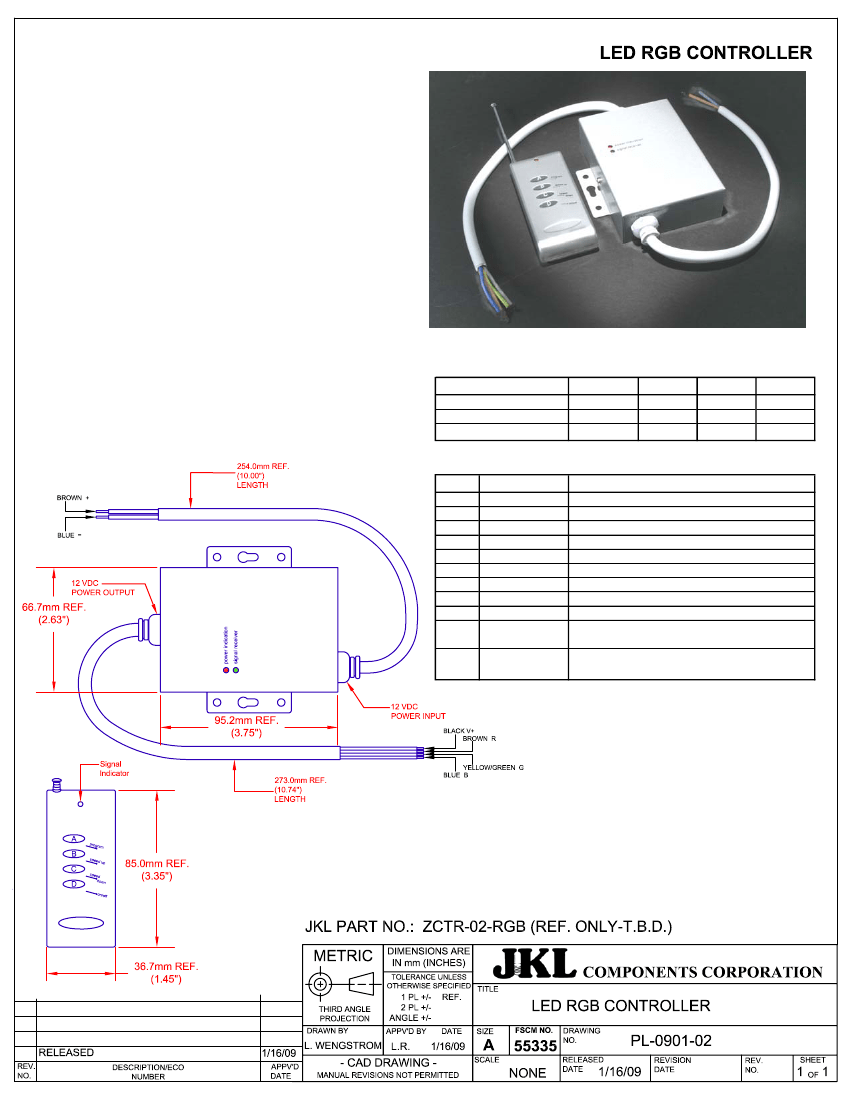

The LED RGB Controller is designed for LED
lighting color control. It can control modules,
LED ribbons, LED bars, High Power LED modules
and other LED lighting fixtures. The LED RGB
Controller comes complete with a matched four
button wireless Remote Controller and a“23A 12V”
battery for the Remote Controller operation.
FEATURES
•
•
•
•
•
•
•
Four Button Wireless Remote Control
11 Control Modes
Rate Control for Cycling Color Changes
Common Anode CMOS Outputs
Indicators for Power-On for the LED Controller, and
Signal Sent and Received on the Remote and LED
Controller respectively
Operates up to 8 JKL LED Light Bars, reference
P/N ZRS-10573-RGB
RATINGS
CHARACTERISTICS
Input Voltage
Load Current
Operating Temperature
UNIT
Volts DC
Amps
degrees C
MINIMUM
TYPICAL
12
4
MAXIMUM
6
60
-20
MODES
MODE #
1
2
3
4
5
6
7
8
9
10
11
TITLE
Static Red
Static Green
Static Blue
Static Yellow
Static Cyan
Static Violet
Static White
Flash Cycle #1
Flash Cycle #2
Gradual Cycle #1
Gradual Cycle #2
DESCRIPTION
The "R" output is constantly ON
The "G" output is constantly ON
The "B" output is constantly ON
The "R and G" output is constantly ON
The "G and B" outputs are constantly ON
The "R, and B" outputs are constantly ON
The "R, G, and B" outputs are constantly ON
The "R, B, and G" outputs go ON and OFF in order
All the static colors come ON and OFF in a sequence
The "R, G, and B" output go ON and OFF in order
with overlap between colors
All the static colors come ON and OFF in a sequence
with overlap between colors
