Series P
Toggles
Internationally Approved Rockers/Paddles
Rockers
General
Specifications
B
Electrical Capacity
Resistive Load:
Motor Load:
Lamp Load:
10A @ 125V AC or 6A @ 250V AC
400W @ 125V AC
2A @ 125V AC for On-Off-On circuit & 3A @ 125V AC for other circuits
Pushbuttons
Other Ratings
Programmable Illuminated PB
Contact Resistance:
Insulation Resistance:
Dielectric Strength:
Mechanical Life:
Electrical Life:
Angle of Throw:
10 milliohms maximum
1,000 megohms minimum @ 500V DC
2,000V AC minimum between contacts for 1 minute minimum;
4,000V AC minimum between contacts & case for 1 minute minimum
50,000 operations minimum
25,000 operations minimum
25°
Materials & Finishes
Frame:
Case/Base:
Movable Contacts:
Stationary Contacts:
Terminals:
Stainless steel
Diallyl phthalate resin (UL94V-0)
Silver alloy with silver plating
Pure silver with silver plating
Copper with silver plating
Rotaries
Keylocks
Environmental Data
Operating Temp Range:
Humidity:
Vibration:
Shock:
Slides
–10°C through +85°C (+14°F through +185°F)
90 ~ 95% humidity for 96 hours @ 40°C (104°F)
10 ~ 55Hz with peak-to-peak amplitude of 1.5mm traversing the frequency range & returning
in 1 minute; 3 right angled directions for 2 hours
50G (490m/s
2
) acceleration (tested in 6 right angled directions, with 5 shocks in each direction)
Installation
Tactiles
Soldering Time & Temp:
Cleaning:
Wave Soldering (Straight PC): See Profile A in Supplement section.
Manual Soldering: See Profile A in Supplement section.
These devices are not process sealed. Hand clean locally using alcohol based solution.
Standards & Certifications
Tilt
Flammability Standards:
UL:
UL94V-0 rated case/base
File No. E44145 - Recognized only when ordered with marking on switch.
Add “/U” before dash in part number to order UL recognized switch.
Add “/CUL” before dash in part number to order cULus recognized switch.
All models recognized at 10A @ 125V AC & 6A @ 250V AC.
File No. 023535_0_000 - Certified only when ordered with marking on switch.
Add “/C” before dash in part number to order CSA certified switch.
All models certified at 10A @ 125V AC & 6A @ 250V AC.
License No. 119174
All models approved at 10A @ 125V AC & 6A @ 250V AC.
Marking on switch is standard. All models meet EN 61058-1 standard.
Touch
CSA:
Indicators
VDE:
Supplement
Accessories
B114
www.nkk.com
Internationally Approved Rockers/Paddles
Series P
Toggles
Meets EN 61058-1 standard.
B

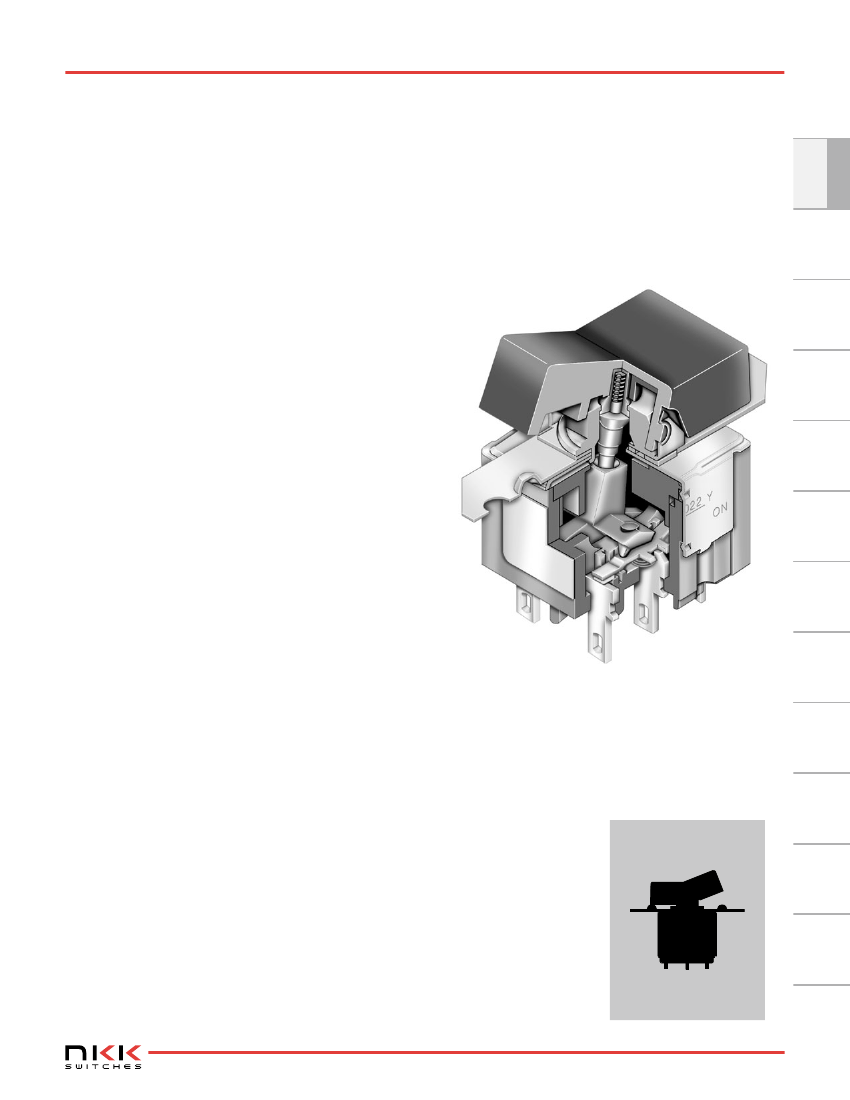

Contacts of special silver alloy resist arcing and guarantee
stable electrical contact and long life.
Stainless steel frame resists corrosion and increases
environmental safety.
Epoxy sealed terminals prevent entry of flux, solvents, and
other contaminants.
Actual Size
www.nkk.com
B115
Supplement
Accessories
Indicators
Touch
Tilt
Tactiles
Clinching of the frame to the case well above the base
and terminals provides 4,000V dielectric strength.
Slides
Prominent external insulating barriers increase
insulation resistance and dielectric strength.
Rotaries
Case/base of heat resistant resin meets
UL94V-0 flammability standard.
Keylocks
High insulating barriers increase isolation of
circuits in double pole devices and provide
added protection to contact points.
Programmable Illuminated PB
Pushbuttons
Rockers
Distinctive
Characteristics
Series P
Toggles
Internationally Approved Rockers/Paddles
TYPICAL SWITCH ORDERING EXAMPLE
Rockers
B
P20
Poles & Circuits
11
12
13
21
22
23
SPST
SPDT
SPDT
DPST
DPDT
DPDT
ON
ON
ON
ON
ON
ON
NONE
NONE
OFF
NONE
NONE
OFF
22
OFF
ON
ON
OFF
ON
ON
Y
Terminals
No
Code
P
Z
Solder Lug*
Straight PC
.187” (4.75mm)
Quick Connect
J
C
Keylocks
Programmable Illuminated PB
Pushbuttons
Paddle/Rocker Frames
N
Y
Frame for Small Caps
Frame for Large Caps
D
E
J
Rocker/Paddle Caps
For N Frame
.365” (9.27mm) Wide Rocker
.365” (9.27mm) Wide Paddle
For Y Frame
.595” (15.11mm) Wide Rocker
.595” (15.11mm) Wide Paddle
H
Cap Colors
A
B
C
E
F
G
H
Black
White
Red
Yellow
Green
Blue
Gray
Slides
Rotaries
IMPORTANT:
VDE is marked on all models.
Switches are supplied without UL,
cULus & CSA marking unless specified.
UL, cULus & CSA recognized only when
ordered with marking on the switch.
Specific models, ratings, & ordering in-
structions are noted on General Specifi-
cations page.
Tactiles
*
Wire harness & cable assemblies
offered only in Americas
Tilt
Touch
DESCRIPTION FOR TYPICAL ORDERING EXAMPLE
P2022Y-JC
.595” (15.11mm) Wide
Red Rocker
DPDT
ON-NONE-ON Circuit
Frame for Large Caps
Accessories
Indicators
Solder Lug Terminals
Supplement
B116
www.nkk.com
Internationally Approved Rockers/Paddles

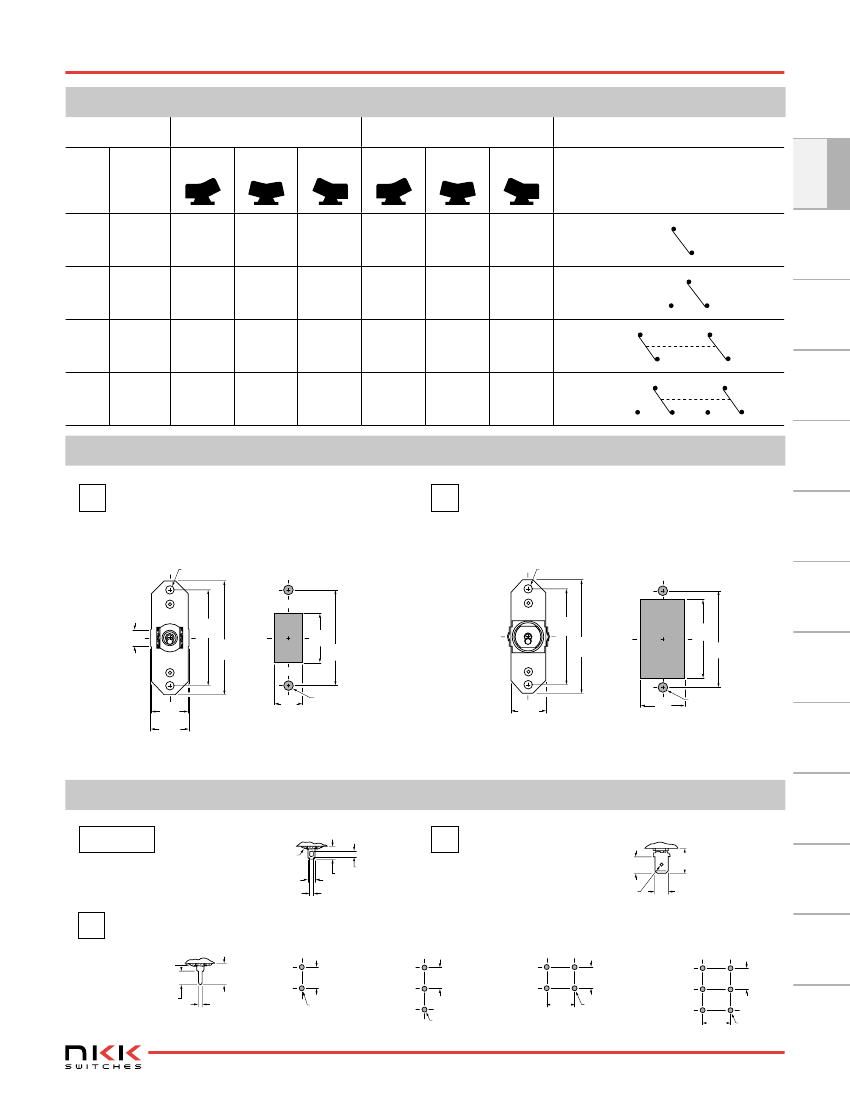

POLES & CIRCUITS
Rocker Position
Down
Pole
Model
Center
Up
Connected Terminals
Down
Center
Up
Series P
Throw & Schematics
Note: Terminal numbers are on the
switch.
1 (COM)
B
SP
P2011
P2012
P2013
P2021
P2022
P2023
ON
ON
ON
ON
ON
ON
NONE
NONE
OFF
NONE
NONE
OFF
OFF
ON
ON
OFF
ON
ON
1-1b
OPEN
OPEN
SPST
1b
1 (COM)
SP
1-1b
1-1b
2-2b
1-1b
2-2b
OPEN
1-1a
SPDT
1
1a
(COM)
1b
1
(COM)
1b
2a
2
1b
DP
OPEN
OPEN
1-1a
2-2a
DPST
2b
2
2b
DP
OPEN
DPDT
1a
ROCKER/PADDLE FRAMES
N
Frame for
Small Actuator
Using AT4148 & AT4149
(3.2) Dia Typ
.126
Using AT4156 & AT4157
(3.2) Dia Typ
.126
(6.0)
.236
(34.9)
1.374
(41.3)
1.626
(17.8)
.701
Maximum Panel Thickness: .126” (3.2mm)
Maximum Panel Thickness: .126” (3.2mm)
No Code
Solder Lug
Straight PC
Epoxy Seal
(4.8)
.189
1b
(7.6)
.299
(1.17)
.046
Thk = (1.0)
.039
1b
2b
1b
2b
1b
SPST
1
(7.62) Typ
.300
(1.8) Dia Typ
.071
SPDT
1
(7.62) Typ
.300
DPST
2
1
(7.62) Typ
.300
(1.8) Dia Typ
.071
DPDT
2
1
(7.62) Typ
.300
1a
(1.8) Dia Typ
.071
(10.16)
.400
2a
1a
(10.16)
.400
(1.8) Dia Typ
.071
www.nkk.com
B117
Supplement
Accessories
P
(2.0)
(4.5) .079
(2.6)
.177
.102
(1.25)
.049
Thk = (1.0)
.039
(1.3) Dia
.051
(4.75)
.187
Thk = (0.8)
.031
Indicators
Epoxy Seal
Z
.187” (4.75mm)
Quick Connect
(6.35)
.250
(9.0)
.354
Touch
TERMINALS
Tilt
(12.8)
.504
(13.5)
.531
(10.1)
.398
(3.5) Dia Typ
.138
(12.8)
.504
(16.0)
.630
(3.5) Dia Typ
.138
Tactiles
(34.9)
1.374
(34.9)
1.374
(41.3)
1.626
(28.5)
1.122
(34.9)
1.374
Slides
Rotaries
Y
Frame for
Large Actuator
Keylocks
Programmable Illuminated PB
Pushbuttons
Rockers
Toggles
Series P
Toggles
Internationally Approved Rockers/Paddles
ROCKER/PADDLE CAPS
For N Frame
Rockers
B
D
AT4148
.365” (9.27mm) Wide Rocker
(9.27)
.365
(16.87)
.664
(13.49)
.531
(7.9) (6.15)
.311 .242
(8.8)
.346
(3.5)
.138
E
AT4149
.365” (9.27mm) Wide Paddle
(9.27)
.365
(18.8)
.740
(2.13)
.084
(3.96)
.156
(8.43) R
.332
Pushbuttons
Programmable Illuminated PB
For Y Frame
(16.8)
.661
(3.5)
.138
J
AT4156
.595” (15.11mm) Wide Rocker
H
AT4157
.595” (15.11mm) Wide Paddle
(14.33)
.564
(2.36)
.093
(4.75)
.187
(13.5) R
.531
(7.3)
.287
(15.11)
.595
(26.8)
1.055
(3.5)
.138
(15.11)
.595
(26.78)
1.054
(23.01)
.906
(6.6)
(10.11) .260
.398
(11.0)
.433
(3.5)
.138
(29.82)
1.174
Rotaries
Keylocks
Cap Colors
Available:
A
Black
B
White
C
Red
E
Yellow
F
Green
G
Blue
H
Gray
Material: Polyamide
Slides
Finish: Matte

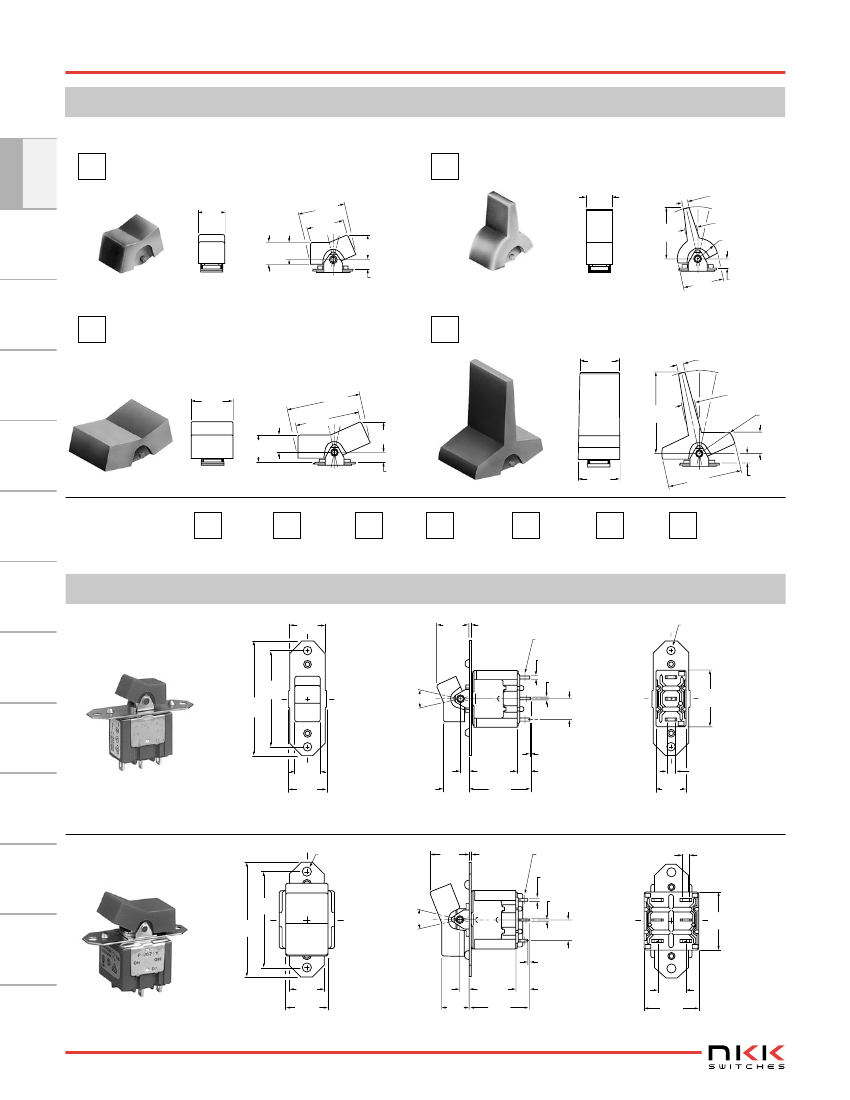

TYPICAL SWITCH DIMENSIONS
N Frame
(12.8)
.504
(12.3)
.484
(0.6)
.024
(1.25) x (2.0) Typ
.049 x .079
(1.0) Typ
.039
(34.9)
1.374
(41.3)
1.626
(0.8)
.031
25°
(7.62)
.300
1b
(3.2) Dia Typ
.126
Tactiles
1
(20.5)
.807
1a
Tilt
Touch
(9.27)
.365
(13.5)
.531
(9.65)
.380
(3.5)
.138
(22.0)
.866
(0.5)
.020
(5.0)
.197
(11.0)
.433
(2.6)
.102
P2012N-DC
P2011 & P2021 models do not have terminals 1a & 2a.
(3.2) Dia Typ
.126
(14.5)
.571
(0.6)
.024
(1.25) x (2.0) Typ
.049 x .079
(1.0) Typ
.039
(34.9)
1.37
4
(41.3)
1.626
(0.8)
.031
25°
(7.62)
.300
(0.5)
.020
(12.8)
.504
(15.11)
.595
(3.5)
.138
(21.7)
.854
(5.0)
.197
(10.16)
.400
(20.0)
.787
2b
1b
Indicators
Y Frame
(2.6) Typ
.102
Accessories
2
1
(20.5)
.807
2a
1a
Supplement
(10.1)
.398
P2022Y-JC
B118
www.nkk.com
P2011 & P2021 models do not have terminals 1a & 2a.
