23S104-S00H3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 23S104-S00H3

23S104-S00H3: DescriptionRF Connector Adapter, MINICOAX-MINICOAX, Male, Plug,; CategoryThe connector The connector; File Size87KB，2 Pages; ManufacturerRosenberger; Websitehttps://www.rosenberger.com/

Download Datasheet Parametric View All

23S104-S00H3 Overview

RF Connector Adapter, MINICOAX-MINICOAX, Male, Plug,

23S104-S00H3 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compli
Adapter type	MINICOAX-MINICOAX
Other features	VSWR MAX AT 6 GHZ
Body/casing type	PLUG
Characteristic impedance	50 Ω
Connector type	RF CONNECTOR ADAPTER
Contact completed and terminated	GOLD (50) OVER NICKEL
Contact point gender	MALE
Coupling type	SNAP
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.24 dB
insulator material	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	23S104-S00H3
Maximum operating frequency	6 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
voltage standing wave ratio	1.58
Base Number Matches	1

Preview

Download Datasheet

View All

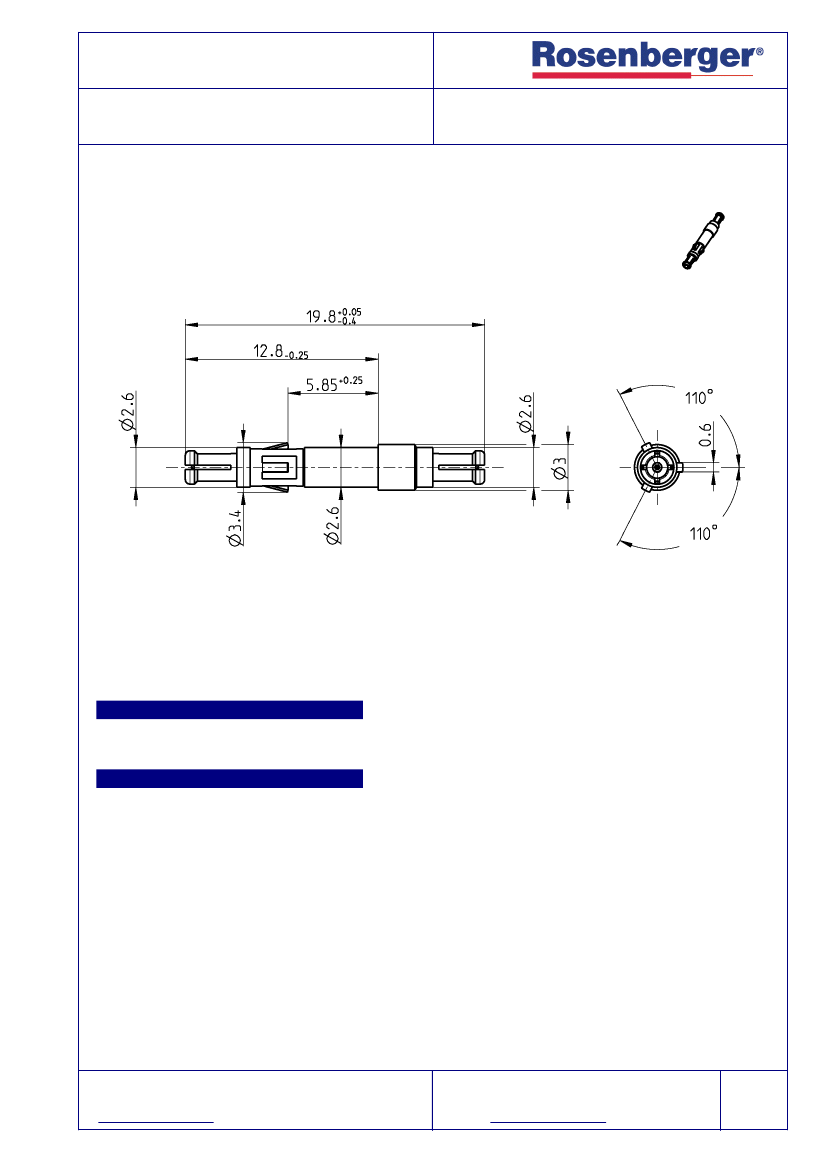

TECHNICAL DATA SHEET

ADAPTOR

Mini-Coax PLUG - PLUG

23S104-S00H3

All dimensions are in mm; tolerances according to ISO 2768 m-H

Documents

N/A

Material and plating

Connector parts

Center contact

Outer contact

Body

Clip

Dielectric

Material

Beryllium copper

Brass

Beryllium copper

PTFE

Plating

Gold, min. 1.27 m, over nickel

Gold, 0.1 m min.

Nickel, 2.5-5 m

RF_35/12.04/3.0

Rosenberger Hochfrequenztechnik GmbH & Co. KG

P.O.Box 1260

D-84526 Tittmoning

Germany

www.rosenberger.de

Tel.: +49 8684 18-0

Fax: +49 8684 18-499

email: info@rosenberger.de

Page

1/2
