24MCX-50-1-13/133NH: DescriptionPANEL MOUNT, CABLE TERMINATED, FEMALE, MCX CONNECTOR, CRIMP; CategoryThe connector The connector; File Size49KB，1 Pages; ManufacturerHUBER+SUHNER

Download Datasheet Parametric View All

24MCX-50-1-13/133NH Overview

PANEL MOUNT, CABLE TERMINATED, FEMALE, MCX CONNECTOR, CRIMP

24MCX-50-1-13/133NH Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
Other features	APPLICABLE CABLES: RG 178B/U; RG 196A/U
Characteristic impedance	50 Ω
Connector type	RF MCX CONNECTOR
Contact point gender	FEMALE
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	PERFLUOROALKOXY/POLYTETRAFLUORO ETHYLENE
MIL compliance	NO
Manufacturer's serial number	MCX
Installation method	STRAIGHT
Installation type	CABLE
Maximum operating frequency	6 GHz
Options	GENERAL PURPOSE
Panel mounting	YES
Termination type	CRIMP
Base Number Matches	1

Preview

Download Datasheet

View All

HUBER+SUHNER

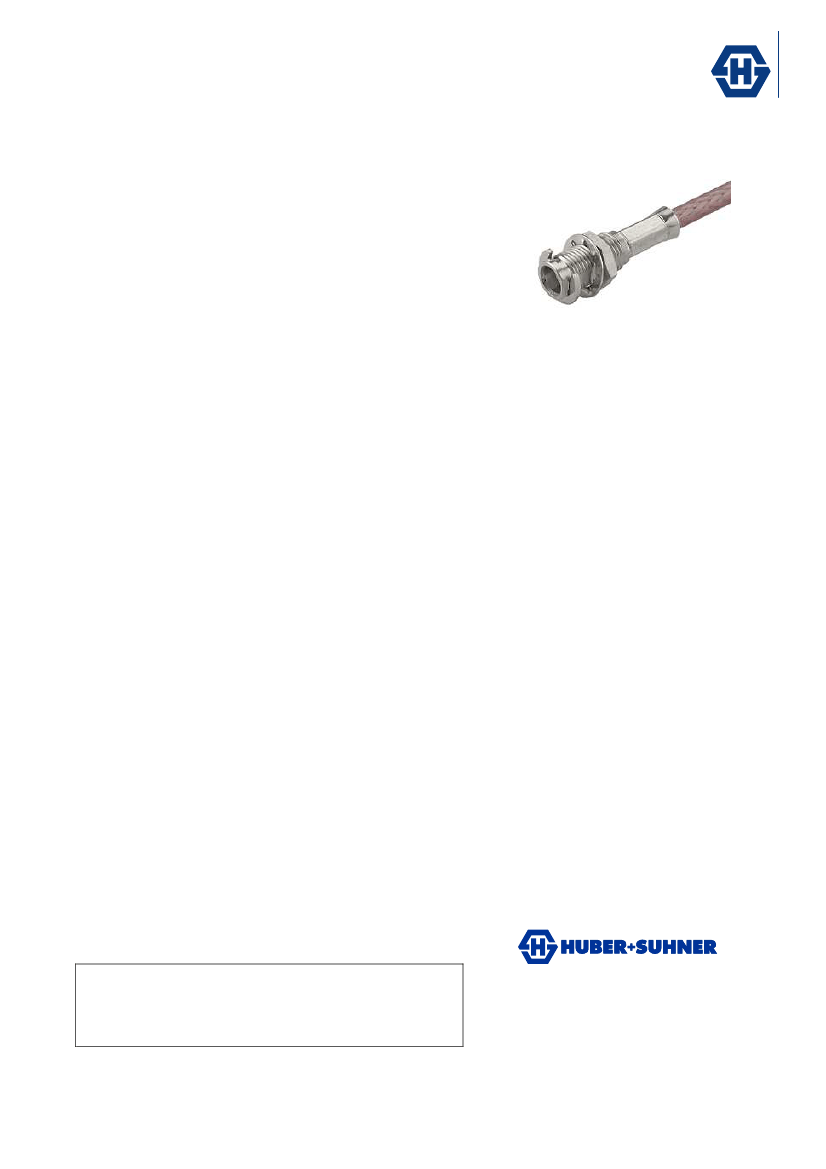

DATA SHEET

Coaxial Cable Connector: 24_MCX-50-1-13/133_N

Description

Rev.: B

Straight bulkhead cable feed through

Interface Standards

IEC 60169-36_CECC 22220

Technical Data

Electrical Data

Impedance

Interface frequency max.

Ω

6 GHz

crimped

0.0018 kg

-55 °C to 155 °C

compliant

Material

Copper Beryllium Alloy

Brass

PFA / PTFE

Brass

Bronze

Copper

DOU-00008913

DCA-00008915

DOC-0000182201

DOU-00008855

24_MCX-50-1-13/133_NH

ENVIROFLEX_178, RG_178_B/U, RG_196_A/U

Surface Plating

Gold Plating (Nickel underplated)

SUCOPLATE (R) Plating

Mechanical Data

Centre contact

Outer contact

Weight

Environmental Data

Operating Temperature

2002/95/EC (RoHS)

Piece Parts

Centre contact

Outer contact

Body

Insulator

Fastening nut

Washer

Crimp ferrule

Material Data
