2118016-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> 2118016-1

2118016-1: Descriptionantennas pcb antennas, wlan dual band; CategoryPassive components; File Size1MB，2 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric View All

2118016-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2118016-1	-	-	View	Buy Now

2118016-1 Overview

antennas pcb antennas, wlan dual band

2118016-1 Parametric

Parameter Name	Attribute value
Manufacture	TE Connectivity
Product Category	Antennas
RoHS	Yes
Technology Type	Dual Band Ante
Frequency	2400 MHz to 2483.5 MHz, 5150 MHz to 5875 MHz
Dimensions	18.9 mm L x 6.2 mm W x 0.79 mm H
Frequency Range	2400 MHz to 2483.5 MHz, 5150 MHz to 5875 MHz
Gai	2 dBi
Heigh	0.79 mm
Impedance	50 Ohms
Length	18.9 mm
Mounting Style	SMD/SMT
Power Rating	10 W
Factory Pack Quantity	250
Termination Style	PCB
Width	6.2 mm

Preview

Download Datasheet

View All

Antenna Solutions

2400 –2483.5 & 5150 –5875 MHz Dual Band Antenna

(802.11 a/b/g/n, includes frequencies of Bluetooth, ZigBee, and Wi-Fi products)

Part Number: 2118016-1

Product Facts

This small embedded

antenna provides the most

reliable easy-to-use,

adjustment-free antenna

technology for handling

during assembly and

implementation by

developers.

RoHS compliant

Recommendations

Minimum or no matching

circuits required.

Bandwidth and performance

is dependent on ground

plane size. Suggested

minimum ground plane

length from the antenna

feed is 30 mm.

PCB ground is to be on top

layer.

Specifications

Frequency Range (MHz)

Peak Gain

VSWR

Polarization

Azimuth Beamwidth

Power Handling

Feed Point Impedance

Size

Weight

Mounting

Keep Out Area

2400 –2483.5; 5150 –5875

+ 2 dBi

< 3.0:1

Linear

Omni-directional

10 Watt cw

50 Ohms unbalanced

18.90 mm x 6.20 mm x 0.79mm

< 0.3 g.

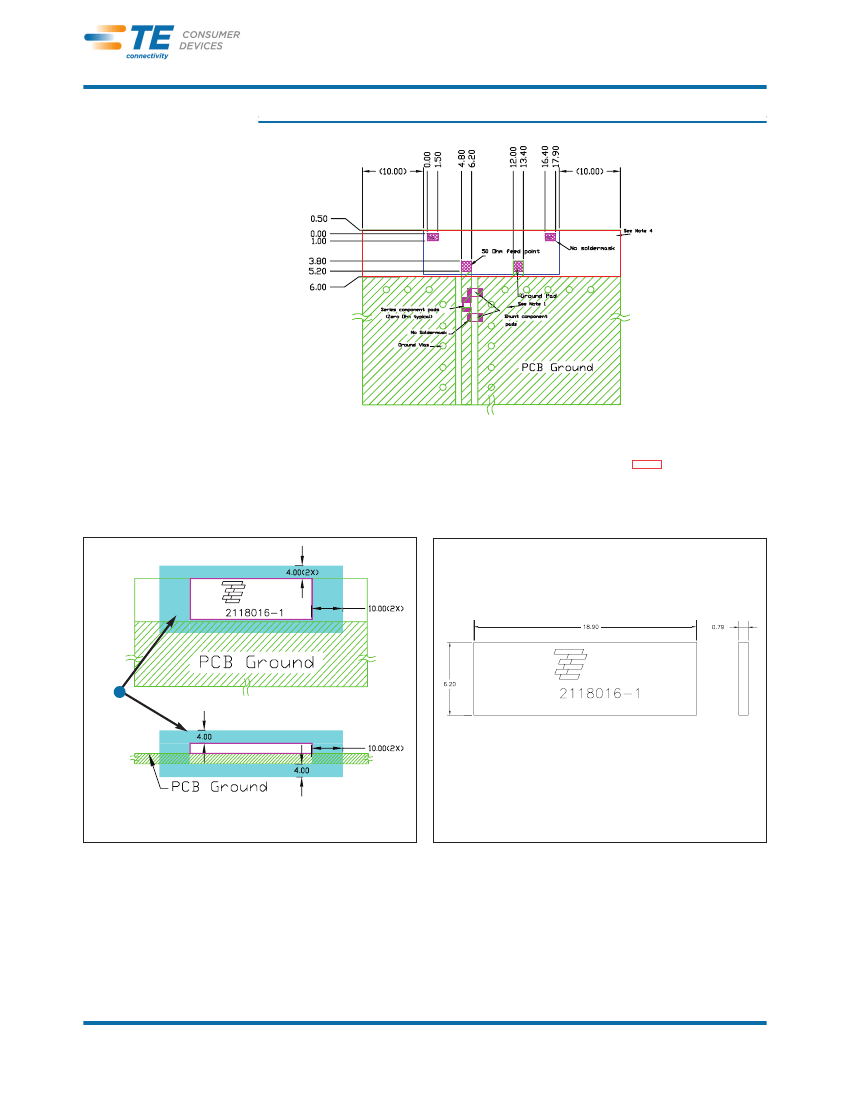

Surface-mount technology. See page 2

See diagram on page 2

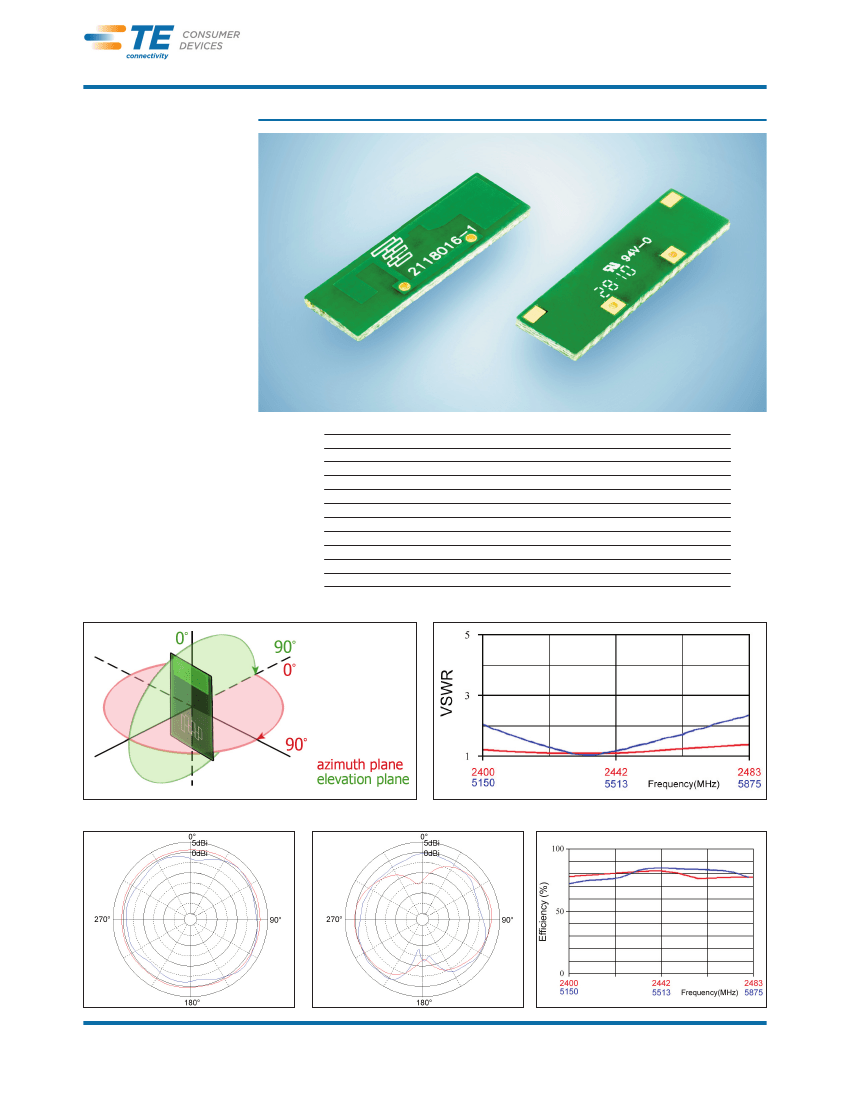

Test Orientation in Free Space

VSWR

Azimuth

Legend:

2400 MHz

5700 MHz

Elevation

Legend:

2400 MHz

5700 MHz

Efficiency

Catalog 4-1773459-4

Revised 03-11

www.te.com

www.antenna.te.com

Dimensions are in inches and

millimeters unless otherwise

sspecified. Values in brackets

are metric equivalents.

Dimensions are shown for

reference purposes only.

Specifications subject

to change.

USA: 1-800-522-6752

UK: +44 (0) 800-267666

Canada: 1-905-475-6222

Netherlands: +31 (0) 73-6246-999

Germany: +49 (0) 6251-133-1999 China: +86 (0) 400-820-6015

For other country number go to te.com/supportcenter
