W038-1641-000-Z datasheet, PDF

Datasheet> All Categories > The connector> The connector> W038-1641-000-Z

W038-1641-000-Z: DescriptionBoard Connector, 16 Contact(s), 1 Row(s), Female, 0.079 inch Pitch, Crimp Terminal, Latch, Plug; CategoryThe connector The connector; File Size241KB，1 Pages; ManufacturerSMP Technology Inc.

Download Datasheet Parametric View All

W038-1641-000-Z Overview

Board Connector, 16 Contact(s), 1 Row(s), Female, 0.079 inch Pitch, Crimp Terminal, Latch, Plug

W038-1641-000-Z Parametric

Parameter Name	Attribute value
Objectid	304396599
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.252 inch
subject depth	0.307 inch
body length	1.323 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact point gender	FEMALE
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	1000000000 Ω
insulator material	NYLON
Manufacturer's serial number	W038
Plug contact pitch	0.079 inch
Installation option 1	LATCH
Installation option 2	LOCKING
Installation type	CABLE
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Termination type	CRIMP
Total number of contacts	16

Preview

Download Datasheet

View All

# of Contacts

For Use With Contact

P/N: W038-0002-001-Z

ELECTRICAL:

CURRENT RATING: 3A AC/DC

VOLTAGE RATING: 250V AC/DC

CONTACT RESISTANCE: 30 m

Ω

max.

WITHSTANDING VOLTAGE: 1000V AC for 1 min.

INSULATION RESISTANCE: 1000 M

Ω

min.

TEMPERATURE RANGE: -25°C to 85°C

HOW TO ORDER:

MATERIAL:

INSULATOR: Nylon 66 UL94V-0

PACKAGING: 1000 pcs/ Bag

# OF POSITIONS:

02 - 16 Position

RoHS

COMPLIANT

Rev

0 Issued

Drawn Checked Approved

S.M.

B.S.

Date

5/7/07

SMP TECHNOLOGY, INC.

SCALE:n/a

TOL. DEC.

.X +/- 0.3

.XX +/- 0.2

.XXX +/- 0.1

ANGLE +/-

UNIT: mm

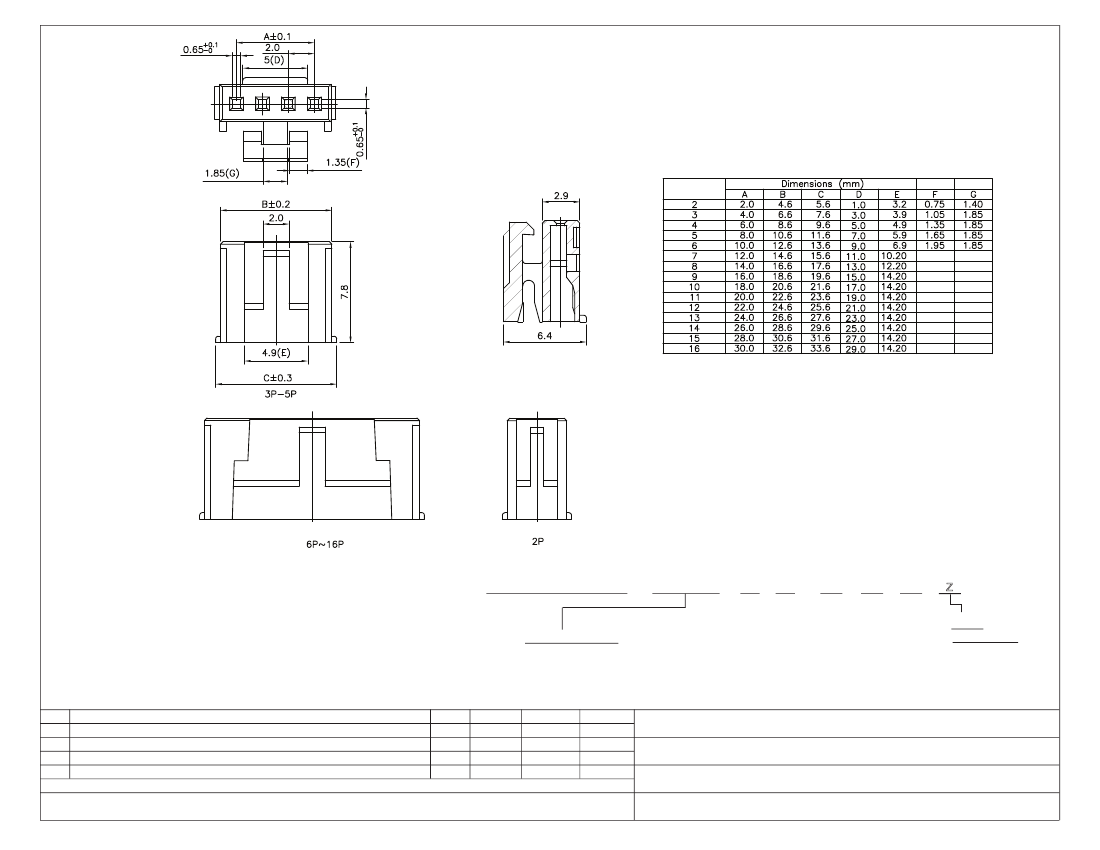

Housing, 2.0mm Pitch, Yeonho SM Type

P/N:W038-XX41-000-Z

Pg: 1
