8016-5091 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 8016-5091

8016-5091: DescriptionD Type Connector, 9 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, #4-40, Plug; CategoryThe connector The connector; File Size205KB，1 Pages; ManufacturerConexcon Group

Download Datasheet Parametric View All

8016-5091 Overview

D Type Connector, 9 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, #4-40, Plug

8016-5091 Parametric

Parameter Name	Attribute value
Objectid	304386094
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.494 inch
subject depth	0.76 inch
body length	1.213 inch
Body/casing type	PLUG
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	BRASS
contact mode	STAGGERED
Contact style	RND PIN-SKT
insulator material	GLASS FILLED POLYESTER
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation option 1	#4-40
Installation option 2	SCREW
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Plating thickness	15u inch
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Terminal length	0.126 inch
Terminal pitch	2.7686 mm
Termination type	SOLDER
Total number of contacts	9

Preview

Download Datasheet

View All

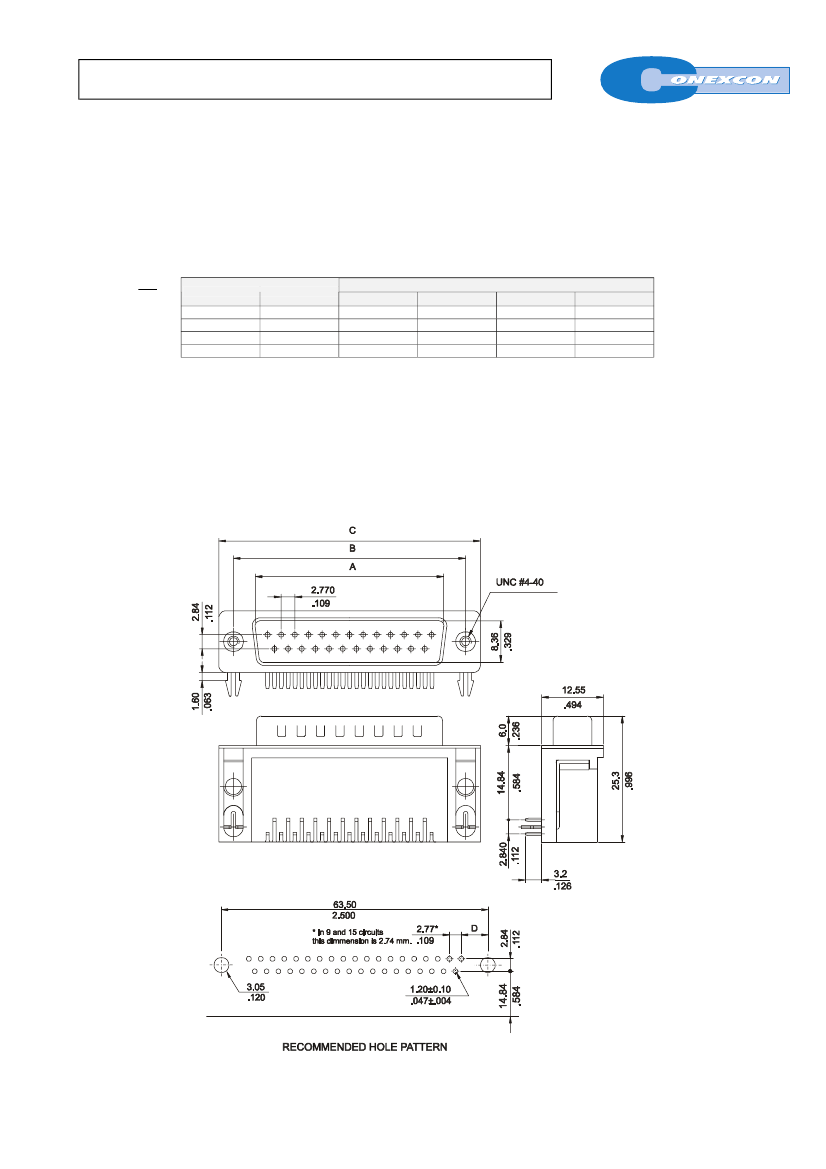

14.80mm FOOTPRINT R/ANGLE D-SUB PLUG

SERIES.

8016 SERIES

For PCB Solder. Right Angle D-Sub

Features

Available in 9, 15, 25 and 37 circuits

Insulator Material: Glass filled polyester UL 94V-0

Contact Material: Brass with different plating

Shell: Steel, tin plated as standard

Standard connector C = 1 (Riveted ground hooks with

#4-40 UNC open

For other options consult the Sales Office

Ordering and Dimensional Information

Dimensional Information

Unit:

mm.

Inch.

Circuit Size

Part Number

8016 –

T09C

8016 –

T15C

8016 –

T25C

8016 –

T37C

Dimensions

16.92 (0.666)

25.25 (0.994)

38.96 (1.534)

55. 42 (2.182)

25.00 (0.984)

33.30 (1.311)

47.10 (1.854)

63.50 (2.500)

30.80 (1.213)

39.20 (1.543)

53.10 (2.091)

69.40 (2.732)

6.96 (0.274)

6.91 (0.272)

6.82 (0.289)

T = Contact Plating

C = Hardware Options

T =

Gold flash over 50µ” nickel

T =

10µ” gold over 50µ” nickel

T =

15µ” gold over 50µ” nickel

T =

30µ” gold over 50µ” nickel

C =

Riveted ground hooks pre-loaded #4.40

UNC Hexagonal screws (standard)

C =

Riveted ground hooks with #4.40 UNC open

CONEXCON

Products specifications are subjet to be changed without notice. Please contact Sales Office for further confirmation
