Temperature Compensated Crystal Oscillators

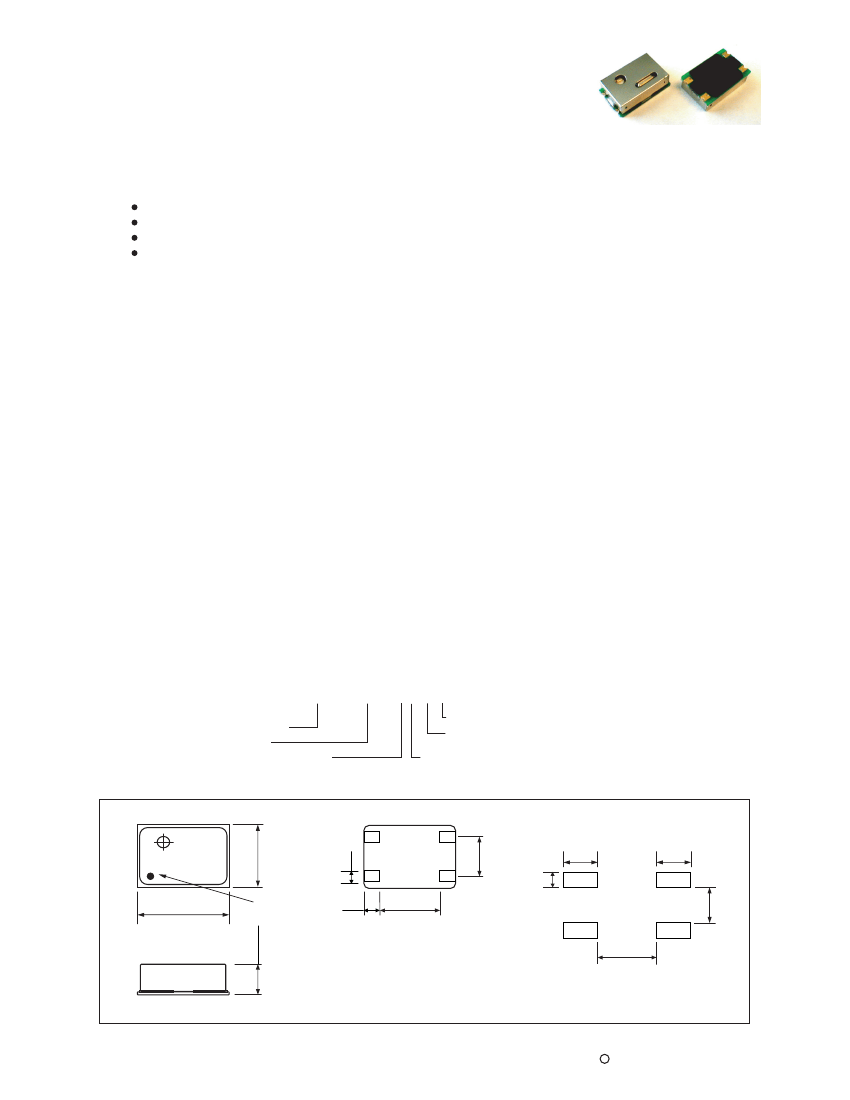

SINEWAVE HIGH FREQUENCY TCXO IN 4 PAD SMD PACKAGE - TCLS2 Series

FEATURES

RoHS Compliant (Pb-Free), Tight Stability over Wide Temperature Range

High Frequency Based on 3rd O/T Crystals

Sinewave Output, Low Phase Noise

Industry de factor Standard SMD Footprint, Frequency Adjustment Through Internal Trimmer

SPECIFICATIONS

Frequency Range

Supply Voltage (Vcc)

Input Current

Storage Temperature

Controllable Frequency Option

Control Voltage (Vc)

Setability of Vc at Fnom, 25°C

Frequency Stability vs Temp.

Temperature Range

Standard Stability

Frequency Stability vs Vcc

Frequency Stability vs Load

Aging

Phase Noise (Typ)

Output Load

Output Waveform

Output Level

Creating a Part Number

Product Series

Frequency

Supply Voltage: A = 5.0V

B = 3.3V

45 MHz to 190 MHz

A = 5.0 VDC ± 5%; B = 3.3 VDC ± 5%

30 mA Maximum

-55°C to 125°C

VI = Voltage control: ±5 ppm Minimum + Internal trimmer: ±3 ppm Minimum

I = Internal trimmer only (no voltage control input): ±3 ppm Minimum

2.5±2.0 VDC for Vcc = 5 VDC; 1.65±1.5 VDC for Vcc = 3.3 VDC

2.5±0.5 V DC for 5.0V part; 1.65±0.4 VDC for 3.3V part

005 = ±0.5 ppm; 010 = ±1 ppm; 015 = ±1.5 ppm; 020 = ±2 ppm; 050 = ±5 ppm

A = 0°C to 70°C; B = -40°C to 85°C; F = 0°C to 50°C; H = -30°C to 75°C

025H = ±2.5 ppm / -30°C to 75°C

±0.2 ppm Maximum / Vcc ± 5%

±0.2 ppm Maximum / 15 pF ± 10%

±1 ppm Maximum per year @25°C

-80 dBc/Hz at 10Hz; -120 dBc/Hz at 100Hz; -135 dBc/Hz at 1KHz

-140 dBc/Hz at 10KHz; -145 dBc/Hz at 100KHz

50 Ohms

Sine wave

0 dBm Typ for 3.3V part; 10 dBm Typ for 5.0V part

TCLS2-100M000-A I 010A

Operating Temperature Range: A = 0 to 70°C

Frequency Stability:

Tuning:

010 = ±1.0 ppm

020 = ±2 ppm

025 = ±2.5 ppm

B = -40 to 85°C

H = -30 to 75°C

X = Customized Temp Range

OUTLINE DRAWING

Recommended Solder Pad Layout

MARKING

AREA

12.5±0.5

2.0

7.62

5.7

2.4

5.7

Pin 1 Location

2.7

14.65

19.8±0.5

5.2±0.5

Pin Connections

#1: N/C or Vc

#2: Ground

#3: Output

#4: Vcc

13.1

All dimensions are typical unless otherwise specified

Dimensions in Millimeters
