BG215-30-B-0-L-G datasheet, PDF

Datasheet> All Categories > The connector> The connector> BG215-30-B-0-L-G

BG215-30-B-0-L-G: DescriptionBoard Connector, 30 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Locking,; CategoryThe connector The connector; File Size163KB，1 Pages; ManufacturerGlobal Connector Technology; Environmental Compliance

Download Datasheet Parametric View All

BG215-30-B-0-L-G Overview

Board Connector, 30 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Locking,

BG215-30-B-0-L-G Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1343155520
Reach Compliance Code	compliant
body width	0.276 inch
subject depth	0.335 inch
body length	1.692 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD FLASH
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	600VAC V
Durability	100 Cycles
Insulation resistance	1000000000 Ω
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e3
Manufacturer's serial number	BG215
Match contact row spacing	0.1 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.126 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	30

Preview

Download Datasheet

View All

2.54

1.0

Number of

Contacts

Dimensions

5.08

7.62

10.16

12.70

15.24

17.78

20.32

22.86

25.40

27.94

30.48

33.02

35.56

38.10

40.64

43.18

45.72

12.50

15.04

17.58

20.12

22.66

25.20

27.74

30.28

32.82

35.36

37.90

40.44

42.98

45.52

48.06

50.60

53.14

Number of

Contacts

Dimensions

48.26

50.80

53.34

55.88

58.42

60.96

63.50

66.04

68.58

71.12

73.66

76.20

78.74

81.28

83.82

86.36

88.90

55.68

58.22

60.76

63.30

65.84

68.38

70.92

73.46

76.00

78.54

81.08

83.62

86.16

88.70

91.24

93.78

96.32

1.92

(Min. insertion depth)

2.54

A±0.25

B±0.25

2.54

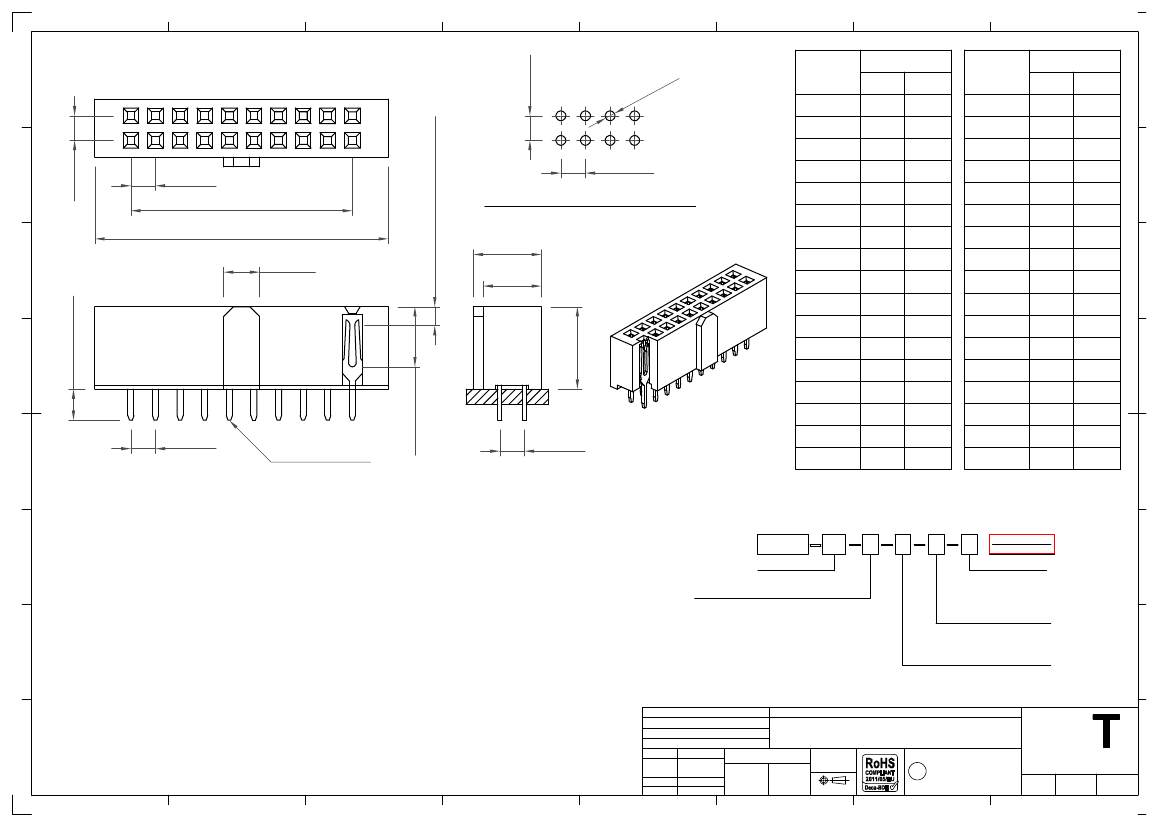

Recommended PCB Layout

General Tolerance: ±0.05

3.70

3.20±0.25

7.00

6.00

8.50

2.54

6.20

(Ref.)

0.60x0.40 pin

2.54

Specifications

规格

Material

物料

Insulator

绝缘½

Standard

标准

: Polyamide, Nylon 6T, UL94V-0

Options

可选

: Polyester, LCP, UL94V-0

Polyester, PBT, UL94V-0

Contact

接触

: Copper Alloy

Plating

电镀

Contact

接触

: See Ordering Grid

Electrical

电气

Current Rating

电流额定值

: 3 Amp

Contact Resistance

接触电阻值

: 20 mΩ max.

Insulation Resistance

绝缘电阻值

: 1000 MΩ min.

Dielectric Withstand Voltage

寒耐电压

: 600 V AC

Mechanical & Environmental

机械

环境

Operating Temperature

工½温度

: -40°C to +105°C

Soldering Process

可焊性

Nylon 6T (Standard

标准物料

)

IR Reflow

回流焊

: 260°C for 10 sec.

Wave

波峰焊

: 230°C for 5-10 sec.

Manual Solder

人工焊接

: 350°C for 3-5sec

LCP (Option

可选物料

)

IR Reflow

回流焊

: 260°C for 10 sec.

Wave

波峰焊

: 250°C for 5-10 sec

Manual Solder

人工焊接

: 350°C for 3-5 sec

PBT (Option

可选物料

)

Manual Solder

人工焊接

: 330°C for 3-5sec

(Not suitable for hi-temp process

不适合高温处理

)

Mates with

配套之母座

(Subject to Pin Length

在端子长度适合的条件下

)

Allowing perfect polarisation: BG023 BG044 BG046 BG047

Non-Polarised mating connections available - contact GCT for details

Ordering Grid

BG215

Request Samples

and Quotation

No. of Contacts

06 to 72

Contact Plating

A = Gold Flash All Over

(Standard)

B = Selective Gold Flash Contact Area/

Tin On Tail

C = Tin All Over

G = 10µ" Gold Contact Area/Tin On Tail

I = 30µ" Gold Contact Area/Tin On Tail

Packing Options

D = Tube

(Standard)

F = Tube with Film

G = Plastic Box

Insulator Material

N = Nylon 6T

(Standard)

L = LCP

Polarisation Bump

0 = Without

1 = With

Part Number

Product Description

BG215

Drawing Date

9th April 2007

Detail

Revision

Date

Drawing

Release

09/04/07

Length

2.54mm Pitch Socket,

Dual Row, Through-Hole, Vertical

Tolerances

(Except as Noted)

Angle

X.X ± 0.38

X.XX ± 0.25

X.XXX ± 0.13

X.° ± 5°

X.X° ± 2°

X.XX° ± 1°

X.XXX° ± 0.5°

Units:

Metric (mm)

3rd Angle Projection

This drawing is confidential and

Technology, Ltd (GCT).

This drawing must not be copied

or disclosed without written

consent. E & OE

Global Connector Technology

Drawn By

www.gct.co

Not to

Scale

Sheet No.

1/1
