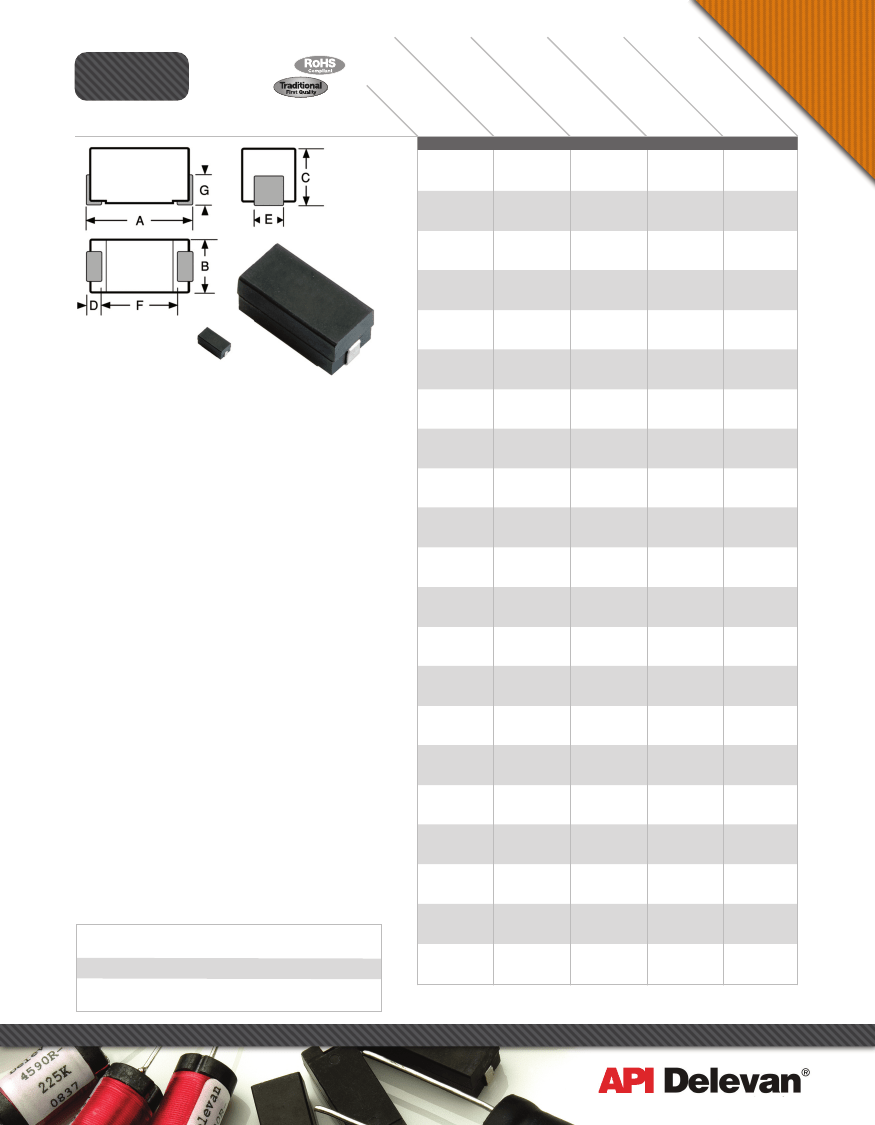

Surface Mount High Current Power Inductors
Actual Size
Physical Parameters
Inches
A
0.490 to 0.520
B
0.230 to 0.250
C
0.210 to 0.230
D
0.050 Min.
E
0.055 to 0.075
F
0.330 (Ref. only)
G
0.120 (Ref. only)
Millimeters
12.44 to 13.21
5.84 to 6.35
5.33 to 5.84
1.27 Min.
1.40 to 1.91
8.38 (Ref. only)
3.04 (Ref. only)
Operating Temperature Range
–55°C to +125°C
Current Rating at 85°C Ambient
40°C Rise
Maximum Power Dissipation at 85°C
0.55 Watts
Inductance
Measured at 1 VAC open circuit with no DC current.
Incremental Current
The current at which the inductance will
be decreased by a maximum of 5% from its initial zero DC
value.
Weight (Grams Max.)
1.5
Marking
API/SMD; inductance with units and tolerance; date
code (YYWWL). Note: An R before the date code indicates a
RoHS component.
Example: 4922-01L
API/SMD
1.0uH±15%
0918A
Packaging
Tape & reel (24mm): 13" reel, 800 pieces max.; 7"
reel not available
Made In the U.S.A.
Optional Tolerances: Values < 10µH:
K = 10%
J = 5%
Values
≥
10µH:
K = 10%
J = 5% H = 3%
*Complete part # must include series # PLUS the dash #
For surface finish information,
refer to www.delevanfinishes.com
-221LT
-271LT
-331LT
-391LT
-471LT
-561LT
-681LT
-821LT
-01LT
-02LT
-03LT
-04LT
-05LT
-06LT
-07LT
-08LT
-09LT
-10LT
-11LT
-12LT
-13LT
-14LT
-15LT
-16LT
-17LT
-18LT
-19LT
-20LT
-21LT
-22LT
-23LT
-24LT
-25LT
-26LT
-27LT
-28LT
-29LT
-30LT
-31LT
-32LT
-33LT
-34LT
-35LT
-36LT
-37LT
-38LT
-39LT
-40LT
-41LT
-42LT
-43LT
-44LT
-45LT
-46LT
-47LT
-48LT
-49LT
-50LT
-51LT
-52LT
-53LT
SERIES 4922 FERRITE CORE
0.22
0.0080
7.00
0.27
0.0085
6.75
0.33
0.0090
6.50
0.39
0.0095
6.25
0.47
0.0100
6.00
0.56
0.0105
5.80
0.68
0.0110
5.70
0.82
0.0120
5.60
1.00
0.013
5.50
1.20
0.018
4.69
1.50
0.020
4.45
1.80
0.021
4.34
2.20
0.029
3.70
2.70
0.034
3.41
3.30
0.038
3.23
3.90
0.042
3.07
4.70
0.047
2.90
5.60
0.051
2.79
6.80
0.058
2.61
8.20
0.063
2.51
10.0
0.071
2.36
12.0
0.079
2.24
15.0
0.089
2.11
18.0
0.119
1.82
22.0
0.152
1.61
27.0
0.179
1.48
33.0
0.222
1.33
39.0
0.315
1.12
47.0
0.362
1.04
56.0
0.397
1.00
68.0
0.418
0.97
82.0
0.604
0.81
100
0.672
0.76
120
0.735
0.73
150
0.998
0.63
180
1.370
0.53
220
1.580
0.50
270
1.770
0.47
330
2.510
0.39
390
2.730
0.38
470
3.250
0.35
560
3.750
0.33
680
4.310
0.30
820
6.040
0.26
1000
6.900
0.24
1200
10.00
0.200
1500
12.50
0.178
1800
16.00
0.157
2200
20.00
0.141
2700
23.00
0.131
3300
25.00
0.126
3900
33.00
0.110
4700
37.00
0.103
5600
40.00
0.100
6800
62.00
0.080
8200
66.00
0.077
10000
74.00
0.071
12000
93.00
0.065
15000
105.0
0.061
18000
143.0
0.052
22000
160.0
0.050
7.00
6.75
6.50
6.25
6.00
5.80
5.70
5.60
5.50
4.69
4.45
4.34
3.70
3.41
3.23
3.07
2.90
2.79
2.61
2.51
2.36
2.24
2.11
1.82
1.61
1.48
1.33
1.12
1.04
1.00
0.97
0.81
0.76
0.73
0.63
0.53
0.50
0.47
0.39
0.38
0.35
0.33
0.30
0.26
0.24
0.200
0.178
0.157
0.141
0.131
0.126
0.110
0.103
0.100
0.080
0.077
0.071
0.065
0.061
0.052
0.050
