FMXMBS1308JHD-27.000000M datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> FMXMBS1308JHD-27.000000M

FMXMBS1308JHD-27.000000M: DescriptionParallel - 3Rd Overtone Quartz Crystal, 27MHz Nom, HC-49/US, SMD, 2 PIN; CategoryPassive components Crystal/resonator; File Size107KB，1 Pages; ManufacturerFrequency Management International; Environmental Compliance

Download Datasheet Parametric View All

FMXMBS1308JHD-27.000000M Overview

Parallel - 3Rd Overtone Quartz Crystal, 27MHz Nom, HC-49/US, SMD, 2 PIN

FMXMBS1308JHD-27.000000M Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1321986245
package instruction	HC-49/US, SMD, 2 PIN
Reach Compliance Code	compliant
Ageing	5 PPM/YEAR
Crystal/Resonator Type	PARALLEL - 3RD OVERTONE
Drive level	1000 µW
frequency stability	0.003%
frequency tolerance	50 ppm
load capacitance	8 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	27 MHz
Maximum operating temperature	50 °C
Minimum operating temperature	-10 °C
physical size	L11.5XB5.0XH4.1 (mm)/L0.453XB0.197XH0.161 (inch)
Series resistance	120 Ω
surface mount	YES

Preview

Download Datasheet

View All

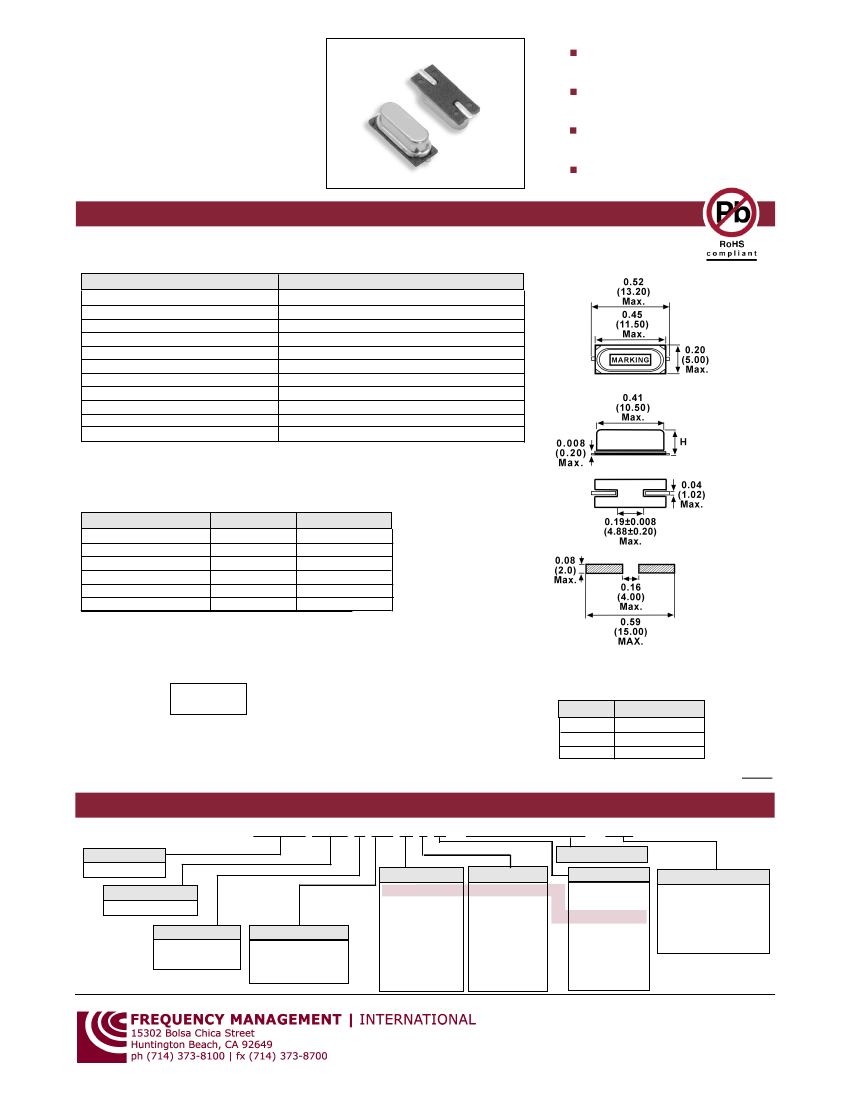

FMXMBS

SERIES

SMD Crystals

Surface Mount

Low Profile Packages

Low Cost

Tight Stability

HC-49/US SMD

SPECIFICATIONS

08 - Issue 3 - 041508

HC-49/US SMD

Parameter

Frequency Range

Operation Mode

Load Capacitance (CL)

Frequency Tolerance

Temperature Tolerance

Operating Temperature

Storage Temperature

Equivalent Series Resistance (ESR)

Shunt Capacitance (C0)

Drive Level

Aging @ +25°C

All specifications subject to change without notice.

Specification

3.2 - 70 MHz

See Operation Mode and ESR Table

18 pF Std., 8 - 60 pF and Series available

±30 ppm @ 25°C Std. (See Cal. Tol. for Options)

±50 ppm Std. (See Temp. Tol. for Options)

0 to +70°C Std. (See Temp. Range for Options)

-55 to +125°C

See Operation Mode and ESR Table

7 pF max.

1 mW max, 100µW Correletion

±5 ppm per year max.

OPERATION MODE AND ESR TABLE

Frequency (MHz)

3.200 - 5.999

6.000 - 7.999

8.000 - 9.999

10.00 - 14.99

15.000 - 40.000

27.000 - 70.00

MODE

Fundamental

3rd Overtone

MAX ESR (Ohms)

180

100

120

Recommended Land Pattern

STANDARD MARKING

DIMENSION “H” TABLE

FMI XX.XXX

XX.XXX FREQUENCY in MHz

Package

BS1

BS2

BS3

Max. Height

0.161” (4.1mm)

0.126” (3.2mm)

0.118” (3.0mm)

Dimensions: Inches

(mm)

NOTE: Standard Specifications for product indicated in

color

PART DESCRIPTION SYSTEM

FMXM BS1 1 18 H J A - XX.XXXXXXM - CM

Product Family

SMD Crystal

Package

BS1,

BS2 or BS3

Mode

1 - Fundamental

3 - 3rd Overtone

Load Cap. (CL)

18 - Standard (pF)

00 - Series

XX - Custom (pF)

Frequency (MHz)

Cal. Tol. @ 25°C

D ±10 ppm

E ±15 ppm

F ±20 ppm

G ±25 ppm

H ±30 ppm

I ±40 ppm

J ±50 ppm

X Custom

*Temp. Tol.

D ±10 ppm

E ±15 ppm

F ±20 ppm

G ±25 ppm

H ±30 ppm

I ±40 ppm

J ± 50 ppm

X Custom

Temp. Range

A 0 to 70 °C

B -20 to 70 °C

C -40 to 85 °C

D -10 to 50 °C

E -10 to 60 °C

F -30 to 60 °C

J 0 to 50 °C

X Custom

Options

TR - Tape & Reel

PD - Parameter Data

TD - Temp. Data

CM - Custom Mark

BLANK - None Req’d.

**Check with us for availability.

* -55°C TO +125°C Available, Limited Stability Options,

please consult the factory.

1-800-800-XTAL

[9825]

www.fmi-inc.com

Recommended Resources
