QT2012RL300- datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> filter> QT2012RL300-

QT2012RL300-: DescriptionPassive Filter; CategoryAnalog mixed-signal IC filter; File Size362KB，16 Pages; ManufacturerMagic Power Technology Co., Ltd.

Download Datasheet Parametric View All

QT2012RL300- Overview

Passive Filter

QT2012RL300- Parametric

Parameter Name	Attribute value
Objectid	915827480
package instruction	0805
Reach Compliance Code	unknown
shell code	0805
structure	Multilayer Chip
Maximum DC resistance	0.3 Ω
maximum frequency	100 MHz
minimum frequency	100 MHz
high	0.85 mm
length	2 mm
Material	Ferrite
physical size	L2XB1.25XH.85 (mm)/L.0787XB.0492XH.0335 (inch)
Rated current	0.7 A
series	QT2012
width	1.25 mm

Preview

Download Datasheet

View All

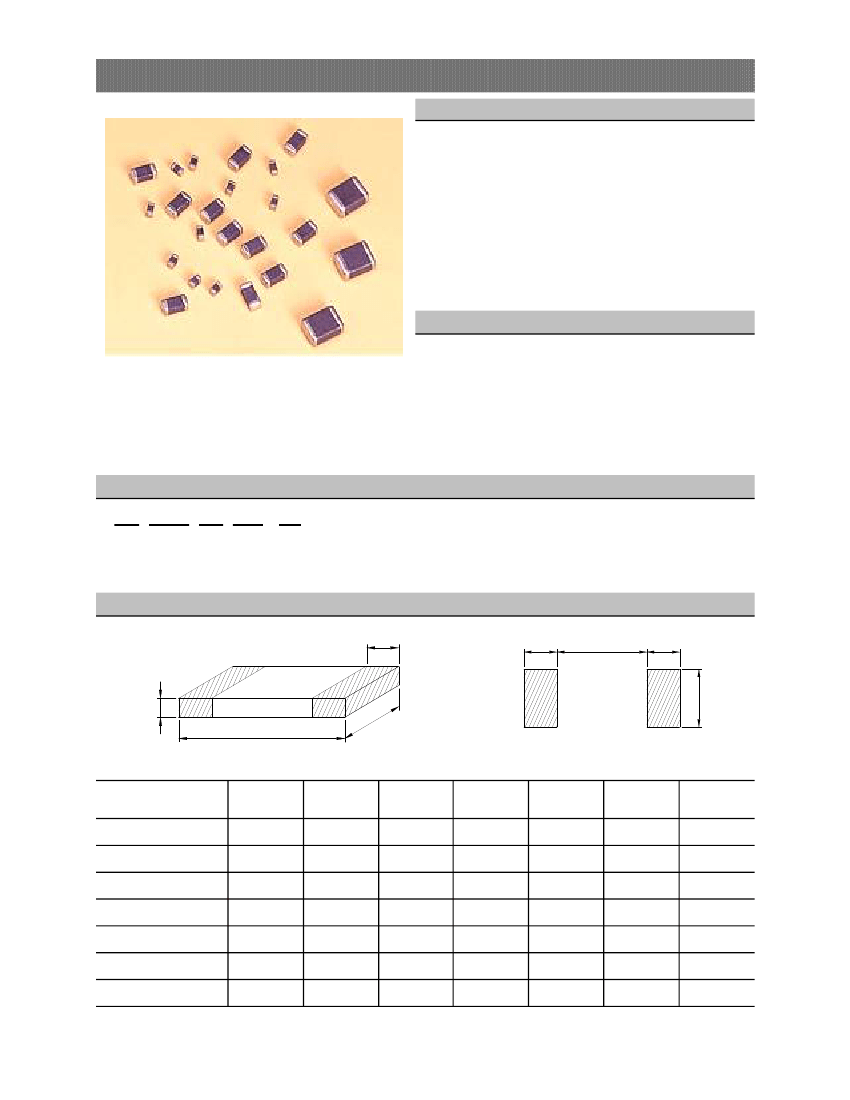

Multilayer Ferrite Chip Beads / QT Series

■

Feature

1. Monolithic inorganic material construction

2. Closed magnetic circuit avoide crosstalk

3. S.M.T. type

4. Suitable for flow and reflow soldering

5. Shapes and dimensions follow E.I.A. SPEC

6. Available in various sizes & 6 materials

7. Excellent soldering ability and heat resistance

8. High reliability

■

Application

Personal comprters,communication equipment,

digital telephone,electronic games machines,CRTs,

hard disk drives,cellular phones,PDAs,printers and

other computer peripheral products.

Suitable for I/O ports,DC power lines and signal

lines,and general circuits with unstable ground .

■

Product Identification

QT 1608 RL 120 - LF

1. Series name

2. Dimension. ( See Details )

3. Material.

4. Impedance. ( See Details )

5. Lead-Free part number.

■

Configurations & Dimensions

PCB Pattern

Series Name

QT1005

QT1608

QT2012

QT3216

QT3225

QT4516

QT4532

Unit: mm

1.0 ± 0.1

1.6 ± 0.15

2.0 ± 0.2

3.2 ± 0.2

4.5 ± 0.2

0.5 ± 0.1

0.8 ± 0.15

1.25 ± 0.2

1.6 ± 0.2

2.5 ± 0.2

1.6 ± 0.2

3.2 ± 0.2

0.5 ± 0.1

0.8 ± 0.15

0.85 ± 0.2

1.1 ± 0.2

1.3 ± 0.2

1.6 ± 0.2

1.5 ± 0.2

0.25 ± 0.1

0.3 ± 0.2

0.5 ± 0.3

0.8(REF)

1.0(REF)

1.1(REF)

1.5(REF)

1.65(REF)

0.5(REF)

1.0(REF)

2.2(REF)

2.7(REF)

2.57(REF)

0.55(REF)

1.0(REF)

1.4(REF)

3.4(REF)

1.4(REF)

4.22(REF)
