EQRB13D2J-24.000MTR datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> EQRB13D2J-24.000MTR

EQRB13D2J-24.000MTR: DescriptionCRYSTAL OSCILLATOR, CLOCK, CMOS OUTPUT; CategoryPassive components oscillator; File Size867KB，11 Pages; ManufacturerECLIPTEK; Websitehttp://www.ecliptek.com; Environmental Compliance

Download Datasheet Parametric View All

EQRB13D2J-24.000MTR Overview

CRYSTAL OSCILLATOR, CLOCK, CMOS OUTPUT

EQRB13D2J-24.000MTR Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	7040113927
Reach Compliance Code	unknown
Other features	POWER-DOWN; ENABLE/DISABLE FUNCTION; TR, 14 INCH
maximum descent time	4 ns
Frequency Adjustment - Mechanical	NO
frequency stability	20%
Installation features	SURFACE MOUNT
Number of terminals	4
Nominal operating frequency	24 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Oscillator type	CMOS
Output load	15 pF

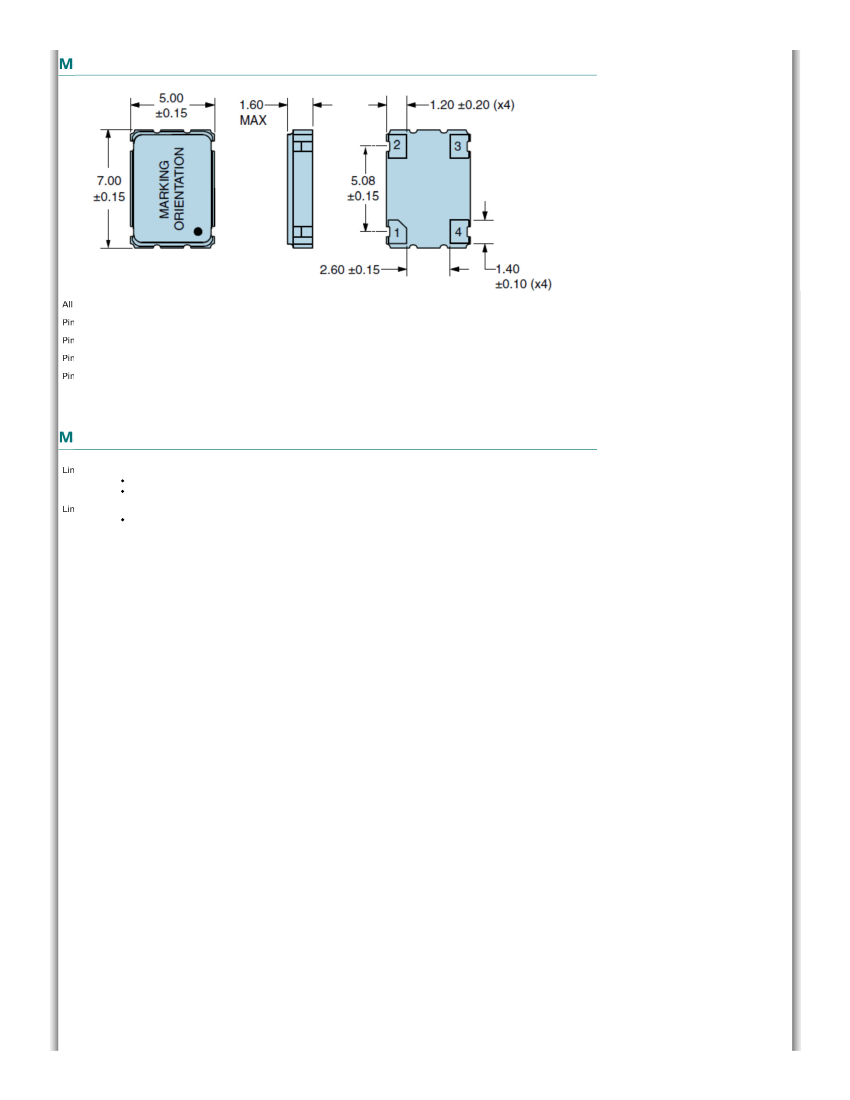

physical size	7.0mm x 5.0mm x 1.6mm
longest rise time	4 ns
Maximum supply voltage	3.63 V
Minimum supply voltage	2.97 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	55/45 %

Preview

Download Datasheet

View All

Ecliptek | EQRB13 Series Oscillator

http://www.ecliptek.com/oscillators/EQRB13/

Log On

| 714-433-1200 |

Email Customer Support

Home

Products

Quick Quote

My Parts List

Site Map

EQRB13 Series Oscillator

Quartz Crystal Clock Oscillators XO (SPXO) LVCMOS (CMOS) 3.3Vdc 4 Pad 5.0mm x 7.0mm Ceramic Surface Mount (SMD)

2011/65 +

2015/863

168 SVHC

Revision A 04/22/2015

Electrical Specifications

Nominal Frequency

2.000MHz to 50.000MHz

Some frequencies within this range may not be available.

Frequency Tolerance/Stability

Inclusive of all conditions: Calibration Tolerance (at 25°C), Frequency

Stability over the Operating Temperature Range, Supply Voltage

Change, Output Load Change, First Year Aging at 25°C, Shock, and

Vibration

±100ppm Maximum

±50ppm Maximum

±25ppm Maximum

±20ppm Maximum

0°C to +70°C

-20°C to +70°C

-40°C to +85°C

-40°C to +105°C

-40°C to +125°C

-55°C to +125°C

±3ppm/Year Maximum

3.3V

±10%

5mA Maximum

= -2mA

90% of V

Minimum

= +2mA

10% of V

Maximum

Measured at 50% of Waveform

50 ±10(%)

50 ±5(%)

Measured at 20% to 80% of Waveform

4nSec Maximum

15pF Maximum

CMOS

Click to Open Phase Noise Table

Power Down (Disabled Output: High Impedance)

70% of V

Minimum or No Connect to Enable Output

Operating Temperature Range

Aging at 25°C

Supply Voltage

Input Current

Output Voltage Logic High (V

)

Output Voltage Logic Low (V

)

Duty Cycle

Rise Time/Fall Time

Load Drive Capability

Output Logic Type

Phase Noise

Output Control Function

Output Control Input Voltage Logic High

(Vih)

Output Control Input Voltage Logic Low

(Vil)

Power Down Output Enable Time

30% of V

Maximum to Disable Output (High Impedance)

5mSec Maximum

1 of 11

28-Jan-2016 2:06 PM
