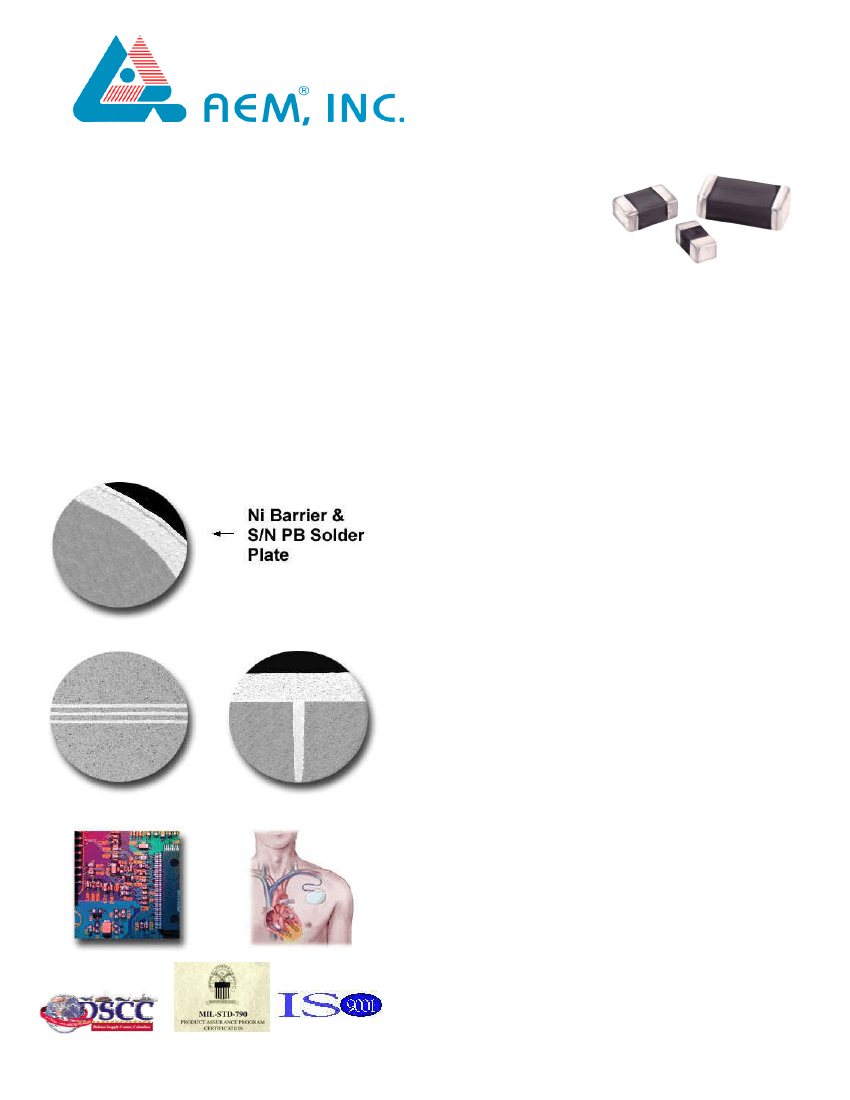

High Reliability MIL Spec
Ferrite Chip Beads
First
and only DSCC approved Ferrite Chip Bead
designed for space and other high reliability use. AEM
HRB Series Ferrite Chip Beads are manufactured in our
QPL certified facility in San Diego, providing complete
material and process traceability.
All components are manufactured with space qualified materials and terminations.
AEM HRB components are qualified and tested to AEM Drawing 487070 or DSCC
Drawing 03024.
Do not let penny cost commodity components disable your mission-critical program !
Benefits
•
•
•
•
•
•
Sole Source, DSCC Drawing 03024, 1st ever Military
specification for Ferrite Chip Bead
Made in USA
Tin-lead terminations (5%+ Pb, no Tin Whisker
worries)
Designed and qualified as Hi Rel
Complete material and process traceability
Meets all high reliability demands
Features
•
•
•
•
•
Military Temperatures –55°C to +125°C
Tin-lead or gold terminations
Reliability Qualified—
Groups A/B data is supplied with
shipment. Group C Inspection is optional
Monolithic structure for closed magnetic path and
high reliability
Standard EIA/EIAJ chip sizes from 0603 to 1206
Applications
•
•
•
•
•
•
Noise suppression in analog and digital circuits
Where pure tin termination is prohibited
Commercial or Military high reliability
Medical instrumentation
Down-hole and undersea
Where reliability is a priority
11525 Sorrento Valley Road, San Diego, CA 92121 USA Phone: (858)481-0210 or 888-323-6462 Fax: (858)481-1123
Email:
hrind@aem-usa.com
Website:
www.aem-usa.com
Rev 7-04
AEM
Ferrite Chip Beads
AEM Part #
0603
HRB0603S300P.500 . .
HRB0603S600P.500 . .
HRB0603S101P.400 . .
HRB0603S151P.400 . .
HRB0603S181P.400 . .
HRB0603S301P.200 . .
HRB0603S401P.200 . .
HRB0603S601P.200 . .
HRB0603S102P.200 . .
HRB0805S300P4.00 . .
HRB0805S500P2.00 . .
HRB0805S600P1.50 . .
HRB0805S700P1.50 . .
HRB0805S101P1.00 . .
HRB0805S121P1.00 . .
HRB0805S151P1.00 . .
HRB0805S221P1.00 . .
HRB0805S331P1.00 . .
HRB0805S471P1.00 . .
HRB0805S601P1.00 . .
HRB0805S102P1.00 . .
HRB1206S300P4.00 . .
HRB1206S500P3.00 . .
HRB1206S800P1.50 . .
HRB1206S121P1.50 . .
HRB1206S251P1.50 . .
HRB1206S501P1.00 . .
HRB1206S601P1.00 . .
DSCC Drawing #
03024-001
03024-002
03024-003
03024-004
03024-005
03024-006
03024-007
03024-008
03024-009
03024-010
03024-011
03024-012
03024-013
03024-014
03024-015
03024-016
03024-017
03024-018
03024-019
03024-020
03024-021
03024-022
03024-023
03024-024
03024-025
03024-026
03024-027
03024-028
Impedance
Ω
30
60
100
150
180
300
400
600
1000
30
50
60
70
100
120
150
220
330
470
600
1000
30
50
80
120
250
500
600
Max.
Ω
R
DC
0.15
0.15
0.20
0.25
0.25
0.30
0.35
0.40
0.60
0.02
0.08
0.15
0.15
0.20
0.20
0.20
0.20
0.25
0.25
0.30
0.40
0.01
0.03
0.10
0.10
0.10
0.20
0.30
Max.
Amps
0.50
0.50
0.40
0.40
0.40
0.20
0.20
0.20
0.20
4.00
2.00
1.50
1.50
1.00
1.00
1.00
1.00
1.00
1.00
1.00
1.00
4.00
3.00
1.50
1.50
1.50
1.00
1.00
0805
1206
Other Sizes and Values may be added by request
Product Identification
HRB 0805 S 300 P 4.00 F T
(1)
(2) (3) (4) (5) (6) (7) (8)
(1) Series code:
High Reliability
Ferrite Chip
Bead
(2) Chip size, EIA/EIAJ dimensions A x B
First 2 digits: A (“length) Last 2 digits: B (“width)
(3) Speed code:
S
= Standard H = High speed
(4) Value code: Impedance (Ohms at 100 MHz)
The first two digits are significant.
The last digit specifies zeros to follow
300=30
Ohms
(5) Tolerance code: J = ±5%
K = ±10%
M = ±20%
P
= ±25%
(6) Current value in Ampere (4.00=4A;
.150=0.15A)
(7) Termination code:
F
= Sn/Pb solder plate G = Gold
(8) Package Code:
T
= Tape & Reel
B = Bulk

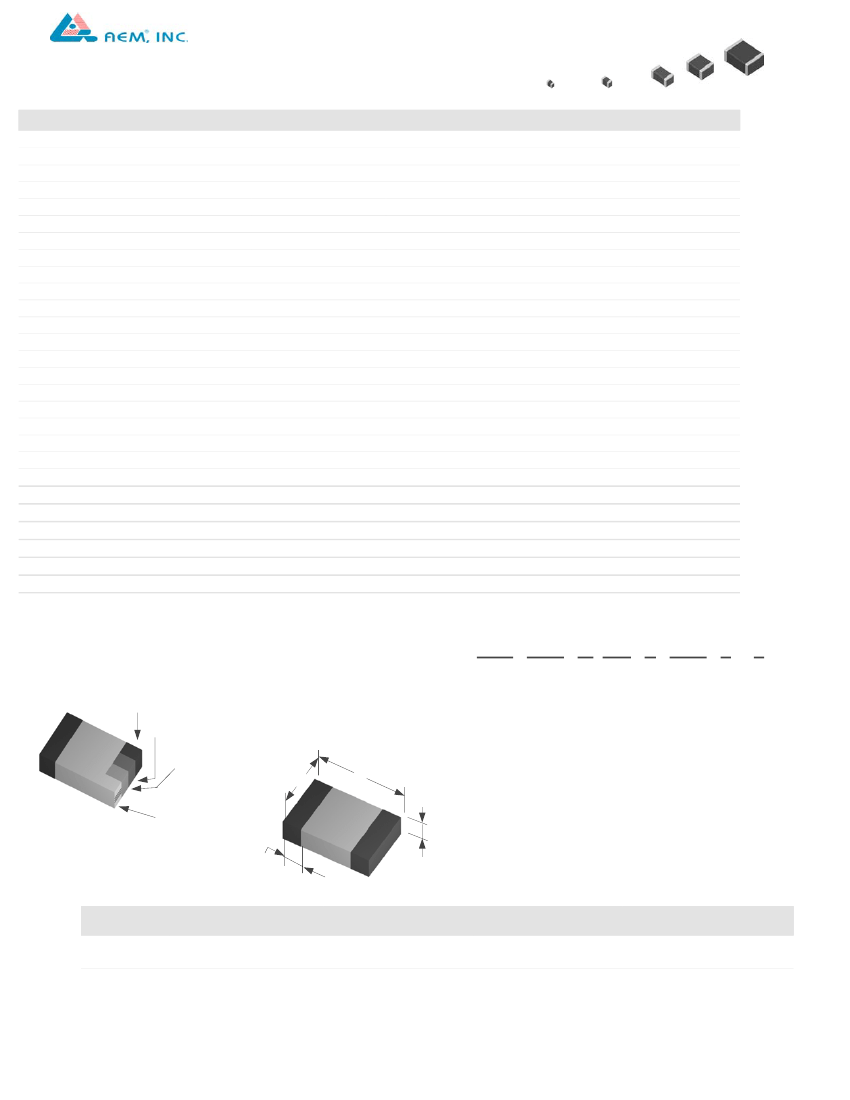

Shape and Dimensions
≥5%
Lead +Tin
Nickel
Silver
B
A
Electrode
C
B
CHIP SIZE
EIA/EIAJ
0603/1608
0805/2012
1206/3216
A
INCH (mm)
0.063 ± 0.006
(1.60 ± 0.15)
0.079 ± 0.008
(2.00 ± 0.20)
0.126 ± 0.008
(3.20 ± 0.20)
B
INCH (mm)
0.031 ± 0.006
(0.80 ± 0.15)
0.049 ± 0.008
(1.25 ± 0.20)
0.063 ± 0.008
(1.60 ± 0.20)
C
INCH (mm)
0.031 ± 0.006
(0.80 ± 0.15)
0.035 ± 0.008
(0.90 ± 0.20)
0.043 ± 0.008
(1.10 ± 0.20)
TERMINATION (BW)
INCH (mm)
0.014 ± 0.006
(0.36 ± 0.15)
0.020 ± 0.010
(0.51 ± 0.25)
0.020 ± 0.010
(0.51 ± 0.25)
11525 Sorrento Valley Road, San Diego, CA 92121 USA Phone: (858)481-0210 or 888-323-6462 Fax: (858)481-1123
Email:
hrind@aem-usa.com
Website:
www.aem-usa.com
Rev 7-04
Wire Wound Ceramic Inductors
Features
•
•
•
•
•
•
Groups A/B and Qualification data
From an AEM selected manufacturer
Standard 5%+ Pb solder plate terminations
Storage Temperature –55C to +125
Wire wound structure with high Q and large current capacity
0402, 0603, 0805 and 1008 sizes
Rev 1 7-2004
Product Identification
HRI 0603 C 1N0
(1) (2) (3) (4)
J T
(5) (6)
Applications
•
•
•
•
For applications where reliability is Priority 1
Where pure tin termination is prohibited
General Noise, EMI, RFI suppression
Surface mounting
Recommended PC Board Land Patterns
CHIP SIZE
0402
0603
0805
1008
L
INCH (mm)
0.044 (1.12)
0.075 (1.91)
0.110 (2.80)
0.130 (3.30)
G
INCH (mm)
0.016 (0.40)
0.025 (0.64)
0.036 (0.92)
0.050 (1.27)
H
INCH (mm)
0.027 (0.68)
0.040 (1.02)
0.069 (1.75)
0.100 (2.54)
G
(1) Series code:
HRI:
High Reliability Inductors
(2) Dimensions A x C inches
The first two digits: A (length)
The last two digits: C (height/thickness)
(3) Characteristic code:
C
(4) Value code: Inductance
N — decimal point for nH
Example:
1N2
= 1.2 nH
R — decimal point for
µH
(1000 nH)
Example: R12 = 0.12
µH
= 120 nH
(5) Tolerance code:
F = ±1%
G = ±2%
J
= ±5%
K = ±10%
M = ±20%
(6) Package code:
T
= Tape & Reel
B = Bulk
H
Shape and Dimensions
L
CHIP SIZE
0402
0603
0805
1008
A
INCH (mm)
0.039 (1.00)
0.071 (1.80)
0.091 (2.30)
0.112 (2.85)
B
INCH (mm)
0.027 (0.68)
0.044 (1.12)
0.067 (1.70)
0.104 (2.65)
C
INCH (mm)
0.022 (0.55)
0.040 (1.02)
0.063 (1.60)
0.087 (2.20)
D
INCH (mm)
0.008 (0.20)
0.013 (0.33)
0.017 (0.43)
0.020 (0.50)
E
INCH (mm)
0.024 (0.60)
0.034 (0.86)
0.046 (1.17)
0.059 (1.50)
Note: Dimensions A, B, and C are maximum. Dimensions D and E are typical.
High Reliability,
HRI Series
Wire Wound Inductors
AEM Part
Number
LnH
@MHz
Q(min)
@MHz
SRF(min)
MHz
DCR
Ω
Rev 0 1-2003
mA(max)
Size
1206
0805
0603
HRI0603C72N
HRI0603CR15
72@150
150@150
33@150
28@150
1700
1300
0.49
1.80
400
200
