RXT-A64 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> RXT-A64

RXT-A64: DescriptionSmall Signal Bipolar Transistor, 0.5A I(C), 30V V(BR)CEO, 1-Element, PNP, Silicon; CategoryDiscrete semiconductor The transistor; File Size126KB，1 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

RXT-A64 Overview

Small Signal Bipolar Transistor, 0.5A I(C), 30V V(BR)CEO, 1-Element, PNP, Silicon

RXT-A64 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ROHM Semiconductor
package instruction	SMALL OUTLINE, R-PSSO-F3
Reach Compliance Code	unknown
ECCN code	EAR99
Shell connection	COLLECTOR
Maximum collector current (IC)	0.5 A
Collector-emitter maximum voltage	30 V
Configuration	DARLINGTON
Minimum DC current gain (hFE)	20000
JESD-30 code	R-PSSO-F3
Number of components	1
Number of terminals	3
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	PNP
Maximum power dissipation(Abs)	1 W
Certification status	Not Qualified
surface mount	YES
Terminal form	FLAT
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	125 MHz

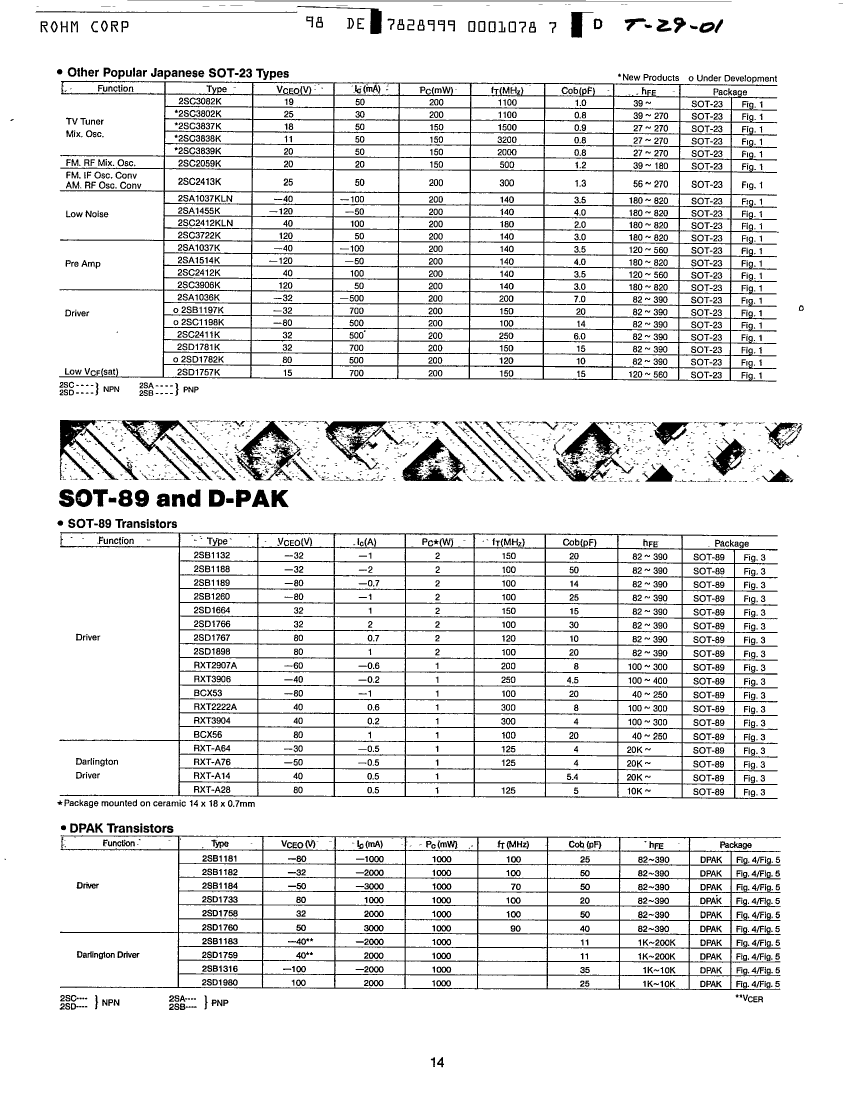

Preview

Download Datasheet

View All

RXT-A64 Related Products

	RXT-A64	2SC2059K	2SC1198K	2SC3082K
Description	Small Signal Bipolar Transistor, 0.5A I(C), 30V V(BR)CEO, 1-Element, PNP, Silicon	Small Signal Bipolar Transistor, 0.02A I(C), 20V V(BR)CEO, 1-Element, NPN, Silicon, MINIMOLD, SMT, SC-59, 3 PIN	Transistor	RF Small Signal Bipolar Transistor, 0.05A I(C), 1-Element, Ultra High Frequency Band, Silicon, NPN,
Is it Rohs certified?	conform to	conform to	incompatible	conform to
package instruction	SMALL OUTLINE, R-PSSO-F3	SMALL OUTLINE, R-PDSO-G3	,	SMALL OUTLINE, R-PDSO-G3
Reach Compliance Code	unknown	compli	compli	compli
Maximum collector current (IC)	0.5 A	0.02 A	0.5 A	0.05 A
Configuration	DARLINGTON	SINGLE	Single	SINGLE
Minimum DC current gain (hFE)	20000	39	390	39
Polarity/channel type	PNP	NPN	NPN	NPN
Maximum power dissipation(Abs)	1 W	0.15 W	0.2 W	0.2 W
surface mount	YES	YES	YES	YES
Nominal transition frequency (fT)	125 MHz	500 MHz	100 MHz	1100 MHz
ECCN code	EAR99	EAR99	-	EAR99
Collector-emitter maximum voltage	30 V	20 V	-	19 V
JESD-30 code	R-PSSO-F3	R-PDSO-G3	-	R-PDSO-G3
Number of components	1	1	-	1
Number of terminals	3	3	-	3
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	-	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	-	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	-	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	-	Not Qualified
Terminal form	FLAT	GULL WING	-	GULL WING
Terminal location	SINGLE	DUAL	-	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED
transistor applications	SWITCHING	AMPLIFIER	-	AMPLIFIER
Transistor component materials	SILICON	SILICON	-	SILICON
