NLE-L221M16V10X12.5TB12.7MMPNF

Description
Aluminum Electrolytic Capacitor, Polarized, Aluminum, 16V, 20% +Tol, 20% -Tol, 220uF,
CategoryPassive components    capacitor
File Size189KB,5 Pages
ManufacturerNIC Components Corp
Environmental Compliance
Download Datasheet Parametric View All

NLE-L221M16V10X12.5TB12.7MMPNF Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum, 16V, 20% +Tol, 20% -Tol, 220uF,

NLE-L221M16V10X12.5TB12.7MMPNF Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid831325814
package instruction,
Reach Compliance Codecompliant
Country Of OriginJapan, Mainland China, Taiwan
ECCN codeEAR99
YTEOL6.98
capacitance220 µF
Capacitor typeALUMINUM ELECTROLYTIC CAPACITOR
diameter10 mm
dielectric materialsALUMINUM (WET)
ESR910 mΩ
length12.5 mm
negative tolerance20%
Number of terminals2
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Package formRadial
method of packingAmmo Pack
polarityPOLARIZED
positive tolerance20%
Rated (DC) voltage (URdc)16 V
ripple current350 mA
Terminal pitch5 mm

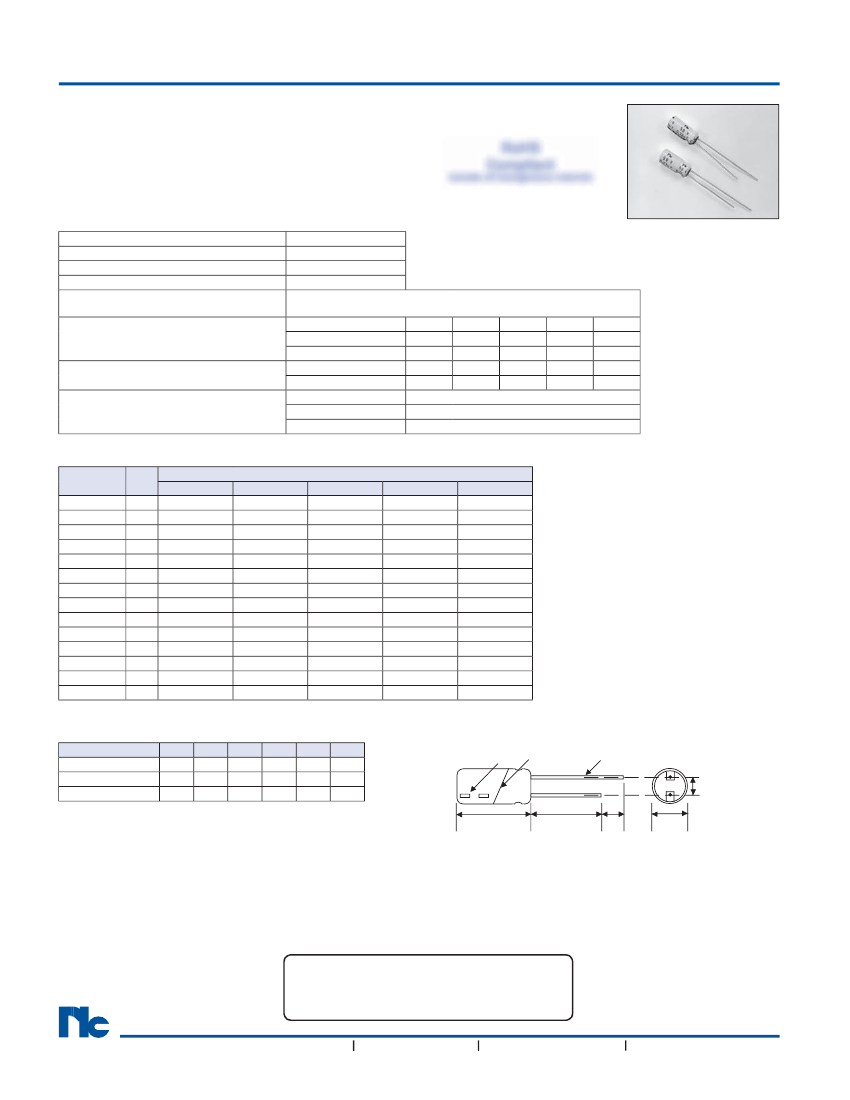

Miniature Aluminum Electrolytic Capacitors
LOW LEAKAGE CURRENT AND LONG LIFE ALUMINUM
ELECTROLYTIC CAPACITORS, POLARIZED, RADIAL LEADS
S
FEATURES
• LOW LEAKAGE CURRENT & LOW NOISE
• NEW REDUCED SIZES (Alternate Sizes on Request)
CHARACTERISTICS
Rated Voltage Range
Capacitance Range
Operating Temperature Range
Capacitance Tolerance
Max. Leakage Current
After 2 minutes At +20°C
Surge Voltage &
Max. Tan
δ
@ 120Hz/+20°C
Low Temperature Stability
(Impedance Ratio @ 120Hz)
Load Life Test at Rated W.V. & +85°C
2,000 Hours for 5 ~ 10mm diameter
4,000 Hours for 12.5mm & up
10 ~ 50Vdc
1.0 ~ 2200μF
-40 ~ +85°C
±20%(M)
0.002CV or 0.4μA, whichever is greater
W.V. (Vdc)
S.V. (Vdc)
Tan
δ
Z-25°C/Z+20°C
Z-40°C/Z+20°C
Capacitance Change
Tan
δ
Leakage Current
10
16
25
35
50
13
20
32
44
63
0.16
0.13
0.12
0.10
0.08
2
1.5
1.5
1.5
1.5
5
4
3
3
3
Within ±20% of initial measured value
Less than 200% of specified maximum value
Less than specified maximum value
NLE-L Series
includes all homogeneous materials
RoHS
Compliant
*See Part Number System for Details
STANDARD PRODUCT AND CASE SIZE TABLE Dφ x L (mm)
Cap. (μF)
1.0
2.2
3.3
4.7
10
22
33
47
100
220
330
470
1000
2200
1R0
2R2
3R3
4R7
100
220
330
470
101
221
331
471
102
222
10
-
-
-
-
-
-
-
5x11
6.3x11
8x11.5
10x12.5
10x16
12.5x20
16x25
Working Voltage (Vdc)
16
25
35
-
-
-
-
-
-
-
-
-
-
5x11
5x11
5x11
5x11
5x11
5x11
5x11
6.3x11
5x11
6.3x11
6.3x11
6.3x11
6.3x11
8x11.5
8x11.5
8x11.5
10x12.5
10x12.5
10x16
10x20
10x16
10x20
12.5x25
10x16
12.5x20
12.5x25
12.5x20
16x25
16x25
16x25
-
-
50
5x11
5x11
5x11
5x11
5x11
6.3x11
8x11.5
8x11.5
10x16
12.5x20
12.5x25
16x25
-
-
LEAD SPACING AND DIAMETER (mm)
Case Dia. (Dφ)
Lead Dia. (dφ)
Lead Spacing (F)
Dim.
α
5
0.5
2.0
0.5
6.3
0.5
2.5
0.5
8
0.6
3.5
0.5
10
0.6
5.0
0.5
12.5
0.6
5.0
0.5
16
0.8
7.5
0.5
DIMENSIONS (mm)
Polarity Marking
Insulation Sleeve
dφ ± 0.05
F ± 0.5
L +
β
max.
15mm Min.
4mm
Min.
Dφ ±
α
®
Please review the notes on correct use, safety and precautions found on
pages T10
&
T11
of NIC’s
Electrolytic Capacitor catalog.
Also found at
www.niccomp.com/precautions
If in doubt or uncertainty, please review your specific application - process
details with NIC’s technical support personnel:
tpmg@niccomp.com
PRECAUTIONS
82
NIC COMPONENTS CORP.
www.niccomp.com
www.lowESR.com
www.RFpassives.com
www.SMTmagnetics.com
