MGPWC-00066-P datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> MGPWC-00066-P

MGPWC-00066-P: Descriptionfixed inductors 2K UH; CategoryPassive components; File Size103KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric View All

MGPWC-00066-P Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MGPWC-00066-P	-	-	View	Buy Now

MGPWC-00066-P Overview

fixed inductors 2K UH

MGPWC-00066-P Parametric

Parameter Name	Attribute value
Manufacture	TE Connectivity
Product Category	Fixed Inductors
RoHS	Yes
Maximum DC Resistance	4.18 mOhms
Factory Pack Quantity	500

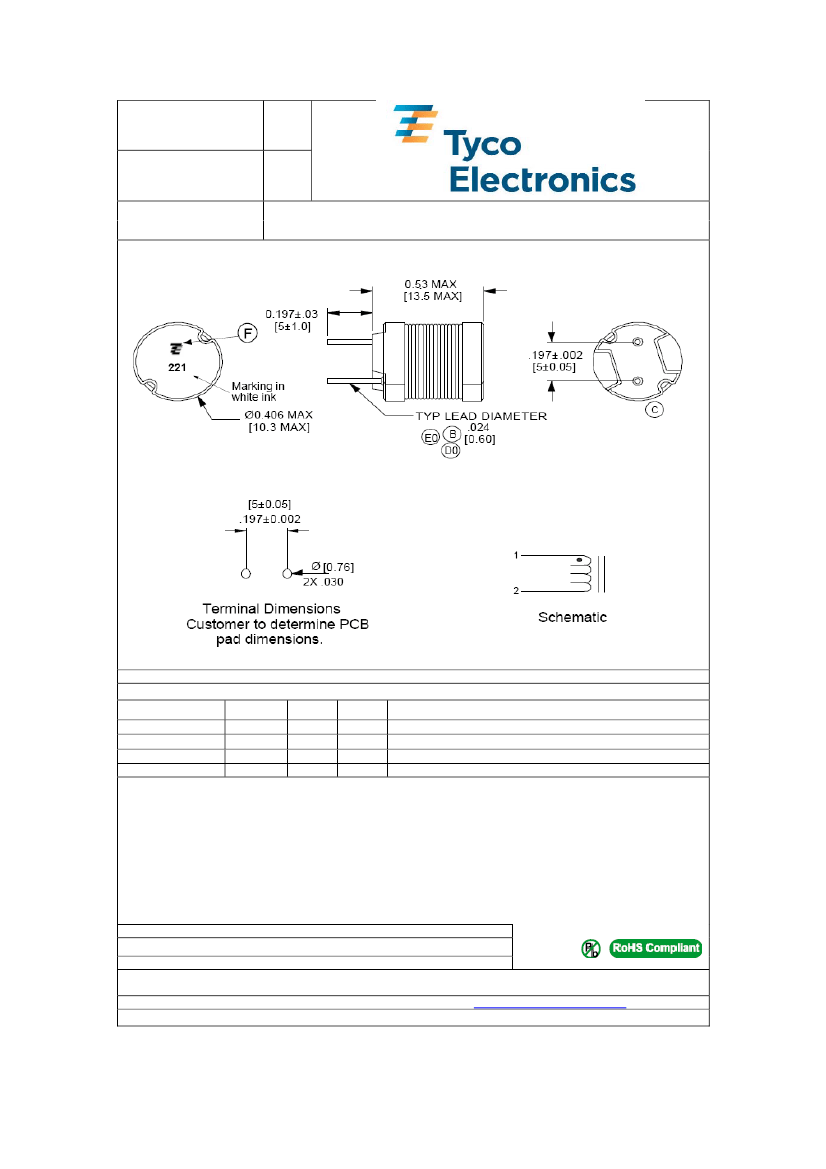

Preview

Download Datasheet

View All

MGPWL-00057-P

REV

1879483-1

Product

Description

IND SDRI 6.8X2.8mm SMD SS

Previously MGPWL-00057

Primary Units are in inches millimetres in brackets

Electrical Specifications at +20°C unless noted otherwise

Test

Inductance

Saturation current

DC Resistance

Dialectric

Limits

220

1.60

0.230

Unit

μH

Tol

±10%

Max.

500μA

Notes

1-2, 100kHz, 100mVAC, Ls.

applied to produce a typical 10% decrease in nominal Ls.

Pins 1 - 2

1-CORE, 1 second test, 500μA maximum leakage current.

VDC

Terminal Plating is Hot-dipped SnAgCu

260°C Maximum reflow solder temperature per J-STD-020

Operating Temperature range -40°C to +85°C

The information contained in this drawing is the sole property of Tyco Electronics. Any reproduction or use without

the written permission of Tyco Electronics is prohibited.

Specifications subject to change without notice. For latest revision visit

http://www.tycoelectronics.com

Page 1 of 1 Date 20/01/09
