K42X-E9P/P-C datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> K42X-E9P/P-C

K42X-E9P/P-C: DescriptionD Subminiature Connector, 9+9 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Plug,; CategoryThe connector The connector; File Size579KB，1 Pages; ManufacturerKycon

Download Datasheet Parametric View All

K42X-E9P/P-C Overview

D Subminiature Connector, 9+9 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Plug,

K42X-E9P/P-C Parametric

Parameter Name	Attribute value
Objectid	1294712608
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ROHS COMPLIANT
subject depth	0.768 inch
body length	1.213 inch
Body/casing type	PLUG
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	FEMALE
Contact material	BRASS
contact mode	STAGGERED
Contact resistance	13 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	1000000000 Ω
JESD-609 code	e3
Plug contact pitch	0.109 inch
Installation option 1	#4-40
Installation option 2	THREADED INSERT
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2+2
Number of rows loaded	2+2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
Plating thickness	FLASH inch
Rated current (signal)	2 A
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Terminal length	0.125 inch
Terminal pitch	2.7686 mm
Termination type	SOLDER
Total number of contacts	18

Preview

Download Datasheet

View All

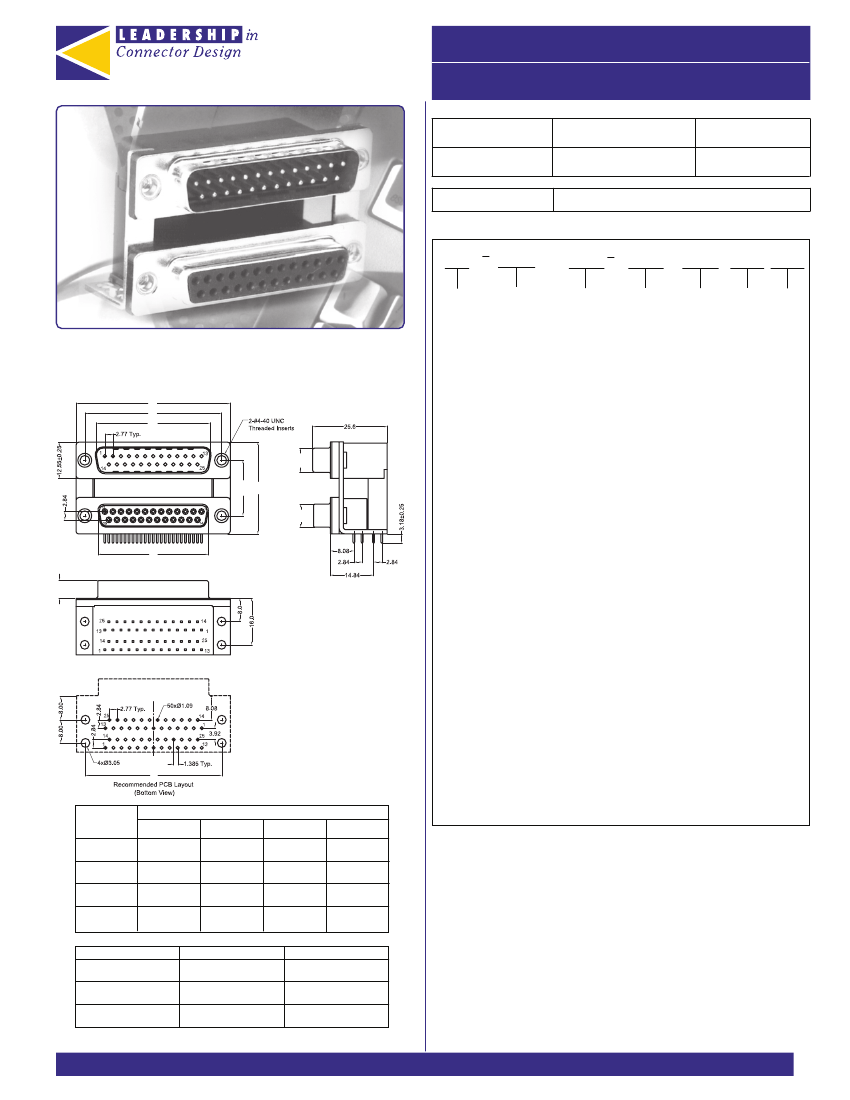

STACKED D-SUBMINIATURE

KYCON

RoHS

K42X Series

Documentation &

Ordering Information

Drawing

Sample

Kycon Part #

Stock

CofC

RFQ

K42X-E9P/P-A

Part Builder

K42X

Center Board Jack Plating

Series Top Shell Size Bottom

Connector Shell Size Distance Lock Screws Option

Type

Connector

K42X Series

Dual-Port D-Sub

Dimensions in mm

Series

K42X - Dual-Port D-Subminiature Connector

K42X

Top/Bottom Shell Size

9/9 - 9 Contacts over 9 Contacts

15/15

- 15 Contacts over 15 Contacts

25/25 - 25 Contacts over 25 Contacts

37/37

37/37 - 37 Contacts over 37 Contacts

Top/Bottom Connector Type

P/P - (Plug/Plug)

P/P

P/S

P/S - (Plug/Receptacle)

S/S

S/S - (Receptacle/Receptacle)

S/P

S/P - (Receptacle/Plug)

Center to Center Distance

A - .750” (Standard)

C - .625”

Board Locks Option

Blank - No Board Locks

4N - Board Locks (Standard)

8.36 Plug

7.90 Socket

6.1 Plug

5.8 Socket

Contact Kycon for Specific

Engineering Drawings

Jack Screws Option

Blank - No Jack Screws

J - 4-40 HEX Removable Jack Screws

- 4-40 Round Riveted Jack Screws

Plating Option

Blank

- Gold Flash

- 15µ” Gold

- 30µ” Gold

Dimensions (Inch/

mm)

.643

16.33

.971

24.66

1.511

38.38

2.159

54.84

.666

16.92

.994

25.25

1.534

38.96

2.181

55.42

.750

19.05

.900

22.86

.625

15.88

.984

24.99

1.312

33.32

1.852

47.04

2.500

63.50

1.213

30.81

1.541

39.14

2.088

53.04

2.729

69.32

1.244

31.60

1.394

35.41

1.119

28.42

Number of

Contacts

(Shell Size)

9 (E)

15 (A)

25 (B)

37 (C)

Contact Kycon for High Temperature and other options

Center to Center Spacing

A = Exterior of Female Shell (S)

A1 = Interior of Male Shell (P)

Click here for Performance Specification

2012

KYCON, Inc. • Tel: +1 408-494-0330 • US: 1-888-KYCON-22 • Fax: +1 408-494-0325 • www.kycon.com
