5300-34-RC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> 5300-34-RC

5300-34-RC: Descriptionfixed inductors 560uh 10% RF choke; CategoryPassive components; File Size216KB，2 Pages; ManufacturerJ.W. Miller ( Bourns ); Environmental Compliance

Download Datasheet Parametric View All

5300-34-RC Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5300-34-RC	-	-	View	Buy Now

5300-34-RC Overview

fixed inductors 560uh 10% RF choke

5300-34-RC Parametric

Parameter Name	Attribute value
Manufacture	Bourns
Product Category	Fixed Inductors
RoHS	Yes
Inductance	560 uH
Maximum DC Resistance	600 mOhms
Packaging	Bulk
Factory Pack Quantity	500

Preview

Download Datasheet

View All

Features

■

Formerly

Applications

■

DC/DC converters

■

Power supplies

■

General use

model

■

Current rating up to 3.3 A

■

Inductance range: 1.0

μH

to 1,000

μH

■

RoHS compliant*

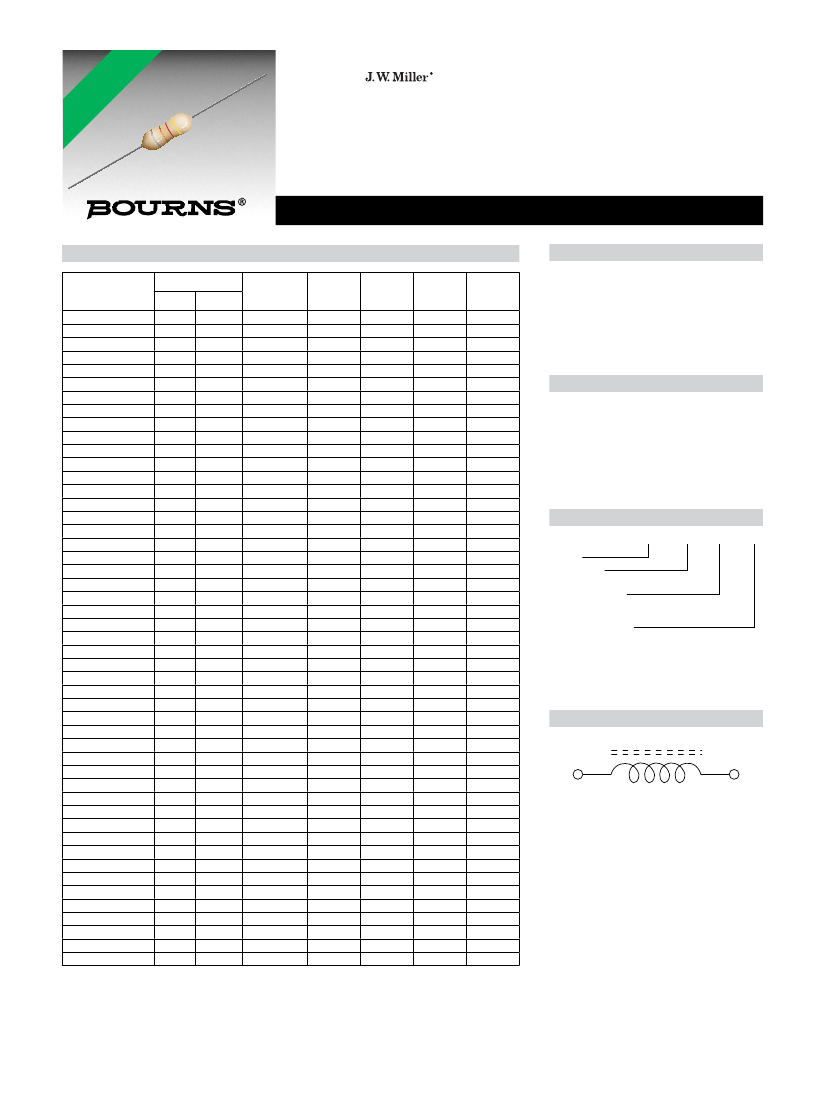

5300 Series Conformal Coated RF Choke

Electrical Speciﬁcations (@ 25 °C)

Inductance

Bourns Part No.

5300-01-RC

5300-02-RC

5300-03-RC

5300-04-RC

5300-05-RC

5300-06-RC

5300-07-RC

5300-08-RC

5300-09-RC

5300-10-RC

5300-11-RC

5300-12-RC

5300-13-RC

5300-14-RC

5300-15-RC

5300-16-RC

5300-17-RC

5300-18-RC

5300-19-RC

5300-20-RC

5300-21-RC

5300-22-RC

5300-23-RC

5300-24-RC

5300-25-RC

5300-26-RC

5300-27-RC

5300-28-RC

5300-29-RC

5300-30-RC

5300-31-RC

5300-32-RC

5300-33-RC

5300-34-RC

5300-35-RC

5300-36-RC

5300-37-RC

5300-38-RC

5300-39-RC

5300-40-RC

5300-41-RC

5300-42-RC

5300-43-RC

5300-44-RC

5300-45-RC

5300-46-RC

5300-47-RC

5300-48-RC

5300-49-RC

(μH) Tol. (%)

1.0

±10

1.2

±10

1.5

±10

1.8

±10

2.2

±10

2.7

±10

3.3

±10

3.9

±10

4.7

±10

5.6

±10

6.8

±10

8.2

±10

100

±10

120

±10

150

±10

180

±10

220

±10

270

±10

330

±10

390

±10

470

±10

560

±10

680

±10

820

±10

1000

±10

1200

±10

1500

±10

1800

±10

2200

±10

2700

±10

3300

±10

3900

±10

4700

±10

5600

±10

6800

±10

8200

±10

10,000

±10

Test

Frequency

7.96 MHz

1 KHz

SRF

(MHz)

Min.

190

170

160

150

130

120

110

100

8.4

8.0

7.6

7.1

6.0

5.8

4.3

4.1

3.9

3.6

3.2

2.8

2.3

2.1

1.9

1.7

1.4

1.3

1.2

1.1

1.0

0.94

0.76

0.72

0.64

0.56

0.53

0.48

0.45

0.40

0.36

0.29

0.27

DCR

(Ω)

Max.

0.018

0.019

0.020

0.023

0.031

0.033

0.054

0.060

0.068

0.074

0.080

0.087

0.095

0.11

0.15

0.16

0.19

0.22

0.24

0.26

0.35

0.47

0.53

0.60

0.67

0.90

1.2

1.4

1.9

2.1

2.4

3.0

3.4

4.7

6.4

7.1

7.9

9.0

Idc

(mA)

3300

3200

3100

2900

2600

2500

1900

1800

1700

1600

1500

1400

1200

1100

1000

950

910

880

760

650

610

580

550

470

410

380

320

310

290

260

240

210

180

170

160

150

130

120

100

Isat

(mA)

3000

2700

2500

2100

2000

1900

1700

1500

1400

1300

1200

1100

970

880

790

710

640

580

530

480

430

400

370

330

300

270

250

220

200

180

170

150

140

130

110

100

General Speciﬁcations

Temperature Rise ................ 35 °C at Idc

Rated Current

..... Inductance drop 5 % typical at Isat

Operating Temperature

................................ -55 °C to +105 °C

Storage Temperature

................................ -55 °C to +105 °C

Dielectric Strength ................... 500 Vrms

Materials

Core .............................................. Ferrite

Wire ............................ Enameled copper

Terminal Coating................................. Sn

Coating .................................Epoxy resin

Packaging

Standard....................500 pcs. per bag

Optional ......3000 pcs. per 14-inch reel

How to Order

5300 - 02 - __ - RC

Model

Value Code

(See table)

Packaging Code

Blank = 500 pcs./bag

TR = 3000 pcs./14-inch reel

Compliance Code

RC = RoHS compliant*

Examples:

• 5300-02-RC = 1.2 mH packaged

500 pcs./bag.

• 5300-16-TR-RC = 18 mH packaged

3000 pcs./14-inch

reel.

Electrical Schematic

*RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011.

Speciﬁcations are subject to change without notice.

Customers should verify actual device performance in their speciﬁc applications.
