Type TIM
Solid Tantalum Capacitors
Molded, Radial Lead, Solid Tantalum Capacitors

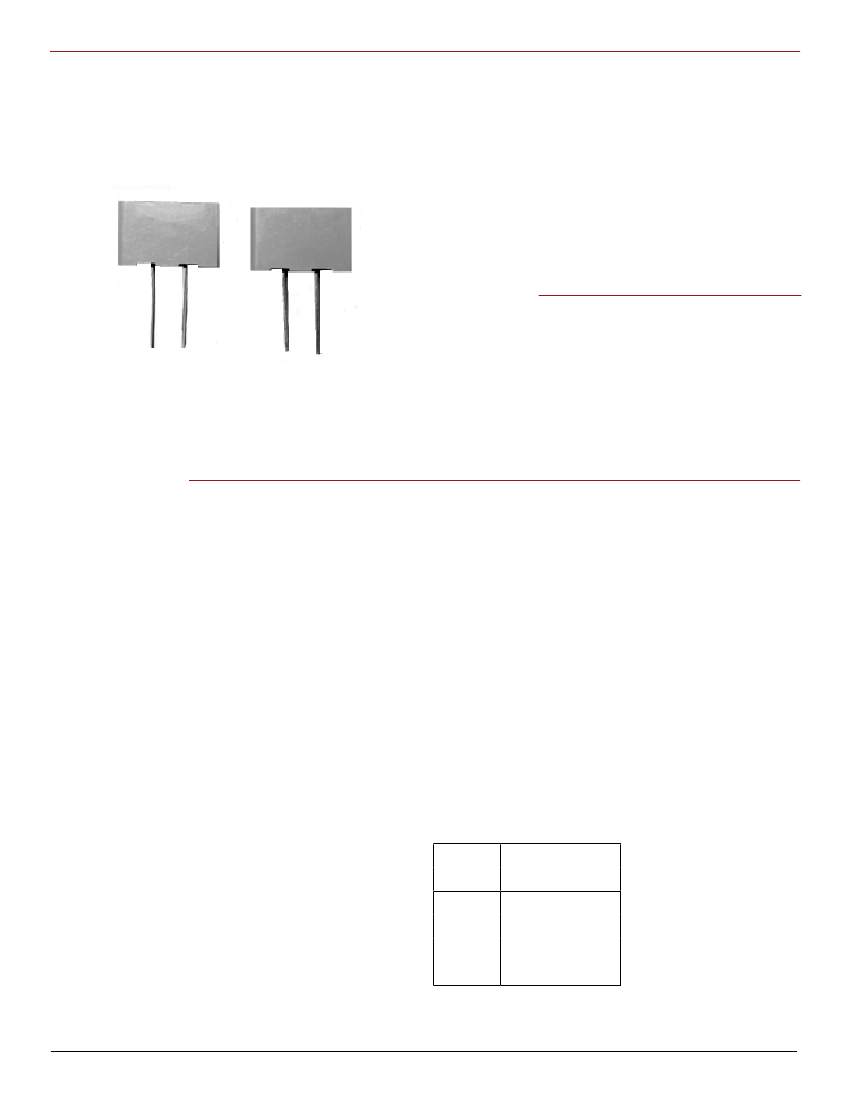

The Type TIM radial molded solid tantalum capacitor
is great for saving board space with its higher profile
and smaller board space requirement. It is ideal for
high density packaging coupled with low DCL and
low ESR performance needed in compact power sup-
ply designs. The radius on the vertical side allows for
polarization during automatic or hand insertion. The
Type TIM is available in bulk or on radial tape and reel.
Highlights
♦
♦
♦
♦
♦
♦
♦
Precision Molded
Low DCL
Low ESR
Radius on vertical edge for polarity identification
Excellent temperature stability
Standoffs for easier flux removal
Resistant to shock and vibraton
Specifications
Capacitance Range:
Voltage Range:
Tolerance:
Operating Temperature Range:
DC Leakage:
0.10 µF to 220 µF
6 WVdc to 50 WVdc at 85 ºC
±10%, ±20%
–55 ºC to +125 ºC (with proper derating)
+25 ºC - See ratings limit
+85 ºC - 10 x 25 ºC limit
+125 ºC - 12.5 x 25 ºC limit
–10% @ –55 ºC
+10% @ +85 ºC
+15% @ +125 ºC
W&X
Y
Z
Case
Code
W
X
Y
Z
Quantity
1,500 per 14" Reel
1,500 per 14" Reel
1,500 per 14" Reel
N/A
Capacitance Change Maximum:
Maximum Power Dissipation:
.090 Watts
.100 Watts
.125 Watts
Reel Packaging per EIA- RS-468:
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 •
www.cde.com

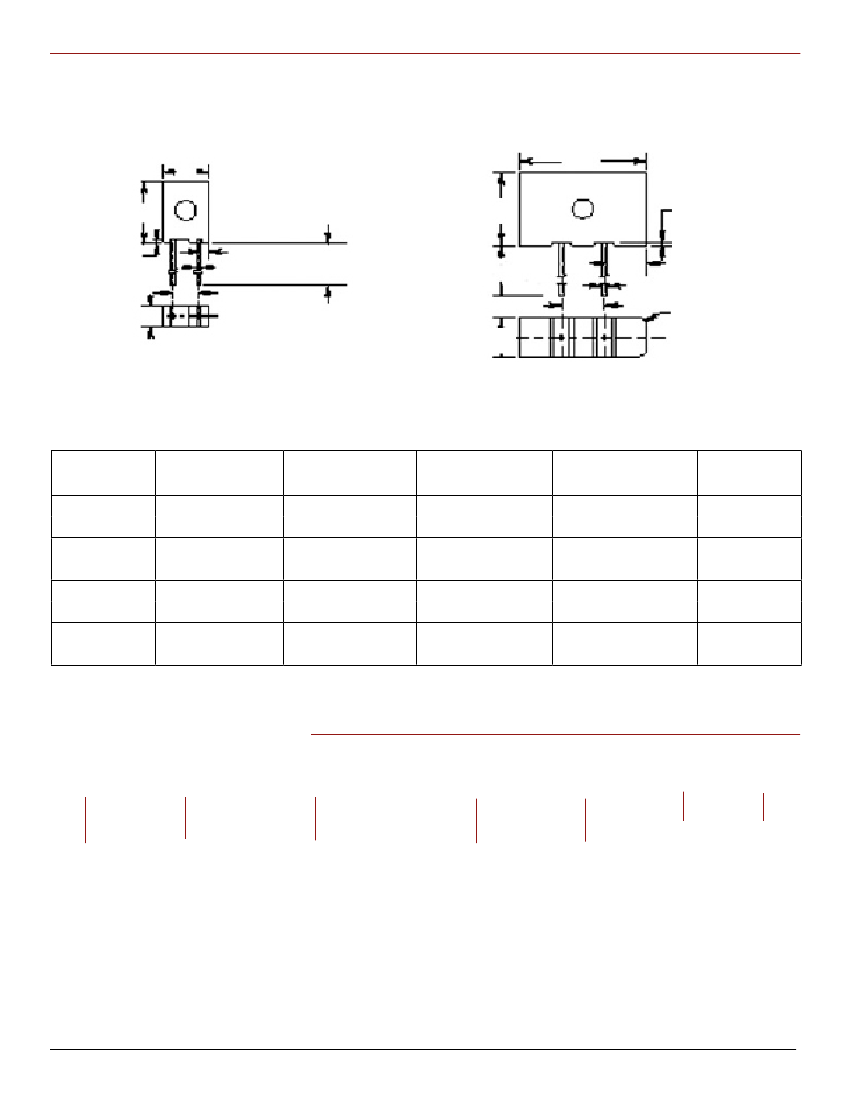

Type TIM
Solid Tantalum Capacitors
