SAC-3P-M12Y-2XM12FR/.../...
Order No.: 1506419
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1506419
Sensor/actuator cable, 3-pos., variable cable, straight M12 Y-plug, on
2x angled M12 socket, cable length: 0.2 m ... 40 m
Product notes
Commercial data
Pack
Customs tariff
Catalog page information
1 pcs.
85444290
Page 100 (PC-2009)
http://
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
Technical data
General data
Nominal current I
N
Nominal voltage U
N
Number of positions
Volume resistance
Insulation resistance
4A
250 V
3
≤ 5 mΩ
≥ 100 MΩ
WEEE/RoHS-compliant since:
09/19/2006
PHOENIX CONTACT GmbH & Co. KG
http://www.phoenixcontact.com
Page 1 / 4
Jul 6, 2009
SAC-3P-M12Y-2XM12FR/.../...
Order No.: 1506419
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1506419
Length of cable
Ambient temperature (operation)
General characteristics
Coding
Inflammability class acc. to UL 94
Surge voltage category
Pollution degree
Degree of protection
Contact material
Contact surface material
Contact carrier material
Material of grip body
Material, knurls
Sealing material
Status display
Line characteristics
Note
Free input (0.2 ... 40.0 m)
-25 °C ... 90 °C (plug/socket)
A - standard
HB
II
3
IP65/IP68/IP69K
CuSn
Ni/Au
TPU GF
TPU, hardly inflammable, self-extinguishing
Zinc die-cast, (nickel-plated)
NBR
No
This order comprises a cable with a freely selectable cable type.
As a result, technical data about the cable types available for
selection is not displayed here.This information is available on
request.
Drawings

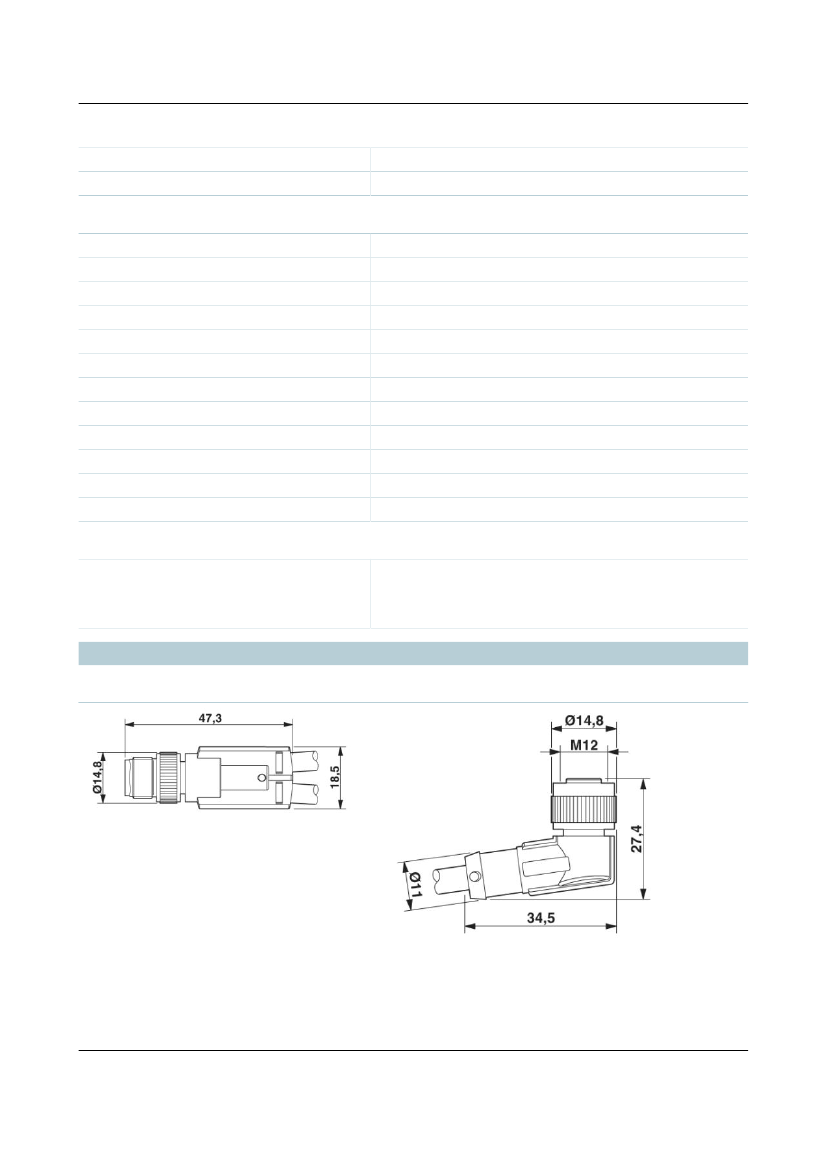

Dimensioned drawing
Plug M12 x 1, Y distributor
M12 x 1 female connector, angled
PHOENIX CONTACT GmbH & Co. KG
http://www.phoenixcontact.com
Page 2 / 4
Jul 6, 2009
SAC-3P-M12Y-2XM12FR/.../...
Order No.: 1506419
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1506419

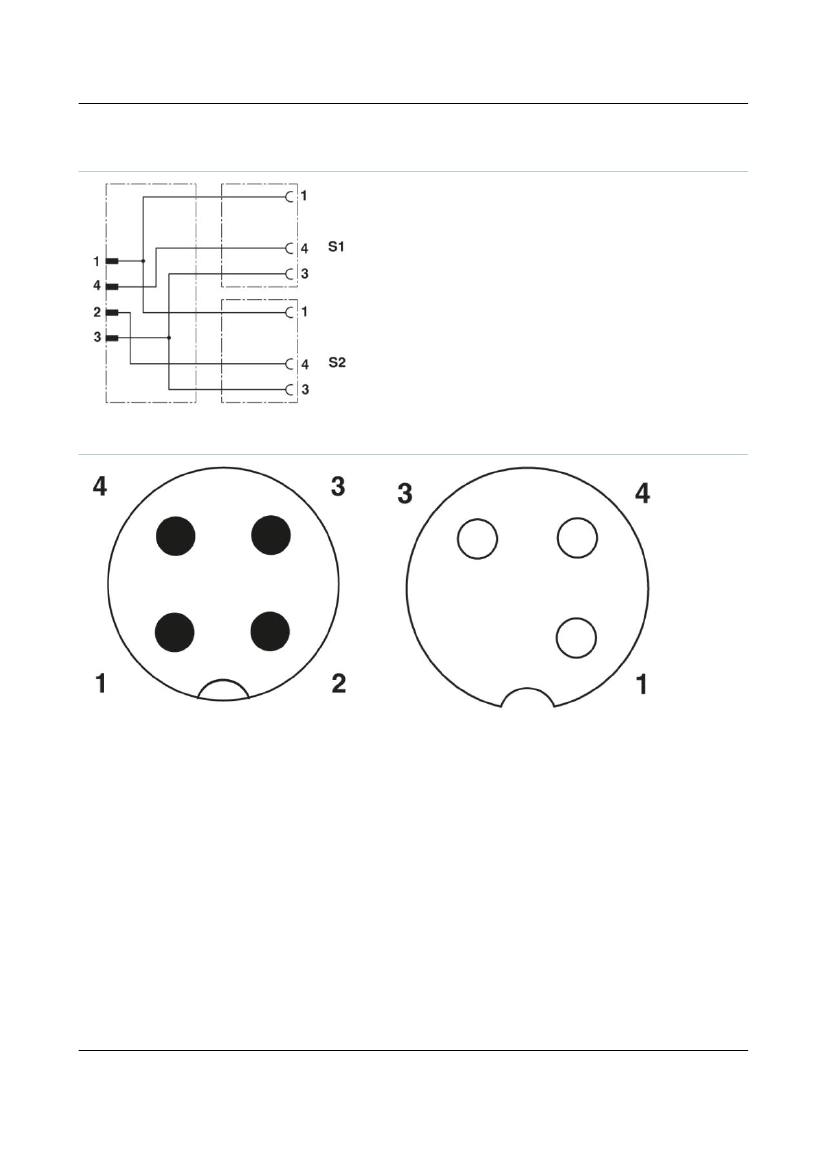

Circuit diagram
