T491B106K020AS-F: Descriptiontantalum capacitors - solid smd 10.0uf 20v 10% case 3528-21; CategoryPassive components; File Size747KB，6 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric View All

T491B106K020AS-F Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	T491B106K020AS-F	-	-	View	Buy Now

T491B106K020AS-F Overview

tantalum capacitors - solid smd 10.0uf 20v 10% case 3528-21

T491B106K020AS-F Parametric

Parameter Name	Attribute value
Manufacture	Cornell Dubilie
Product Category	Tantalum Capacitors - Solid SMD
RoHS	Yes
Capacitance	10 uF
Voltage Rating	20 V
Tolerance	10 %
Case Code - i	1411
Case Code - mm	3528
Heigh	2.1 mm
Mfr Case Code	B Case
Operating Temperature Range	- 55 C to + 125 C
Case Length	3.5 mm
Case Width	2.8 mm
Package / Case	1411 (3528 metric)
Packaging	Reel
Produc	Tantalum Solid Standard Grade - Other Various
Factory Pack Quantity	2000
Termination Style	SMD/SMT

Preview

Download Datasheet

View All

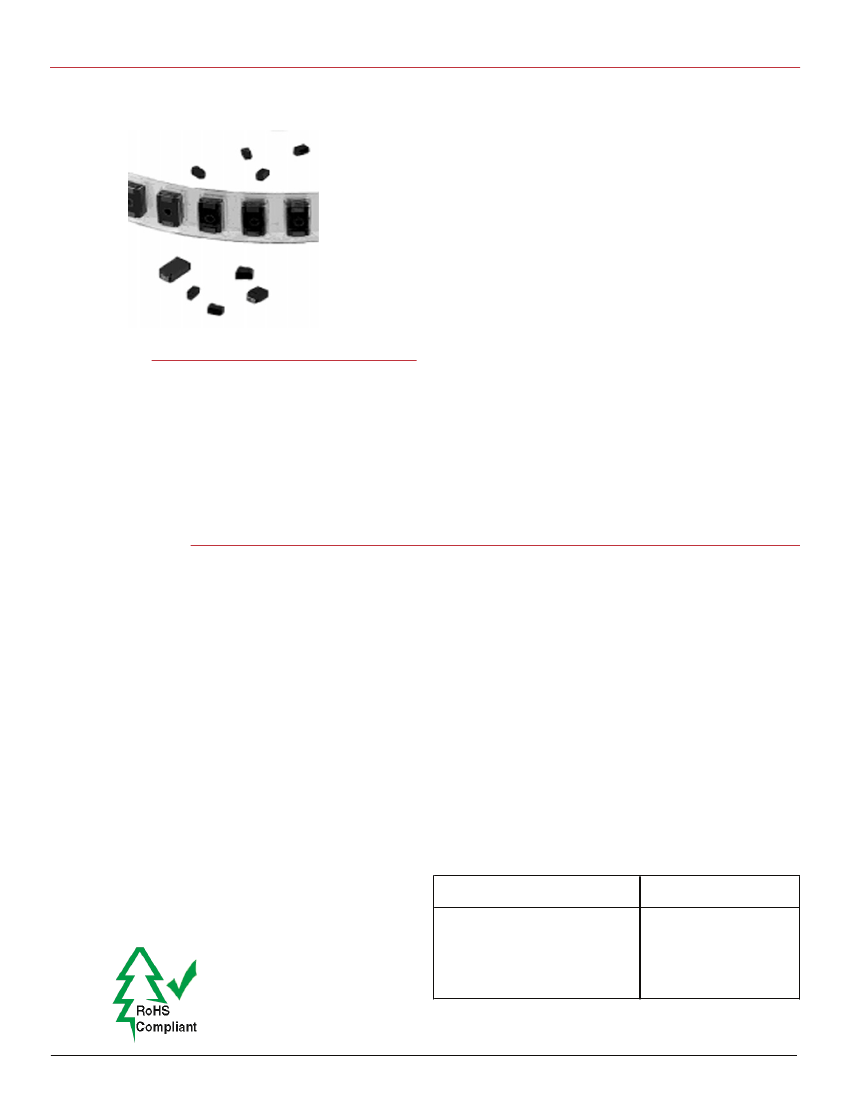

Type T491

Solid Tantalum Chip Capacitors

Solid Tantalum Chip Capacitors for Surface Mount Applications

The T491 Series’ physical outline and dimen-

sions conform to the global standard for tanta-

lum capacitor chips, and the T491 exceeds the

requirements of EIA standard 535BAAC. T491

chips are specifically for automated surface

mount processes and equipment. The termina-

tions

are

100% Matte-Tin.

Reliability and

thermal stability are assured by lead-frame at-

tachments to the tantalum pellet made by micro-

processor-controlled welding and a high tem-

perature silver epoxy adhesive. Standard pack-

aging is compatible with all tape-fed placement

units and with EIA RS- 481-1 tape and reel speci-

fication.

Highlights

♦

Specifications

0.10 µF to

330

µF

4 Vdc to 50 VDC

±10% standard, ±20% available

–55 ºC to +125 ºC (with proper derating)

–10% @ –55 ºC; +10% @ +85 ºC;

+12% @ +125 ºC

DC Leakage:

At 25 ºC — See Ratings

At 85 ºC — 10 x 25 ºC limit

At 125 ºC — 12 x 25 ºC limit

Dissipation Factor:

0.1 µF to 1.0 µF — 4%

1.5 µF to 68 µF — 6%

100 µF to

330

µF — 8%

Standard Packaging Tape and Reel:

EIA RS-481-1

Capacitance Range:

Voltage Range:

Tolerance:

Operating Temperature:

Cap Change From Initial Limit:

Case

Code

EIA

IECQ

3216L

3528L

3216

3528

6032

7343

7343H

Low DF and DC Leakage

Temperature Stable

260 ºC for 10 Seconds Soldering

Meets IECQ Standard

QC300801/US0001

Meets EIA Standard 535BAAC

Qty per

7" Reel

2,500

2,000

500

Tape

Width

8mm

12mm

Pitch

4mm

8mm

Complies with the EU Directive

2002/95/EC requirement

restricting the use of Lead (Pb),

Mercury (Hg), Cadmium (Cd),

Hexavalent chromium (Cr(VI)),

PolyBrominated Biphenyls (PBB)

and PolyBrominated Diphenyl

Ethers (PBDE).

13” Reels Available on Special Order

CDE Cornell Dubilier•1605 E. Rodney French Blvd.•New Bedford, MA 02744•Ph: (508)996-8561•Fax: (508)996-3830•

www.cde.com

Notice and Disclaimer:

All product drawings, descriptions, specifications, statements, information and

data (collectively, the “Information”) in this datasheet or other publication are subject to change. The

customer is responsible for checking, confirming and verifying the extent to which the Information con-

tained in this datasheet or other publication is applicable to an order at the time the order is placed. All

Information given herein is believed to be accurate and reliable, but it is presented without any guaran-

tee, warranty, representation or responsibility of any kind, expressed or implied. Statements of suitability

for certain applications are based on the knowledge that the Cornell Dubilier company providing such

statements (“Cornell Dubilier”) has of operating conditions that such Cornell Dubilier company regards

as typical for such applications, but are not intended to constitute any guarantee, warranty or representa-

tion regarding any such matter – and Cornell Dubilier specifically and expressly disclaims any guarantee,

warranty or representation concerning the suitability for a specific customer application, use, storage,

transportation, or operating environment. The Information is intended for use only by customers who

have the requisite experience and capability to determine the correct products for their application. Any

technical advice inferred from this Information or otherwise provided by Cornell Dubilier with reference

to the use of any Cornell Dubilier products is given gratis (unless otherwise specified by Cornell Dubilier),

and Cornell Dubilier assumes no obligation or liability for the advice given or results obtained. Although

Cornell Dubilier strives to apply the most stringent quality and safety standards regarding the design

and manufacturing of its products, in light of the current state of the art, isolated component failures may

still occur. Accordingly, customer applications which require a high degree of reliability or safety should

employ suitable designs or other safeguards (such as installation of protective circuitry or redundancies

or other appropriate protective measures) in order to ensure that the failure of an electrical component

does not result in a risk of personal injury or property damage. Although all product-related warnings,

cautions and notes must be observed, the customer should not assume that all safety measures are indi-

cated in such warnings, cautions and notes, or that other safety measures may not be required.
