SV01AA681JAA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> SV01AA681JAA

SV01AA681JAA: Descriptionmultilayer ceramic capacitors mlcc - leaded sv01 680pf 1000volts c0g 5%; CategoryPassive components; File Size249KB，4 Pages; ManufacturerAVX

Download Datasheet Parametric View All

SV01AA681JAA Overview

multilayer ceramic capacitors mlcc - leaded sv01 680pf 1000volts c0g 5%

SV01AA681JAA Parametric

Parameter Name	Attribute value
Manufacture	AVX
Product Category	Multilayer Ceramic Capacitors MLCC - Leaded
RoHS	N
Capacitance	680 pF
Voltage Rating DC	1 kV
Tolerance	5 %
Temperature Coefficient / Code	C0G (NP0)
Termination Style	Radial
Case Length	6.35 mm
Case Width	5.08 mm
Case Heigh	5.59 mm
Lead Spacing	4.32 mm
Minimum Operating Temperature	- 55 C
Maximum Operating Temperature	+ 125 C
Produc	General Type MLCCs
Dissipation Factor DF	0.15
Lead Diamete	0.64 mm
Lead Style	Straigh
Operating Temperature Range	- 55 C to + 125 C
Packaging	Bulk
Factory Pack Quantity	300
Type	High Voltage MLC Radials
Voltage Rating	1 kV

Preview

Download Datasheet

View All

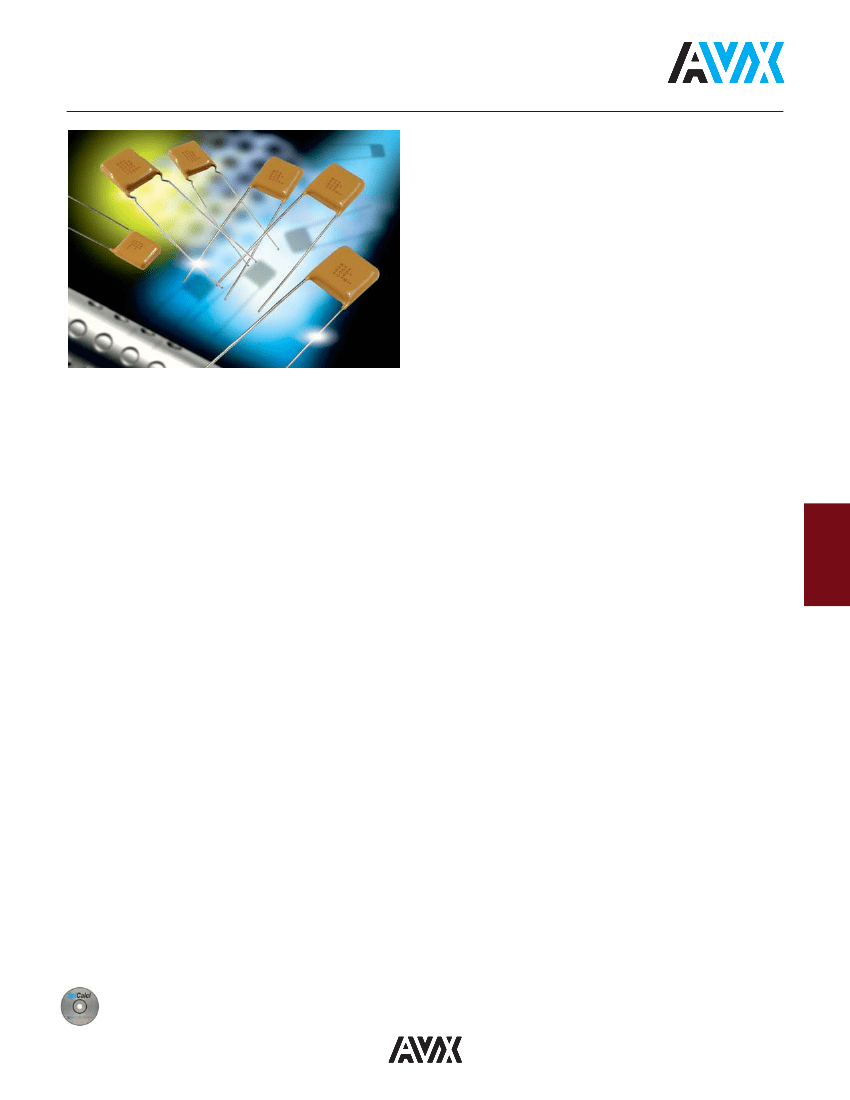

High Voltage MLC Radials (SV Style)

Application Information on High Voltage MLC Capacitors

High value, low leakage and small size are difficult parameters

to obtain in capacitors for high voltage systems. AVX special

high voltage MLC radial leaded capacitors meet these

performance characteristics. The added advantage of these

capacitors lies in special internal design minimizing the electric

field stresses within the MLC. These special design criteria

result in significant reduction of partial discharge activity within

the dielectric and having, therefore, a major impact on long-

term reliability of the product. The SV high voltage radial

capacitors are conformally coated with high insulation

resistance, high dielectric strength epoxy eliminating the

possibility of arc flashover.

The SV high voltage radial MLC designs exhibit low ESRs at

high frequency. The same criteria governing the high voltage

design carries the added benefits of extremely low ESR in

relatively low capacitance and small packages. These

capacitors are designed and are ideally suited for applications

such as snubbers in high frequency power converters,

resonators in SMPS, and high voltage coupling/DC blocking.

C0G Dielectric

General Specifications

Capacitance Range

10 pF to 0.15 μF

(+25°C, 1.0 ±0.2 Vrms at 1kHz,

for ≤100 pF use 1 MHz)

Capacitance Tolerances

±5%; ±10%; ±20%

Operating Temperature Range

-55°C to +125°C

Temperature Characteristic

0 ± 30 ppm/°C

Voltage Ratings

600 VDC thru 5000 VDC (+125°C)

Dissipation Factor

0.15% max.

(+25°C, 1.0 ±0.2 Vrms at 1kHz,

for ≤100 pF use 1 MHz)

Insulation Resistance

(+25°C, at 500V)

100K MΩ min. or 1000 MΩ-μF min.,

whichever is less

Insulation Resistance

(+125°C, at 500V)

10K MΩ min., or 100 MΩ-μF min.,

whichever is less

Dielectric Strength

120% rated voltage, 5 seconds

Life Test

100% rated and +125°C

N1500

General Specifications

Capacitance Range

100 pF to 0.47 μF

(+25°C, 1.0 ±0.2 Vrms (open circuit

voltage) at 1kHz)

Capacitance Tolerances

±5%; ±10%; 20%

Operating Temperature Range

-55°C to +125°C

Temperature Characteristic

-1500 ±250 ppm/ºC

Voltage Ratings

600 VDC thru 5000 VDC (+125°C)

Dissipation Factor

0.15% max.

(+25°C, 1.0 ±0.2 Vrms (open circuit

voltage) at 1kHz)

Insulation Resistance

(+25°C, at 500V)

100K MΩ min., or 1000 MΩ-μF min.,

whichever is less

Insulation Resistance

(+125°C, at 500V)

10K MΩ min., or 100 MΩ-μF min.,

whichever is less

Dielectric Strength

120% rated voltage, 5 seconds

Life Test

100% rated and +125°C

X7R Dielectric

General Specifications

Capacitance Range

100 pF to 2.2 μF

(+25°C, 1.0 ±0.2 Vrms at 1kHz)

Capacitance Tolerances

±10%; ±20%; +80%, -20%

Operating Temperature Range

-55°C to +125°C

Temperature Characteristic

±15% (0 VDC)

Voltage Ratings

600 VDC thru 5000 VDC (+125°C)

Dissipation Factor

2.5% max.

(+25°C, 1.0 ±0.2 Vrms at 1kHz)

Insulation Resistance

(+25°C, at 500V)

100K MΩ min., or 1000 MΩ-μF min.,

whichever is less

Insulation Resistance

(+125°C, at 500V)

10K MΩ min., or 100 MΩ-μF min.,

whichever is less

Dielectric Strength

120% rated voltage, 5 seconds

Life Test

100% rated and +125°C

Performance of SMPS capacitors can be simulated by downloading SpiCalci software program -

http://www.avx.com/SpiApps/default.asp#spicalci

Custom values, ratings and configurations are also available.
