BUCHANAN WireMate
CONNECTORS
Modular Screwless Series
TE Connectivity (TE)’s BUCHANAN WireMate connectors modular
screwless series are flexible and efficient and the wires are easy to
replace with no need for special tooling. Its multifarious product pitch
enables design flexibility and the different color configurations helps
ease identification. High density and compact design enable this series
to be used in the field of telecommunication system, lighting system,
security, and wire arrangement of architectures.
NEED PRODUCT
GROUP PHOTO
Applications
• LED Driver
• Lighting System
• Power Supply
Benefits
• Achieve quick assembly without the need
for special tooling
• Help save space with a high density
compact design
Up to 10A Max
300 VAC Max
2000 VAC
Electrical
• Current Rating:
• Voltage Rating:
• Dielectric Strength:
• Obtain design flexibility with multifarious
Product Pitch
• Help ease identification with different
Mechanical
• Operating Temperature:
• Reusable Cycles:
-40°C-+105°C
5 cycles
colors configuration
Specifications
• Application Specification:
• Product Specification:
• UL Approval:
114-137080
108-137080
UL1059
Materials
• Housing:
• Contact:
PA, UL 94 V-0
Copper Alloy with Tin plating
INTELLIGENT BUILDINGS
/// BUCHANAN WireMate CONNECTOR MODULAR SCREWLESS SERIES
BUCHANAN WireMate CONNECTORS MODULAR SCREWLESS SERIES

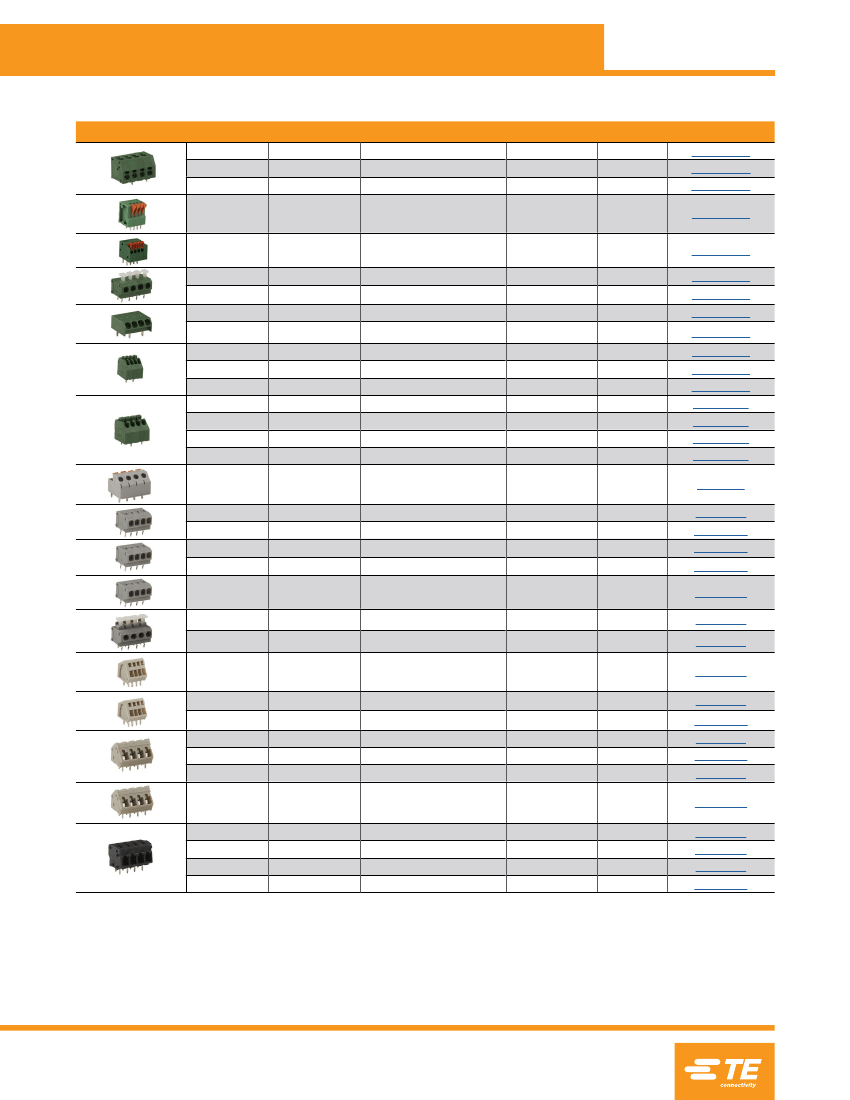

Product Selection Information
Pitch
5.00 mm
5.00 mm
5.00 mm
2.54 mm
Position Size
2
4
6
3
Style
Double Side Entry
Double Side Entry
Double Side Entry
Top Side Entry
Housing Design
Modular
Modular
Modular
Modular
Color
TE PN
1-2834014-2
1-2834014-4
1-2834014-6
1-2834015-3
2.54 mm
5.00 mm
5.00 mm
3.50 mm
3.50 mm
2.50 mm
2.50 mm
2.50 mm
3.50 mm
3.50 mm
3.50 mm
3.50 mm
5.08 mm
3.81 mm
3.81 mm
5.00 mm
5.00 mm
5.08 mm
5.00 mm
5.00 mm
2.50 mm
2.54 mm
2.54 mm
5.00 mm
5.00 mm
5.00 mm
5.08 mm
5.00 mm
5.00 mm
5.00 mm
5.00 mm
2
2
3
2
3
2
3
4
2
3
4
5
3
2
3
3
4
2
2
2
2
2
3
2
3
2
3
2
2
2
3
Side Entry
Top Lever
Top Lever
Top Entry
Top Entry
Top Side Entry
Top Side Entry
Top Side Entry
Top Side Entry
Top Side Entry
Top Side Entry
Top Side Entry
Top Side Entry
Side Entry
Side Entry
Side Entry
Side Entry
Side Entry
Side Entry
Side Entry
Top Side Entry
Top Side Entry
Top Side Entry
Top Side Entry
Top Side Entry
Top Side Entry
Top Side Entry
Side Entry
Side Entry
Side Entry
Side Entry
Modular
Modular
Modular
Modular
Modular
Modular
Modular
Modular
Modular
Modular
Modular
Modular
Modular
Modular
Modular
Modular
Modular
Modular
Modular
Modular
Modular
Modular
Modular
Modular
Modular
Modular
Modular
Modular
Modular
Modular
Modular
Gray
Gray
Gray
Gray
Gray
Gray
Gray
Gray
Gray
Gray
Gray
Gray
Gray
Gray
Gray
Gray
Gray
Gray
Gray
1-2834016-2
1-2834018-2
1-2834018-3
1-2834019-2
1-2834019-3
1-2834021-2
1-2834021-3
1-2834021-4
1-2834011-2
1-2834011-3
1-2834011-4
1-2834011-5
2834114-2
2834088-1
2834088-2
2834089-2
2834089-3
2834090-1
2834095-1
2834097-1
2834084-1
2834085-1
2834085-2
2834078-1
2834078-2
2834076-1
2834077-2
2834098-1
2834080-1
2834082-1
2834082-2
Contact a TE Sales representative if you need other poles with various color configuration.
