PSN0930A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> PSN0930A

PSN0930A: DescriptionLOW COST - HIGH PERFORMANCE PHASE LOCKED LOOP; CategoryAnalog mixed-signal IC The signal circuit; File Size78KB，2 Pages; ManufacturerZ-Communications, Inc.; Websitehttps://www.zcomm.com/

Download Datasheet Parametric View All

PSN0930A Overview

LOW COST - HIGH PERFORMANCE PHASE LOCKED LOOP

PSN0930A Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Z-Communications, Inc.
package instruction	,
Reach Compliance Code	compli
Humidity sensitivity level	1

Preview

Download Datasheet

View All

PSN0930A

9939 Via Pasar • San Diego, CA 92126

TEL (858) 621-2700 FAX (858) 621-2722

PHASE LOCKED LOOP

Rev A1

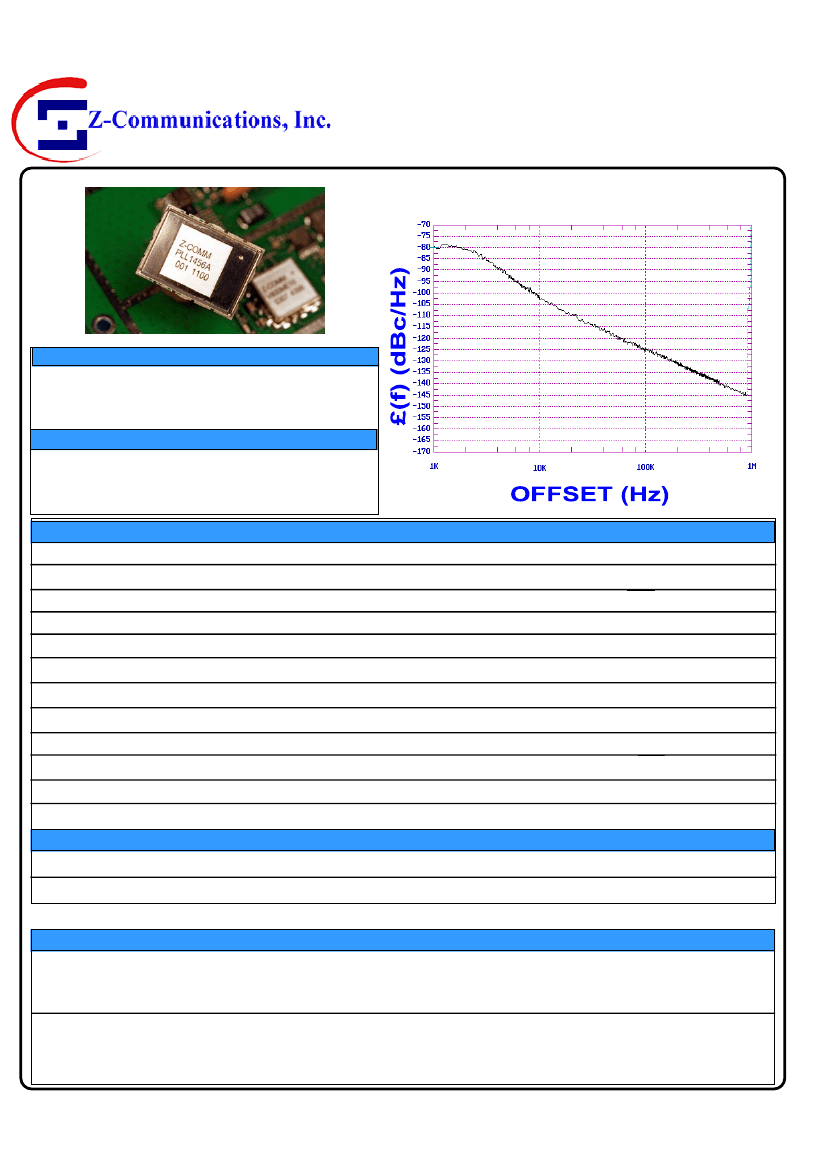

PHASE NOISE (1 Hz BW, typical)

FEATURES

• Frequency Range:

900 - 960 MHz

• Step Size:

100 KHz

• PLL - Style Package

APPLICATIONS

• Basestations

• Mobile Radios

• Satellite Communications

PERFORMANCE SPECIFICATIONS

Frequency Range

VALUE

900

960

-100

-15

-65

3±2

100

1000

-40 to 85

PLL

APPLICATION NOTES

Phase Noise @ 10 kHz offset (1 Hz BW, typ.)

Harmonic Suppression (2nd, typ.)

Sideband Spurs (typ.)

Power Output

Load Impedance

Step Size

Charge Pump Output Current

Switching Speed (typ., adjacent channel)

Startup Lock Time (typ.)

Operating Temperature Range

Package Style

UNITS

MHz

dBc/Hz

dBc

dBm

Ω

KHz

µΑ

mSec

°C

POWER SUPPLY REQUIREMENTS

Supply Voltage (Vcc, nom.)

Supply Current (Icc, typ.)

Vdc

All specifications are typical unless otherwise noted and subject to change without notice.

•

AN-107

•

AN-200

•

AN-201

: How to Solder Z-COMM VCOs / PLLs

: Mounting and Grounding of Z-COMM PLLs

: PLL Fundamentals

AN-202 : PLL Functional Description

NOTES:

Reference Oscillator: 5 MHz<f

osc

<40 MHz

Frequency Synthesizer: National Semiconductor - LMX2316

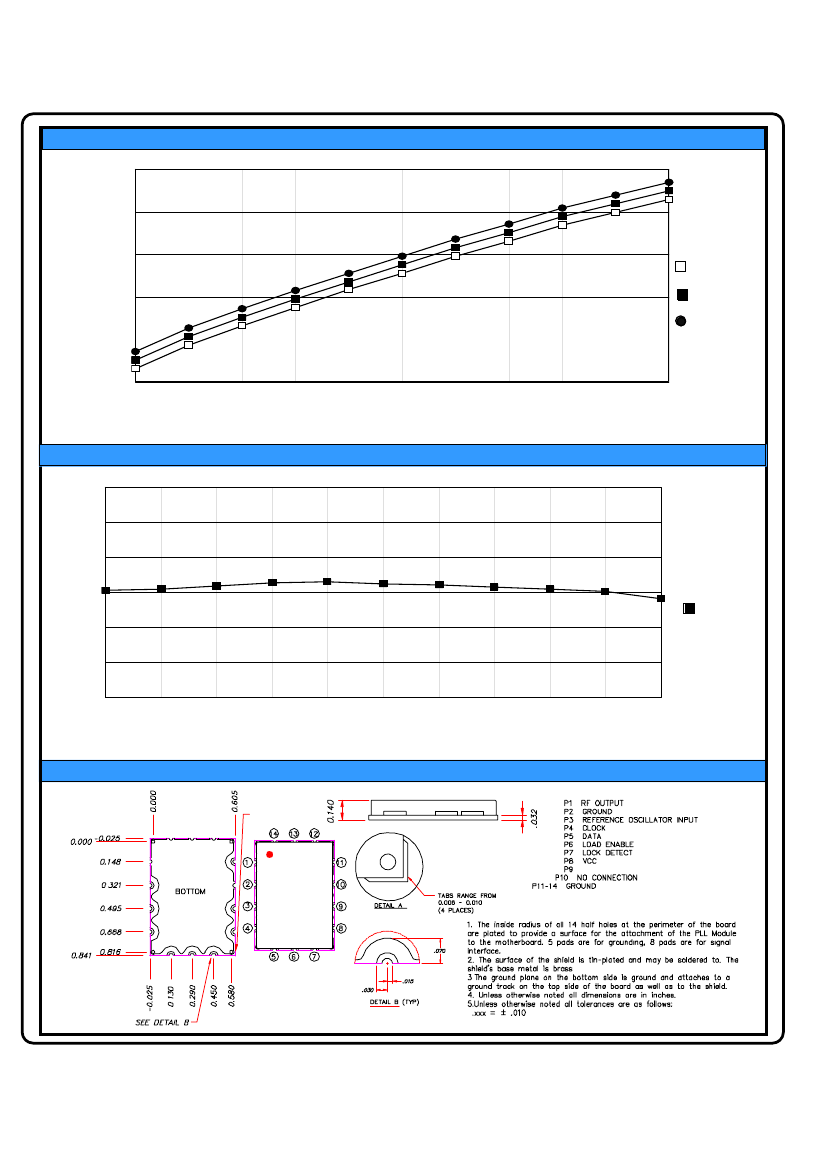

Page 1
