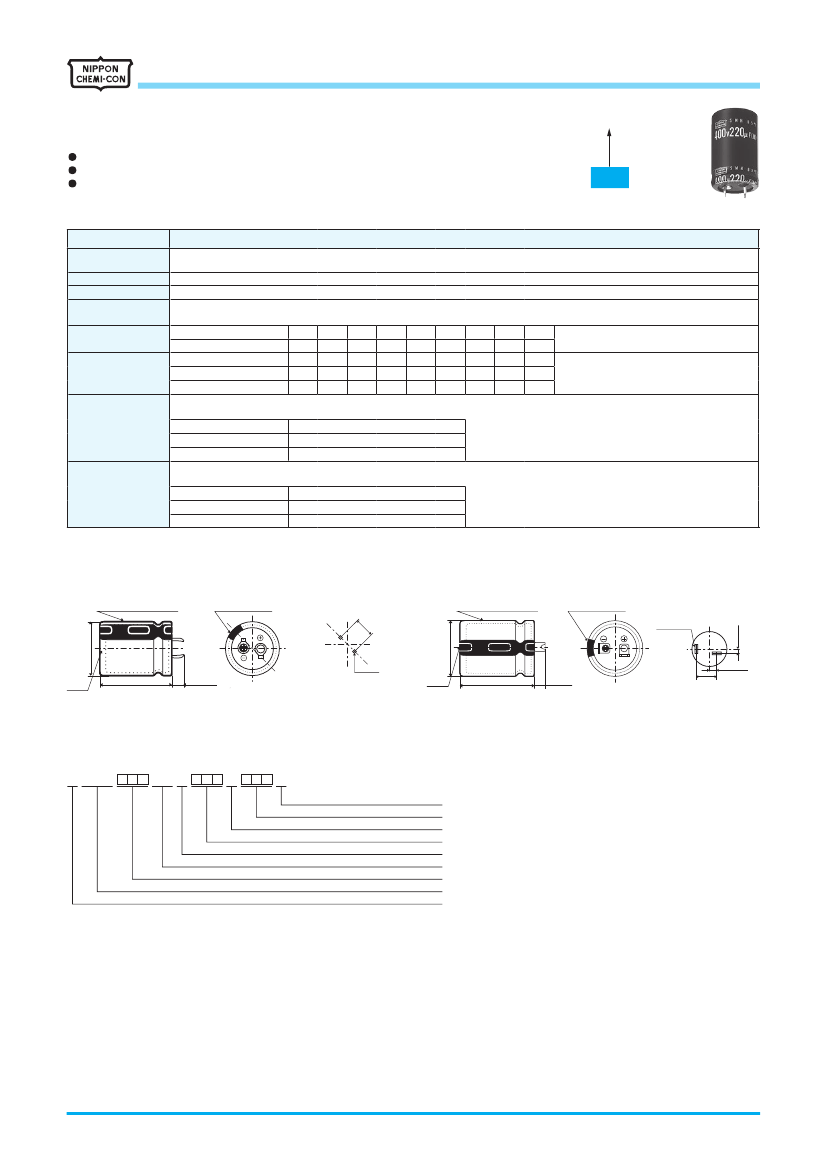

LARGE CAPACITANCE ALUMINUM ELECTROLYTIC CAPACITORS
Standard snap-ins, 85℃
SMH
Items
Category
Temperature Range
Rated Voltage Range
Capacitance Tolerance
Leakage Current
Dissipation Factor
(tanδ)
Low Temperature
Characteristics
(Max. Impedance Ratio)
Endurance
Series
SMM
Downsized
Longer life
・Endurance
with ripple current : 2,000 hours at 85℃
・Non
solvent resistant type
・RoHS2
Compliant
SMH
◆SPACIFICATIONS
Characteristics
-40 to +85℃
6.3 to 100V
dc
(at 20℃, 120Hz)
±20%
(M)
I=0.02CV or 3mA, whichever is smaller.
Where, I : Max. leakage current (µA), C : Nominal capacitance (µF), V : Rated voltage (V)
(at 20℃ after 5 minutes)
Rated voltage (V
dc
)
6.3V 10V 16V 25V 35V 50V 63V 80V 100V
tanδ(Max.)
0.60 0.50 0.40 0.30 0.25 0.20 0.15 0.15 0.15
(at 20℃, 120Hz)
Rated voltage (V
dc
)
6.3V 10V 16V 25V 35V 50V 63V 80V 100V
Z(-25℃)/Z(+20℃)
4
4
4
3
3
2
2
2
2
Z(-40℃)/Z(+20℃)
15
15
15
10
8
6
6
5
5
(at 120Hz)
The following specifications shall be satisfied when the capacitors are restored to 20℃ after subjected to DC voltage with the rated
ripple current is applied (the peak voltage shall not exceed the rated voltage) for 2,000 hours at 85℃.
Capacitance change
≦±20%
of the initial value
D.F. (tanδ)
≦200%
of the initial specified value
Leakage current
≦The
initial specified value
The following specifications shall be satisfied when the capacitors are restored to 20℃ after exposing them for 1,000 hours at 85℃ without
voltage applied. Before the measurement, the capacitor shall be preconditioned by applying voltage according to Item 4.1 of JIS C 5101-4.
Capacitance change
≦±20%
of the initial value
D.F. (tanδ)
≦150%
of the initial specified value
Leakage current
≦The
initial specified value
Shelf Life
◆DIMENSIONS
[mm]
●
Terminal
Code : VS (φ22 toφ35) : Standard
Negative mark
PC board pin-out
(View from Solder side)
●
Terminal
Code : LI (φ35)
Negative mark
PC board pin-out
(View from Solder side)
2-1.2×6
4.2±0.5
5±0.5
Sleeve (PET : Black)
φD+1max.
Sleeve (PET : Black)
φD+1max.
Vent
L
±
2
*
4.0±0.5
2-
φ2
10
Vent
L
±
2
4.5±1
14.2±1
*
φ
D=35mm : 3.5±0.5mm
The standard design has no plastic disc.
◆PART
NUMBERING SYSTEM
E SMH
A A A
V S N
A A A
M
A A A
S
Supplement code
Size code
Capacitance tolerance code
Capacitance code (ex. 820µF:821, 3,300µF:332)
Dummy terminal code
Terminal code
Voltage code (ex. 6.3V:6R3, 63V:630, 100V:101)
Series code
Category
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
Please refer to "Product code guide (snap-in type)"
Product specifications in this catalog are subject to change without notice.Request our product specifications before purchase and/or use. Please use our products based on the information contained in this catalog and product specifications.
CAT. No. E1001S
LARGE CAPACITANCE ALUMINUM ELECTROLYTIC CAPACITORS
Standard snap-ins, 85℃
SMH
Series
◆STANDARD
RATINGS
WV
(V
dc
)
Cap
(µF)
3,300
3,900
3,900
3,900
4,700
4,700
4,700
5,600
5,600
5,600
5,600
6,800
6,800
6,800
6,800
8,200
8,200
8,200
10,000
10,000
12,000
12,000
15,000
18,000
1,800
2,200
2,200
2,700
2,700
3,300
3,300
3,300
3,900
3,900
3,900
3,900
4,700
4,700
4,700
4,700
5,600
5,600
5,600
6,800
6,800
6,800
8,200
8,200
10,000
10,000
12,000
Rated ripple
current
Case size
tanδ
(Arms/
φD×L(mm)
85℃, 120Hz)
25.4× 25
22
×35
25.4×30
30
×25
22
×40
25.4×35
30
×25
22
×45
25.4×35
30
×30
35
×25
22
×50
25.4×40
30
×35
35
×30
25.4×50
30
×40
35
×30
30
×45
35
×35
30
×50
35× 40
35× 45
35
×
50
22
×
25
22
×
30
25.4× 25
22× 35
25.4× 25
22× 35
25.4× 30
30× 25
22× 40
25.4× 35
30× 30
35× 25
22× 50
25.4× 40
30× 30
35× 25
25.4× 45
30× 35
35× 30
25.4× 50
30× 40
35× 30
30× 45
35× 35
30
×
50
35
×
40
35
×
45
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
2.38
2.65
2.68
2.55
2.99
3.03
2.81
3.36
3.31
3.37
3.42
3.81
3.81
3.85
3.85
4.37
4.36
4.41
4.97
4.92
5.60
5.58
6.44
6.71
1.82
2.31
2.30
2.40
2.40
2.62
2.64
2.78
2.93
2.97
3.00
3.00
3.39
3.36
3.32
3.36
3.77
3.75
3.76
4.27
4.27
4.15
4.83
4.79
5.49
5.47
6.19
Part No.
ESMH500VSN332MQ25S
ESMH500VSN392MP35S
ESMH500VSN392MQ30S
ESMH500VSN392MR25S
ESMH500VSN472MP40S
ESMH500VSN472MQ35S
ESMH500VSN472MR25S
ESMH500VSN562MP45S
ESMH500VSN562MQ35S
ESMH500VSN562MR30S
ESMH500VSN562MA25S
ESMH500VSN682MP50S
ESMH500VSN682MQ40S
ESMH500VSN682MR35S
ESMH500VSN682MA30S
ESMH500VSN822MQ50S
ESMH500VSN822MR40S
ESMH500VSN822MA30S
ESMH500VSN103MR45S
ESMH500VSN103MA35S
ESMH500VSN123MR50S
ESMH500VSN123MA40S
ESMH500VSN153MA45S
ESMH500VSN183MA50S
ESMH630VSN182MP25S
ESMH630VSN222MP30S
ESMH630VSN222MQ25S
ESMH630VSN272MP35S
ESMH630VSN272MQ25S
ESMH630VSN332MP35S
ESMH630VSN332MQ30S
ESMH630VSN332MR25S
ESMH630VSN392MP40S
ESMH630VSN392MQ35S
ESMH630VSN392MR30S
ESMH630VSN392MA25S
ESMH630VSN472MP50S
ESMH630VSN472MQ40S
ESMH630VSN472MR30S
ESMH630VSN472MA25S
ESMH630VSN562MQ45S
ESMH630VSN562MR35S
ESMH630VSN562MA30S
ESMH630VSN682MQ50S
ESMH630VSN682MR40S
ESMH630VSN682MA30S
ESMH630VSN822MR45S
ESMH630VSN822MA35S
ESMH630VSN103MR50S
ESMH630VSN103MA40S
ESMH630VSN123MA45S
WV
(V
dc
)
Cap
(µF)
1,200
1,500
1,800
1,800
2,200
2,200
2,200
2,700
2,700
2,700
3,300
3,300
3,300
3,300
3,900
3,900
3,900
3,900
4,700
4,700
4,700
5,600
5,600
6,800
6,800
8,200
10,000
820
1,200
1,200
1,500
1,500
1,500
1,800
1,800
1,800
2,200
2,200
2,200
2,200
2,700
2,700
2,700
2,700
3,300
3,300
3,300
3,900
3,900
4,700
4,700
5,600
6,800
Rated ripple
current
Case size
tanδ
(Arms/
φD×L(mm)
85℃, 120Hz)
22
×25
22
×25
22
×30
25.4
×25
22
×35
25.4
×30
30
×25
22
×40
25.4
×35
30
×25
22
×45
25.4
×40
30
×30
35
×25
22
×50
25.4
×45
30
×35
35
×25
25.4× 50
30
×
40
35× 30
30× 45
35
×35
30
×50
35
×40
35
×45
35
×50
22
×25
22
×30
25.4
×25
22
×35
25.4
×30
30
×25
22
×40
25.4
×35
30
×25
22
×45
25.4
×40
30
×30
35
×25
22
×50
25.4
×45
30
×35
35
×30
25.4
×50
30
×40
35
×30
30
×45
35
×35
30× 50
35
×40
35× 45
35× 50
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
1.69
1.88
2.14
2.26
2.44
2.46
2.49
2.78
2.81
2.75
3.16
3.21
3.17
3.21
3.52
3.59
3.57
3.50
4.05
4.05
4.09
4.55
4.51
5.16
5.14
5.83
6.63
1.86
2.09
2.10
2.41
2.43
2.46
2.71
2.75
2.72
3.08
3.13
3.09
3.14
3.53
3.57
3.55
3.71
4.06
4.05
4.05
4.54
4.49
5.13
5.11
5.75
6.50
Part No.
ESMH800VSN122MP25S
ESMH800VSN152MP25S
ESMH800VSN182MP30S
ESMH800VSN182MQ25S
ESMH800VSN222MP35S
ESMH800VSN222MQ30S
ESMH800VSN222MR25S
ESMH800VSN272MP40S
ESMH800VSN272MQ35S
ESMH800VSN272MR25S
ESMH800VSN332MP45S
ESMH800VSN332MQ40S
ESMH800VSN332MR30S
ESMH800VSN332MA25S
ESMH800VSN392MP50S
ESMH800VSN392MQ45S
ESMH800VSN392MR35S
ESMH800VSN392MA25S
ESMH800VSN472MQ50S
ESMH800VSN472MR40S
ESMH800VSN472MA30S
ESMH800VSN562MR45S
ESMH800VSN562MA35S
ESMH800VSN682MR50S
ESMH800VSN682MA40S
ESMH800VSN822MA45S
ESMH800VSN103MA50S
ESMH101VSN821MP25S
ESMH101VSN122MP30S
ESMH101VSN122MQ25S
ESMH101VSN152MP35S
ESMH101VSN152MQ30S
ESMH101VSN152MR25S
ESMH101VSN182MP40S
ESMH101VSN182MQ35S
ESMH101VSN182MR25S
ESMH101VSN222MP45S
ESMH101VSN222MQ40S
ESMH101VSN222MR30S
ESMH101VSN222MA25S
ESMH101VSN272MP50S
ESMH101VSN272MQ45S
ESMH101VSN272MR35S
ESMH101VSN272MA30S
ESMH101VSN332MQ50S
ESMH101VSN332MR40S
ESMH101VSN332MA30S
ESMH101VSN392MR45S
ESMH101VSN392MA35S
ESMH101VSN472MR50S
ESMH101VSN472MA40S
ESMH101VSN562MA45S
ESMH101VSN682MA50S
50
80
63
100
*For the rated voltage≧160V
dc
, please use SMQ series
◆RATED
RIPPLE CURRENT MULTIPLIERS
・Frequency
Multipliers
Frequency(Hz)
6.3 to 50V
dc
63 to 100V
dc
50
0.95
0.92
120
1.00
1.00
300
1.03
1.07
1k
1.05
1.13
10k
1.08
1.19
50k
1.08
1.20
The endurance of capacitors is reduced with internal heating produced by ripple current at the rate of halving the lifetime with every 5℃ rise.
When long life performance is required in actual use, the rms ripple current has to be reduced.
Product specifications in this catalog are subject to change without notice.Request our product specifications before purchase and/or use. Please use our products based on the information contained in this catalog and product specifications.
CAT. No. E1001S
