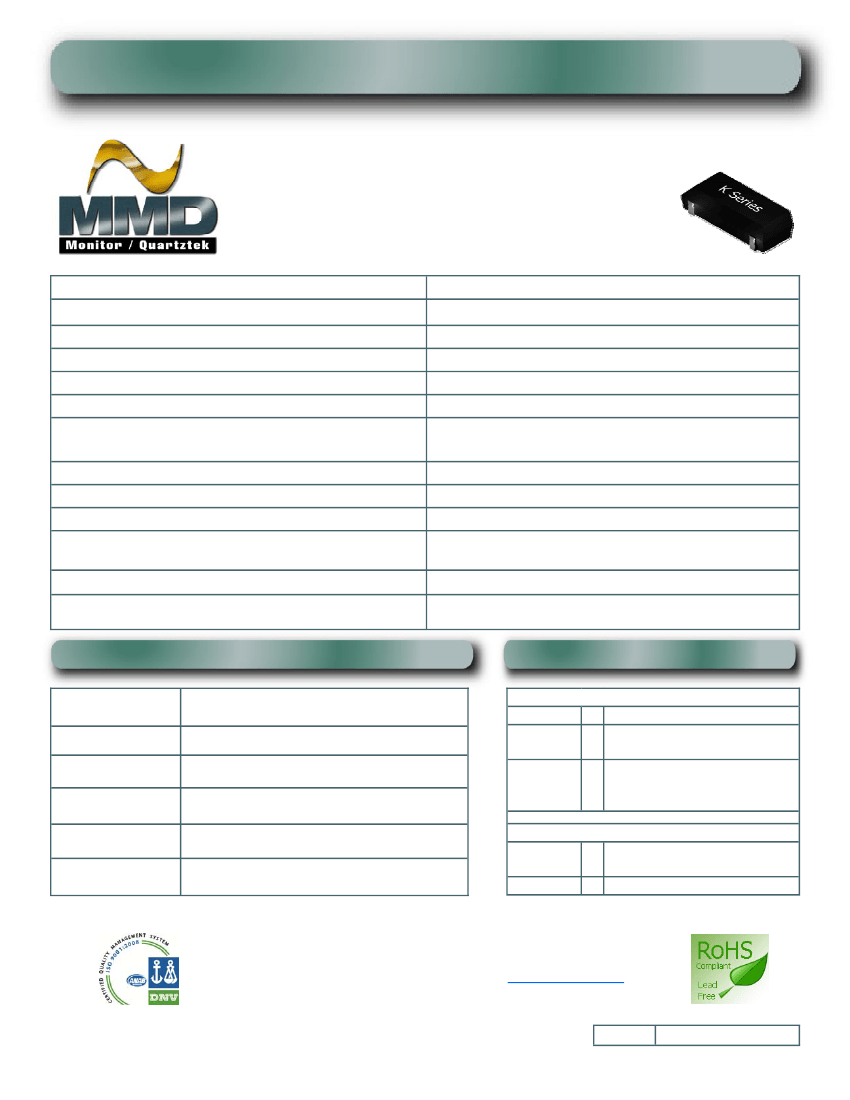

K Series Crystal
Plastic SMD Package
Wide Frequency Range
RoHS Compliant Available
Tape and Reel Packaging
Frequency Range
Frequency Tolerance/ Stability
Operating Temperature Range
Storage Temperature
Aging
Shunt Capacitance
Load Capacitance
Equivalent Series Resistance
Mode of Operation
Drive Level
Insulation Resistance
Seal
Shock Resistance
3.500MHz to 70.000MHz
(See Part Number Guide for Options)
(See Part Number Guide for Options)
-55°C to +125°C
±5ppm per year max
7pF Max
16pF Standard
(See Part Number Guide for Options)
See ESR Chart
Fundamental or 3
rd
OT
50µW to 100µW
500 M ohms Min at 100VDC ±15VDC
MIL-STD-883, Method 1014, Cond C
±5ppm max (drop test onto a hard wooden board from
75cm)
Environmental & Mechanical Detail
Shock
Solderability
Solvent Resistance
Vibration
Gross Leak Test
MSL
MIL-STD-883, Method 2002 Cond B
MIL-STD-883, Method 2003
MIL-STD-202, Method 215
MIL-STD-883, Method 2007, Cond A
MIL-STD-883, Method 1014, Cond C
Level 2A per IPC/JEDEC J-STD 20
Marking Detail
Line 1: CAAYM
CAA = Internal Code
Year Produced
Y =
2010=0
Month Produced
M = (
Jan-Sept=1-9,
Oct-Dec = X,Y,Z
)
Line 2: X.XXXXXM
Frequency
X.XXXXX =
(
8 digit max incl decimal
)
M = MHz
MMD Monitor/Quartztek
30400 Esperanza, Rancho Santa Margarita, CA, 92688
Phone: (949) 709-5075, Fax: (949) 709-3536,
www.mmdcomp.com
Sales@mmdcomp.com
Revision:
Specifications are subject to change without notice.
04/15/11 F
Pg 1 of 2

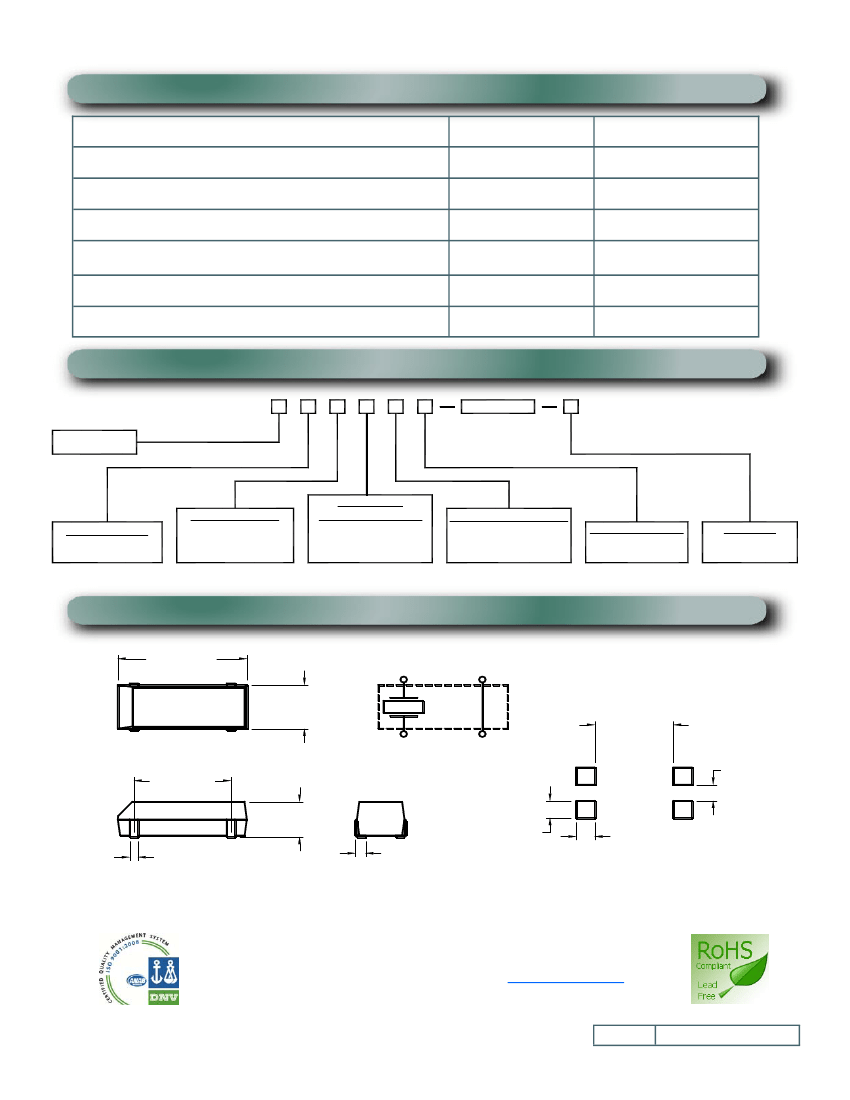

ESR Chart
Frequency Range
3.500MHz to 3.999MHz
4.000MHz to 5.999MHz
6.000MHz to 9.999MHz
10.000MHz to 30.000MHz
30.000MHz to 35.999MHz
36.000MHz to 70.000MHz
ESR (Ohms)
200 Max
150 Max
100 Max
50 Max
100 Max
80 max
Mode / Cut
Fund / AT
Fund / AT
Fund / AT
Fund / AT
3
rd
OT/AT
3
rd
OT/AT
Part Number Guide
K
12.5mm x 4.6mm
Plastic 4 J Lead
Frequency
Load Capacitance
RoHS Compliant
Blank = Not Compliant
F = Is Compliant
S = Series
16 = 16pF (Standard)
XX = XXpF (8pF to 50pF)
Temperature
Tolerance/Stability*
A = ±50 ppm / ±100 ppm
B = ±30 ppm / ±50 ppm
E = ±50 ppm / ±50 ppm
Operating Temperature
A = 0°C to +70°C
C = -40°C to +85°C
D = -10°C to +60°C
Mode of Operation
1 = Fundamental
3 = 3rd Overtone
Packaging
Blank = Bulk
T = Tape and Reel
Mechanical Details
12.50 [.492]
MAX
4
3
4.60 [.181]
MAX
1
2
1
2
1.70 [.067]
4
3
7.60 [.299]
9.40 [.370]
3.70 [.146]
MAX
0.80 [.031]
1.00 [.039]
Dimension in Brackets are in Inches
1.80 [.071]
1.80 [.071]
Suggested
Land Pattern
MMD Monitor/Quartztek
30400 Esperanza, Rancho Santa Margarita, CA, 92688
Phone: (949) 709-5075, Fax: (949) 709-3536,
www.mmdcomp.com
Sales@mmdcomp.com
Revision:
Specifications are subject to change without notice.
04/15/11 F
Pg 2 of 2
