3550LP15A0500E/PB: Description3550 MHz, CERAMIC LPF, CERAMIC PACKAGE-4; CategoryAnalog mixed-signal IC filter; File Size114KB，2 Pages; ManufacturerJohanson Dielectrics

Download Datasheet Parametric Compare View All

3550LP15A0500E/PB Overview

3550 MHz, CERAMIC LPF, CERAMIC PACKAGE-4

3550LP15A0500E/PB Parametric

Parameter Name	Attribute value
Maker	Johanson Dielectrics
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	TAPE AND REEL
average input power	1 W
Center frequency or cutoff frequency (fo/fc)	3550 MHz
filter type	CERAMIC LPF
high	0.55 mm
Input/output impedance	50 OHM
Maximum insertion loss	0.6 dB
JESD-609 code	e0
length	2 mm
Manufacturer's serial number	3550LP15A0500
Installation type	SURFACE MOUNT
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
physical size	L2.0XB1.25XH0.55 (mm)/L0.079XB0.049XH0.022 (inch)
Terminal surface	TIN LEAD
Base Number Matches	1

Preview

Download Datasheet

View All

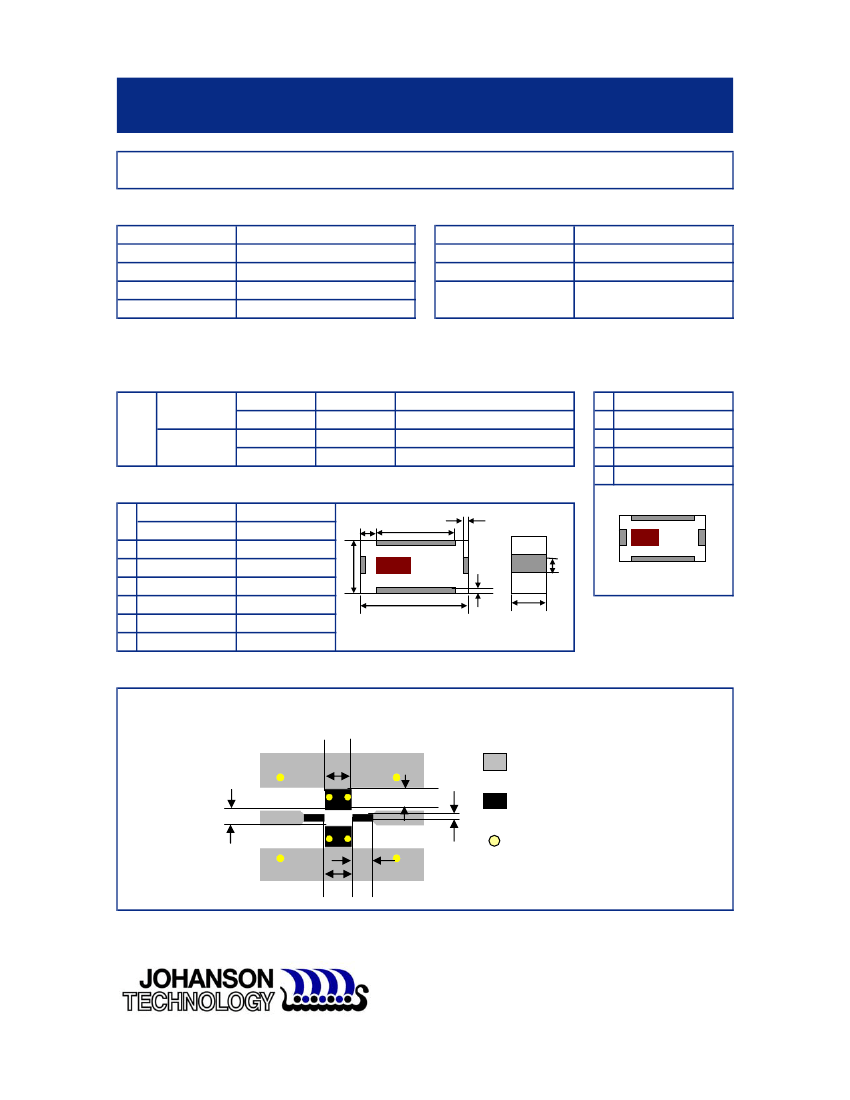

Preliminary

"High Frequency Ceramic Solutions"

P/N 3550LP15A0500

Page 1 of 2

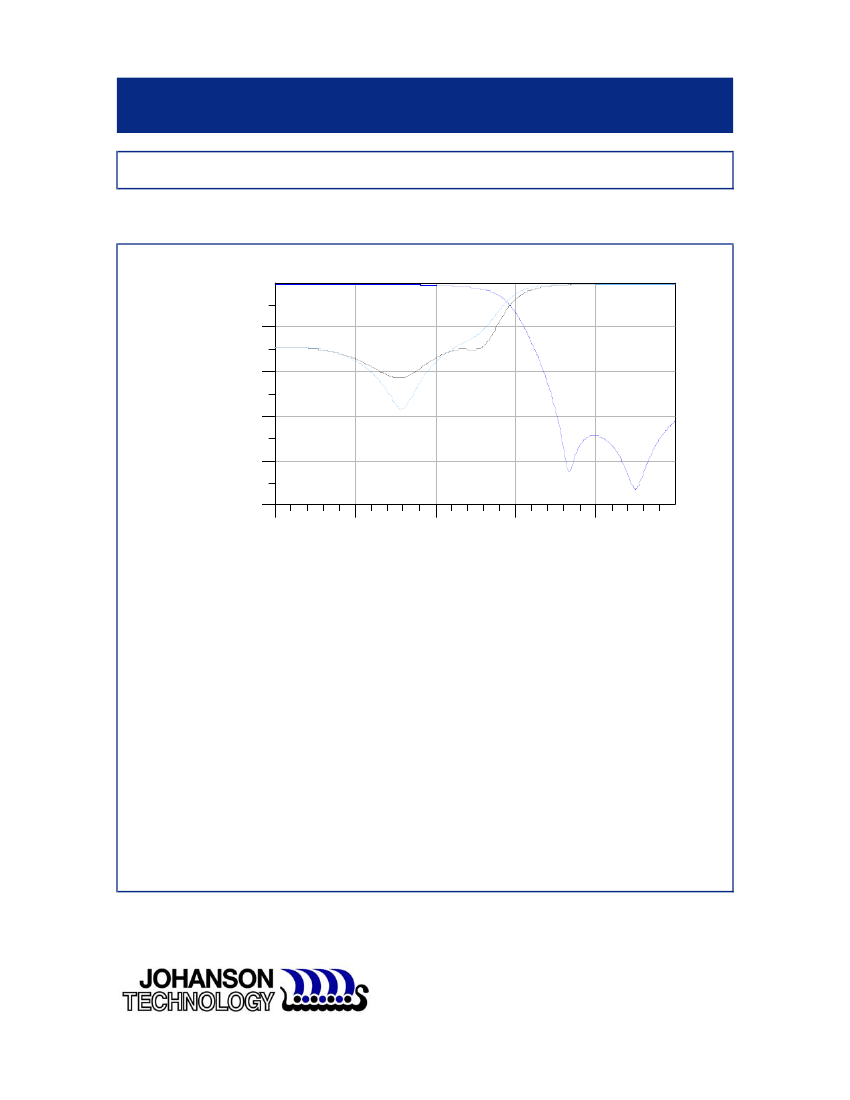

3.550 GHz Low Pass Filter

Detail Specification: 06/04/09

General Specifications

Part Number

Frequency (MHz)

Insertion Loss

Return Loss

Attenuation (min.)

3550LP15A0500

3300~3800

0.6 dB max.

9.5 dB min.

30 dB @ 6600 - 7600 MHz

Input Power

Impedance

Operating Temperature

Storage Temperature

1W max.

50

Ω

-40 to +85°C

+5 ~ +35 °C, 12 mos max.

Humidity 45~75%RH

Terminal Configuration

P/N

Suffix Termination

Style

Packaging

Style

Bulk

T&R

100% Tin

Tin / Lead

Suffix = S

Suffix = E

Suffix = None

Suffix = /Pb

Eg. 3550LP15A0500S

Eg. 3550LP15A0500E

Eg. 3550LP15A0500(E or S)

Eg. 3550LP15A0500(E or S)/Pb

No.

Function

IN

GND

OUT

GND

4

1

2

3

4

Mechanical Dimensions

In

L

W

T

a

b

c

d

0.079 ± 0.006

0.049 ± 0.004

0.022 ± 0.004

0.051 ± 0.006

0.012 ± 0.006

0.010 ± 0.006

0.014 ± 0.006

mm

2.00 ± 0.15

1.25 ± 0.10

0.55 ± 0.10

1.30 ± 0.15

0.30 ± 0.15

0.25 ± 0.15

0.35 ± 0.15

Unit : mm

d

a

c

1

3

2

W

c

L

T

b

Mounting Considerations

Mount these devices with brown mark facing up.

*Line

width should be designed to provide 50

Ω

impedance matching characteristics.

Units: mm

1.30

1.00

0.80

0.35

1.00

1.40

Johanson Technology, Inc. reserves the right to make design changes without notice.

All sales are subject to Johanson Technology, Inc. terms and conditions.

Through-hole (

φ

0.35)

Solder Resist

Land

www.johansontechnology.com

4001 Calle Tecate • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821
