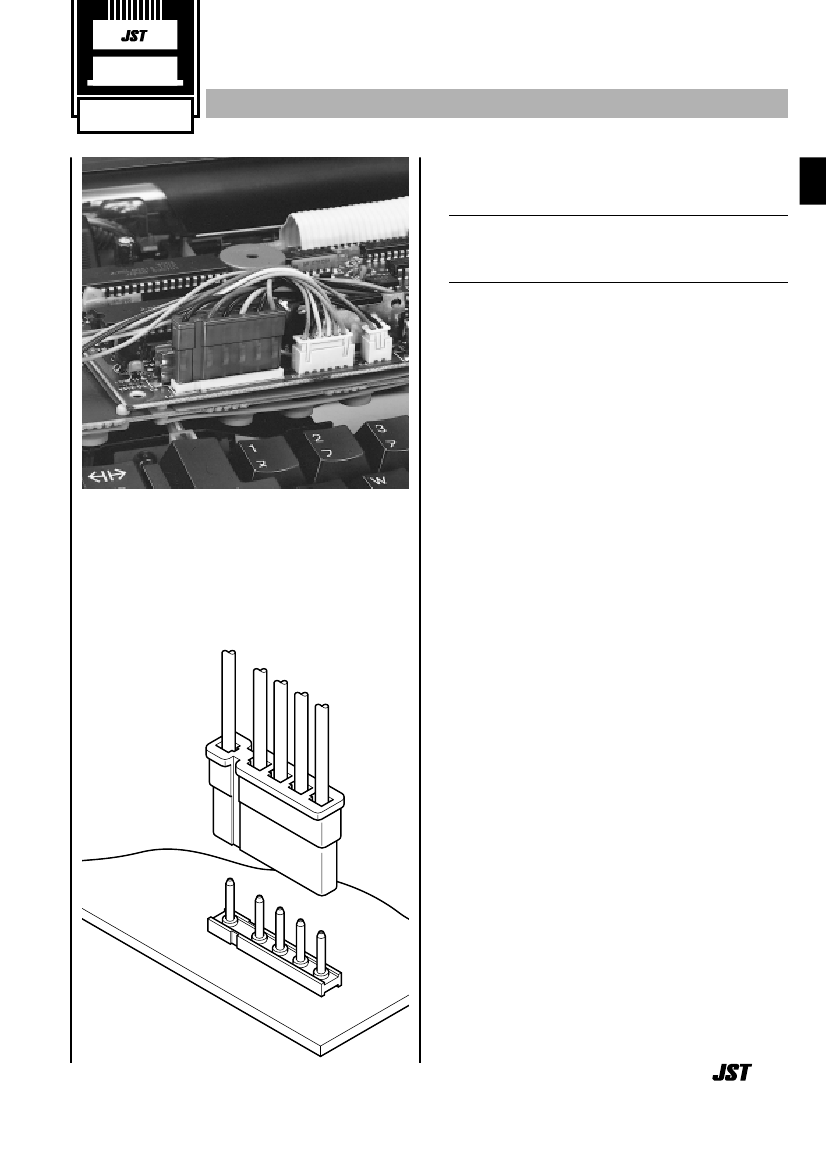

Crimp
V
CONNECTOR
5.0mm
(.197") pitch
Disconnectable Crimp style connectors
Features ––––––––––––––––––––––––
• Anti-misinsertion construction
One position has a different pitch than the others. This provides
the connector with polarization and prevents misinsertion.
• Two-point contact
Each contact has two wiping areas which ensure stable and
reliable connection.
The V connector can have from two to six
circuits. A single contact position is
provided 7.5mm (.295") away from the
adjacent position, while the pitch of other
positions is 5.0mm (.197"). This prevents
reverse connection of the receptacle and
header.
Specifications –––––––––––––––––––
• Current rating: 5A AC, DC (AWG#20)
• Voltage rating: 250V AC, DC
• Temperature range: -25˚C to +85˚C
(including temperature rise in applying
electrical current)
• Contact resistance: Initial value/10m Ω max.
After environmental testing/20m Ω max.
• Insulation resistance:
1,000M Ω min.
• Withstanding voltage: 1,500V AC/minute
• Applicable wire: AWG #26 to #20
• Applicable PC board thickness: 1.6mm(.063")
* Contact JST for details.
3
4
5
1
2
T
JS
12
Standards ––––––––––––––––––––––
0
1
2
Recognized E60389
Certified LR20812
R75171
141
V
CONNECTOR
Contact –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Applicable wire
Model No.
SVF-01T-1.5A
mm
2
0.13 to 0.5
AWG #
26 to 20
Insulation O.D. mm(in.)
1.3 to 2.7(.051 to .106)
Q'ty /
reel
15,000
13.1(.516)
5.6(.220)
5.6(.220)
2.2
(.087)
Material and Finish
Brass, tin-plated
Note: Contact JST for details if you require shielded wires, thin wires or other
special wires, or if two wires must be crimped in one contact.
Housing –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
(2 circuits)
8.0(.315)
18.5(.728)
Cir-
cuits
2
3
4
5
6
Model No.
2P-SVF-V
3P-SVF-V
4P-SVF-V
5P-SVF-V
6P-SVF-V
Material
Dimensions mm(in.)
A
-
5.0(.197)
10.0(.394)
15.0(.591)
20.0(.787)
B
12.5( .492)
17.5( .689)
22.5( .886)
27.5(1.083)
32.5(1.280)
Q’ty /
bag
1,000
1,000
500
500
500
Nylon 6, UL94V-0, natural (white)
12.5(.492)
2.5
(.098)
7.5(.295)
7.0(.276)
(3 to 6 circuits)
10.5(.413)
8.0(.315)
18.5(.728)
B
5.0
(.197)
2.5
(.098)
7.5(.295) 5.0(.197)
7.0(.276)
A
2.5
(.098)
142
5.0
(.197)
V
CONNECTOR
Header ––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Cir-
cuits
2
Model No.
RTB-1.5-2P
RTB-1.5-3P
RTB-1.5-4P
RTB-1.5-5P
RTB-1.5-6P
Material and Finish
Dimension A
mm(in.)
12.5( .492)
17.5( .689)
22.5( .886)
27.5(1.083)
32.5(1.280)
Q’ty / box
1,000
1,000
500
500
250
2.5
7.5
(.098) (.295)
A
5.0
(.197)
3.75 2.6
(.148) (.102) 9.15(.360)
15.5(.610)
1.55
(.061)dia.
4.6
(.181)
3
4
5
6
Pin: Brass, copper-undercoated, tin/lead -plated
Wafer: Glass-filled PBT, UL94V-0, natural (ivory)
PC board layout
(viewed from soldering side)
and Assembly layout –––––––––––––––––––
7.5
±
0.05
5.0
±
0.05 3.0
(.295
±
.002) (.197
±
.002)(.118)
min.
3.0
(.118)
min.
7.0(.276)
0.1
1.70
+ 0
.004
(.067
+ 0
)dia.
Note:
1. Tolerances are non-cumulative: ±0.05mm(±.002" ) for all centers.
2. Hole dimensions differ according to the kind of PC board and piercing method. The dimensions above should serve as a guideline. Contact JST for details.
Applicator for the semi-automatic press AP-K2N –––––––––––––––––––––––––––––––––––––
Contact
SVF-01T-1.5A
Crimp applicator MK-L
with safety cover
without safety cover
APLMK SVF01-15A
APLNC SVF01-15A
Approx.
22.0.(.866)
143
