54720: DescriptionWire Terminal,; CategoryThe connector terminals; File Size102KB，1 Pages; ManufacturerThomas & Betts Corporation; Websitehttp://www.tnb.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

54720 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	54720	-	-	View	Buy Now

54720 Overview

Wire Terminal,

54720 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Thomas & Betts Corporation
Reach Compliance Code	compliant
ECCN code	EAR99
Terminal and terminal strip types	WIRE TERMINAL
Wire gauge	4 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

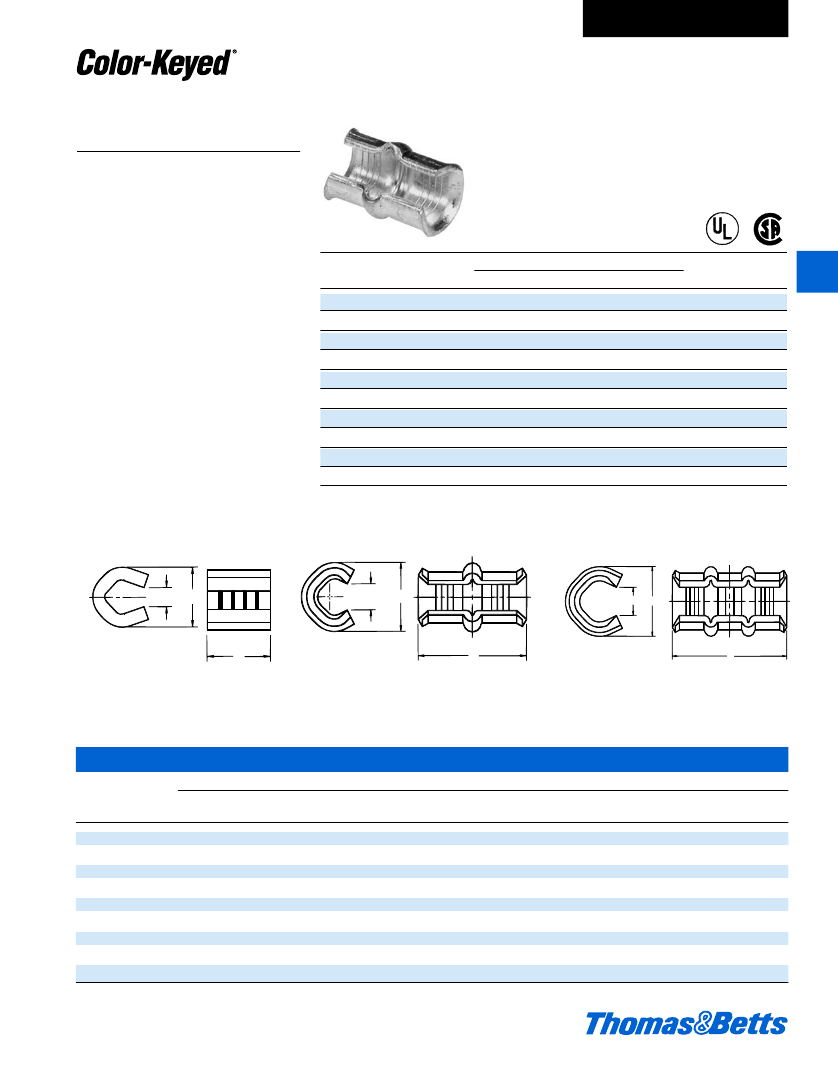

Compression

C-Tap Connectors for Copper Conductor

C -Taps 600V Applications

Material: High Conductivity Wrought Copper

Finish: Plain

These taps assure positive, all around compres-

sion with low resistance and high pullout values.

Made of high conductivity wrought copper, they

contain heavy reinforcing ribs which locate the

compression dies as well as strengthen the

compressed joint. Ideal for pigtailing, 2-way

splicing, or tapping to an unbroken continuous

main.

®

Cat. No.

54705

54710

54715

54720

54725

54730

54735

54740

54745

54750

Fig.

No.

1

2

3

L

j

l

1q

1W

Dimensions (Inches)

H

j

k

e

W

m

B

g

O

1h

1i

E

ƒ

!

™

r

b

s

Q

R

u

v

Color

Key

Red

Blue

Gray

Brown

Green

Pink

Black

Orange

Purple

Yellow

E

Color-Keyed

®

NOTES:

UL approved for direct burial.

For covers see page E50.

Taps can be supplied tin-plated. Add suffix - TP to any catalog number (i.e.54725TP).

E

H

E

H

E

H

L

Figure 1

Figure 2

L

Figure 3

L

“E” represents gap in side.

Typical Cable Combinations

Branch

MAIN

#10 Sol or Str

#8 Sol or Str

#6 Sol or Str

#4 Str

#2Str

#1 Str

1/0 Str

2/0 Str

3/0 Str

#12 Sol

or Str

54705

54710

54715

54720

54730

54735

54740

54745

54750

#10 Sol

or Str

54710

54715

54720

54730

54735

54740

54745

54750

#8 Sol

or Str

54715

54720

54730

54735

54740

54745

54750

#6 Sol

or Str

54715

54720

54725

54730

54735

54740

54745

54750

#4 Str

54720

54725

54730

54735

54740

5i740

54745

54750

#2 Str

54730

54735

54740

54745

54750

#1 Str

54735

54740

54745

54750

1/0 Str

54740

54745

54750

Tooling: Pg. E78-E102

Die Selector Chart: Pg. E107-E111

www.tnb.com

E45
