FEATURES AND SPECIFICATIONS
Features and Benefits
s
Wire-to-wire plug for panel-mounted or free-hanging
applications
s
Available with and without panel mounting ears
s
Positive housing locks to mate with Mini-Fit, Jr. receptacle
s
Fully isolated terminals to protect contacts from damage
s
Uses standard Mini-Fit series terminals
Mechanical
Contact Insertion Force: 1.5kg max.
Contact Retention to Housing: 3.0kg min.
Wire Pull-Out Force: 9.0kg min.
Insertion Force to PCB: 5.0kg max.
Mating Force: 0.7kg (1.54 lb) max.
Unmating Force: 0.35kg (0.7 lb) min.
Normal Force: 200g min.
Durability: 30 cycles
Physical
Housing: 6/6 nylon, UL 94V-2 or 94V-0
Contact: Brass or Phosphor Bronze
Plating: Tin, select Gold or overall Gold
Operating Temperature: -40 to +105˚C
4.20mm (.165") Pitch
Mini-Fit, Jr.
™
Plug
5559
Single Row, With and
Without Panel Mount Ears
Power Connectors
F
Reference Information
Product Specification: PS-5556-0001
Packaging: Tray or bag
UL File No.: E29179
CSA File No.: LR19980
TUV License No.: R75142
Mates With:
5557
single row receptacle
Use With:
5558, 30490
or 44478 terminals
Designed In: Millimeters

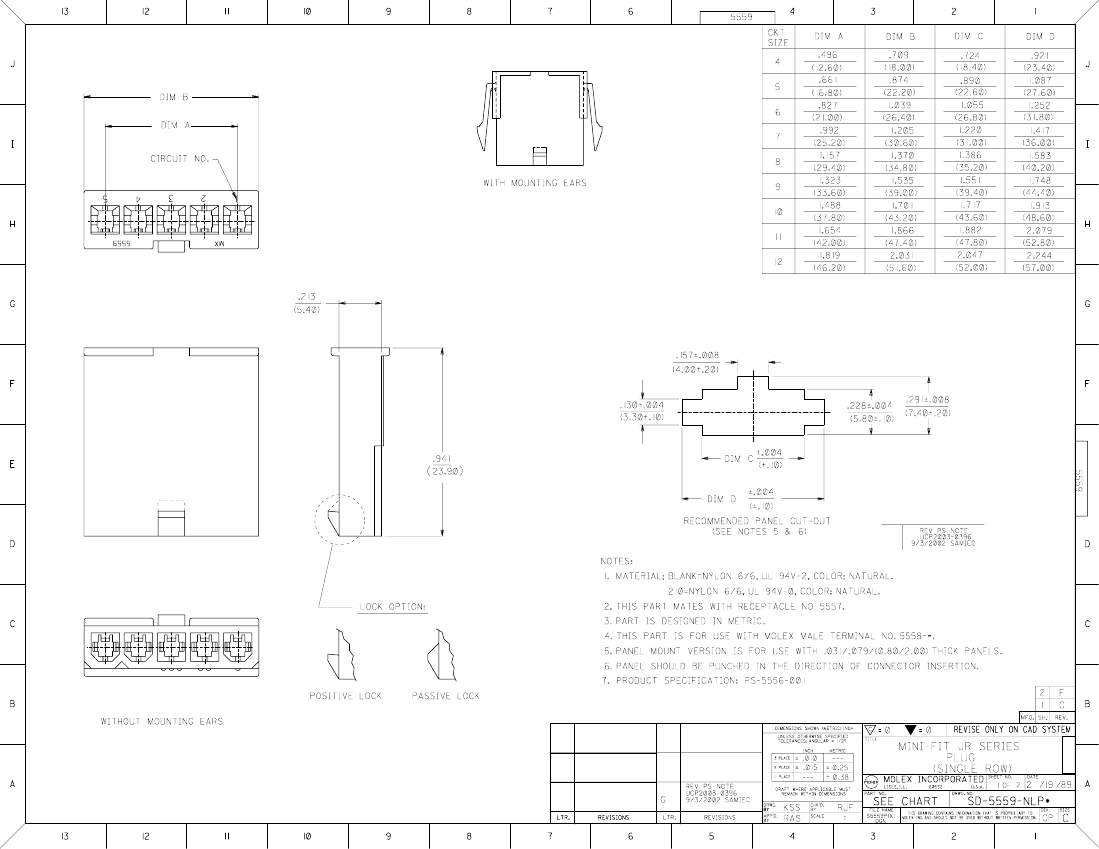

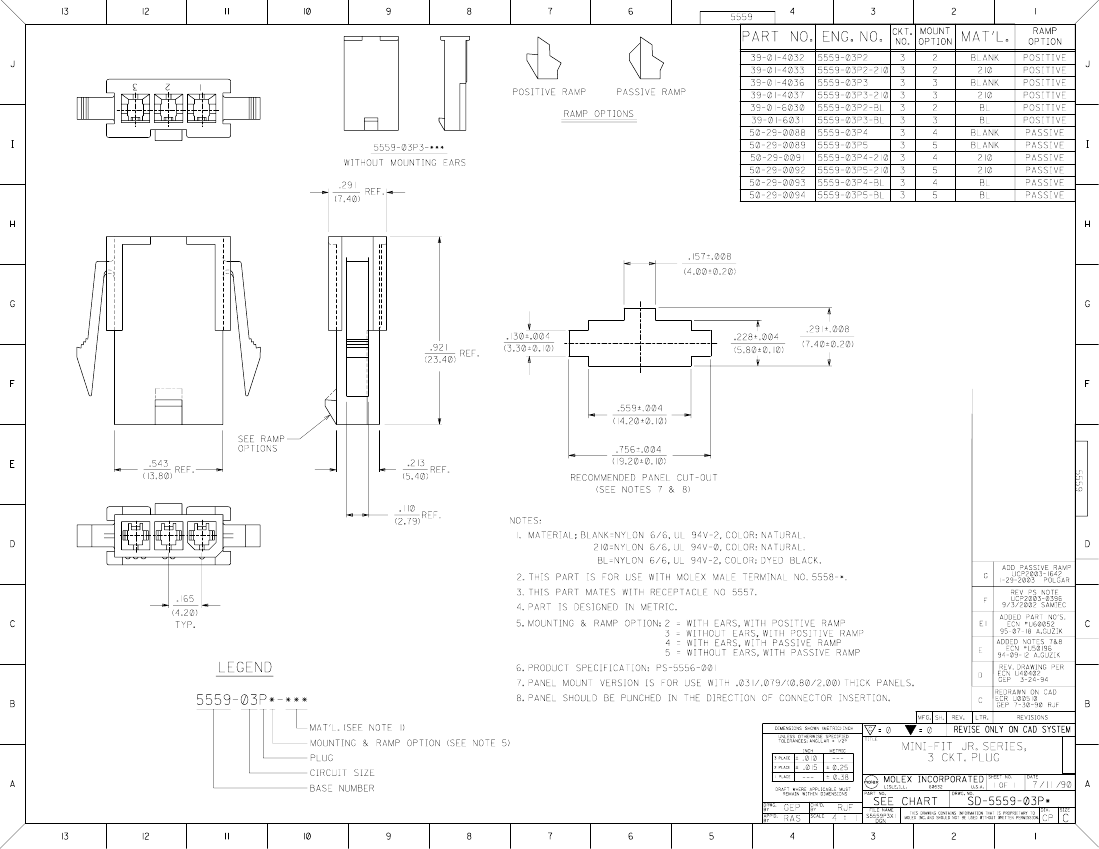

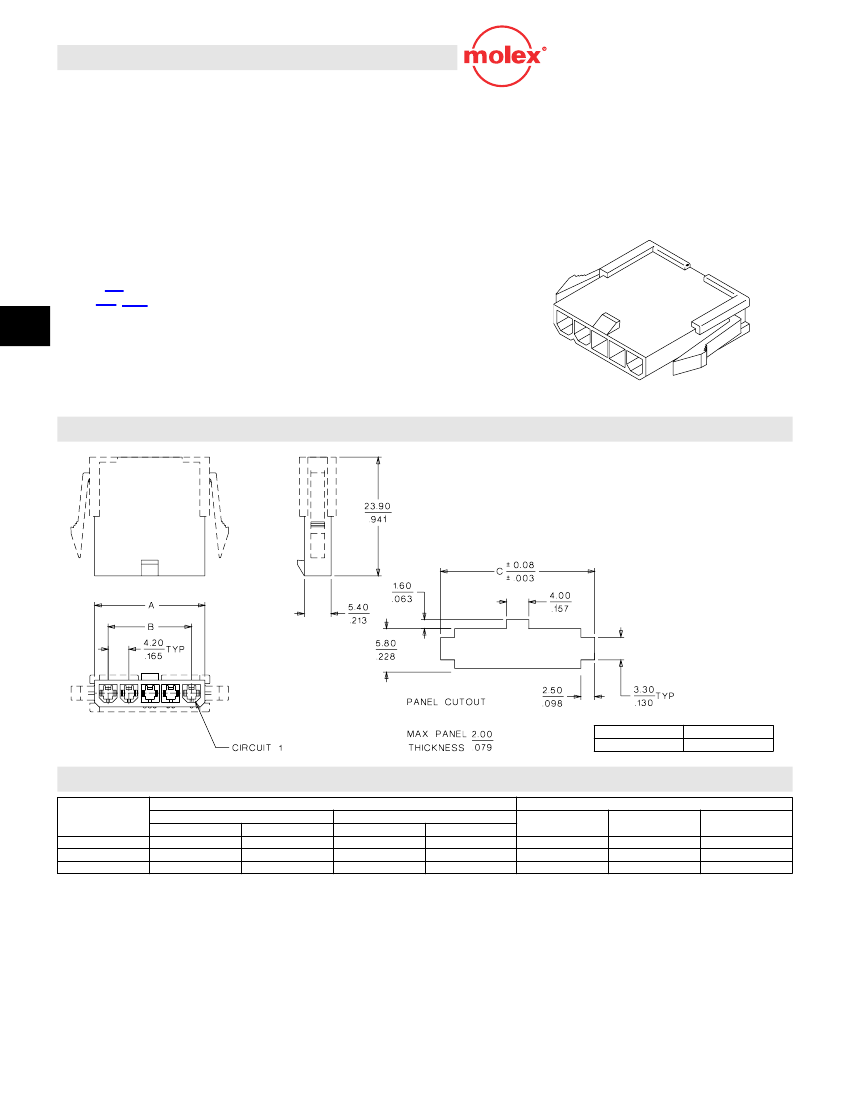

CATALOG DRAWING (FOR REFERENCE ONLY)
Polarizing Key
Order No.
15-04-0211

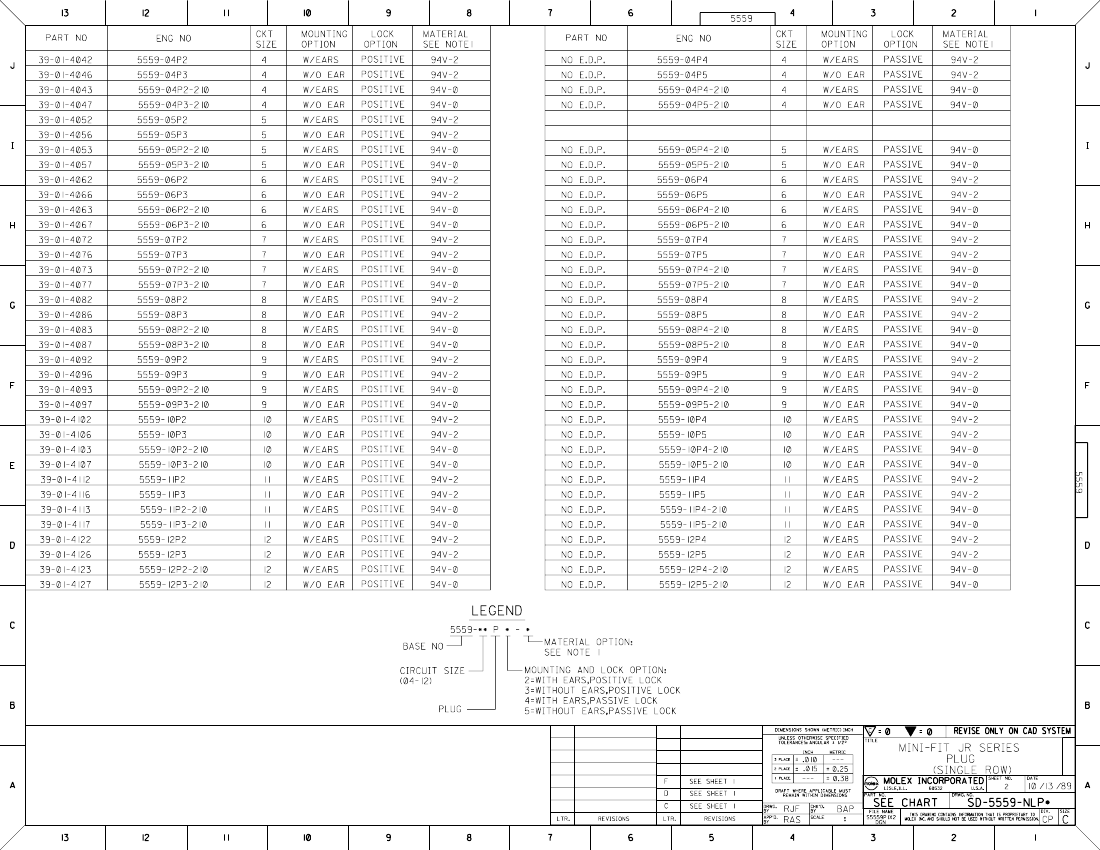

ORDERING INFORMATION AND DIMENSIONS
Order No.
Circuits
3*
4
5
94V-2
• 39-01-4032
• 39-01-4052
Panel Mount
94V-0
• 39-01-4033
• 39-01-4053
94V-2
• 39-01-4036
• 39-01-4046
• 39-01-4056
Free Hanging
94V-0
• 39-01-4037
• 39-01-4057
A
13.80 (.543)
18.00 (.709)
22.20 (.847)
Dimension
B
8.40 (.331)
12.60 (.496)
16.80 (.661)
C
19.20 (.756)
23.40 (.921)
27.60 (1.087)
• US Standard Product, available through Molex franchised distributors
* 3-circuit plug designed for first-mate/last-break applications
