Type HZA -55 ºC to +105 ºC
SMT Hybrid Polymer-Aluminum Electrolytic Capacitors
For filtering, Bypassing and Power Supply Decoupling with Long Life Requirements

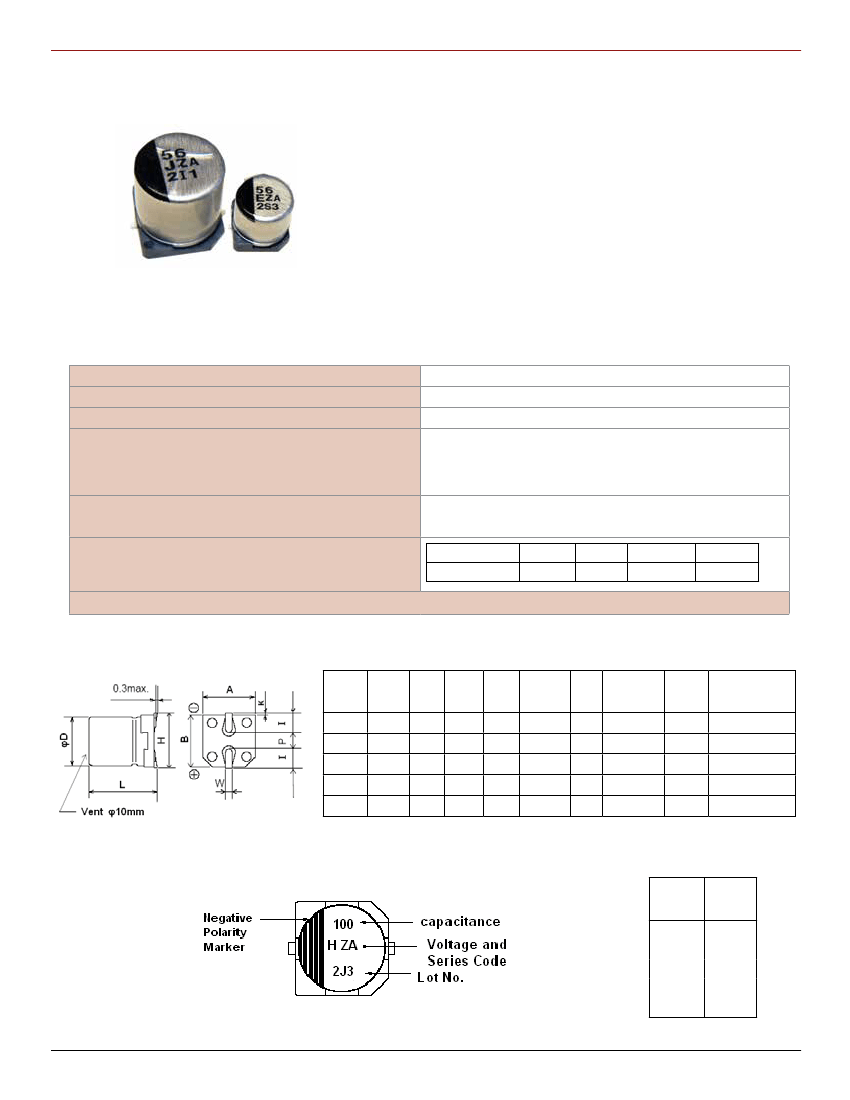

Type HZA hybrid capacitors are a combination of solid
polymer aluminum technology with wet aluminum electrolytic
technology. This results in a surface mount capacitor with a
10,000 hour life, low leakage current, high voltage capability,
very low esr and small case sizes. They are ideal for high density
PC board designs. The vertical cylindrical cases facilitate
automatic mounting and feature high reflow soldering
temperature capability. Type HZA is RoHS compliant.
Highlights
-
-
-
-
+105 °C, Up to 10,000 Hours Load Life
Low Leakage Current
Very Low ESR and High Ripple Current
260 °C reflow soldering
Film
Specifications
Capacitance Range
Capacitance Tolerance
Rated Voltage
Leakage Current (at 20°C)
10 to 330 µF
±20% @ 120 Hz/+20 °C
25, 35, 50, 63, 80 Vdc
I = .01CV or 3 µA max., whichever is greater after 2 minutes
I = leakage current in µAmps
C = rated capacitance in µF
V = rated DC Working voltage in Volts
Z(-25 ºC)/Z(+20 ºC): 2
Z(-55 ºC)/Z(+20 ºC): 2.5
Frequency
Correction Factor
120 Hz
0.1
1000 Hz
0.3
10,000 Hz
0.6
100 KHz
1
Low Temperature Characteristics (at 120 Hz)
Ripple Current Frequency Multiplier
RoHS Compliant
Outline Drawing
mm
Case
Code
C
D
X
F
G
D
L
A
B
(± 0.5) ( ± 0.3) (± 0.2) ( ± 0.2)
5.0
6.3
6.3
8.0
10.0
5.8
5.8
7.7
10.2
10.2
5.3
6.6
6.6
8.3
10.3
5.3
6.6
6.6
8.3
10.3
H
(max.)
6.5
7.8
7.8
10.0
12.0
I
(ref.)
2.2
2.6
2.6
3.4
3.5
W
0.65 ± 0.1
0.65 ± 0.1
0.65 ± 0.1
0.90 ± 0.2
0.90 ± 0.2
P
(ref.)
1.5
1.8
1.8
3.1
4.6
K
0.35
+0.15/-0.20
0.35
+0.15/-0.20
0.35
+0.15/-0.20
0.70 ± 0.2
0.70 ± 0.2
Capacitor Markings
Voltage
Code
E
V
H
J
K
Voltage
Vdc
25
35
50
63
80
Lot, Number: Year, Line, Month
CDE Cornell Dubilier
•
1605 E. Rodney French Blvd.
•
New Bedford, MA 02744
•
Phone: (508)996-8561
•
Fax: (508)996-3830
Type HZA -55 ºC to +105 ºC
SMT Hybrid Polymer-Aluminum Electrolytic Capacitors
Part Numbering System
HZA
227
M
25
F
24T
–F
RoHS
Compliant
Indicator
Packaging
Type
Capacitance
227 = 220 µF
Capacitance Tolerance
M = ±20%
Voltage Code
25 = 25 Vdc
Case Code
See Ratings Table
Code
24 = Tape
carrier
width (mm)
T = Tape & Reel
Film
Ratings
Voltage
Capacitance
Rating
(µF)
(Vdc)
CDE Part Number
MAX
DCL
(µA)
MAX
MAX
E.S.R.
Ripple Current
MAX DF @
@
@
120 Hz/20°C
100kHz/+20°C 100kHz/+105°C
(ohms)
(A rms)
25 Vdc ( 32 Vdc Surge )
33
56
100
220
330
25
25
25
25
25
HZA336M025C12T-F
HZA566M025D16T-F
HZA107M025X16T-F
HZA227M025F24T-F
HZA337M025G24T-F
8.2
14.0
25.0
55.0
82.5
0.14
0.14
0.14
0.14
0.14
0.080
0.050
0.030
0.027
0.020
0.9
1.3
2.0
2.3
2.5
5.0
6.3
6.3
8.0
10.0
5.8
5.8
7.7
10.2
10.2
C
D
X
F
G
1000
1000
900
500
500
D
(mm)
L
(mm)
Case
Code
QTY/reel
35 Vdc ( 44 Vdc Surge )
22
27
47
68
150
270
35
35
35
35
35
35
HZA226M035C12T-F
HZA276M035D16T-F
HZA476M035D16T-F
HZA686M035X16T-F
HZA157M035F24T-F
HZA277M035G24T-F
7.7
9.4
16.4
23.8
52.5
94.5
0.12
0.12
0.12
0.12
0.12
0.12
0.100
0.060
0.060
0.035
0.027
0.020
0.9
1.3
1.3
2.0
2.3
2.5
5.0
6.3
6.3
6.3
8.0
10.0
5.8
5.8
5.8
7.7
10.2
10.2
C
D
D
X
F
G
1000
1000
1000
900
500
500
50 Vdc ( 63 Vdc Surge )
10
22
33
68
100
50
50
50
50
50
HZA106M050C12T-F
HZA226M050D16T-F
HZA336M050X16T-F
HZA686M050F24T-F
HZA107M050G24T-F
5.0
11.0
16.5
34.0
50.0
0.10
0.10
0.10
0.10
0.10
0.120
0.080
0.040
0.030
0.028
0.75
1.1
1.6
1.8
2.0
5.0
6.3
6.3
8.0
10.0
5.8
5.8
7.7
10.2
10.2
C
D
X
F
G
1000
1000
900
500
500
63 Vdc ( 79 Vdc Surge )
10
22
33
56
63
63
63
63
HZA106M063D16T-F
HZA226M063X16T-F
HZA336M063F24T-F
HZA566M063G24T-F
6.3
13.8
20.7
35.2
0.08
0.08
0.08
0.08
0.120
0.080
0.040
0.030
1.0
1.5
1.7
1.8
6.3
6.3
8.0
10.0
5.8
7.7
10.2
10.2
D
X
F
G
1000
900
500
500
80 Vdc ( 100 Vdc Surge )
22
33
80
80
HZA226M080F24T-F
HZA336M080G24T-F
17.6
26.4
0.08
0.08
0.045
0.036
1.55
1.70
8.0
10.0
10.2
10.2
F
G
500
500
CDE Cornell Dubilier
•
1605 E. Rodney French Blvd.
•
New Bedford, MA 02744
•
Phone: (508)996-8561
•
Fax: (508)996-3830
Type HZA -55 ºC to +105 ºC
Load Life Test
Test
∆C at 120Hz
DF at 120 Hz
ESR at 100kHz/+20 °C
SMT Hybrid Polymer-Aluminum Electrolytic Capacitors
Apply the maximum rated voltage for 10,000 hrs at +105 °C with full rated ripple current. After
the test measure the capacitance, DF, DCL and ESR at +20 °C. Also measure the ESR at -40 °C and
100kHz.
Capacitance will be within ±30% of the initial measured value
DF will be ≤ 200% of the initial specified value
DCL after 2 minute charge
Leakage current will be ≤ the initial specified value
ESR will be ≤ 200% of the initial specified value
Max. ESR at 100kHz/-40 °C
Case Code C : 2.0 Ω; Case Code D : 1.4 Ω; Case Code X : 0.8 Ω;
after Load Life test
Case Code F : 0.4 Ω; Case Code G : 0.3 Ω
Shelf Life Test
Test
∆C at 120 Hz
DF at 120 Hz
ESR at 100Khz/+20 °C
Subject the capacitor to 1000 hrs at +105 °C without voltage. After the test, return the capacitor
to room temperature for two hours and then apply rated voltage for 30 minutes. The after test
measurements for capacitance, DF, DCL and ESR at +20 °C will meet the following.
Capacitance will be within ±30% of the initial measured value
DF will be ≤ 200% of the initial specified value
ESR will be ≤ 200% of the initial specified value
Film
DCL after 2 minute charge
Leakage current will be ≤ the initial specified value
Moisture Resistance Test
Test
∆C at 120 Hz
DF at 120 Hz
ESR at 100Khz/+20 °C
Subject the capacitor to 2000 hrs at +85 °C/85%RH with rated voltage. After the test, return the
capacitor to room temperature and humidity for two hours. The after test measurements for
capacitance, DF, DCL and ESR at +20 °C will meet the following.
Capacitance will be within ±30% of the initial measured value
DF will be ≤ 200% of the initial specified value
ESR will be ≤ 200% of the initial specified value
DCL after 2 minute charge
Leakage current will be ≤ the initial specified value
Temperature Cycle Test
Subject the capacitor to 1000 cycles of temperature change from -55 °C to +105 °C using the
following sequence and durations.
Step
1
Temperature
-55 ºC
+20 ºC
+105 ºC
+20 ºC
Time at Temperature
30 minutes
3 minutes max
30 minutes
3 minutes max
Test
2
3
4
After the test, return the capacitor to +20°C for one to two hours before measurement. The after
test measurements for capacitance, DF, and DCL at +20 °C will meet the following;
∆C at 120 Hz
DF at 120 Hz
Appearance
Capacitance will be within ±20% of the initial measured value
DF will be ≤ 200% of the initial specified value
DCL after 2 minute charge
Leakage current will be ≤ the initial specified value
No significant change in appearance
CDE Cornell Dubilier
•
1605 E. Rodney French Blvd.
•
New Bedford, MA 02744
•
Phone: (508)996-8561
•
Fax: (508)996-3830
Type HZA -55 ºC to +105 ºC
SMT Hybrid Polymer-Aluminum Electrolytic Capacitors

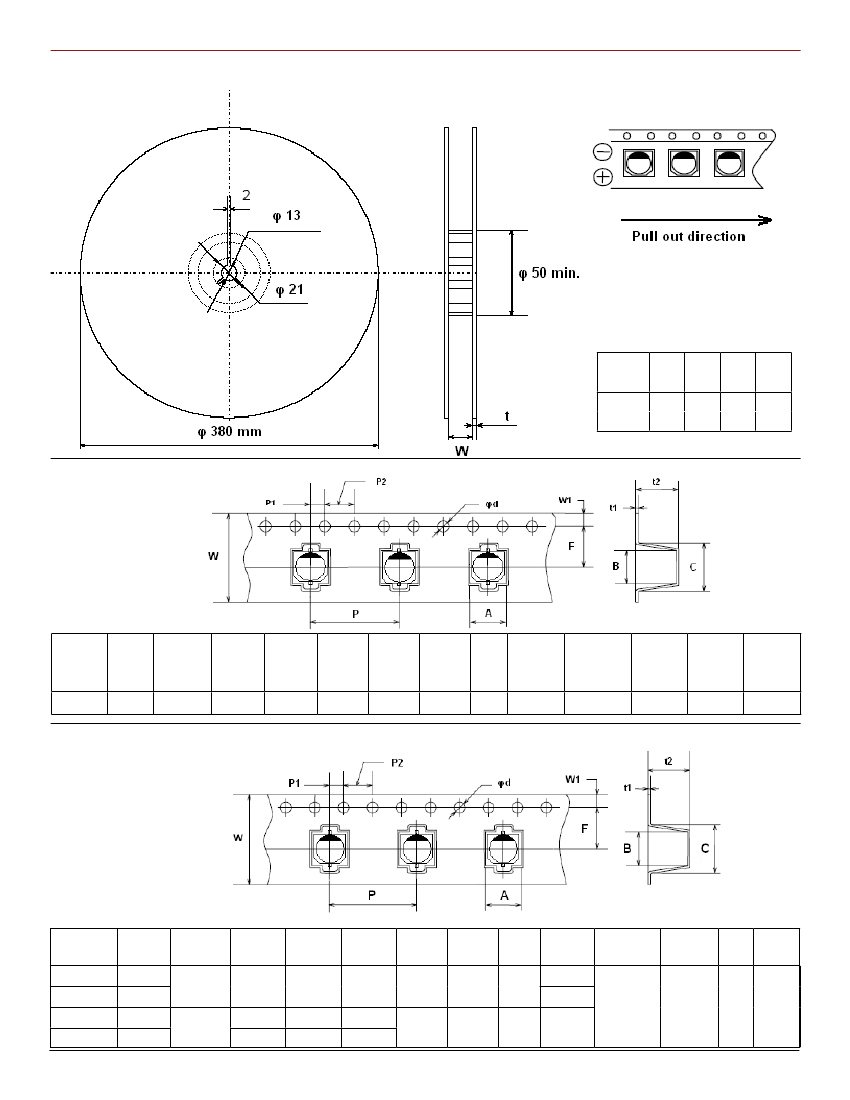

Reel Dimensions
Film
mm
Case Dia.
W
t
5
14
3
6.3
18
3
8
26
3
10
26
3
Tape Dimensions
mm
Case Size Case
(mm)
Code
5 x 5.8
C
W ± 0.3
12
A ± 0.2 B
+0.3/-0.2
C ± 0.5
5.7
5.7
8.0
F ± 0.1
5.5
P ± 0.1
12
t1
0.4
t2 ± 0.2 φd +0.1/-0 P1 ± 0.1 P2 ± 0.1 W1 ± 0.1
6.4
1.5
2
4
1.75
mm
Case Size
(mm)
6.3 x 5.8
6.3 x 7.7
8 x 10.2
10 x 10.2
Case Code
D
X
F
G
W ± 0.3
16
24
A ± 0.2
7
8.7
10.7
B
+0.3/-0.2
C ± 0.5
7
8.7
10.7
9.0
12.5
14.5
F ± 0.1
7.5
11.5
P ± 0.1
12
16
t1
0.4
0.4
t2 ± 0.2
6.4
8.4
11
φd +0.1/-0
P1 ± 0.1
P2 ±
W1 ± 0.1
0.1
1.5
2
4
1.75
CDE Cornell Dubilier
•
1605 E. Rodney French Blvd.
•
New Bedford, MA 02744
•
Phone: (508)996-8561
•
Fax: (508)996-3830
Type HZA -55 ºC to +105 ºC
SMT Hybrid Polymer-Aluminum Electrolytic Capacitors
Recommended Land Dimensions
Case Code D (mm)
C
D
X
F
G
5
6.3
6.3
8
10
A
1.5
1.8
1.8
3.1
4.6
B
2.8
3.2
3.2
4.0
4.1
C
mm
1.6
1.6
1.6
2.0
2.0
Recommended Reflow Soldering
Film
300
250
Peak Temperature
230°C
200°C
70 sec.
30 sec
.
Temperature (ºC)
200
160°C
150
120 seconds
100
50
0
Time (sec)
Case
Code
C
D
X
F
G
Case Dia.
Peak
Time at or
(mm)
Temperature above 250 °C
5
6.3
6.3
8
10
260°C
5 seconds
Time at or
Time at or above Time at or above Number of Reflow
above 230 °C
217 °C
200 °C
Processes
2
30 seconds
40 seconds
70 seconds
1
Notes:
1. For 5mm and 6.3 mm case dia., if the peak temperature does not exceed 255 °C the time at or above 250 °C can increase to 10 seconds.
2. The capacitors in the 8m and 10 mm case dia. can withstand 2 reflow processes, if the peak temperature does not exceed 245 °C and the time at or
above 240 °C does not exceed 10 seconds.
3. The 2nd reflow process should be performed after the capacitors have returned to room temperature.
4. Temperature should be measured with a thermal couple placed on the top surface of the capacitor.
5. After reflow soldering, the leakage current, D.F., and e.s.r., will meet the initial specifications, and the capacitance will be within ±10% of the initial
measured value when measured at room conditions.
CDE Cornell Dubilier
•
1605 E. Rodney French Blvd.
•
New Bedford, MA 02744
•
Phone: (508)996-8561
•
Fax: (508)996-3830
