5072-2-07-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 5072-2-07-1

5072-2-07-1: DescriptionBoard Connector, 7 Contact(s), 1 Row(s), Male, Right Angle, 0.2 inch Pitch, Wire Wrap Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size73KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric Compare View All

5072-2-07-1 Overview

Board Connector, 7 Contact(s), 1 Row(s), Male, Right Angle, 0.2 inch Pitch, Wire Wrap Terminal, Locking, Receptacle

5072-2-07-1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Conexcon Group
Reach Compliance Code	unknown
body width	0.246 inch
subject depth	0.2 inch
body length	1.4 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1500VAC V
Durability	25 Cycles
Insulation resistance	1000000000 Ω
insulator material	NYLON
Manufacturer's serial number	5072
Plug contact pitch	0.2 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.319 inch
Terminal pitch	4.064 mm
Termination type	WIRE WRAP
Total number of contacts	7
Base Number Matches	1

Preview

Download Datasheet

View All

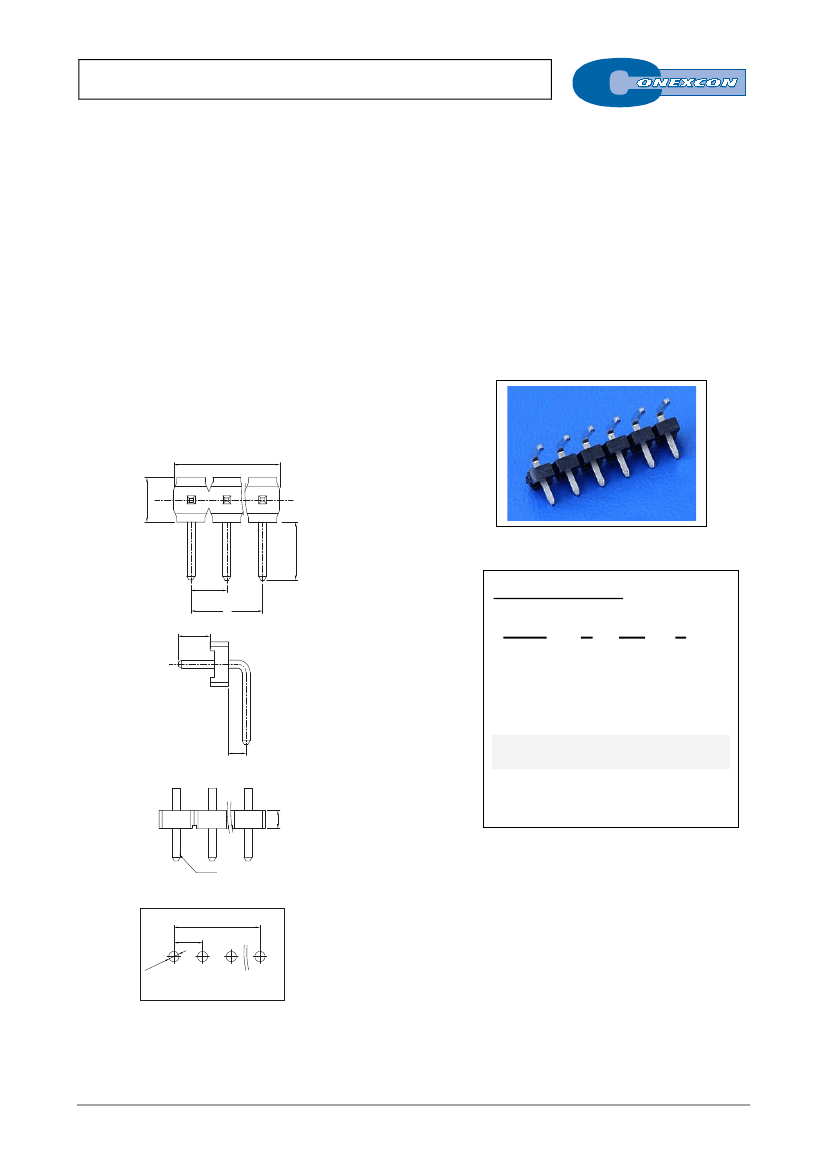

SINGLE ROW VERTICAL PIN HEADER

5072 SERIES.

5.08 mm (0.200”) pitch.

General Features

Electrical Features



Available in 2 through 20 circuits



Mates with PCB sockets 5.08 mm. pitch 1507, 1508, 1509,

5069, 5070 and wire housing 5080 and 5081 series



1.14 mm. square pin



Pin omit options are available in any circuits

Materials



Voltage rating: < 250V

Current rating: < 5 A

Contact resistance: < 20 mΩ

Dielectric withstanding voltage: 1500 V AC/minute

Insulation resistance: >1000 MΩ

Mechanical Features



Insulator: Nylon 66 UL 94 V-2

Contact: brass

Operating temperature: -40ºC to +105ºC

RoHS compliant



Pin retention force to insulator: > 2.00 Kgf



Durability: 25 cycles

Dimensional Information

6.25

8.10

5.08±0.15

4.55

Ordering Information:

5072 -

T-

XX-

1. Connector Series

2. (T) Contact Plating



T =

Tin plated

2.54

Recommended Finish

3. (XX) Number of circuits

2.54



Available in 2 through 20 circuits

1.14

4.06

ø 1. 4

RECOMMENDED HOLE PATTERN

Dimensions:

(In mm.)

= 5.08 x (XX*-1)

= 5.08 x (XX*)

* XX

(Number of circuits)

E-XX

FULL LINE CATALOGUE

5072-2-07-1 Related Products

	5072-2-07-1	5072-2-05-1	5072-2-09-1	5072-2-11-1	5072-2-17-1	5072-2-10-1	5072-2-15-1	5072-2-20-1	5072-2-18-1
Description	Board Connector, 7 Contact(s), 1 Row(s), Male, Right Angle, 0.2 inch Pitch, Wire Wrap Terminal, Locking, Receptacle	Board Connector, 5 Contact(s), 1 Row(s), Male, Right Angle, 0.2 inch Pitch, Wire Wrap Terminal, Locking, Receptacle	Board Connector, 9 Contact(s), 1 Row(s), Male, Right Angle, 0.2 inch Pitch, Wire Wrap Terminal, Locking, Receptacle	Board Connector, 11 Contact(s), 1 Row(s), Male, Right Angle, 0.2 inch Pitch, Wire Wrap Terminal, Locking, Receptacle	Board Connector, 17 Contact(s), 1 Row(s), Male, Right Angle, 0.2 inch Pitch, Wire Wrap Terminal, Locking, Receptacle	Board Connector, 10 Contact(s), 1 Row(s), Male, Right Angle, 0.2 inch Pitch, Wire Wrap Terminal, Locking, Receptacle	Board Connector, 15 Contact(s), 1 Row(s), Male, Right Angle, 0.2 inch Pitch, Wire Wrap Terminal, Locking, Receptacle	Board Connector, 20 Contact(s), 1 Row(s), Male, Right Angle, 0.2 inch Pitch, Wire Wrap Terminal, Locking, Receptacle	Board Connector, 18 Contact(s), 1 Row(s), Male, Right Angle, 0.2 inch Pitch, Wire Wrap Terminal, Locking, Receptacle
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	unknown	unknown	unknow	unknow	unknow	unknow	unknow	unknow	unknown
body width	0.246 inch	0.246 inch	0.246 inch	0.246 inch	0.246 inch	0.246 inch	0.246 inch	0.246 inch	0.246 inch
subject depth	0.2 inch	0.2 inch	0.2 inch	0.2 inch	0.2 inch	0.2 inch	0.2 inch	0.2 inch	0.2 inch
body length	1.4 inch	1 inch	1.8 inch	2.2 inch	3.4 inch	2 inch	3 inch	4 inch	3.6 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	SN	SN	SN	SN	SN	SN	SN	SN	SN
Contact completed and terminated	TIN	TIN	TIN	TIN	TIN	TIN	TIN	TIN	TIN
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	1500VAC V	1500VAC V	1500VAC V	1500VAC V	1500VAC V	1500VAC V	1500VAC V	1500VAC V	1500VAC V
Durability	25 Cycles	25 Cycles	25 Cycles	25 Cycles	25 Cycles	25 Cycles	25 Cycles	25 Cycles	25 Cycles
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
insulator material	NYLON	NYLON	NYLON	NYLON	NYLON	NYLON	NYLON	NYLON	NYLON
Manufacturer's serial number	5072	5072	5072	5072	5072	5072	5072	5072	5072
Plug contact pitch	0.2 inch	0.2 inch	0.2 inch	0.2 inch	0.2 inch	0.2 inch	0.2 inch	0.2 inch	0.2 inch
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	1	1	1	1	1	1	1	1	1
Number of rows loaded	1	1	1	1	1	1	1	1	1
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Rated current (signal)	5 A	5 A	5 A	5 A	5 A	5 A	5 A	5 A	5 A
Guideline	UL	UL	UL	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.319 inch	0.319 inch	0.319 inch	0.319 inch	0.319 inch	0.319 inch	0.319 inch	0.319 inch	0.319 inch
Terminal pitch	4.064 mm	4.064 mm	4.064 mm	4.064 mm	4.064 mm	4.064 mm	4.064 mm	4.064 mm	4.064 mm
Termination type	WIRE WRAP	WIRE WRAP	WIRE WRAP	WIRE WRAP	WIRE WRAP	WIRE WRAP	WIRE WRAP	WIRE WRAP	WIRE WRAP
Total number of contacts	7	5	9	11	17	10	15	20	18
Maker	Conexcon Group	Conexcon Group	Conexcon Group	Conexcon Group	Conexcon Group	Conexcon Group	Conexcon Group	Conexcon Group	-
ECCN code	-	-	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
