M80-4000000F8-12-306-00-000 datasheet, PDF

Datasheet> All Categories > The connector> The connector> M80-4000000F8-12-306-00-000

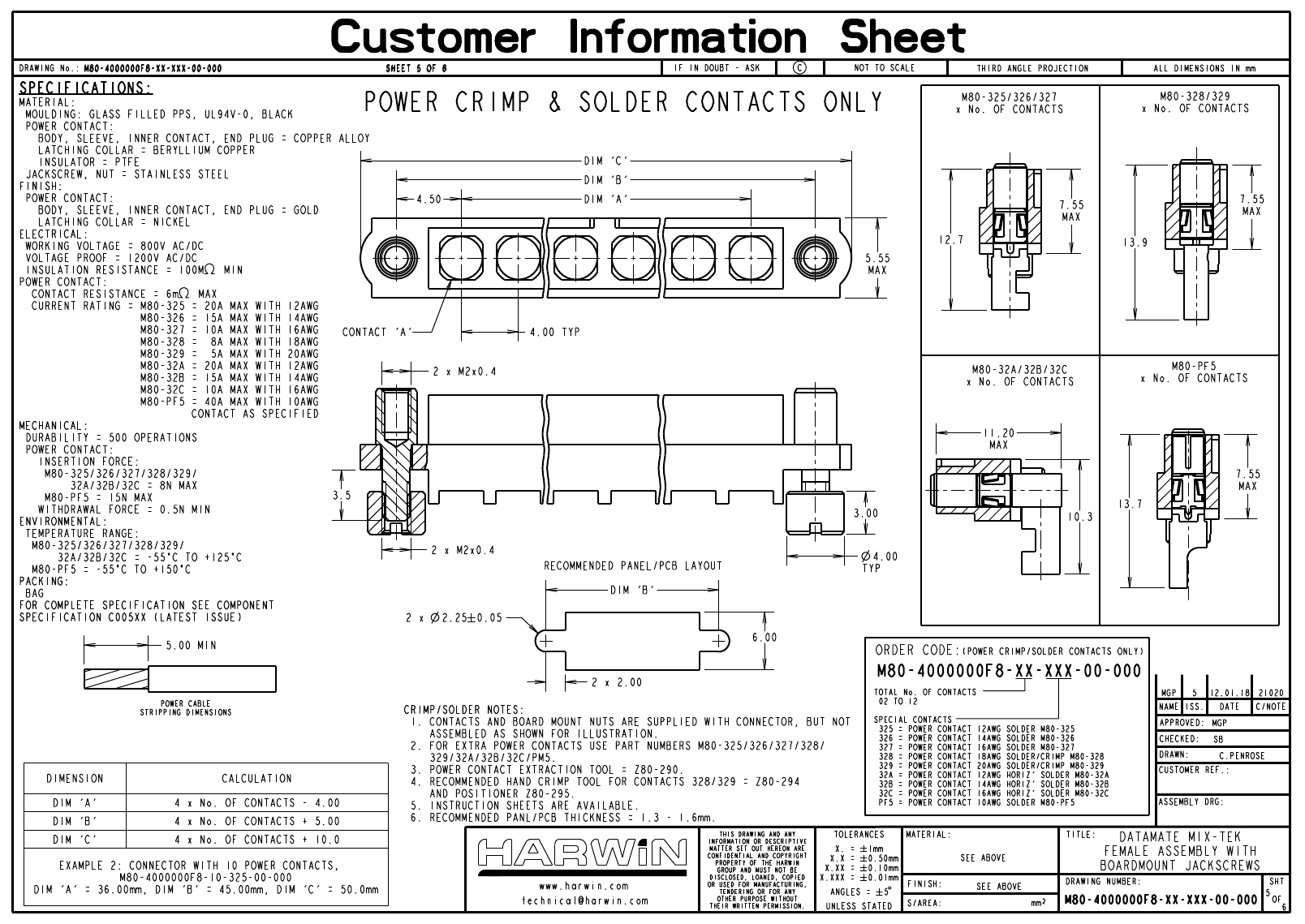

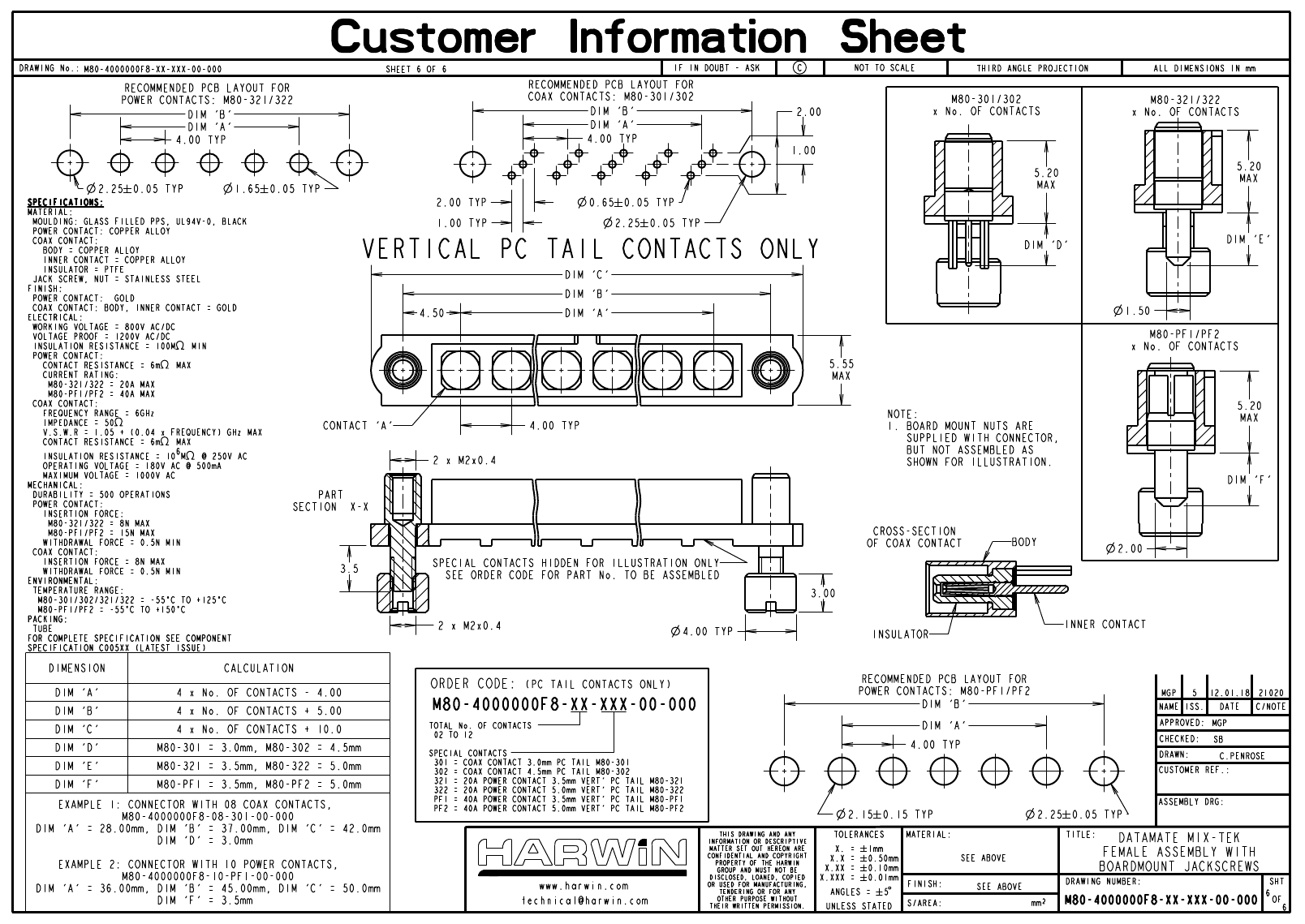

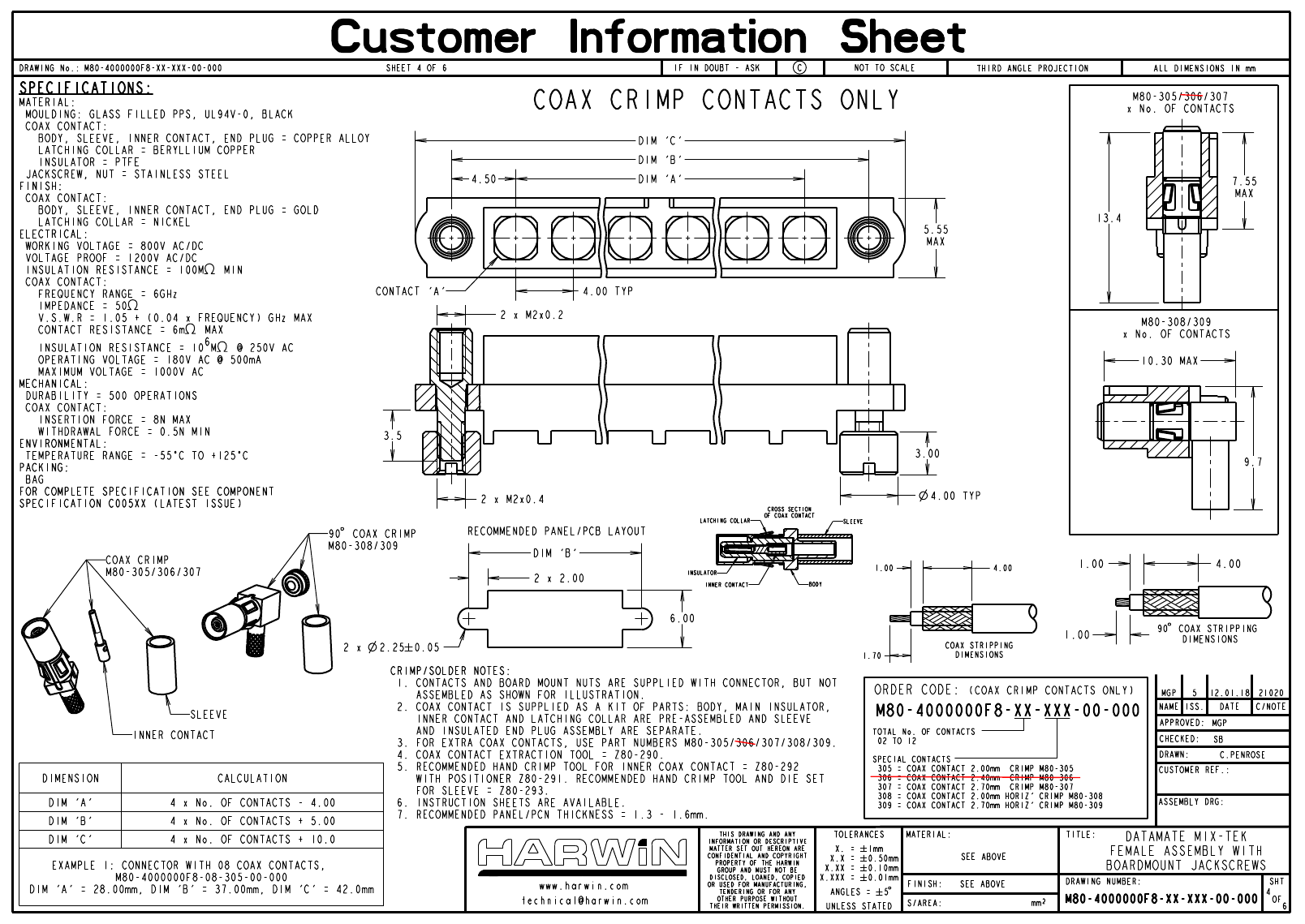

M80-4000000F8-12-306-00-000: DescriptionBoard Connector, 12 Contact(s), 1 Row(s), Female, Straight, Crimp Terminal, Locking, Black Insulator, Plug,; CategoryThe connector The connector; File Size412KB，3 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

M80-4000000F8-12-306-00-000 Overview

Board Connector, 12 Contact(s), 1 Row(s), Female, Straight, Crimp Terminal, Locking, Black Insulator, Plug,

M80-4000000F8-12-306-00-000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Harwin
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	PANEL MOUNTABLE
body width	0.219 inch
subject depth	0.297 inch
body length	2.283 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact arrangement	S0C12
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Contact resistance	6 mΩ
Contact style	COAX
DIN compliance	NO
Durability	500 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	4.8928 N
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYPHENYLENE SULPHIDE
MIL compliance	NO
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	CABLE
Number of connectors	ONE
Number of rows loaded	1
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Guideline	UL
reliability	COMMERCIAL
Termination type	CRIMP
Total number of contacts	12
UL Flammability Code	94V-0
Evacuation force-minimum value	.199882 N
Base Number Matches	1
