MC34081AP datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Amplifier circuit> MC34081AP

Preview

MC34081AP: DescriptionMC34081AP amplifier basic information: MC34081AP is an OPERATIONAL AMPLIFIER. Commonly used packaging methods are DIP, DIP8,.3 MC34081AP amplifier core information: The minimum operating temperature of MC34081AP is and the maximum operating temperature is 70 °C. Maximum bias current at 25°C: 0.0001 µA The maximum slew rate of the MC34081AP given by the manufacturer is 4.2 mA, while the minimum slew rate is 20 V/us. Its minimum voltage gain is 25000. The nominal supply voltage of MC34081AP is 15 V, and its corresponding nominal negative supply voltage is -15 V. The power supply range is: +-15 V. The input offset voltage of MC34081AP is 2500 µV (input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).) Related dimensions of MC34081AP: MC34081AP has 8 terminals. Its terminal position type is: DUAL. Terminal pitch is 2.54 mm. MC34081AP amplifier additional information: MC34081AP adopts the VOLTAGE-FEEDBACK architecture. It belongs to the low-bias class of amplifiers. It does not belong to the low offset class of amplifiers. The frequency compensation status of MC34081AP is: YES. Its temperature grade is: COMMERCIAL. MC34081AP is not Rohs certified. The corresponding JESD-30 code is: R-PDIP-T8. The corresponding JESD-609 code is: e0. The packaging code of MC34081AP is: DIP. MC34081AP packaging materials are mostly PLASTIC/EPOXY. The package shape is RECTANGULAR. The MC34081AP package pin format is: IN-LINE. Its terminal form is: THROUGH-HOLE.; CategoryAnalog mixed-signal IC Amplifier circuit; File Size1MB，12 Pages; ManufacturerNXP; Websitehttps://www.nxp.com; Alternative parts：MC34081AP

Download Datasheet Parametric View All

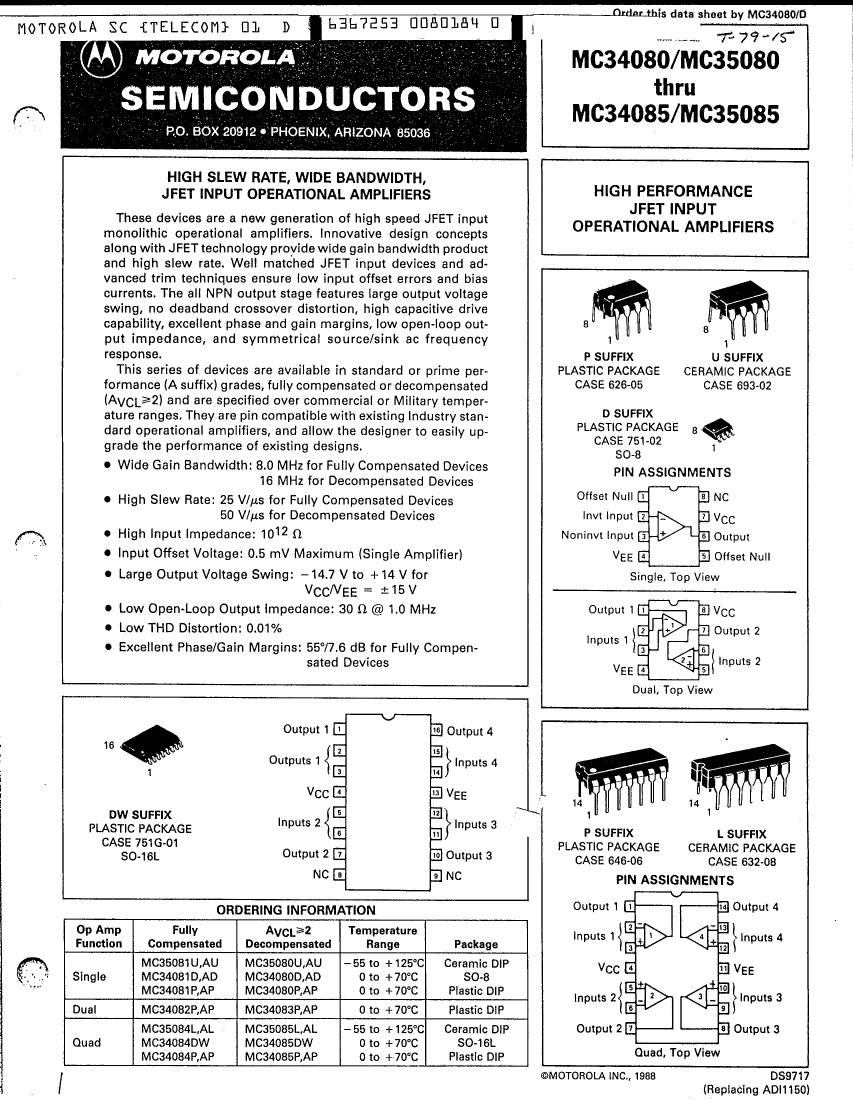

MC34081AP Overview

MC34081AP amplifier basic information:

MC34081AP is an OPERATIONAL AMPLIFIER. Commonly used packaging methods are DIP, DIP8,.3

MC34081AP amplifier core information:

The minimum operating temperature of MC34081AP is and the maximum operating temperature is 70 °C. Maximum bias current at 25°C: 0.0001 µA

The maximum slew rate of the MC34081AP given by the manufacturer is 4.2 mA, while the minimum slew rate is 20 V/us. Its minimum voltage gain is 25000.

The nominal supply voltage of MC34081AP is 15 V, and its corresponding nominal negative supply voltage is -15 V. The power supply range is: +-15 V. The input offset voltage of MC34081AP is 2500 µV (input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).)

Related dimensions of MC34081AP:

MC34081AP has 8 terminals. Its terminal position type is: DUAL. Terminal pitch is 2.54 mm.

MC34081AP amplifier additional information:

MC34081AP adopts the VOLTAGE-FEEDBACK architecture. It belongs to the low-bias class of amplifiers. It does not belong to the low offset class of amplifiers. The frequency compensation status of MC34081AP is: YES. Its temperature grade is: COMMERCIAL.

MC34081AP is not Rohs certified. The corresponding JESD-30 code is: R-PDIP-T8. The corresponding JESD-609 code is: e0. The packaging code of MC34081AP is: DIP. MC34081AP packaging materials are mostly PLASTIC/EPOXY.

The package shape is RECTANGULAR. The MC34081AP package pin format is: IN-LINE. Its terminal form is: THROUGH-HOLE.

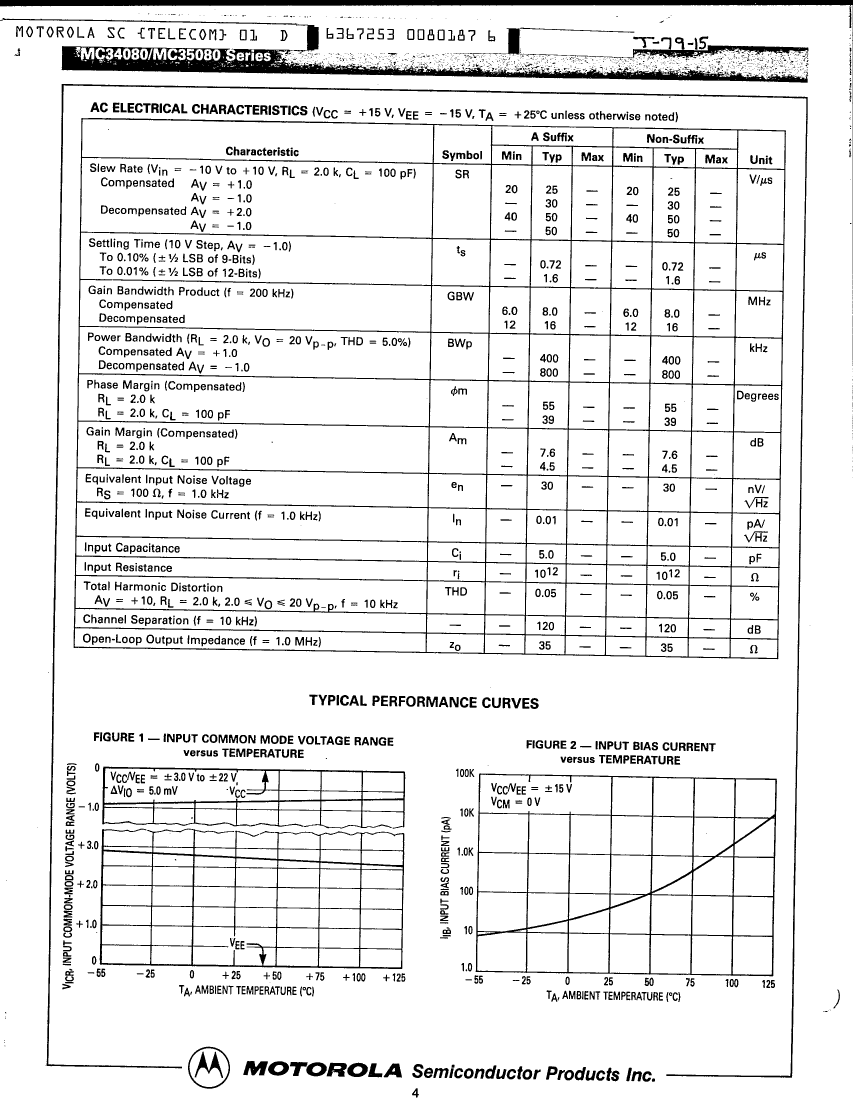

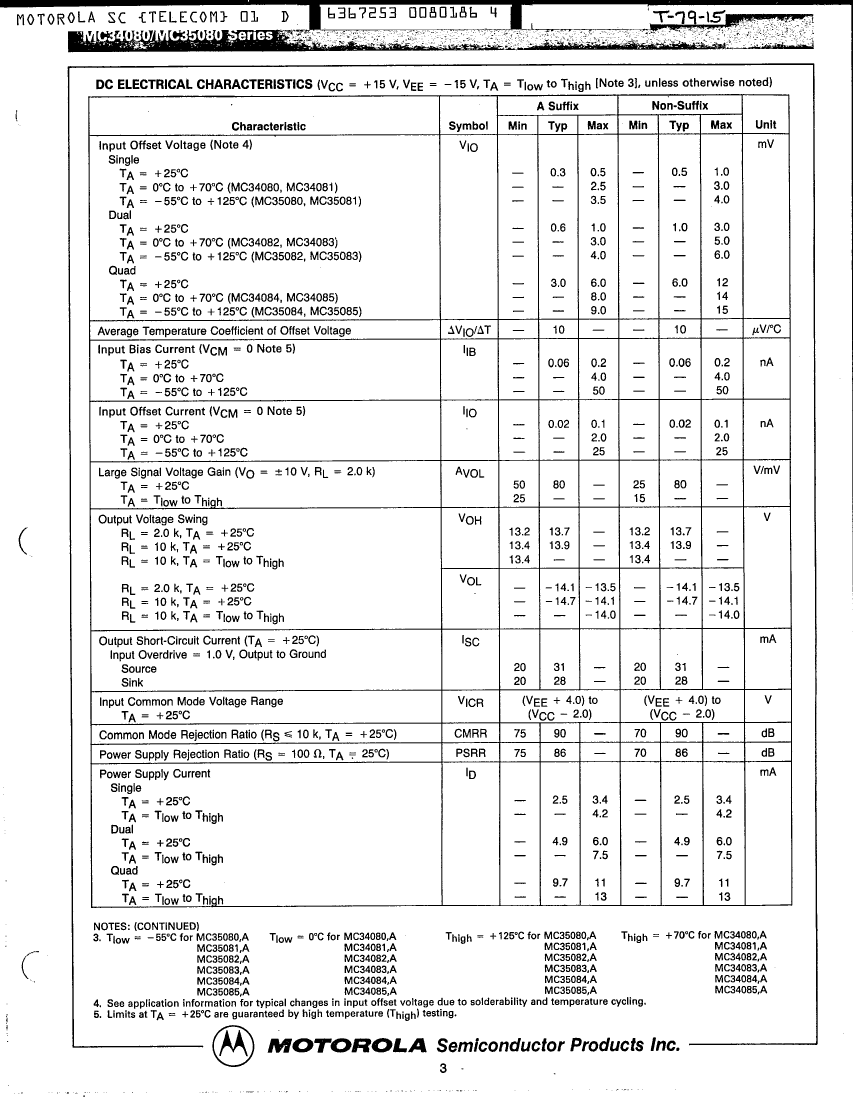

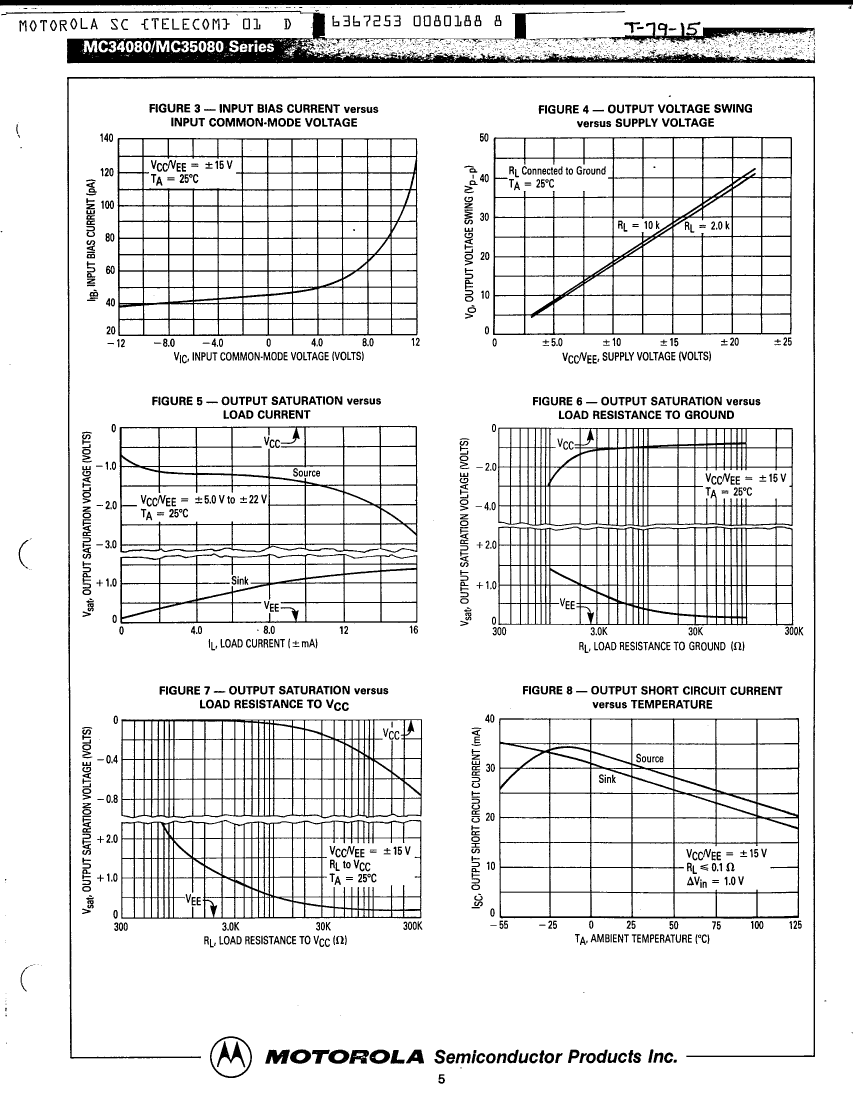

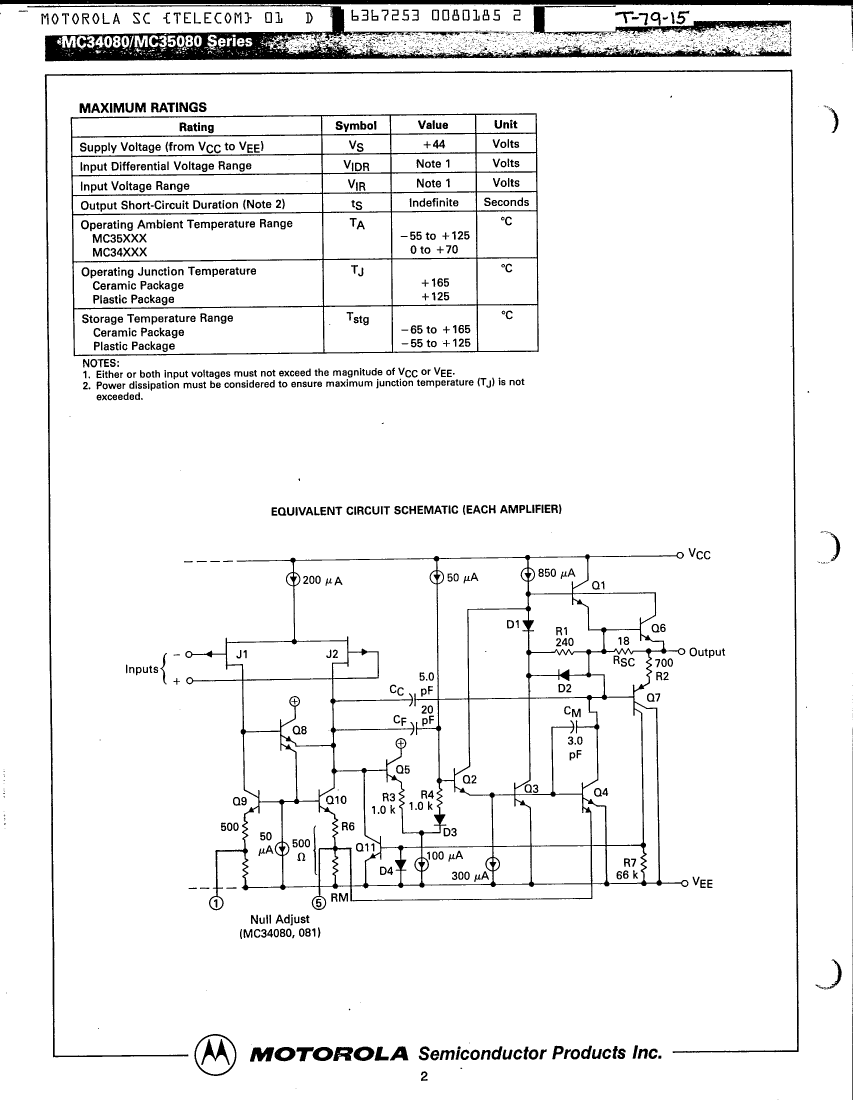

MC34081AP Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	NXP
package instruction	DIP, DIP8,.3
Reach Compliance Code	unknown
Amplifier type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Maximum bias current (IIB) at 25C	0.0001 µA
frequency compensation	YES
Maximum input offset voltage	2500 µV
JESD-30 code	R-PDIP-T8
JESD-609 code	e0
low-bias	YES
low-dissonance	NO
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	1
Number of terminals	8
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP8,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	+-15 V
Certification status	Not Qualified
minimum slew rate	20 V/us
Maximum slew rate	4.2 mA
Supply voltage upper limit	44 V
Nominal supply voltage (Vsup)	15 V
surface mount	NO
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Minimum voltage gain	25000
Base Number Matches	1
