5962R9579401VRC datasheet, PDF

Datasheet> All Categories > logic> logic> 5962R9579401VRC

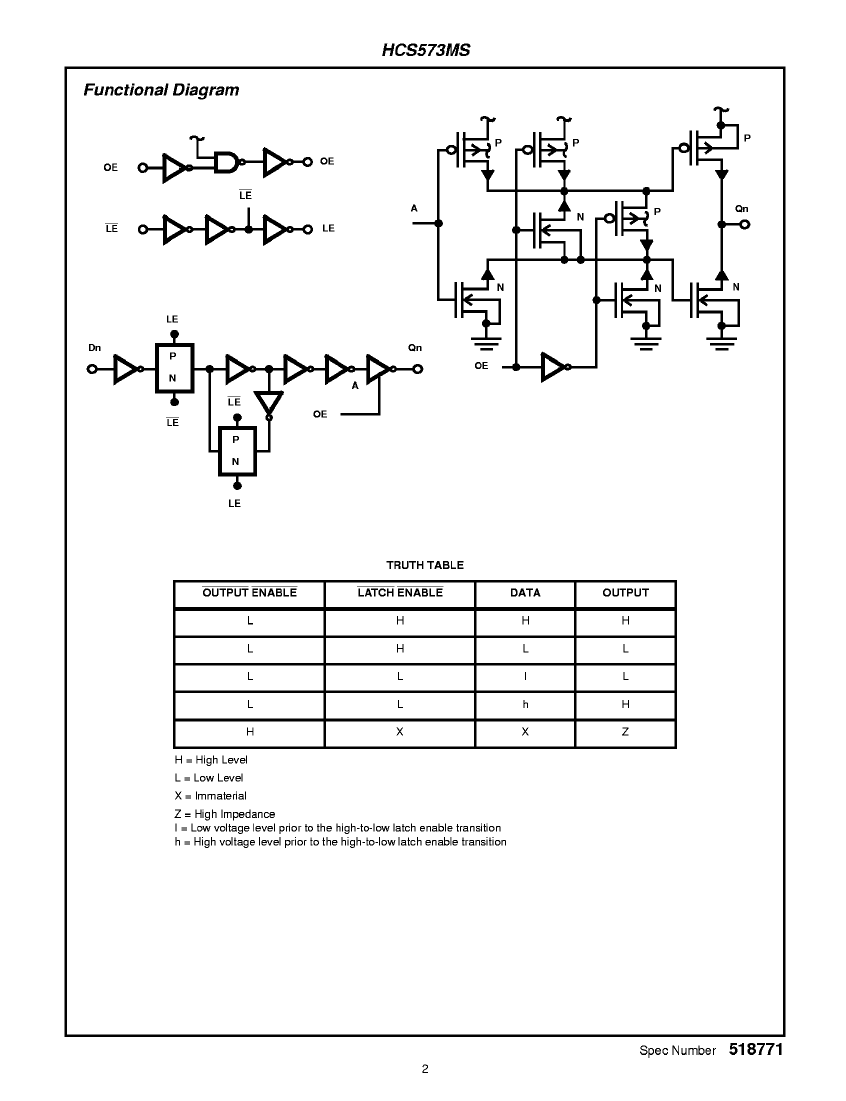

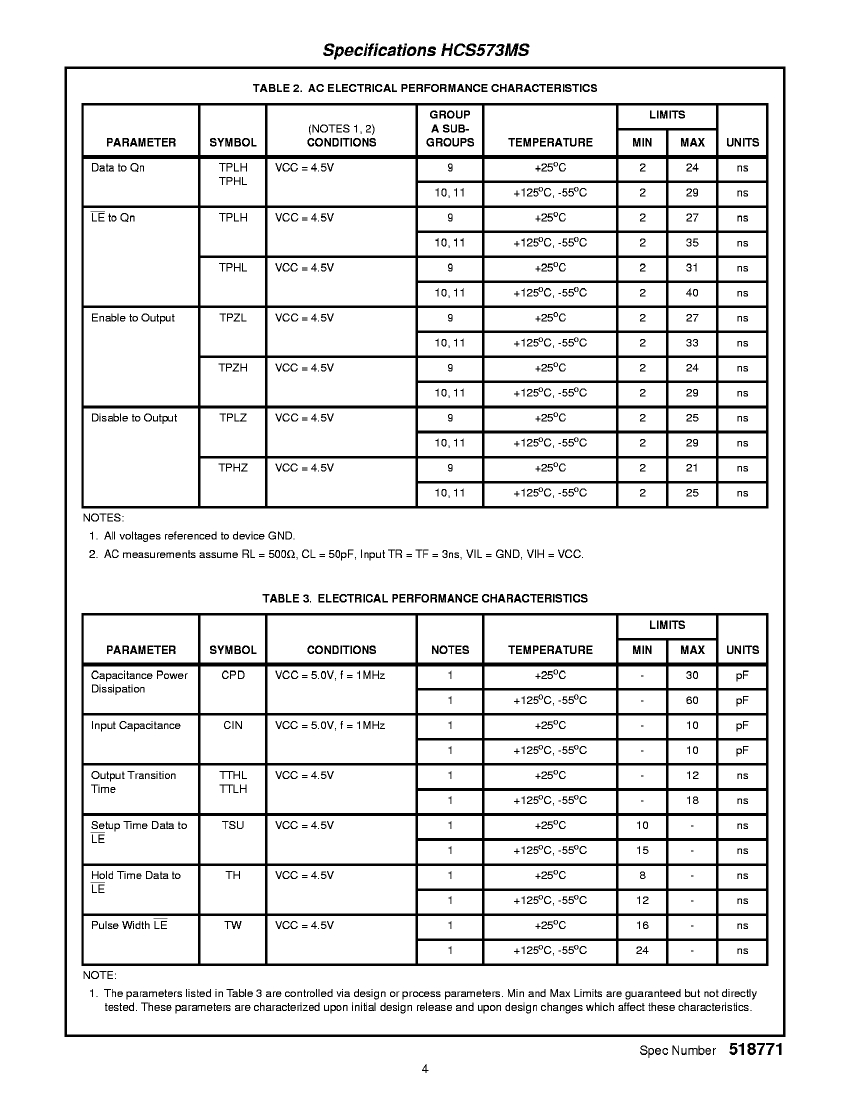

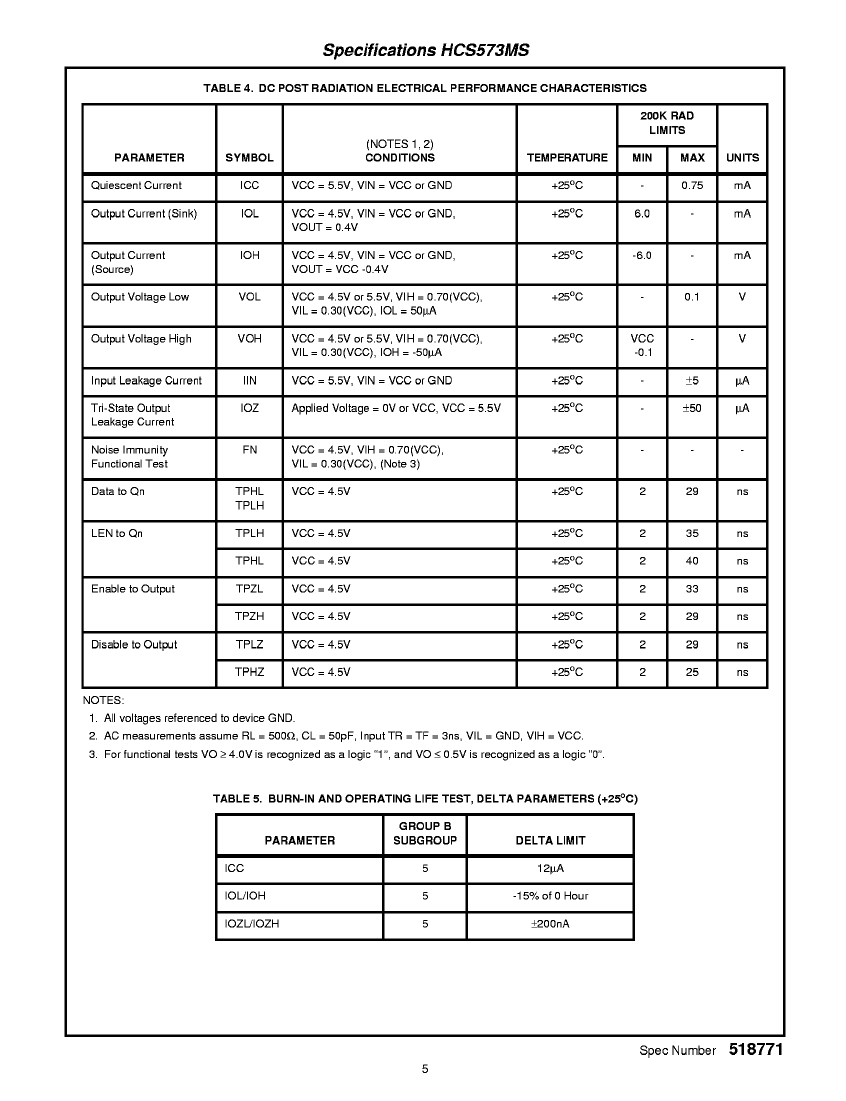

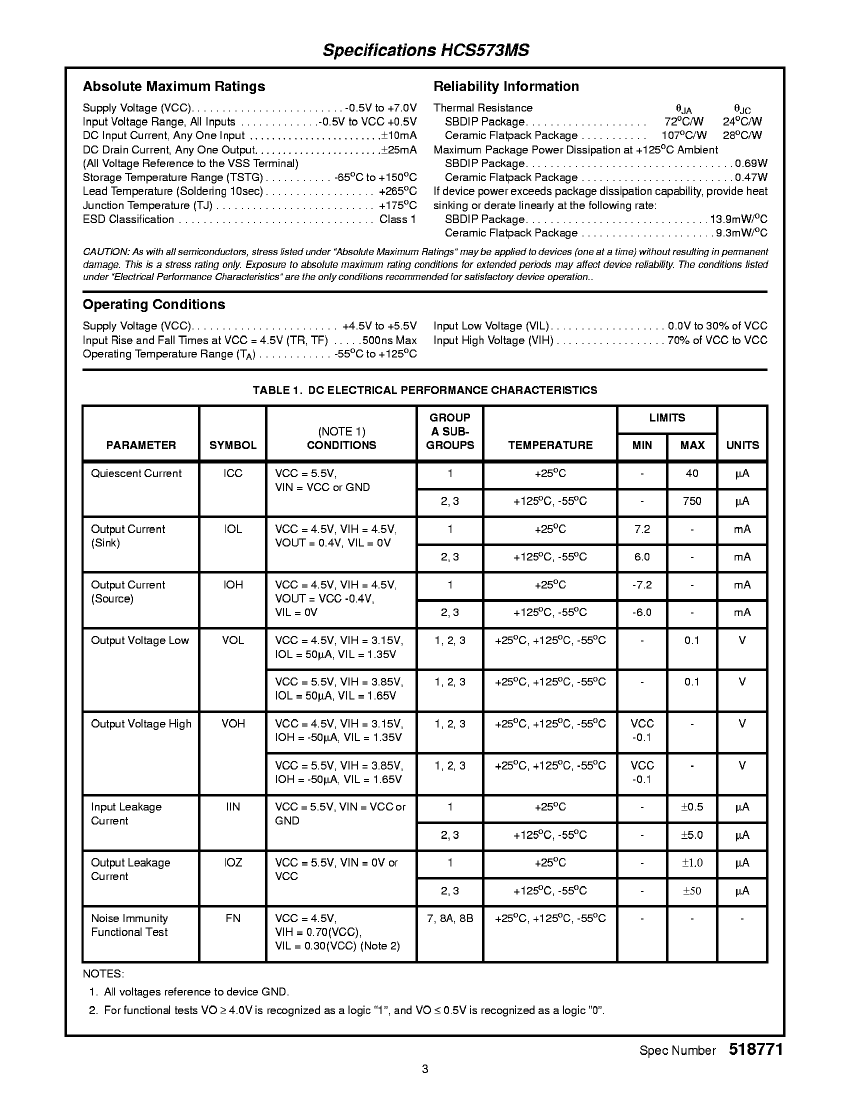

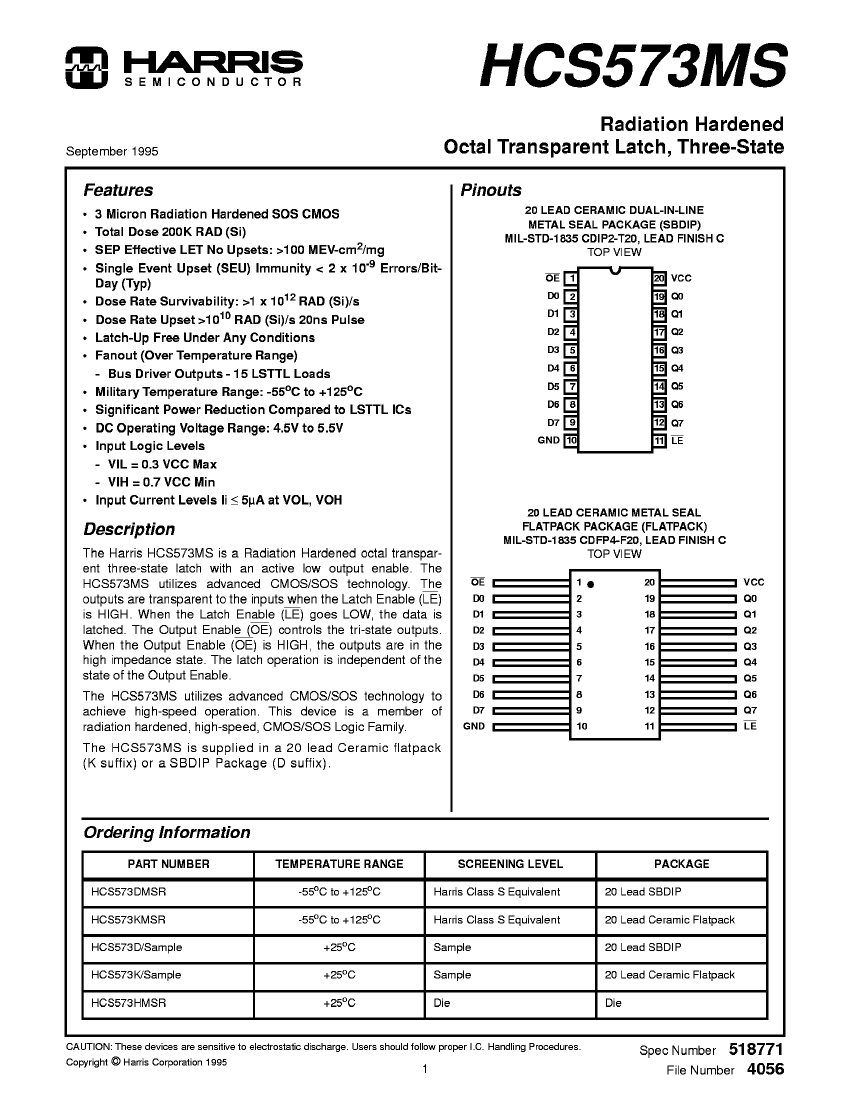

5962R9579401VRC: DescriptionBus Driver, HC/UH Series, 1-Func, 8-Bit, True Output, CMOS, CDIP20; Categorylogic logic; File Size244KB，10 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric Compare View All

5962R9579401VRC Overview

Bus Driver, HC/UH Series, 1-Func, 8-Bit, True Output, CMOS, CDIP20

5962R9579401VRC Parametric

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknow
Other features	BROADSIDE VERSION OF 373
series	HC/UH
JESD-30 code	R-CDIP-T20
JESD-609 code	e4
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS DRIVER
Number of digits	8
Number of functions	1
Number of ports	2
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR
Package form	IN-LINE
propagation delay (tpd)	40 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	GOLD
Terminal form	THROUGH-HOLE
Terminal location	DUAL
total dose	100k Rad(Si) V
Base Number Matches	1

Preview

Download Datasheet

View All

5962R9579401VRC Related Products

	5962R9579401VRC	HCS573K/SAMPLE	5962R9579401VXC	HCS573HMSR	5962R9579401V9A	HCS573D/SAMPLE	HCS573DMSR
Description	Bus Driver, HC/UH Series, 1-Func, 8-Bit, True Output, CMOS, CDIP20	Bus Driver, HC/UH Series, 1-Func, 8-Bit, True Output, CMOS, CDFP20	Bus Driver, HC/UH Series, 1-Func, 8-Bit, True Output, CMOS, CDFP20, CERAMIC, DFP-20	Bus Driver, HC/UH Series, 1-Func, 8-Bit, True Output, CMOS	Bus Driver, HC/UH Series, 1-Func, 8-Bit, True Output, CMOS	Bus Driver, HC/UH Series, 1-Func, 8-Bit, True Output, CMOS, CDIP20	Bus Driver, HC/UH Series, 1-Func, 8-Bit, True Output, CMOS, CDIP20
Reach Compliance Code	unknow	unknown	unknown	unknown	unknown	unknown	unknown
Other features	BROADSIDE VERSION OF 373	BROADSIDE VERSION OF 373	BROADSIDE VERSION OF 373	BROADSIDE VERSION OF 373	BROADSIDE VERSION OF 373	BROADSIDE VERSION OF 373	BROADSIDE VERSION OF 373
series	HC/UH	HC/UH	HC/UH	HC/UH	HC/UH	HC/UH	HC/UH
JESD-30 code	R-CDIP-T20	R-CDFP-F20	R-CDFP-F20	X-XUUC-N20	X-XUUC-N20	R-CDIP-T20	R-CDIP-T20
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER
Number of digits	8	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1	1
Number of ports	2	2	2	2	2	2	2
Number of terminals	20	20	20	20	20	20	20
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	UNSPECIFIED	UNSPECIFIED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	UNSPECIFIED	UNSPECIFIED	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	FLATPACK	FLATPACK	UNCASED CHIP	UNCASED CHIP	IN-LINE	IN-LINE
propagation delay (tpd)	40 ns	31 ns	40 ns	31 ns	31 ns	31 ns	40 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	YES	YES	YES	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Terminal form	THROUGH-HOLE	FLAT	FLAT	NO LEAD	NO LEAD	THROUGH-HOLE	THROUGH-HOLE
Terminal location	DUAL	DUAL	DUAL	UPPER	UPPER	DUAL	DUAL
Base Number Matches	1	1	1	1	1	1	1
JESD-609 code	e4	-	e4	-	e0	-	e0
Maximum operating temperature	125 °C	-	125 °C	125 °C	125 °C	-	125 °C
Minimum operating temperature	-55 °C	-	-55 °C	-55 °C	-55 °C	-	-55 °C
Temperature level	MILITARY	-	MILITARY	MILITARY	MILITARY	-	MILITARY
Terminal surface	GOLD	-	GOLD	-	TIN LEAD	-	Tin/Lead (Sn/Pb)
total dose	100k Rad(Si) V	-	100k Rad(Si) V	-	100k Rad(Si) V	-	200k Rad(Si) V
Maker	-	Harris	Harris	Harris	Harris	Harris	Harris
