DDMMP24H7PJ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> DDMMP24H7PJ

DDMMP24H7PJ: DescriptionD Subminiature Connector, 24 Contact(s), Male, Solder Terminal, Plug,; CategoryThe connector The connector; File Size52KB，1 Pages; ManufacturerITT; Websitehttp://www.ittcannon.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

DDMMP24H7PJ Overview

D Subminiature Connector, 24 Contact(s), Male, Solder Terminal, Plug,

DDMMP24H7PJ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ITT
Reach Compliance Code	compliant
Other features	STANDARD: MIL-C-24308, PANEL MOUNT
Body/casing type	PLUG
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact point gender	MALE
Contact material	COPPER ALLOY
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYESTER
MIL compliance	YES
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	YES
Installation type	BOARD
Options	GENERAL PURPOSE
Shell surface	CHROMATE
Shell material	STEEL
Housing size	5/D
Termination type	SOLDER
Total number of contacts	24
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

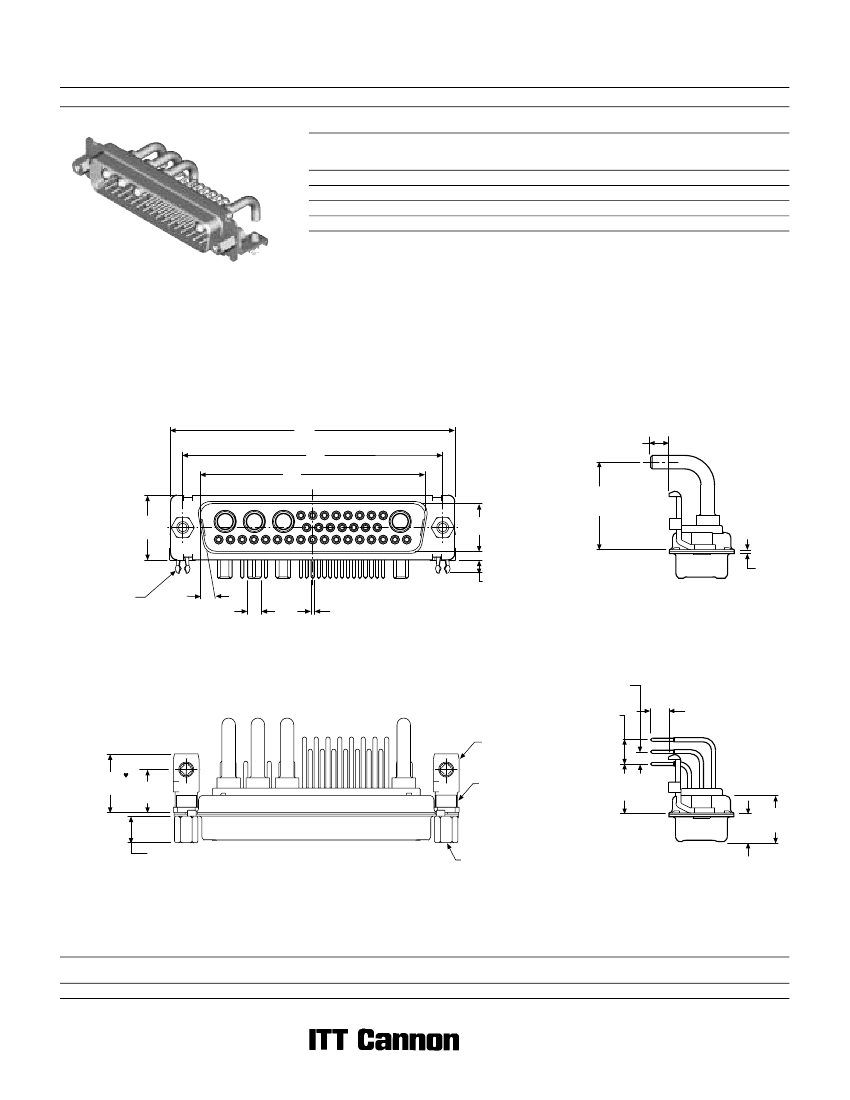

D Subminiature

40 A High Power 90° PCB (Size DD)

Plug

Military/High Reliability

Part Numbers with Metal Bracket and Rivnut #4-40 UNC

Shell Size

Layout

24W7

36W4

43W2

47W1

Part Number

Without Screw Locks

Without Boardlocks

DDMMP24H7PJ

DDMMP36H4PJ

DDMMP43H2PJ

DDMMP47H1PJ

Part Number

Without Screw Locks

With Boardlocks

DDMMC24H7PJ

DDMMC36H4PJ

DDMMC43H2PJ

DDMMC47H1PJ

Part Number

With Screw Locks

Without Boardlocks

DDMMD24H7PJ

DDMMD36H4PJ

DDMMD43H2PJ

DDMMD47H1PJ

Part Number

With Screw Locks

With Boardlocks

DDMMG24H7PJ

DDMMG36H4PJ

DDMMG43H2PJ

DDMMG47H1PJ

Reader’s Resource

For contact cavity arrangements,

see page 222.

For P.C. hole patterns, see page 246.

For panel cutouts, see page 221.

For hardware views (Standard), see page 226.

For alternate bracket configuration (when

connectors are supplied without boardlocks),

see page 226.

Engaging Face

20,57

0,38

(.810

.015)

3,89 (.153)

MIN

BOARDLOCK

10°

Ø 3.18

(.125)

Ø 0,76

(.030)

2,92

(.115)

Screw lock, boardlock, and signal contacts

removed for clarity

2,84

(.112)

5,68

(.224)

BRACKET,

METAL

13,74

(.541)

RIVNUT

#4-40 UNC

11,53

0,25

(.454

.010)

4,33

0,38

(.170

.015)

10,06

(.396)

6,50

0,25

(.256

.010)

SCREW LOCK

#4-40 UNC

Screw lock, boardlock, and high power contact

removed for clarity

Note:

Dimension varies with alternate bracket configuration, see Reader’s Resource page 226.

Dimensions

Shell Size

±0,38

(.015)

66,93 (2.635)

±0,13

(.005)

52,81 (2.079)

±0,13

(.005)

61,11 (2.406)

±0,13

(.005)

11,07 (.436)

±0,38

(.015)

15,37 (.605)

±0,25

(.010)

10,82 (.426)

±0,41

(.016)

6,84 (.269)

±0,25

(.010)

0,99 (.039)

156

Dimensions are shown in mm (inch)

Dimensions subject to change

DDMMP24H7PJ Related Products

	DDMMP24H7PJ	DDMMC24H7PJ	DDMMC36H4PJ	DDMMP36H4PJ
Description	D Subminiature Connector, 24 Contact(s), Male, Solder Terminal, Plug,	D Subminiature Connector, 24 Contact(s), Male, Solder Terminal, Plug,	D Subminiature Connector, 36 Contact(s), Male, Solder Terminal, Plug,	D Subminiature Connector, 36 Contact(s), Male, Solder Terminal, Plug,
Is it Rohs certified?	conform to	incompatible	incompatible	incompatible
Maker	ITT	ITT	ITT	ITT
Reach Compliance Code	compliant	compliant	compliant	compli
Other features	STANDARD: MIL-C-24308, PANEL MOUNT	STANDARD: MIL-C-24308, PANEL MOUNT	STANDARD: MIL-C-24308, PANEL MOUNT	STANDARD: MIL-C-24308, PANEL MOUNT
Body/casing type	PLUG	PLUG	PLUG	PLUG
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO
empty shell	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
insulator material	POLYESTER	POLYESTER	POLYESTER	POLYESTER
MIL compliance	YES	YES	YES	YES
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	YES	YES	YES	YES
Installation type	BOARD	BOARD	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell surface	CHROMATE	CHROMATE	CHROMATE	CHROMATE
Shell material	STEEL	STEEL	STEEL	STEEL
Housing size	5/D	5/D	5/D	5/D
Termination type	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	24	24	36	36
UL Flammability Code	94V-0	94V-0	94V-0	94V-0
Contact to complete cooperation	GOLD OVER NICKEL	-	NOT SPECIFIED	GOLD OVER NICKEL
Contact material	COPPER ALLOY	-	NOT SPECIFIED	COPPER ALLOY
