Datasheet> All Categories > accessories> TA75458S

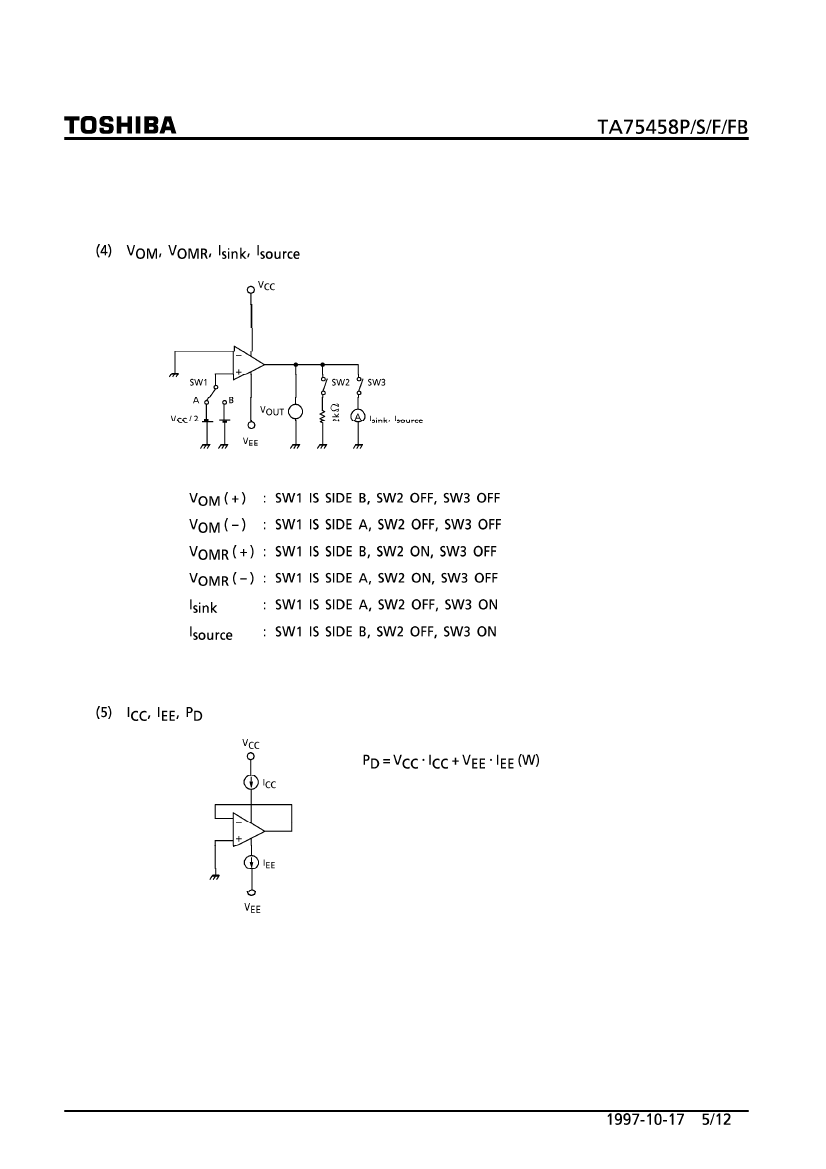

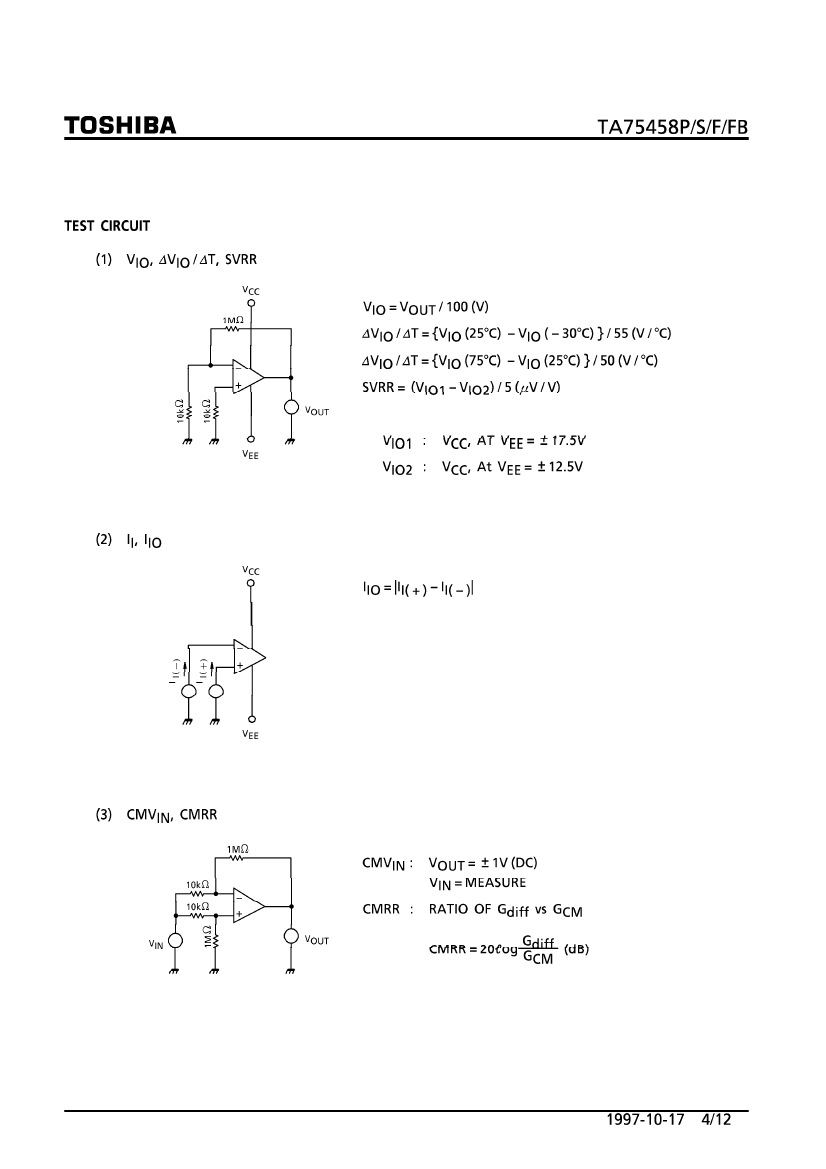

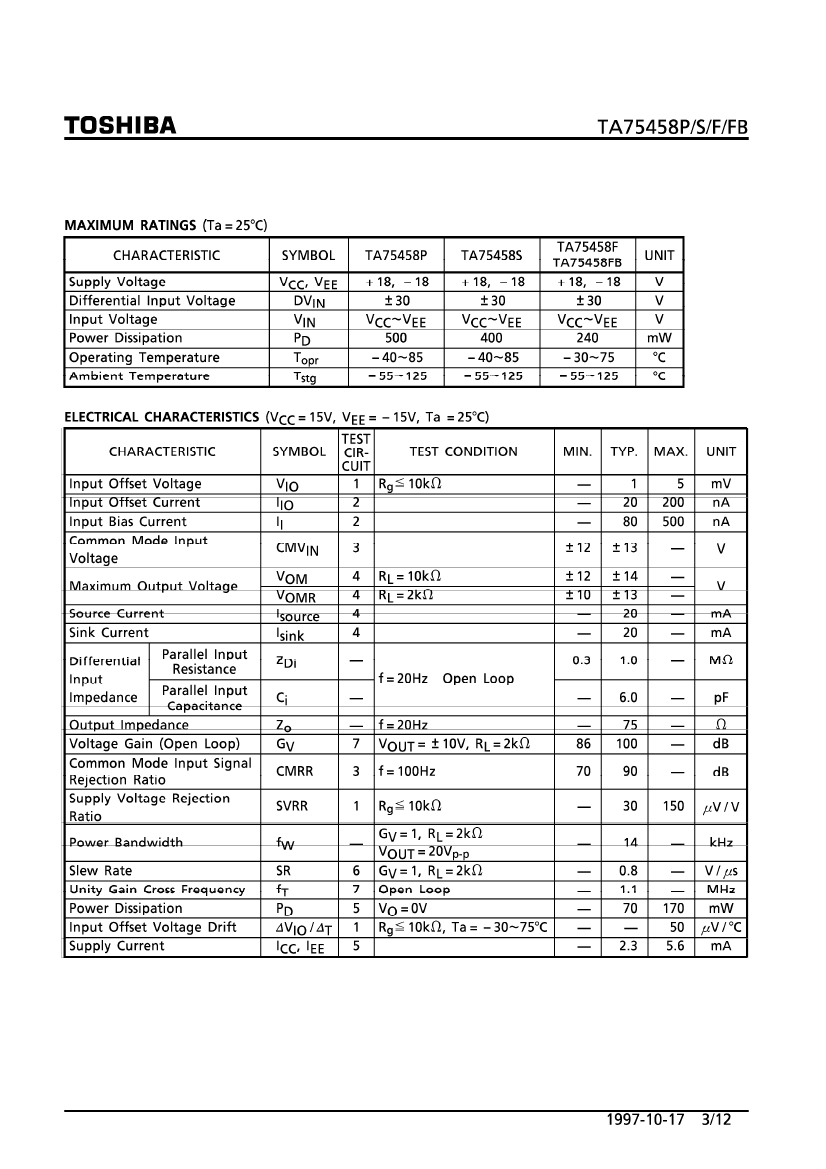

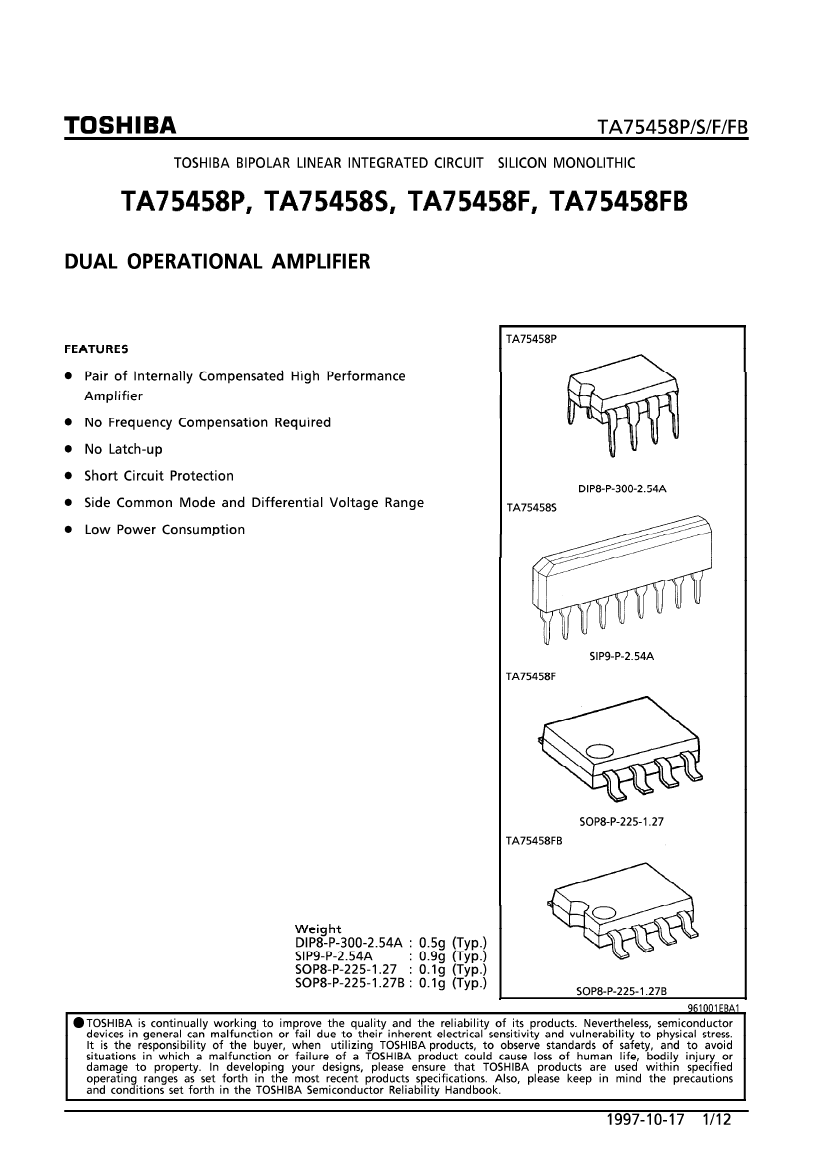

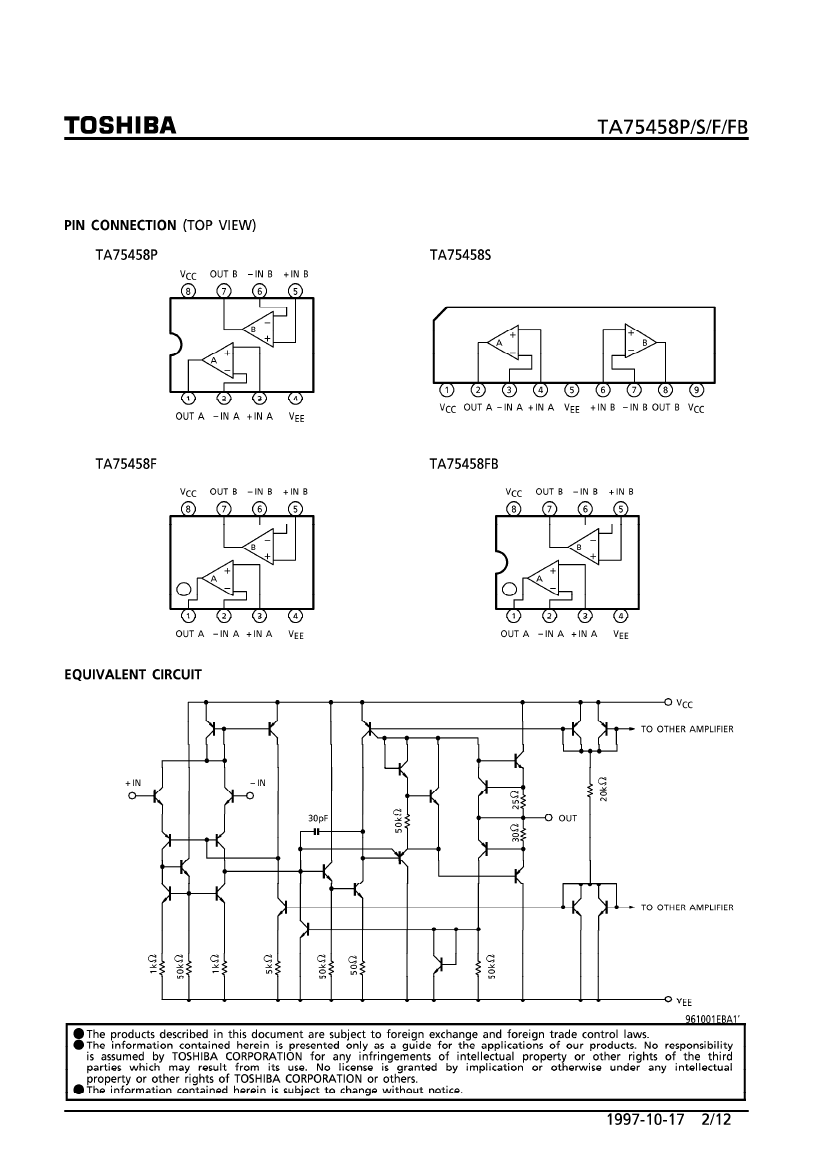

Preview

TA75458S: DescriptionDUAL OP-AMP, 5000 uV OFFSET-MAX, 1.1 MHz BAND WIDTH, PSIP9; Categoryaccessories; File Size378KB，12 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Compare View All

TA75458S Overview

DUAL OP-AMP, 5000 uV OFFSET-MAX, 1.1 MHz BAND WIDTH, PSIP9

Preview

Download Datasheet

View All

TA75458S Related Products

	TA75458S	TA75458F	TA75458FB	TA75458P
Description	DUAL OP-AMP, 5000 uV OFFSET-MAX, 1.1 MHz BAND WIDTH, PSIP9	DUAL OP-AMP, 5000 uV OFFSET-MAX, 1.1 MHz BAND WIDTH, PDSO8	DUAL OP-AMP, 5000 uV OFFSET-MAX, 1.1 MHz BAND WIDTH, PDSO8	DUAL OP-AMP, 5000 uV OFFSET-MAX, 1.1 MHz BAND WIDTH, PDIP8
Maker	-	Toshiba Semiconductor	Toshiba Semiconductor	Toshiba Semiconductor
Parts packaging code	-	SOIC	SOIC	DIP
package instruction	-	0.225 INCH, 1.27 MM PITCH, PLASTIC, SOP-8	SOP, SOP8,.25	DIP, DIP8,.3
Contacts	-	8	8	8
Reach Compliance Code	-	unknow	unknown	unknow
ECCN code	-	EAR99	EAR99	EAR99
Amplifier type	-	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Architecture	-	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK
Maximum average bias current (IIB)	-	0.5 µA	0.5 µA	0.5 µA
Maximum bias current (IIB) at 25C	-	0.5 µA	0.5 µA	0.5 µA
Nominal Common Mode Rejection Ratio	-	90 dB	90 dB	90 dB
frequency compensation	-	YES	YES	YES
Maximum input offset voltage	-	5000 µV	5000 µV	5000 µV
JESD-30 code	-	R-PDSO-G8	R-PDSO-G8	R-PDIP-T8
JESD-609 code	-	e0	e0	e0
length	-	5 mm	5 mm	9.6 mm
low-dissonance	-	NO	NO	NO
Negative supply voltage upper limit	-	-18 V	-18 V	-18 V
Nominal Negative Supply Voltage (Vsup)	-	-15 V	-15 V	-15 V
Number of functions	-	2	2	2
Number of terminals	-	8	8	8
Maximum operating temperature	-	75 °C	75 °C	85 °C
Minimum operating temperature	-	-30 °C	-30 °C	-40 °C
Package body material	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	-	SOP	SOP	DIP
Encapsulate equivalent code	-	SOP8,.25	SOP8,.25	DIP8,.3
Package shape	-	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	-	SMALL OUTLINE	SMALL OUTLINE	IN-LINE
power supply	-	+-15 V	+-15 V	+-15 V
Certification status	-	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	-	1.9 mm	1.85 mm	4.25 mm
Nominal slew rate	-	0.8 V/us	0.8 V/us	0.8 V/us
Maximum slew rate	-	5.6 mA	5.6 mA	5.6 mA
Supply voltage upper limit	-	18 V	18 V	18 V
Nominal supply voltage (Vsup)	-	15 V	15 V	15 V
surface mount	-	YES	YES	NO
technology	-	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	-	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	INDUSTRIAL
Terminal surface	-	TIN LEAD	Tin/Lead (Sn/Pb)	TIN LEAD
Terminal form	-	GULL WING	GULL WING	THROUGH-HOLE
Terminal pitch	-	1.27 mm	1.27 mm	2.54 mm
Terminal location	-	DUAL	DUAL	DUAL
Nominal Uniform Gain Bandwidth	-	1100 kHz	1100 kHz	1100 kHz
Minimum voltage gain	-	20000	20000	20000
width	-	4.4 mm	4.4 mm	7.62 mm
