PN3643D27Z datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> PN3643D27Z

PN3643D27Z: Description500 mA, 30 V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-92; CategoryDiscrete semiconductor The transistor; File Size43KB，2 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

PN3643D27Z Overview

500 mA, 30 V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-92

PN3643D27Z Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Fairchild
Reach Compliance Code	compliant
Maximum collector current (IC)	0.5 A
Collector-emitter maximum voltage	30 V
Configuration	SINGLE
Minimum DC current gain (hFE)	20
JEDEC-95 code	TO-92
JESD-30 code	O-PBCY-T3
JESD-609 code	e3
Humidity sensitivity level	NOT APPLICABLE
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	CYLINDRICAL
Peak Reflow Temperature (Celsius)	NOT APPLICABLE
Polarity/channel type	NPN
Maximum power dissipation(Abs)	0.6 W
Certification status	Not Qualified
surface mount	NO
Terminal surface	MATTE TIN
Terminal form	THROUGH-HOLE
Terminal location	BOTTOM
Maximum time at peak reflow temperature	NOT APPLICABLE
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	250 MHz
Base Number Matches	1

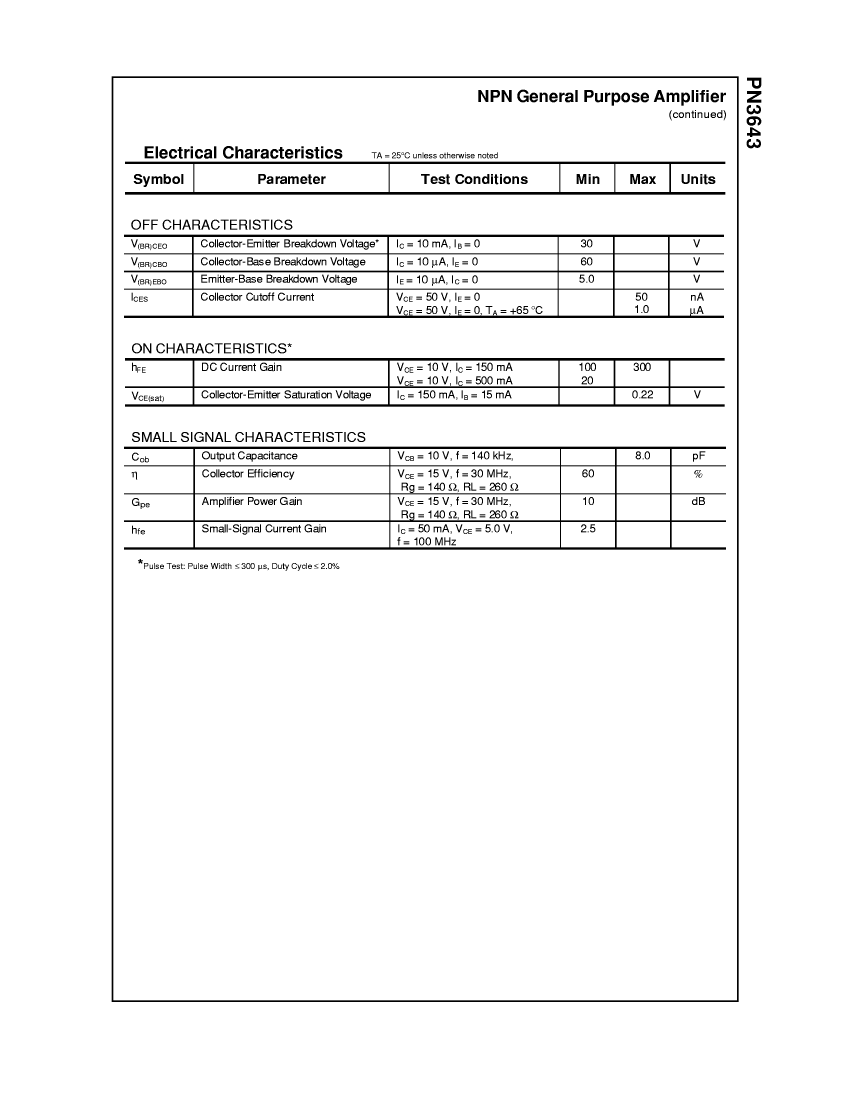

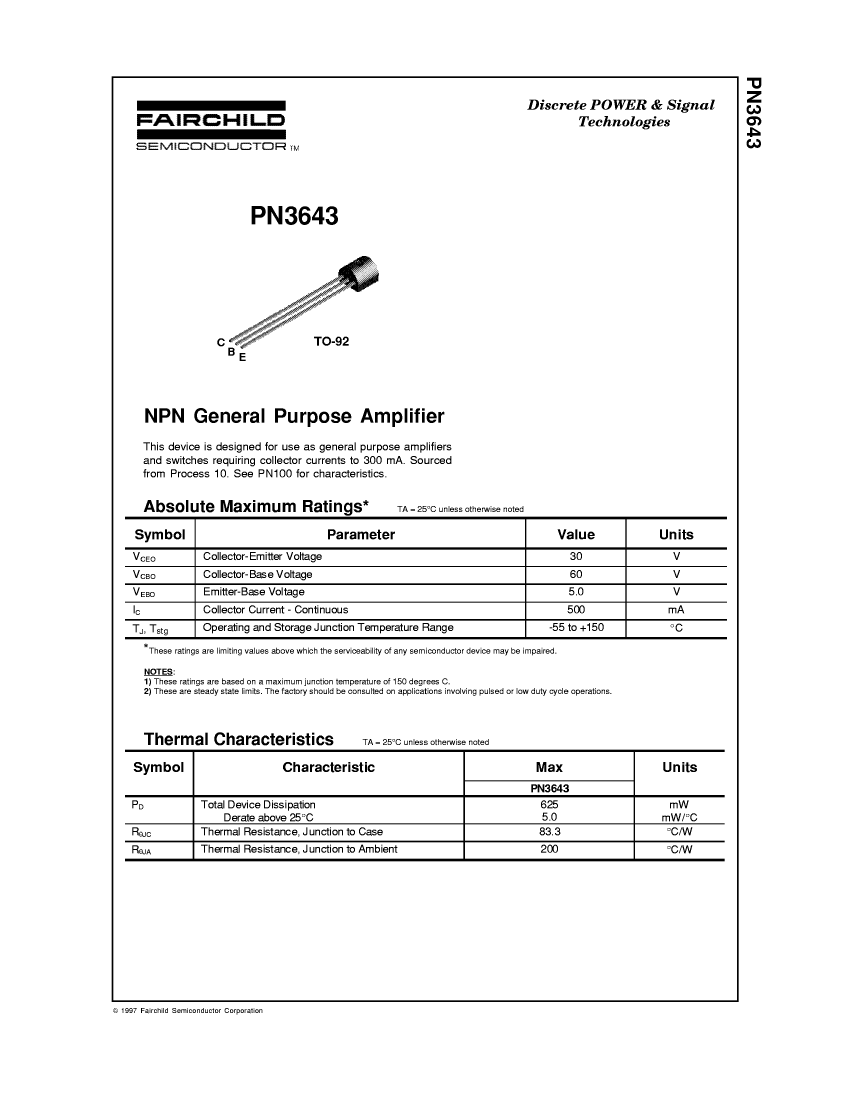

Preview

Download Datasheet

View All

PN3643D27Z Related Products

	PN3643D27Z	PN3643J18Z	PN3643D75Z	PN3643D26Z	PN3643D74Z	PN3643J05Z
Description	500 mA, 30 V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-92	Small Signal Bipolar Transistor, 0.5A I(C), 30V V(BR)CEO, 1-Element, NPN, Silicon, TO-92, 3 PIN	500 mA, 30 V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-92	500 mA, 30 V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-92	500 mA, 30 V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-92	Small Signal Bipolar Transistor, 0.5A I(C), 30V V(BR)CEO, 1-Element, NPN, Silicon, TO-92, 3 PIN
Maker	Fairchild	Fairchild	Fairchild	Fairchild	Fairchild	Fairchild
Reach Compliance Code	compliant	unknown	compliant	compliant	compliant	unknown
Maximum collector current (IC)	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A
Collector-emitter maximum voltage	30 V	30 V	30 V	30 V	30 V	30 V
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Minimum DC current gain (hFE)	20	20	20	20	20	20
JESD-30 code	O-PBCY-T3	O-PBCY-T3	O-PBCY-T3	O-PBCY-T3	O-PBCY-T3	O-PBCY-T3
Number of components	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL
Polarity/channel type	NPN	NPN	NPN	NPN	NPN	NPN
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM
transistor applications	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Is it Rohs certified?	conform to	-	conform to	conform to	conform to	incompatible
JEDEC-95 code	TO-92	-	TO-92	TO-92	TO-92	-
JESD-609 code	e3	-	e3	e3	e3	e0
Humidity sensitivity level	NOT APPLICABLE	-	NOT APPLICABLE	NOT APPLICABLE	NOT APPLICABLE	-
Peak Reflow Temperature (Celsius)	NOT APPLICABLE	-	NOT APPLICABLE	NOT APPLICABLE	NOT APPLICABLE	-
Maximum power dissipation(Abs)	0.6 W	-	-	0.6 W	0.6 W	0.6 W
Terminal surface	MATTE TIN	-	MATTE TIN	MATTE TIN	MATTE TIN	Tin/Lead (Sn/Pb)
Maximum time at peak reflow temperature	NOT APPLICABLE	-	NOT APPLICABLE	NOT APPLICABLE	NOT APPLICABLE	-
Nominal transition frequency (fT)	250 MHz	-	-	250 MHz	250 MHz	250 MHz
Base Number Matches	1	1	1	1	-	-
package instruction	-	CYLINDRICAL, O-PBCY-T3	CYLINDRICAL, O-PBCY-T3	CYLINDRICAL, O-PBCY-T3	CYLINDRICAL, O-PBCY-T3	CYLINDRICAL, O-PBCY-T3
