D38999/26WB-99PN datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> D38999/26WB-99PN

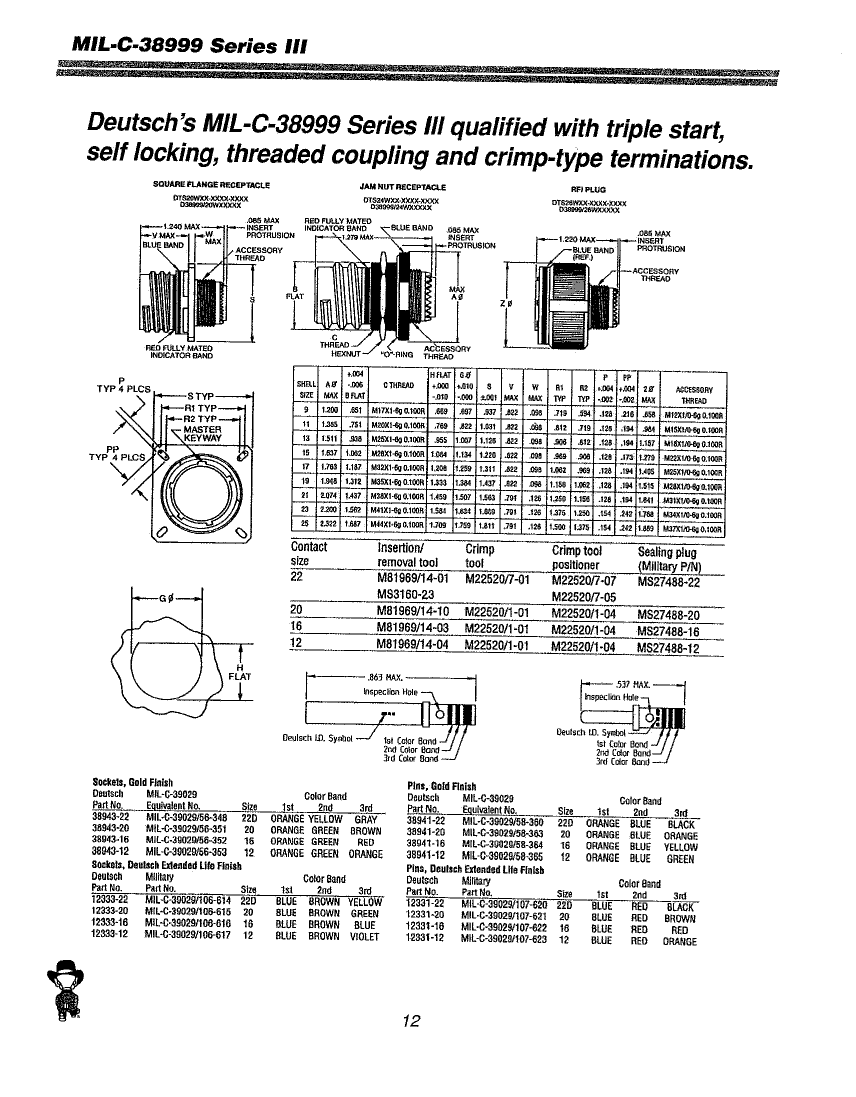

Preview

D38999/26WB-99PN: Description7 CONTACT(S), ALUMINUM ALLOY, MALE, MIL SERIES CONNECTOR, CRIMP, PLUG; CategoryThe connector The connector; File Size65KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

D38999/26WB-99PN Overview

7 CONTACT(S), ALUMINUM ALLOY, MALE, MIL SERIES CONNECTOR, CRIMP, PLUG

D38999/26WB-99PN Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	TE Connectivity
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	STANDARD: MIL-DTL-38999, EMI SHIELDED
Back shell type	SOLID
Body/casing type	PLUG
Connector type	MIL SERIES CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	NOT SPECIFIED
Number of contacts	7
Contact size	20
Coupling type	THREADED
DIN compliance	NO
empty shell	NO
Environmental characteristics	CORROSION/ENVIRONMENT/FLUID RESISTANT
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	YES
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE
Maximum operating temperature	175 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
polarization	N
Shell surface	CADMIUM PLATED
Shell material	ALUMINUM ALLOY
Housing size	B
Termination type	SOLDER
Total number of contacts	7
Unique insertion number	B99
Base Number Matches	1

Preview

Download Datasheet

View All

D38999/26WB-99PN Related Products

	D38999/26WB-99PN	D38999/24WB-99SN	D38999/20FD-18PN	D38999/24WD-18PN	D38999/20WB-99PN
Description	7 CONTACT(S), ALUMINUM ALLOY, MALE, MIL SERIES CONNECTOR, CRIMP, PLUG	7 CONTACT(S), ALUMINUM ALLOY, FEMALE, MIL SERIES CONNECTOR, CRIMP, RECEPTACLE	18 CONTACT(S), ALUMINUM ALLOY, MALE, MIL SERIES CONNECTOR, CRIMP, RECEPTACLE	CONNECTOR, 18 CONTACT(S), ALUMINUM ALLOY, MALE, MIL SERIES CONNECTOR, CRIMP, RECEPTACLE	7 CONTACT(S), ALUMINUM ALLOY, MALE, MIL SERIES CONNECTOR, CRIMP, RECEPTACLE
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant
Other features	STANDARD: MIL-DTL-38999, EMI SHIELDED	STANDARD: MIL-DTL-38999, EMI SHIELDED	STANDARD: MIL-DTL-38999, EMI SHIELDED	STANDARD: MIL-DTL-38999, EMI SHIELDED	STANDARD: MIL-DTL-38999, EMI SHIELDED
Back shell type	SOLID	SOLID	SOLID	SOLID	SOLID
Body/casing type	PLUG	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	MIL SERIES CONNECTOR	MIL SERIES CONNECTOR	MIL SERIES CONNECTOR	MIL SERIES CONNECTOR	MIL SERIES CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	MALE	FEMALE	MALE	MALE	MALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Coupling type	THREADED	THREADED	THREADED	THREADED	THREADED
DIN compliance	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO
Environmental characteristics	CORROSION/ENVIRONMENT/FLUID RESISTANT	CORROSION/ENVIRONMENT/FLUID RESISTANT	CORROSION/ENVIRONMENT/FLUID RESISTANT	CORROSION/ENVIRONMENT/FLUID RESISTANT	CORROSION/ENVIRONMENT/FLUID RESISTANT
Filter function	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO
JESD-609 code	e4	e4	e4	e4	e4
MIL compliance	YES	YES	YES	YES	YES
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO
Installation type	CABLE	CABLE AND PANEL	CABLE AND PANEL	CABLE AND PANEL	CABLE AND PANEL
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell surface	CADMIUM PLATED	CADMIUM PLATED	NICKEL PLATED	CADMIUM PLATED	CADMIUM PLATED
Shell material	ALUMINUM ALLOY	ALUMINUM ALLOY	ALUMINUM ALLOY	ALUMINUM ALLOY	ALUMINUM ALLOY
Housing size	B	B	D	D	B
Termination type	SOLDER	CRIMP	CRIMP	CRIMP	CRIMP
Total number of contacts	7	7	18	18	7
Base Number Matches	1	1	1	1	1
Maker	TE Connectivity	-	TE Connectivity	TE Connectivity	TE Connectivity
ECCN code	EAR99	EAR99	EAR99	-	-
Is Samacsys	-	-	N	N	N
