21-3690 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 21-3690

21-3690: DescriptionCircular Connector, Aluminum Alloy, Female; Male, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size29KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

21-3690 Overview

Circular Connector, Aluminum Alloy, Female; Male, Solder Terminal, Receptacle

21-3690 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	unknown
Other features	EMI SHIELDED, MAX CONTACTS (SERIES)=79
Back shell type	SOLID
Body/casing type	RECEPTACLE
Connector type	CIRCULAR CONNECTOR
Contact point gender	FEMALE; MALE
Coupling type	BAYONET
DIN compliance	NO
empty shell	NO
Environmental characteristics	ENVIRONMENT RESISTANT
Filter function	YES
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	FLJT
Mixed contacts	NO
Installation type	PANEL
Options	GENERAL PURPOSE
Shell surface	CADMIUM OVER NICKEL
Shell material	ALUMINUM
Housing size	9; 11; 13; 15; 17; 19; 21; 23
Termination type	SOLDER

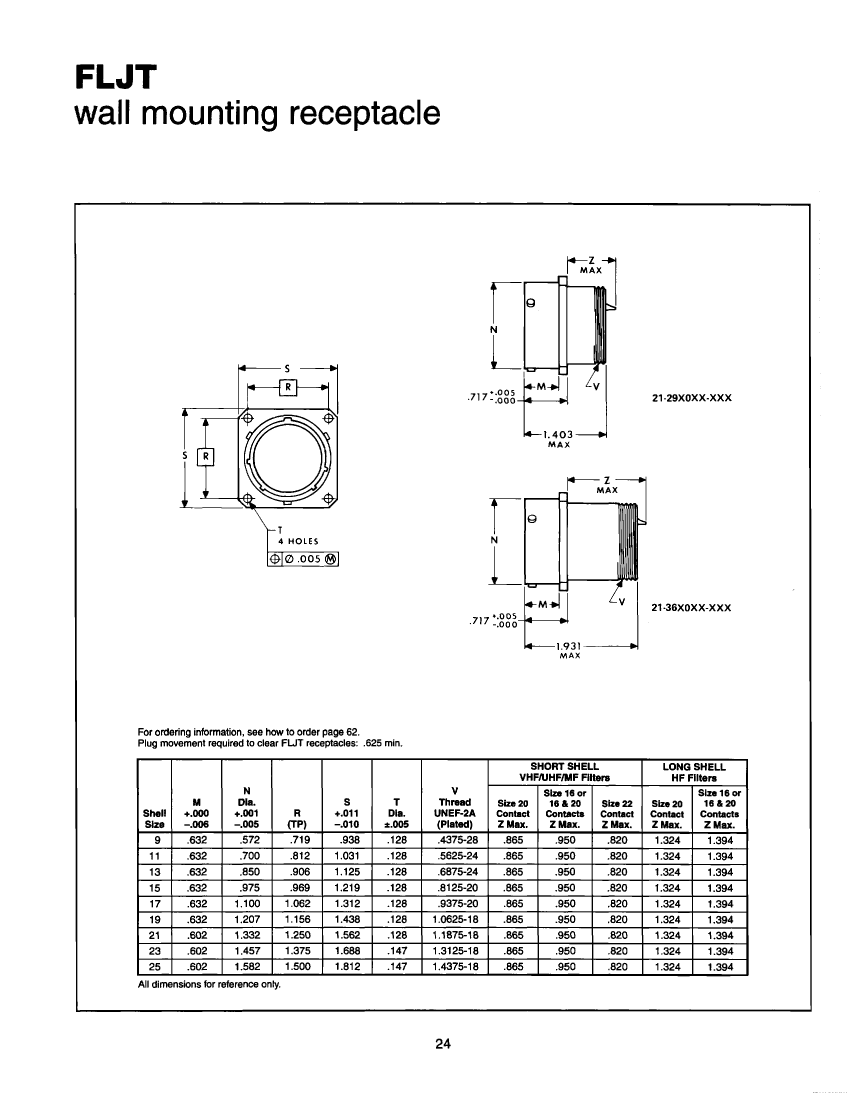

Preview

Download Datasheet

View All

21-3690 Related Products

	21-3690	21-3640	21-2970	21-2950	21-2920	21-2940	21-2980	21-2990	21-3650	21-3680
Description	Circular Connector, Aluminum Alloy, Female; Male, Solder Terminal, Receptacle	Circular Connector, Aluminum Alloy, Female; Male, Solder Terminal, Receptacle	Circular Connector, Aluminum Alloy, Female; Male, Solder Terminal, Receptacle	Circular Connector, Aluminum Alloy, Female; Male, Solder Terminal, Receptacle	Circular Connector, Aluminum Alloy, Female; Male, Solder Terminal, Receptacle	Circular Connector, Aluminum Alloy, Female; Male, Solder Terminal, Receptacle	Circular Connector, Aluminum Alloy, Female; Male, Solder Terminal, Receptacle	Circular Connector, Aluminum Alloy, Female; Male, Solder Terminal, Receptacle	Circular Connector, Aluminum Alloy, Female; Male, Solder Terminal, Receptacle	Circular Connector, Aluminum Alloy, Female; Male, Solder Terminal, Receptacle
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	EMI SHIELDED, MAX CONTACTS (SERIES)=79	EMI SHIELDED, MAX CONTACTS (SERIES)=79	EMI SHIELDED, MAX CONTACTS (SERIES)=61	EMI SHIELDED, MAX CONTACTS (SERIES)=61	EMI SHIELDED, MAX CONTACTS (SERIES)=61	EMI SHIELDED, MAX CONTACTS (SERIES)=61	EMI SHIELDED, MAX CONTACTS (SERIES)=61	EMI SHIELDED, MAX CONTACTS (SERIES)=61	EMI SHIELDED, MAX CONTACTS (SERIES)=79	EMI SHIELDED, MAX CONTACTS (SERIES)=79
Back shell type	SOLID	SOLID	SOLID	SOLID	SOLID	SOLID	SOLID	SOLID	SOLID	SOLID
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	CIRCULAR CONNECTOR	CIRCULAR CONNECTOR	CIRCULAR CONNECTOR	CIRCULAR CONNECTOR	CIRCULAR CONNECTOR	CIRCULAR CONNECTOR	CIRCULAR CONNECTOR	CIRCULAR CONNECTOR	CIRCULAR CONNECTOR	CIRCULAR CONNECTOR
Contact point gender	FEMALE; MALE	FEMALE; MALE	FEMALE; MALE	FEMALE; MALE	FEMALE; MALE	FEMALE; MALE	FEMALE; MALE	FEMALE; MALE	FEMALE; MALE	FEMALE; MALE
Coupling type	BAYONET	BAYONET	BAYONET	BAYONET	BAYONET	BAYONET	BAYONET	BAYONET	BAYONET	BAYONET
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Environmental characteristics	ENVIRONMENT RESISTANT	ENVIRONMENT RESISTANT	ENVIRONMENT RESISTANT	ENVIRONMENT RESISTANT	ENVIRONMENT RESISTANT	ENVIRONMENT RESISTANT	ENVIRONMENT RESISTANT	ENVIRONMENT RESISTANT	ENVIRONMENT RESISTANT	ENVIRONMENT RESISTANT
Filter function	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation type	PANEL	PANEL	PANEL	PANEL	PANEL	PANEL	PANEL	PANEL	PANEL	PANEL
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell surface	CADMIUM OVER NICKEL	ELECTROLESS NICKEL	CADMIUM OVER NICKEL	GOLD OVER NICKEL	STAINLESS STEEL	ELECTROLESS NICKEL	BRIGHT NICKEL	CADMIUM OVER NICKEL	GOLD OVER NICKEL	BRIGHT NICKEL
Shell material	ALUMINUM	ALUMINUM	ALUMINUM	ALUMINUM	ALUMINUM	ALUMINUM	ALUMINUM	ALUMINUM	ALUMINUM	ALUMINUM
Housing size	9; 11; 13; 15; 17; 19; 21; 23	9; 11; 13; 15; 17; 19; 21; 23	9; 11; 13; 15; 17; 19; 21; 23; 25	9; 11; 13; 15; 17; 19; 21; 23; 25	9; 11; 13; 15; 17; 19; 21; 23; 25	9; 11; 13; 15; 17; 19; 21; 23; 25	9; 11; 13; 15; 17; 19; 21; 23; 25	9; 11; 13; 15; 17; 19; 21; 23; 25	9; 11; 13; 15; 17; 19; 21; 23	9; 11; 13; 15; 17; 19; 21; 23
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Manufacturer's serial number	FLJT	FLJT	FLJT	FLJT	-	FLJT	-	FLJT	FLJT	FLJT
Objectid	-	-	-	-	1931486783	1931486787	1931486799	1931486803	1931486932	1931486938
