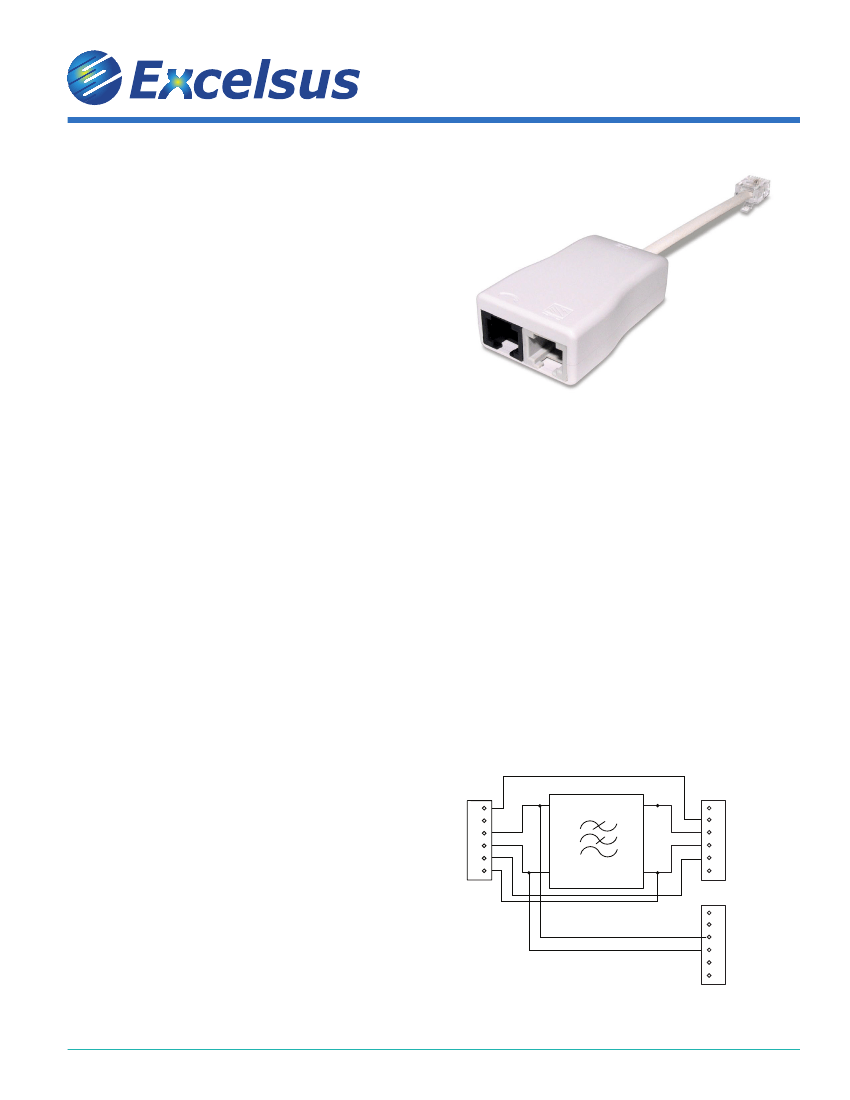

Z-BLOCKER® Z-330P2J2
xDSL over POTS CPE In-Line Filter
Description
The Z-330P2J2 is a small, in-line, ANSI T1.421-
compliant customer premises equipment (CPE)
filter designed to expedite the service delivery and
improve the performance of digital subscriber line
(DSL) and home phoneline network (HPN) ser-
vices over plain old telephone service (POTS). The
Z-330P2J2 filters all telephones, facsimile (fax)
machines, answering machines, and other telephone
equipment. Its third-order filter design electronically
isolates the high-speed DSL and HPN data streams
from the voice-band POTS to provide premium
voice quality and optimal DSL and HPN data rates.
Z-330P2J2 xDSL over POTS CPE In-Line Filter
Features
● Isolates telephone equipment impedances from
the xDSL and HPN systems
● Blocks xDSL and HPN signals from voice-band
equipment up to 10 Megahertz
● Provides a DSL convenience jack for connecting
a DSL modem or HPN device
● Meets ANSI T1.421 (2001) North American DSL
filter standard
● Compatible with all major xDSL standards
including ADSL Full Rate (ITU-T G.992.1),
ADSL G.Lite (ITU-T G.992.2), ADSL2 (ITU-
T G.992.3 and .4), ADSL2+ (ITU-T G.992.5 in
analog mode), ADSL2++, VDSL (ITU-T
G.993.1), VDSL2; also V.90 and Metallic Loop
Testing compatible
● Compliant with UL / CSA 60950, FCC CFR 47
Part 68
Applications
The DSL user installs the Z-330P2J2 in-line filter
into each telephone line jack in the subscribers’
premises that contains voice-band equipment
devices, including corded/cordless telephones,
answering machines, fax machines, 56Kb/s and
lower rate modems, automatic dialers, recorder
connectors and satellite television set-top boxes.
The Z-330P2J2 in-line filter is one of many fil-
ters and splitters manufactured by Excelsus for
subscriber-installed digital services within homes,
offices, and hotels. Excelsus is the number one
selling brand of DSL filters worldwide.
RJ11-JACK
6
5
4
LINE 1
3
2
1
RJ11-JACK
6
5
4
PHONE
3
2
1
RJ11-JACK
6
5
4
DSL
3
2
1
Z-330P2J2 block schematic
www.pulseeng.com
EX132.A (10/09)
Z-BLOCKER® Z-330P2J2
xDSL over POTS CPE In-Line Filter
Z-BLOCKER Z-330P2J2 Filter Specifications
DC Resistance
Network port at 20mA
<25 Ω
>10 MΩ
Tip and Ring to Ground at
≤
100 Vdc
>30 kΩ
Tip and Ring to Ground at
≥
100 Vdc and
≤
200 Vdc
Operating Current
5 to 90 mA
Operating Voltages
Network tip to ring
0 to –80 Vdc
Network tip to ring level with ringing signal of 17 to 23Hz and 40 to 106 Vrms
-20 to –80 Vdc
On-hook Voice Band Insertion Loss
Single filter
-0.5dB to 1.5dB
With 5 filters
-1.0dB to 6.5dB
On-hook Voice Band Insertion Loss Distortion
Single filter, 200 to 1000 Hz
-1.5dB to 1.5dB
With 5 filters, 200 to 1000 Hz
-5.5dB to 2.0dB
Single filter, 1 to 2.8 kHz
-1.5dB to 1.5dB
With 5 filters, 1 to 2.8 kHz
-2.0dB to 2.0dB
On- or Off-hook Envelope Delay 300 Hz - 2800 Hz
<250µs
Off-hook Voice Band Insertion Loss
Single filter
-0.5dB to 0.5dB
With 5 filters
-1.0dB to 1.0dB
Off-hook Voice Band Insertion Loss Distortion
Single filter, 200 to 3400 Hz
-1.0dB to 0.5dB
With 5 filters, 200 to 3400 Hz
-1.5dB to 2.5dB
Single filter, 3.4 to 4 kHz
-1.5dB to 1.0dB
With 5 filters, 3.4 to 4 kHz
-2.0dB to 3.25dB
Off-hook impedance distortion
Phone Port
SRL Low
>13 dB
“
ERL
>9 dB
“
SRL High
>3 dB
Network Port
SRL Low
>12 dB
“
ERL
>10 dB
“
SRL High
>5 dB
Inter-Modulation Distortion Second and Third order products
>60 dB
On-hook High Band Stopband Attenuation
From 25 kHz to 12 MHz, between 20 and 90 mA
>12 dB
Off-hook High Band Stopband Attenuation
From 25 to 50 kHz, between 20 and 90 mA
>21 dB
From 25 to 50 kHz, between 7 and 20 mA
>13 dB
From 50 k to 12 M Hz, between 20 and 90 mA
>25 dB
From 50 k to 12 M Hz, between 7 and 20 mA
>22 dB
Bridging Loss
Single filter, 25 kHz to 1.2 MHz
<0.5 dB
With 5 filters, 25 kHz to 1.2 MHz
<1.25 dB
Single filter, 25 kHz to 12 MHz
<3.0 dB
With 5 filters, 25 kHz to 12 MHz
<4.0 dB
Connectors: One RJ11 jack each for ADSL Modem and Phone connection with a line 2 pass through, and one RJ11 plug on a 4” cord for Line connection.
Dimensions: Length = 2.04in (51.9mm), Width = 1.21in (30.8mm), Height = 0.710in (18.0mm)
Compliant and listed with UL / CSA 60950, FCC CFR 47 Part 68
12220 World Trade Drive, San Diego, CA 92128 USA
Direct: 858 674 8100, Fax: 858-385-8003
www.excelsus-tech.com
Specifications subject to change without notice. Excelsus is a registered trade mark of Pulse Engineering, Inc.
© 2009 Pulse Engineering, Inc.
EX132.A (10/09)
