NOTES:
1. PACKAGE INDIVIDUALLY IN HEAT SEALED BAG WITH HARDWARE ASSEMBLED ON TO THE
LABEL BAG WITH AMPHENOL 245106-02-XX.XX AND DATE CODE.
2. CABLE ASSEMBLY TO BE 100% TESTED FOR HI-POT,CONTINUITY,SHORTS AND OPEN.
BULKHEAD.
245106-02-XX.XX
DRAWING NO.
THIRD ANGLE PROJ.
REVISIONS
REV
A
B
009-881-159 WAS 009-881-005
RELEASE TO MFG.
DESCRIPTION
06-Jun-11
16-May-13
DATE
ECO
2473
--
APPR
HR
CL
LENGTH XX.XX (SEE TABLE)
1
3
4
TYP(2)
2
LOCK WASHER
HEX NUT
0.75" MAX
[19.05] MM
TYP(2)
ORIENT RIGHT ANGLE MMCX CRIMP PLUG WITH
RESPECT TO SMA BULKHEAD JACK 'D FLAT'
WITHIN
# 10 $
245106-02-06.00
245106-02-12.00
245106-02-18.00
245106-02-24.00
245106-02-36.00
CONNEX NUMBER
LENGTH TABLE
LENGTH (IN.)
06.00 #
0.25
12.00 #
0.25
18.00 #
0.25
24.00 #
0.50
36.00 #
0.50
DESIGN REQUIREMENTS:
FREQUENCY____________ TO ________________ GHz
VSWR ____________ : 1 MAX
INS. LOSS ____________ dB MAX
* ADDITIONAL LENGTHS CAN BE PROVIDED
BY CHANGING XX.XX TO DESIRED LENGTH IN INCHES
CONTACT CONNEX MARKETING FOR QUOTE
X
CONTINUITY
X
HI-POT : 500 VRMS
OTHER
MATERIAL
DRAWN
DATE
DATE
DATE
009-954-341
009-881-159
262103
132119
A/R
A/R
1
1
4
2
1
3
HEAT SHRINK TUBE
MMCX RIGHT ANGLE CRIMP PLUG
SMA BULKHEAD CRIMP JACK
DESCRIPTION
FINISH
RG-174 CABLE
PART NUMBER
HARI R
HARI R
06-Jun-11
06-Jun-11
TITLE
QTY
ITEM
UNLESS OTHERWISE SPECIFIED, DIMENSIO NS ARE IN INCHES AND TOLERANCES ARE:
2 PLACE DECIMAL
3 PLACE DECIMAL
ANGLES
#.015
(0,381 mm)
#.005 (0,127 mm)
# 1$
NOTICE - These drawings, specificati
property of Amphenol Corp. (2) must
confidential and not to be disclosed
are given by Amphenol Corp. The fur
other data by Amphenol Corp., or to
not to be regarded by implication or
rights or permitting such holder or
product, process or design, patented
or disclosed by said drawings, speci
ons, or other data (1) are, and rema
be returned upon request; and (3) ar
to any person other than those to w
nishing of these drawings, specifica
any other person to anyone for any p
otherwise in any manner licensing,
any other person to manufacture, use
or otherwise, that may in any way b
fications, or other data.
in the
e
hom they
tions, or
urpose is
granting
or sell any
e related to
ENGINEER
REFERENCE
APPROVED
CAD FILE
TASK-670

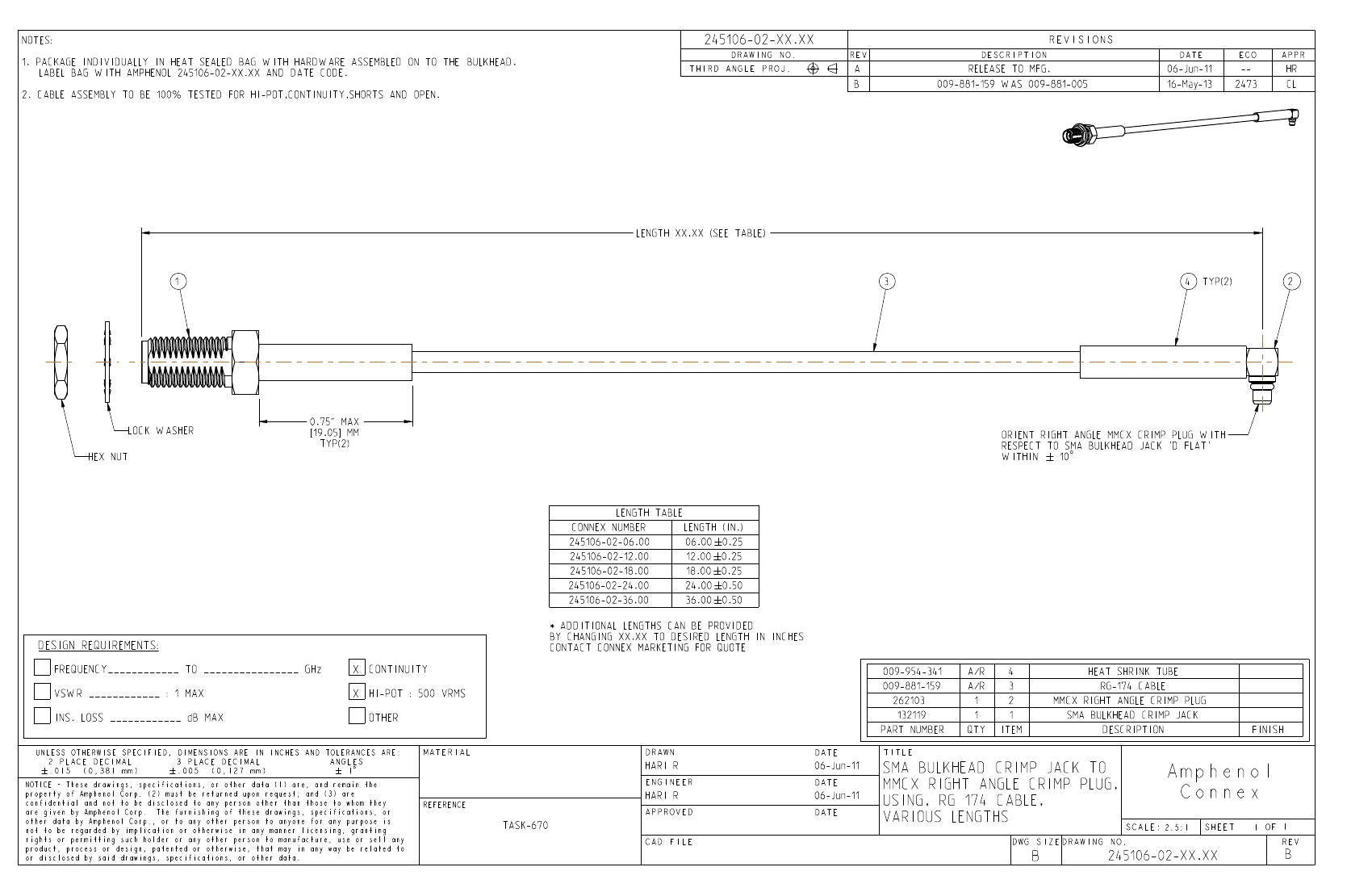

SMA BULKHEAD CRIMP JACK TO
MMCX RIGHT ANGLE CRIMP PLUG,
USING, RG 174 CABLE,
VARIOUS LENGTHS
B
Amphenol
Connex
SCALE: 2.5:1
SHEET
1 OF 1
REV
DWG SIZE DRAWING NO.
245106-02-XX.XX
B
