P8-A521212 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> P8-A521212

P8-A521212: DescriptionSpecial Switch, Momentary, 10A, 28VDC, Screw Terminal, Panel Mount; CategoryMechanical and electronic products switch; File Size436KB，2 Pages; ManufacturerOTTO; Websitehttp://www.ottoexcellence.com; Environmental Compliance

Download Datasheet Parametric View All

P8-A521212 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	P8-A521212	-	-	View	Buy Now

P8-A521212 Overview

Special Switch, Momentary, 10A, 28VDC, Screw Terminal, Panel Mount

P8-A521212 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	7267580585
Reach Compliance Code	unknown
ECCN code	EAR99
Actuator length	0.25 inch
Actuator type	PUSHBUTTON
Casing type	3/4-20
Contact (AC) maximum rated load I	5A@115VAC
Contact (AC) maximum rated R load	10A@115VAC
Maximum contact current (AC)	10 A
Maximum contact current (DC)	10 A
Contact (DC) maximum rated R load	10A@28VDC
Maximum contact voltage (AC)	115 V
Maximum contact voltage (DC)	28 V
Dielectric withstand voltage	1050VRMS V
Electrical life	100000 Cycle(s)
JESD-609 code	e4
Installation features	PANEL MOUNT
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
surface mount	NO
Switch action	MOMENTARY
Switch type	PUSHBUTTON SWITCH
Terminal surface	Silver (Ag)
Termination type	SCREW

Preview

Download Datasheet

View All

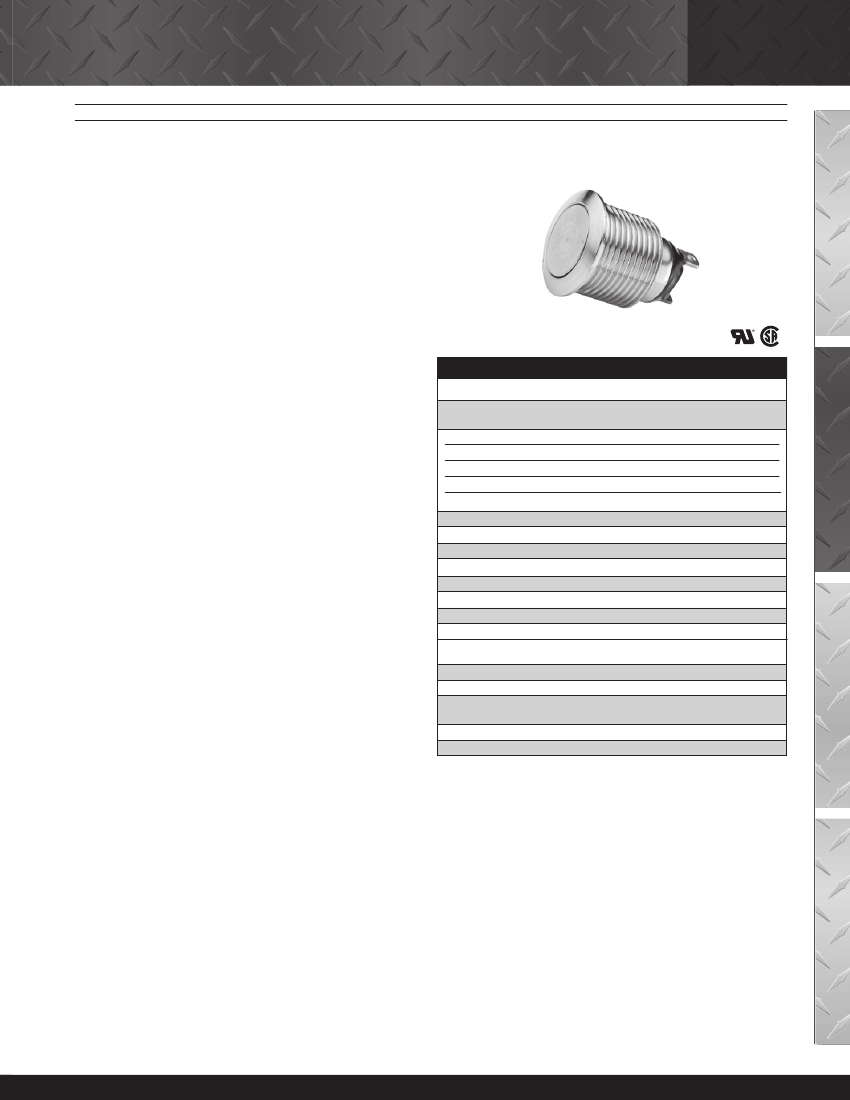

VANDAL RESISTANT PUSHBUTTONS

The P8 Vandal Resistant series is a durable, robust switch,

offering the same quality and precision tactile feedback found

in the standard P8 series. With a variety of case, mounting and

terminal styles and a mechanical life of 1,000,000 cycles, this

stainless steel sealed switch is ideal for door access security

systems, public transit systems, emergency phones, traffic

signals, industrial and process control environments and

anywhere that ruggedness, durability and security are crucial.

OTTO P8 series pushbutton switches feature a shortened

back of panel depth while offering all the features of the regular

size P1 and P3 series switches. P8 series switches offer

vastly improved electrical and mechanical life under extreme

conditions found in most military and industrial environments.

On sealed models, a silicone boot operating on our patented

“rolling sleeve” principle protects the contact area against

contamination at the button area. This boot provides long life

and smooth operation over a wide temperature range. Sealed

terminals protect the contact area from hostile environments

and solder flux on both sealed and unsealed models.

High contact force (120g/4.2 oz), low contact resistance

and short contact bounce (5ms max) are all a result

of our snap-action mechanism. These characteristics provide

exceptional current carrying capabilities over the life of the

switch. Optional logic level (gold plate) configuration makes the

P8-V switches well suited to interface directly to computers

and other solid state devices.

Standard Characteristics/Ratings:

ELECTRICAL RATINGS:

Load

Resistive

Inductive

Lamp

DWV

Logic Level

Electrical Life:

Mechanical Life:

Seal:

Operating Force:

Total Travel:

Overtravel:

Sea Level @ 28VDC

or 115VAC, 60/400Hz

10A

1000Vrms

10mA @ 5VDC

100,000 cycles (1,000,000 logic level)

1,000,000 cycles

IP64 or IP68S and IP69K

2.5 lbs. +0.5 /-1.0 lb. or 4.0 lbs. +/- 1.0 lb.

0.085 +/- 0.015 inches

0.012 inches min

COMPACT

PUSHBUTTONS

P8-V

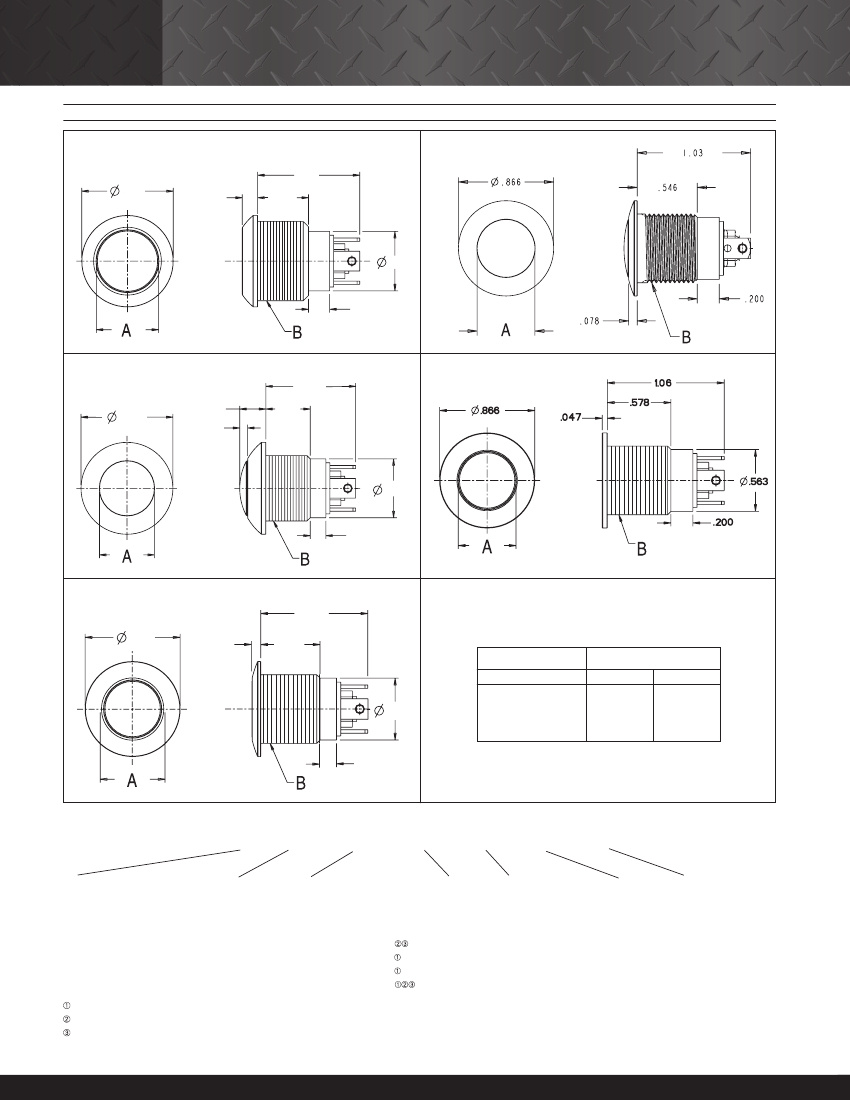

MOMENTARY ACTION, SHORTER BEHIND PANEL, SUBMINIATURE DOUBLE BREAK, SNAP-ACTION

Flush Mount,

5/8” Thread Shown

PUSHBUTTON SWITCHES

Operating Temp Range:

-55°C to +85°C

Features:

• Stainless steel vandal resistant case

• Aluminum security level case

• Watertight to IP68S and IP69K or moistureproof &

dusttight to IP64

• Positive tactile feedback

• Variety of case and button styles available

• Mechanical life 1 million cycles

• UL recognized & CSA certified

• UL1500 ignition protected

• RoHS compliant

Movement Differential:

0.015 inches min

MATERIALS:

Case:

Button:

Terminals:

Terminal Hardware:

Mounting Hardware:

Anodized aluminum alloy or stainless steel (303)

Standard silver plate or optional gold plate for

logic level applications

Terminal lugs, screws and lockwasher when applicable

Hex nut, lockwasher and panel seal gasket when applicable

Specifications Subject To Change Without Notice

www.ottoexcellence.com

181
