BAC034

Description
RF BNC Connector, Male, Cable Mount, Solder Terminal
CategoryThe connector    The connector
File Size134KB,1 Pages
ManufacturerL-com Global Connectivity
Download Datasheet Parametric View All

BAC034 Overview

RF BNC Connector, Male, Cable Mount, Solder Terminal

BAC034 Parametric

Parameter NameAttribute value
MakerL-com Global Connectivity
Reach Compliance Codeunknown
Other featuresAPPLICABLE CABLE:RG 59
Characteristic impedance75 Ω
Connector typeRF BNC CONNECTOR
Contact point genderMALE
Coupling typeBAYONET
DIN complianceNO
Filter functionNO
IEC complianceNO
insulator materialTEFLON
MIL complianceNO
Installation methodSTRAIGHT
Installation typeCABLE
Panel mountingNO
Termination typeSOLDER
Base Number Matches1
8
7
6
5
4
REV
A
B
C
.
3
DESCRIPTION
RELEASED FOR PRODUCTION
UPDATED DRAWING PER ECN# 1204
ECN 3139: UPDATE DWG FORMAT
.
2
REVISIONS
1
DATE
11/02/01
09/26/02
1/4/08
.
CHANGED BY
MCCORMICK
MCCORMICK
D.GRIFFIN
.
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE
PROPERTY OF L-COM, INC. ANY REPRODUCTION IN PART OR WHOLE
WITHOUT THE WRITTEN PERMISSION OF L-COM, INC. IS PROHIBITED.
D
.94 23.8
D
C
C
B
B

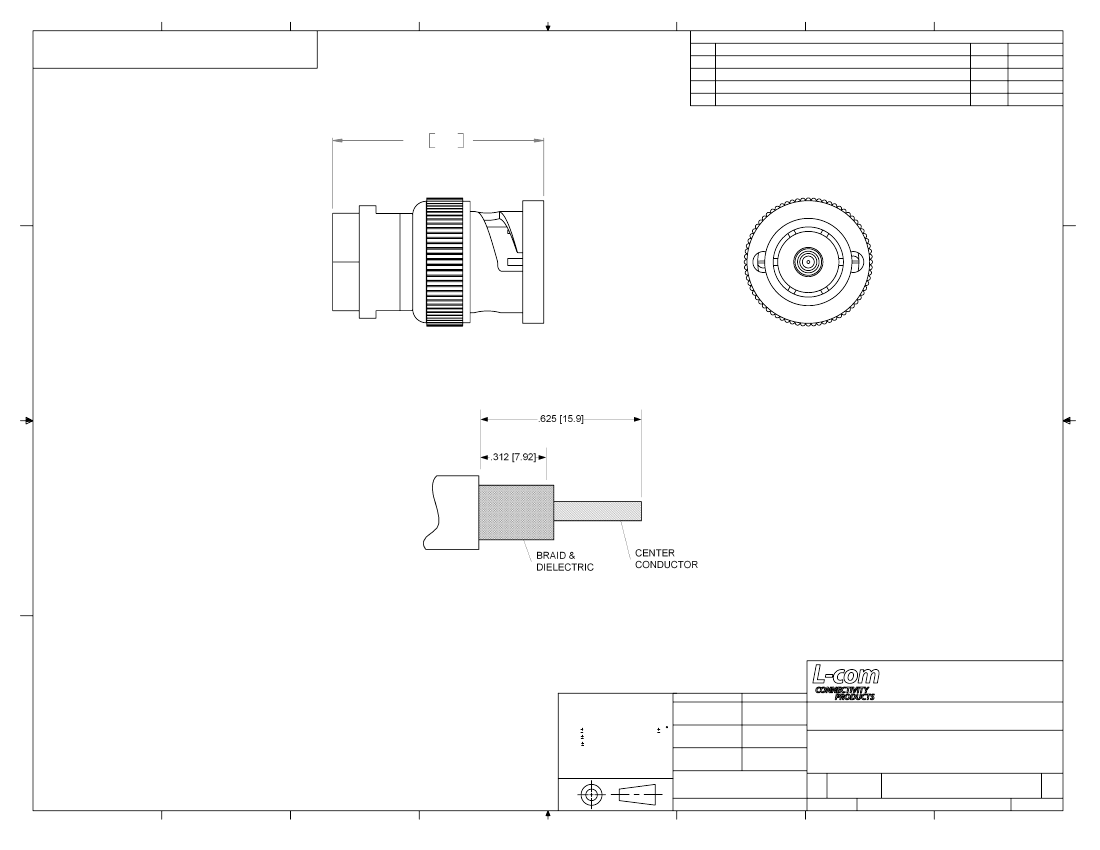

NOTES:
MATERIAL:
BODY: BRASS
DIELECTRIC: ACETAL
CENTER PIN: BRASS
A
FINISH:
BODY: NICKEL PLATE
CENTER PIN: GOLD PLATE
NOTES:
1. CHARACTERISTIC IMPEDANCE: 75 OHMS
2. RECOMMENDED APPLICATION: RG59 PLENUM COAXIAL CABLE
3. CENTER PIN ATTACHMENT: SOLDER
RoHS Compliant
APPROVALS
UNLESS OTHERWISE SPECIFIED,
DRAWN BY
DIMENSIONS ARE IN INCHES [mm]
MCCORMICK
TOLERANCES TO BE:
.X .1 [2.5]
ANGLES 2 CHECKED BY
.XX .01 [.25]
ENG
.XXX .005 [.13]
OVERALL CABLE LENGTH TOL:
60 [1524] +3 [76.2] / - 0
> 60 [1524] +5% / -0%
PROJ
APPROVED BY
D.PARHAM
DATE
CATEGORY
11/02/01
11/02/01
11/02/01
SIZE
PRODUCT DESCRIPTION
45 BEECHWOOD DRIVE
NORTH ANDOVER, MA
01845
COAXIAL
A
CONN 75OHM BNCM RG6 SOLDR TFE
CONFIGURATION DETAILS OF
UNDIMENSIONED FEATURES
MAY VARY
SCALE: NONE CAD FILE:
A
43321
FSCM NO.
DWG. NO.
BAC034
1
BAC034.SLDDRW
SHEET 1 OF 1
C
REV.
8
7
6
5
4
3
2
