FTSH-126-02-F-D datasheet, PDF

Datasheet> All Categories > The connector> The connector> FTSH-126-02-F-D

FTSH-126-02-F-D: DescriptionBoard Connector, 52 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Black Insulator, Receptacle, ROHS COMPLIANT; CategoryThe connector The connector; File Size250KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

FTSH-126-02-F-D Overview

Board Connector, 52 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Black Insulator, Receptacle, ROHS COMPLIANT

FTSH-126-02-F-D Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1633514432
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	2 weeks
Samacsys Description	52 Position, High Reliability Header Strips, 0.050" pitch
Samacsys Manufacturer	SAMTEC
Samacsys Modified On	2021-03-10 06:28:45
YTEOL	9.15
Other features	ELP
subject depth	0.099 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD FLASH OVER NICKEL
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	1.27 mm
Plating thickness	FLASH inch
Rated current (signal)	3.3 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.09 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	52
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

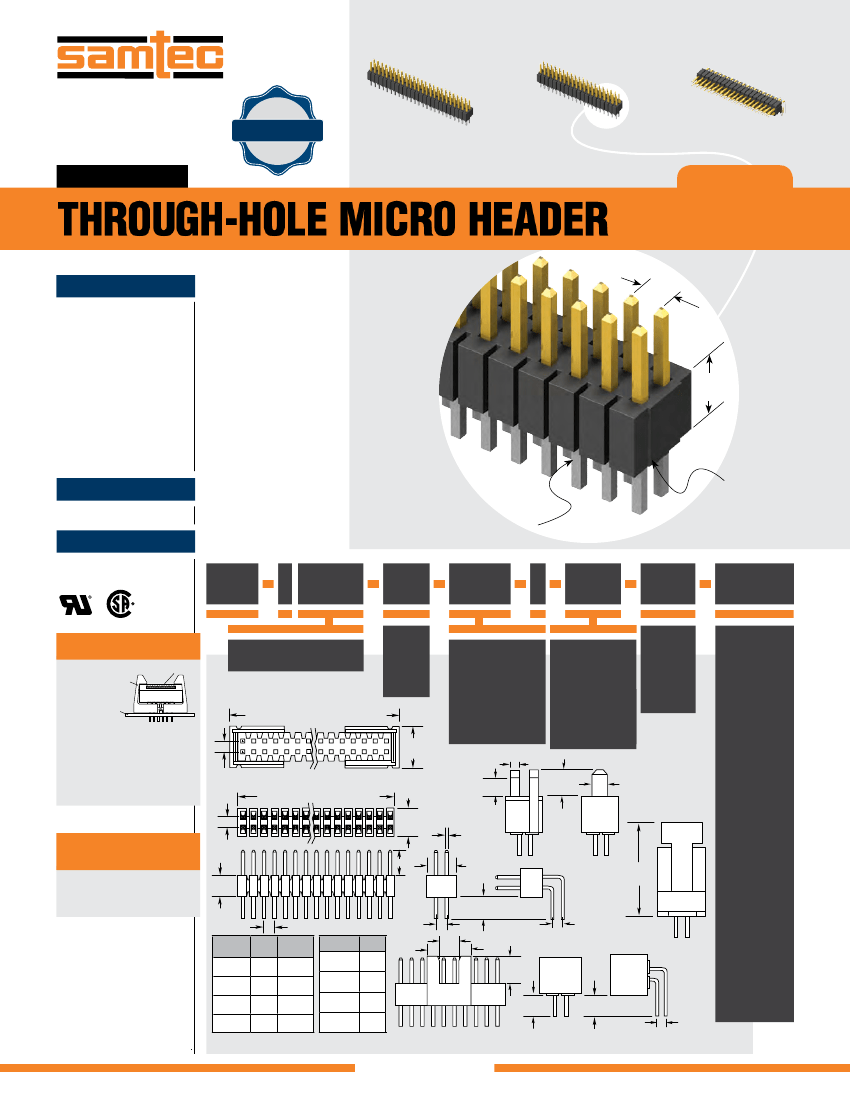

F-217

FTSH–120–02–L–D

EXTENDED LIFE

PRODUCT

HIGH MATING

CYCLES

10 YEAR MFG

WITH 30 µ" GOLD

FTSH–125–01–F–D

FTSH–120–01–L–D–RA

(1.27 mm) .050"

FTSH SERIES

THROUGH-HOLE MICRO HEADER

SPECIFICATIONS

For complete specifications

see www.samtec.com?FTSH

Insulator Material:

Black Liquid

Crystal Polymer

Terminal Material:

Phosphor Bronze

Plating:

Sn or Au over

50 µ" (1.27 µm) Ni

Current Rating (FTSH/CLP):

3.3 A per pin

(1 pin powered per row)

Operating Temp Range:

-55 °C to +125 °C

RoHS Compliant:

Yes

Board Mates:

CLP, FLE

Cable Mates:

FFSD, FFTP

Impedance matched

for high-speed

applications

(Mated with

CLP Series)

(1.27 mm) .050"

micro pitch

(2.51 mm)

.099"

PROCESSING

Lead-Free Solderable:

Yes

Mates with

socket strips

or IDC cable

RECOGNITIONS

For complete scope

of recognitions see

www.samtec.com/quality

Through-hole,

right-angle or

surface mount

Optional end

shrouds and

ejector shrouds

FTSH

NO. PINS

PER ROW

LEAD

STYLE

Specify

LEAD

STYLE

from

chart

100

PLATING

OPTION

TAIL

OPTION

Leave

blank for

straight tail

= Right-

angle

OTHER

OPTIONS

FILE NO. E111594

FILE NO: 090871_0_000

LOCKING CLIP

FFSD

For single

STRIP ASSEMBLY

mating

LOCKING

CLIP

cycle

with the

FFSD.

BOARD

Specify -LC after tail option.

Lead Style -01 and

10 pins/row minimum.

5-9 pins/row not available

in combination with keying

shroud (-K).

02 thru 50

= Gold flash on post,

Matte Tin on tail

–F

–L

Leave blank for

RIght-angle

= Polarized Position

(Specify position

of omitted pin)

(Not available

with -EX options)

–“XXX”

–RA

= End Shroud

(Style –02 & –03)

9 pins/row min.

= End Shroud

with Guide Post

(Style –02 & –03)

9 pins/row min.

= End Shroud

with Board Lock

(Style –02 & –03)

9 pins/row min.

= Ejector Shroud

(Style –01 only)

10 pins/row min.

25 pins/row max.

–RA not available

–ES

–EP

No. of positions x (1.27) .050 +

(4.78)

.188

(1.27)

.050

= 10 µ" (0.25 µm)

Gold on post,

Matte Tin on tail

(1.17) .046

(2.29)

.090

– EX OPTION SHOWN

No. of positions x (1.27) .050

(3.05)

.120

100

(1.91)

.075

DIA

–EL

(3.43)

.135

ALSO AVAILABLE

(MOQ Required)

• Molded Pick & Place pads

• Other platings

Contact Samtec.

(1.27)

.050

(2.51)

.099

(0.40)

.016

(3.43)

.135

(2.29)

.090

(2.16) .085

(3.20)

.126

(2.29)

.090

(2.29)

.090

–EJ

–EL

–EP

(11.18)

.440

(1.27) .050

(1.27)

.050

LEAD

STYLE

– 01

– 02

Note:

See SFM/TFM for

positive alignment feature.

Note:

Some sizes, styles and

options are non-standard,

non-returnable.

– 03

– 04

MATES OPTION

(5.08)

WITH

.200

– ES

(1.55)

(3.05) FFSD,

.061

–RA

(1.27)

.050

–EJ

.120 CLP-DH

(1.91)

FLE

.075

(1.65)

.065 CLP-D

(3.81)

N/A

.150

– EJ

– EP

– EL

(15.77)

.621

(5.87)

.231

(6.53)

.257

–K

–ES

–RA –ES

(1.27)

.050

= Keying Shroud

for mating

with FFSD

(Style –01 only,

05, 08, 10, 13, 17,

20 & 25 pins/row

only and 13, 17,

20 & 25 only

with –EJ option)

–K

WWW.SAMTEC.COM
