HMTSW-104-13-S-T-1040-LL: DescriptionBoard Stacking Connector, 12 Contact(s), 3 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size451KB，3 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

HMTSW-104-13-S-T-1040-LL Overview

Board Stacking Connector, 12 Contact(s), 3 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT

HMTSW-104-13-S-T-1040-LL Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1667010224
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Factory Lead Time	2 weeks
YTEOL	9.1
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL (50)
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	3
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	12

Preview

Download Datasheet

View All

REVISION AR

DO NOT

SCALE FROM

THIS PRINT

NOTES:

REPRESENTS A CRITICAL DIMENSION

FOR STATISTICAL PROCESS CONTROL.

2. MINIMUM TERMINAL PUSHOUT FORCE: 3 LBS

3. MAXIMUM HEIGHT VARIATION BETWEEN ANY

TWO ROWS: .005[0.13] (RA TAIL N/A)

4. ASSEMBLE GOLD PLATE END AS SHOWN.

5. TOW & SWAY SPEC. OF 2° APPLIES TO ALL POSITIONS,

POST & TAIL, IN ALL DIRECTIONS.

6. NOTE DELETED.

7. MAXIMUM CUT FLASH: .010 [0.25]

8. NOTE DELETED.

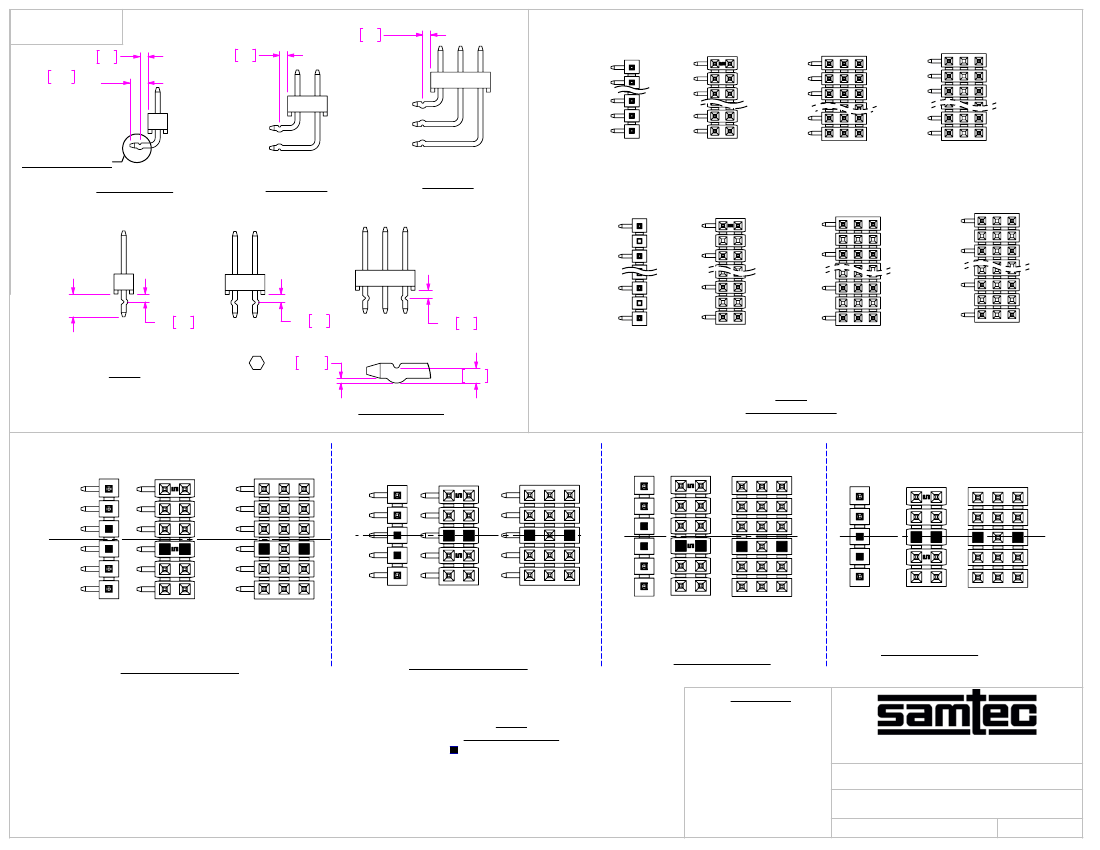

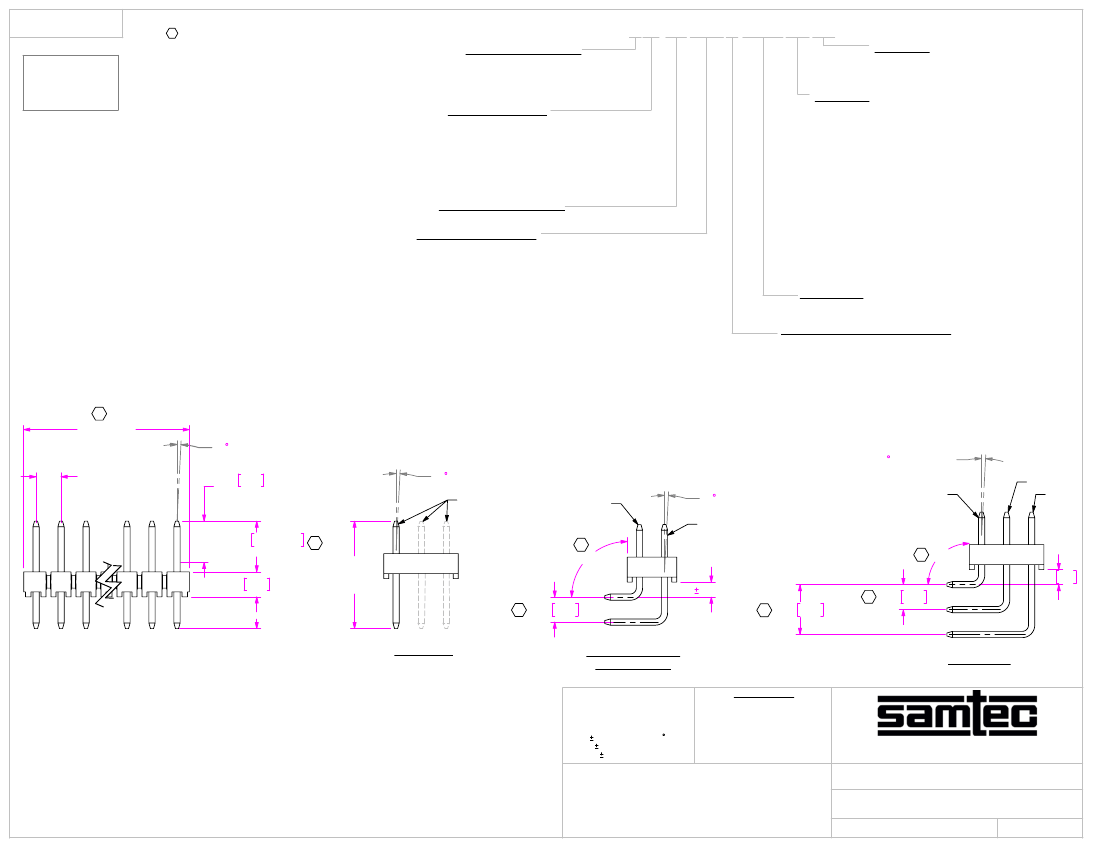

HMTSW-XXX-XX-XXX-X-XXXX-XX-XX

-1 = .100 [2.54] (FILL EVERY POS)

-2 = .200 [5.08] (FILL E/O POS

STARTING W/ 1ST & ENDING

W/ LAST POS IN BODY

TERMINAL SPACE SPEC.

-POLARIZATION SPEC

XXX INDICATES POSITION TO BE OMITTED

(SEE FIG 2, SHT 2)

- BLANK: STRAIGHT

-RA: RIGHT ANGLE (SEE TABLE 3, SHT 3 & FIG 3, SHT 2)(-RA

OPTION WITH -LL OPTION EQUALS TO -LA OPTION)

-RE: EXTENDED RIGHT ANGLE (SEE TABLE 3, SHT 3 & FIG 3, SHT 2)

(SINGLE ROW ONLY) (-07,-23,-24 N/A)

-NA: RA OPTIONS WITH STRAIGHT OPTION BODY(-NA OPTION

WITH -LL OPTION IS VALID)

-NE: RE OPTION WITH STRAIGHT OPTION BODY

-LL: LOCKING LEAD (SEE FIG 1)

(N/A WITH -RE OPTION OR SINGLE ROW

1 OR 2 POSITION)

(TAILS FROM .090 [2.29] TO .400 [10.16 ONLY)

(N/A IN SINGLE ROW, 1 & 2 POSITIONS)

-LA: -RA OPTION WITH-LL OPTION (SEE FIG 2 & 3)

(N/A WITH OR SINGLE ROW, 1 & 2 POSITION)

(TAILS FROM .090 [2.29] TO .310 [7.87] ONLY

POST = .530 [13.46] MAX

OPTION #2

OPTION #1

BODY LENGTH SPEC

EXPRESSED IN No OF POS

-1: 01 THRU -50 (-S,-D,-T,-T-RA)

01 THRU -50 (-S-RE,-S-RA,-D-RA)

"A" = NO OF POS x .100[2.54]

-2: -02 THRU -25 (-S,-D,-T,-T-RA)

-02 THRU -25 (-S-RE,-S-RA,-D-RA)

"A" = (NO OF POS x .200 [5.08])-.100 [2.54]

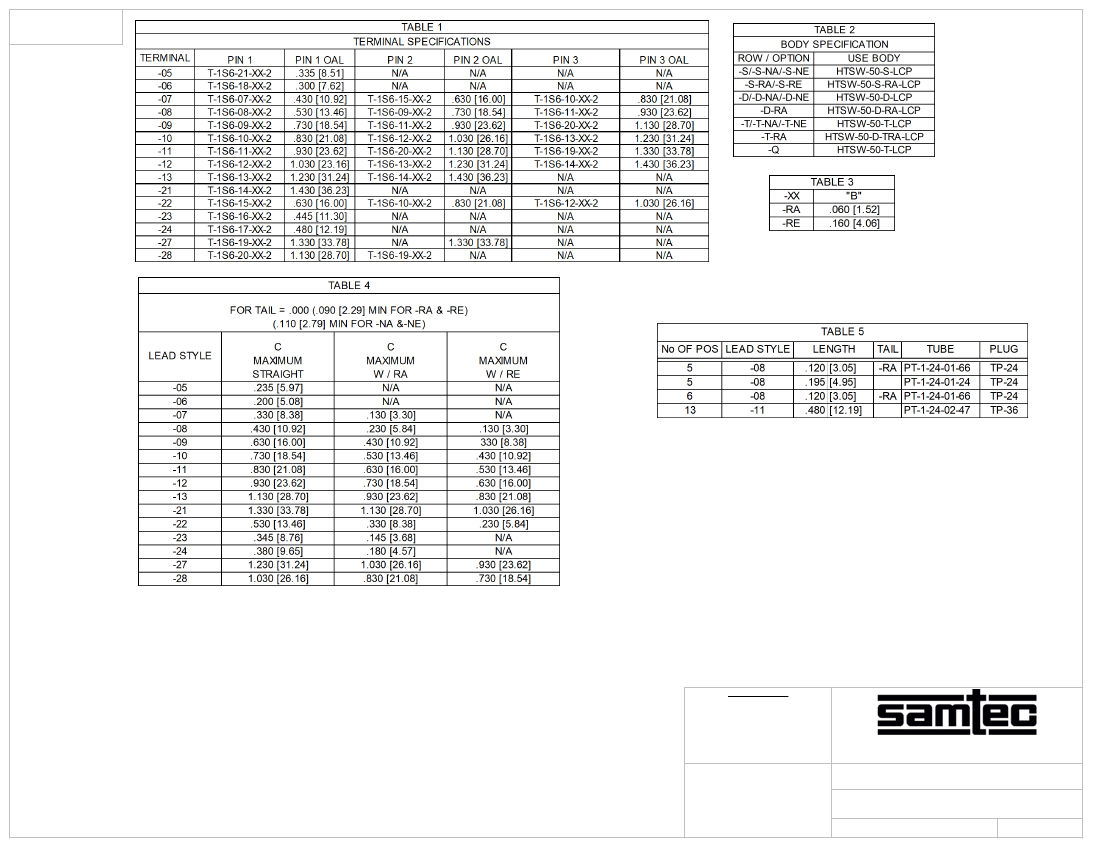

TERMINAL SPECIFICATION

(SEE TABLE 1, SHT 3)

PLATING SPECIFICATION

"A"

.005[0.13]

.015[0.38]

2 MAX SWAY

(EITHER DIRECTION)

.165 4.19 REF

(SEE NOTE 4)

-G: 10µ" GOLD IN CONTACT AREA,

3µ" GOLD ON TAIL

-T: MATTE TIN ON CONTACT AND TAIL

-S: 30µ" SELECTIVE GOLD IN CONTACT AREA,

MATTE TIN ON TAIL

-H: 30µ" GOLD IN CONTACT AREA,

3µ" GOLD ON TAIL

-L: 10µ" SELECTIVE GOLD IN CONTACT AREA,

MATTE TIN ON TAIL.

-F: 3µ" SELECTIVE GOLD IN CONTACT AREA,

MATTE TIN ON TAIL.

-E: 50µ" GOLD IN CONTACT AREA, 3µ" GOLD ON TAIL

(ONLY AVAILABLE ON TERMINAL SPECIFICATONS -07, -08, -09, -13, -14)

(NOT AVAILABLE ON -RA, -RE, -NA, -NE, -LA)

-TL: TIN/LEAD (90/10±5%) CONTACT AND TAIL

(ONLY AVAILABLE ON LEAD STYLES -07, -08, & -09)

-TM: MATTE TIN CONTACT AND TAIL

-SM: 30µ" SELECTIVE GOLD IN CONTACT AREA, MATTE TIN ON TAIL

-LM: 10µ" SELECTIVE GOLD IN CONTACT AREA, MATTE TIN ON TAIL

-FM: 3µ" SELECTIVE GOLD IN CONTACT AREA, MATTE TIN ON TAIL

-STL: 30µ" SELECTIVE GOLD IN CONTACT AREA, TIN LEAD (90/10±5%) TAIL

POST HEIGHT

XXXX = "C" (SEE TABLE 4, SHT 3)

ROW SPECIFICATION (SEE TABLE 2)

-S: SINGLE

-D: DOUBLE

-T: TRIPLE

-Q: TRIPLE TOW (FILL OUTER TWO ROWS)

-1XX=.100[2.54]

-2XX=.200[5.08]

2 MAX SWAY

(EITHER DIRECTION)

PIN 1

2 MAX SWAY

(EITHER DIRECTION)

PIN 1

2 MAX SWAY

(EITHER DIRECTION)

PIN 2

PIN 1

PIN 2

PIN 3

"C"±.008 5.16±0.20

(SEE NOTE 3)

.100 2.54 REF

TAIL

SEE

TABLE 1,

SHT 3

.100 2.53

90°

"B" .010[.25]

.200 5.07

90°

.06 1.5

.100 2.54

STRAIGHT

SINGLE -RA/-RE

DOUBLE -RA

UNLESS OTHERWISE SPECIFIED,

DIMENSIONS ARE IN INCHES.

TOLERANCES ARE:

DECIMALS

ANGLES

THIS DOCUMENT CONTAINS CONFIDENTIAL AND

PROPRIETARY INFORMATION AND ALL DESIGN,

MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS

AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,

INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE

OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR

REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY

OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS

WRITTEN CONSENT OF SAMTEC, INC.

TRIPLE -RA

PROPRIETARY NOTE

.XX: .01[0.3]

.XXX: .005[0.13]

.XXXX: .0020[0.051]

520 PARK EAST BLVD, NEW ALBANY, IN 47150

PHONE: 812-944-6733

FAX: 812-948-5047

e-Mail info@SAMTEC.com

code 55322

DESCRIPTION:

DWG. NO.

DO NOT SCALE DRAWING

MATERIAL:

LCP, UL 94 VO, COLOR: NATURAL

SHEET SCALE: 2.5:1

.025 SQ POST HI-TEMP TERMINAL STRIP

HMTSW-XXX-XX-XXX-X-XXXX-XX-XX

JORDAN

03/25/1987

SHEET

F:\DWG\MISC\MKTG\HMTSW-XXX-XX-XXX-X-XXXX-XX-XX-MKT.SLDDRW

BY:
