3FSH9+1D02: DescriptionSwitch, SPST, Vertical, 0.05A, 24VDC, Surface Mount-straight,; CategoryMechanical and electronic products switch; File Size141KB，1 Pages; ManufacturerAPEM

Download Datasheet Parametric Compare View All

3FSH9+1D02 Overview

Switch, SPST, Vertical, 0.05A, 24VDC, Surface Mount-straight,

3FSH9+1D02 Parametric

Parameter Name	Attribute value
Maker	APEM
Reach Compliance Code	compliant
Actuator length	0.295 inch
Actuator type	PUSHBUTTON
Other features	WITH GREEN CAP
body width	10.1092 mm
body height	7.3914 mm
Body length or diameter	10.1092 mm
Maximum contact current (DC)	0.05 A
Contact (DC) maximum rated R load	0.05A@24VDC
Maximum contact voltage (DC)	24 V
Electrical life	10000000 Cycle(s)
Manufacturer's serial number	3F
Installation features	SURFACE MOUNT-STRAIGHT
Maximum operating temperature	160 °C
Minimum operating temperature	-40 °C
surface mount	NO
Switch action	VERTICAL
switch function	SPST
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

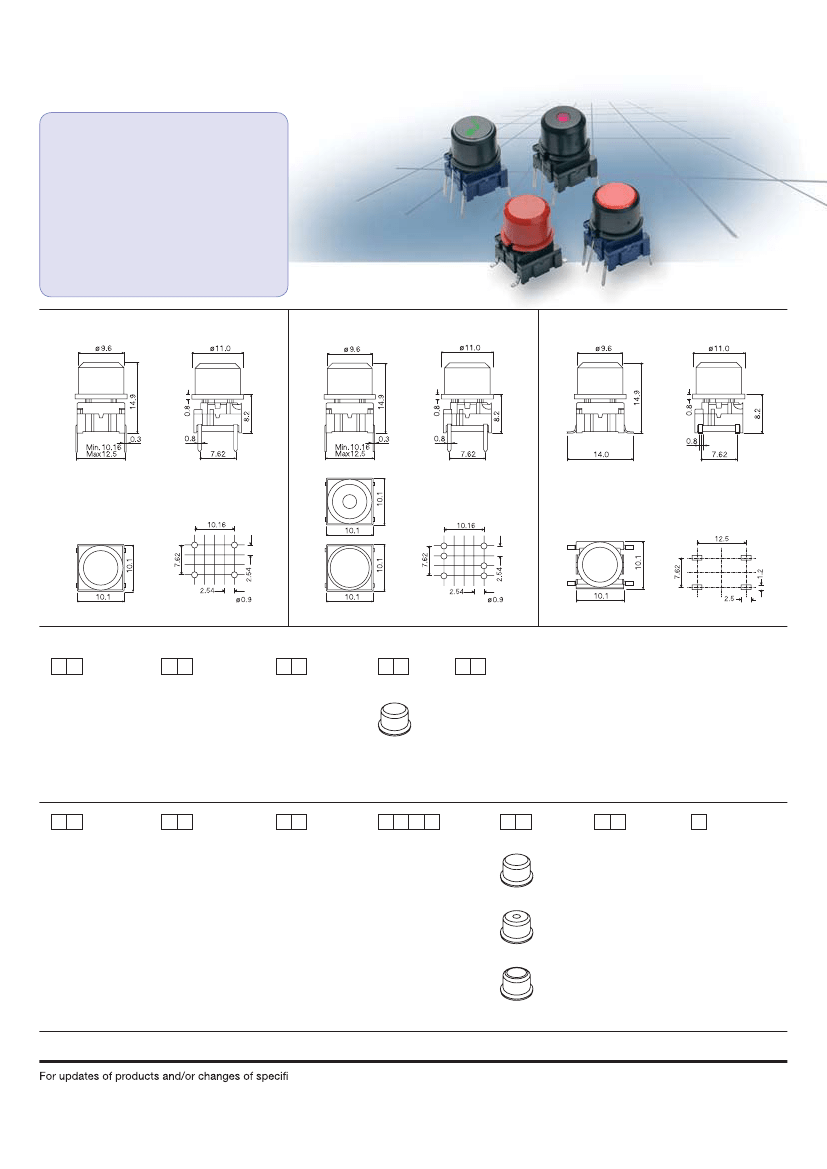

multimec

Technical Data

■

through-hole or SMD

■

50mA/24VDC

■

single pole/momentary

■

10.000.000 operations life time

■

IP67 sealing

■

temperature range:

low temp: -40/+115°C

high temp: -40/+160°C

®

3F/4F + 1D/1E/1F

Keycaps shown on this page can also be used on

illumec™ switch 4F

Dimensions (through-hole) 3F

Dimensions (w/LED) 3F

Dimensions (SMD) 3F

PCB layout

(top view)

PCB layout

How to order

3 F

Switch

Mounting

T

through-hole

S

surface mount

+

L 6

low temp.

H 9

high temp.

1 D

Cap

00

02

03

04

06

08

09

blue

green

grey

yellow

white

red

black

30

40

42

32

33

34

38

ultra blue

dusty blue

aqua blue

mint green

tele grey

melon

noble red

50

53

57

58

metal dark blue

metal light grey

metal dark grey

metal bordeaux

Keycaps shown on this page can also be used on

illumec™ switch 4F

3 F

Switch

T

Mounting

T

through-hole

L 6

low temp.

H 9

high temp.

+

LED

00

blue

20

green

40

yellow

60

white

80

red

2040

green/yellow

8020

red/green

8040

red/yellow

Cap 1D

11

transparent

Lens

16

frosted white

00

02

03

04

06

08

09

blue

green

grey

yellow

white

red

black

1

2

4

6

8

transparent

green

yellow

frosted white

red

Cap 1E

Cap 1F

Ordering example:

3FTL620 + 1E032

cations please see

www.mec.dk

|

mec

|

0804
