Extended Temp High Reliability Crystal
Model: FXA3225BG Series
Page 1 of 2
RoHS Compliant
Rev. 2/27/2009
http://www.foxonline.com/need_a_sample.htm
FEATURES
• Meets AEC-Q200 Requirements
• 1.0mm Height
• Tape and Reel (1,000 pcs. STD)
• PART NUMBER
Learn More - Internet Required
Part Number
507BG-Frequency-xxxxx
Model Number
FXA3225BG
Frequency Range (MHz)
15.000 ~ 40.000
3.3 Max
#4
Top
View
#1
#2
1.0 Max
#3
2.6 Max
• STANDARD SPECIFICATIONS
PARAMETERS
Frequency
Frequency Tolerance @ 25ºC
Frequency Stability @ 25ºC
-40 ~ +125ºC
-40 ~ +85ºC
Temperature Range
Operating (T
OPR
)
Storage
(T
STG
)
Shunt Capacitance (C
O
)
Load Capacitance
(C
l
)
Drive Level
Aging per year
Maximum Soldering Temp / Time
Moisture Sensitivity Level (MSL)
Termination Finish
Seal Method
MAX
(unless otherwise noted)
15.000 ~ 40.000 MHz
±30 PPM, ±50 PPM
±100 PPM
±50 PPM
-40ºC ~ +125ºC
-40ºC ~ +125ºC
5pF
8pF~Series
100µW
±5 PPM
260ºC / 10 Seconds
1
Au
Glass
Bottom
View
#1
#2
1.0
#4
1.2
#3
Recommended
Solder Pad Layout
1.3
1.1
#4
#3
1.9
#1
2.3
All measurements are in millimeters
Frequency Range
(MHz)
15.000 ~ 15.999999
16.000 ~ 40.000000
Operating Mode
Fundamental
Fundamental
Max ESR
Ω
100
80
#2
Note: Dimensional drawing is for reference to critical specifications defined by size measurements.
Certain non-critical visual attributes, such as side castellations, etc. may vary.
The above specifications, having been carefully prepared and checked, are believed to be accurate at the time
of publication; however, no responsibility is assumed by Fox Electronics for inaccuracies.
FOXElectronics
5570 Enterprise Parkway Fort Myers, Florida 33905 USA +1.239.693.0099 FAX +1.239.693.1554
http://www.foxonline.com
© 2009 FOX ELECTRONICS | ISO9001:2000 Certified
EMEA
Tel/Fax: +44 .1767.312632 |
Asia
Hong Kong Tel: +852.2854.4285 Fax +852.2854.4282 |
Japan
Tel: +81.3.3374.2079 Fax: +81.3.3374.5221
Extended Temp High Reliability Crystal
Model: FXA3225BG Series
Page 2 of 2
RoHS Compliant
Rev. 2/27/2009
http://www.foxonline.com/need_a_sample.htm

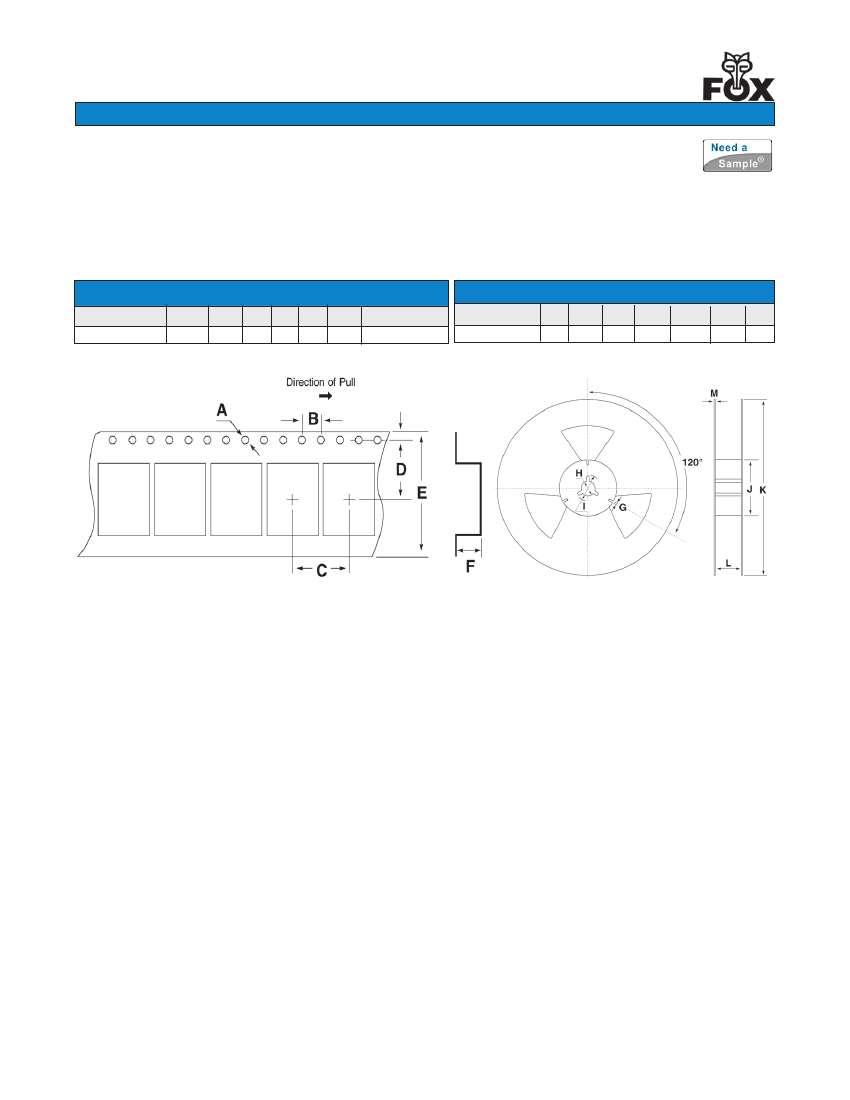

• TAPE SPECIFICATIONS
(millimeters)
B C D E
MODEL
A
FXA3225BG
∅1.55
4.0 4.0 3.5 8.0
• REEL SPECIFICATIONS
(millimeters)
G
I
J
K
L
H
M
F
STD Reel QTY
MODEL
FXA3225BG
2.0
∅13 ∅21 ∅60 ∅180
9.0 2.0
1.4
1,000
