3621L331KT datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> 3621L331KT

3621L331KT: Description1 ELEMENT, 0.7uH, GENERAL PURPOSE INDUCTOR, SMD, ROHS COMPLIANT; CategoryPassive components inductor; File Size99KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

3621L331KT Overview

1 ELEMENT, 0.7uH, GENERAL PURPOSE INDUCTOR, SMD, ROHS COMPLIANT

3621L331KT Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	TE Connectivity
Reach Compliance Code	unknown
ECCN code	EAR99
DC Resistance	0.7 Ω
Nominal inductance(L)	0.7 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	3621
Number of functions	1
Number of terminals	2
Maximum rated current	0.9 A
Shape/Size Description	CYLINDRICAL PACKAGE
shield	NO
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	ONE SURFACE
Tolerance	10%
Base Number Matches	1

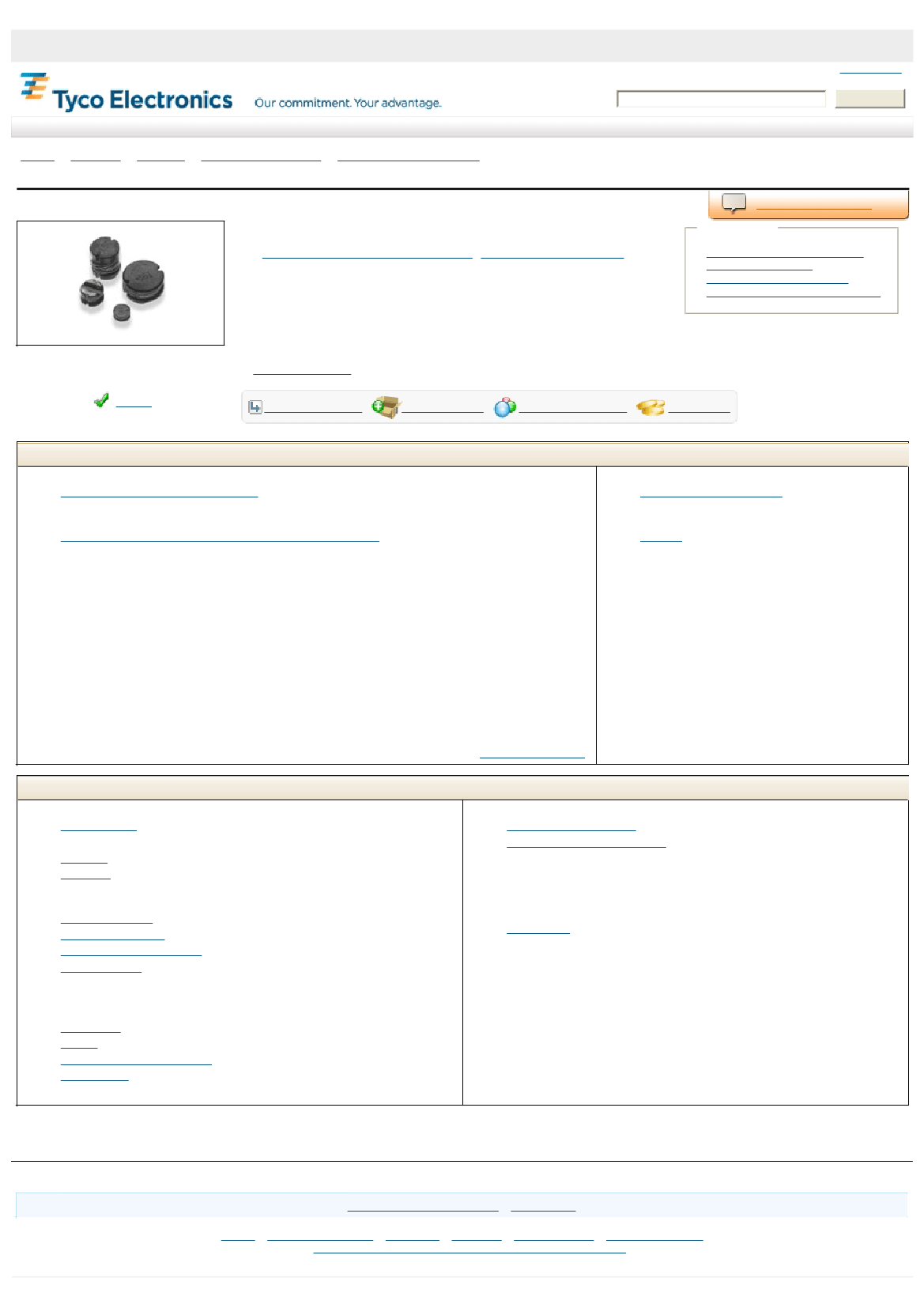

Preview

Download Datasheet

View All

C orporate Hom e

Electronic Components

Se gm e nts

W ho W e Are

My Account

Searc h

Products

Documentation

Resources

My Account

Customer Support

Home

Products

By Type

Passive C omponents

Product Feature Selector

> Product Details

3621L331KT Product Details

Live Product Chat

Inductors

C onve rte d to EU R oHS/ELV C om plia nt

(

Sta te m e nt of C om plia nce

)

Quick Links

C heck Pricing & Availability

Search for Tooling

Product Feature Selector

C ontact Us About This Product

3621L331KT

(5-1676957-4)

T E I nternal N umber: 5 - 1 6 7 6 9 5 7 - 4

Product Highlights:

Inductor

Inductor Type = Unshielded Power Wirewound

Lead Type = Surface Mount Terminals

Wirewound

Inductance = 330 ?H

View all Features

A dd to M y P art L is t

Reques t Sample

Find Similar P roduc ts

Active

Buy P roduc t

Documentation & Additional Information

Product Drawings:

POWER INDUC TORS SERIES 3621

(PDF, English)

Catalog Pages/Data Sheets:

Power Inductor - Type 3621 Series - Tyco Electronics...

(PDF, English)

Product Specifications:

None Available

Application Specifications:

None Available

Instruction Sheets:

None Available

CAD Files:

None Available

List all Documents

Product Features

(Please use the Product Drawing for all design activity)

Product Type Features:

Product Type

= Inductor

Inductor Type = Unshielded Power Wirewound

Element

= Wirewound

Shielded

= No

Electrical Characteristics:

Inductance (?H)

= 330

DC Resistance (?)

= 0.7

C urrent, Maximum (mA)

= 900

Package Type

= Taped and Reeled

Tolerance (%) = 10

Body Related Features:

Lead Type

= Surface Mount Terminals

Series

= 3621

Package, C omponent Size

= 9.5mm Diameter

Mount Style

= Surface Mount

Industry Standards:

RoHS/ELV C ompliance

= RoHS compliant, ELV compliant

Lead Free Solder Processes

= Reflow solder capable to 245?C ,

Reflow solder capable to 260?C

RoHS/ELV C ompliance History = C onverted to comply with RoHS

directive

Operation/Application:

Application

= High Power C ircuitry

Other:

Brand = Sigma Inductors

Additional Information:

Product Line Information

3621L331KT Related Products

	3621L331KT	5-1676957-4
Description	1 ELEMENT, 0.7uH, GENERAL PURPOSE INDUCTOR, SMD, ROHS COMPLIANT	1 ELEMENT, 330uH, GENERAL PURPOSE INDUCTOR, SMD, ROHS COMPLIANT
Is it lead-free?	Lead free	Lead free
Is it Rohs certified?	conform to	conform to
Reach Compliance Code	unknown	compli
ECCN code	EAR99	EAR99
DC Resistance	0.7 Ω	0.7 Ω
Nominal inductance(L)	0.7 µH	330 µH
Inductor Applications	POWER INDUCTOR	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	3621	3621
Number of functions	1	1
Number of terminals	2	2
Maximum rated current	0.9 A	0.9 A
Shape/Size Description	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE
shield	NO	NO
surface mount	YES	YES
Terminal location	DUAL ENDED	DUAL ENDED
Terminal shape	ONE SURFACE	ONE SURFACE
Tolerance	10%	10%
Base Number Matches	1	1
